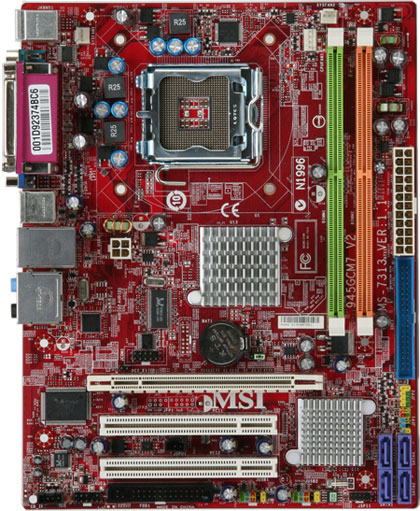

MSI 945GCM7-F V2
Model 945GCM7-F V2Part no. 7507-030REAN 4719072070038
39 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8111C
- Motherboard form factormicro ATX
- Expansion slots1 x PCI Express x16, 2 x PCI
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- micro ATX
- Expansion slots
- 1 x PCI Express x16, 2 x PCI
- Brand
- MSI
- Category
- Motherboard
- Model
- 945GCM7-F V2
- Part number
- 7507-030R
- EAN / UPC
- 4719072070038
- Also known as
- MSI 945GCM7-F V2 LGA 775 (Socket T) micro ATX
Specifications
39 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron® D |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16, 2 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 218 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | SATA II |
| Controller interface type | Ultra DMA 66/100 IDE |
| Floppy disk drive connector | Yes |
| Graphics controller | Intel GMA 950 |
