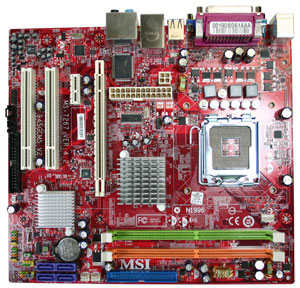

MSI 945GCM5-F V2
Model 945GCM5-F V2Part no. 7267-200REAN 4719072054366
33 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 connectors4
- LAN controllerRealtek RTL8111B
- Motherboard form factormicro ATX
- Width245 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 connectors
- 4
- LAN controller
- Realtek RTL8111B
- Motherboard form factor
- micro ATX
- Width
- 245 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- 945GCM5-F V2
- Part numbers
- 7267-200R, 7267-170B, 7267-170R, 7267-170, 945GCM5-F V2
- EAN / UPC
- 4719072054366, 4719072063627
- Also known as
- MSI 945GCM5-F V2 motherboard Socket 774 micro ATX
Specifications
33 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 774 |
| Compatible processor series | Intel® Celeron® D |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
| Networking features | 10/100/1000 Mb/s |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express 16X, 1 x PCI Express 1X, 3 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 225 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | SATA II |
| Controller interface type | Ultra DMA 66/100 IDE |
| Floppy disk drive connector | Yes |
