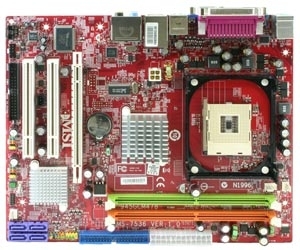

MSI 945GCM478-L Socket 478 micro ATX
Model 945GCM478-LPart no. 7536-010REAN 4719072077174
27 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8101E
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8101E
- Motherboard form factor
- micro ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- 945GCM478-L
- Part numbers
- 7536-010R, 945GCM478-L, 911-7536-001
- EAN / UPC
- 4719072077174
- Also known as
- MSI 945GCM478-L Socket 478 micro ATX
Specifications
27 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
| Compatible processor series | Intel® Celeron® D |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8101E |
| Networking features | 10/100 Mb/s Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express 16x 2 x 32-bit v2.3 PCI |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | SATAII |
| Controller interface type | DMA 66/100 IDE |
| Floppy disk drive connector | Yes |
