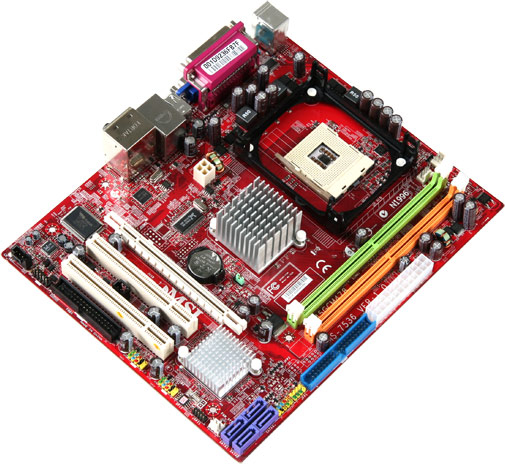

MSI 945GCM478 motherboard Socket 478 micro ATX
Model 945GCM478
33 specifications
- Processor manufacturerIntel
- Number of memory slots2
- On-board graphics cardYes
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8111C
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- On-board graphics card
- Yes
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- micro ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- 945GCM478
- Part number
- 945GCM478
- Also known as
- MSI 945GCM478 motherboard Socket 478 micro ATX
Specifications
33 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory voltage | 1.8 V |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |

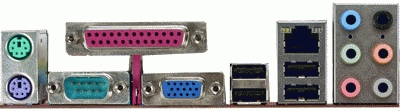

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | 10/100/1000 Mbps |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 200 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
MSI 945GCM478 motherboard Socket 478 micro ATX
No reviews yet
Be the first to tell others how MSI 945GCM478 motherboard Socket 478 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI 945GCM478 motherboard Socket 478 micro ATX
All motherboard comparisons- MSI 945GCM478 motherboard Socket 478 micro ATX vsMSI P55-GD85 LGA 1156 (Socket H) ATXCompare specs

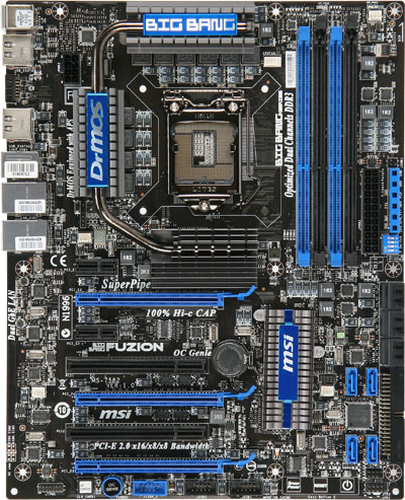

- MSI 945GCM478 motherboard Socket 478 micro ATX vsMSI Big Bang-FuzionCompare specs
- MSI 945GCM478 motherboard Socket 478 micro ATX vsMSI K7T TurboCompare specs
- MSI 945GCM478 motherboard Socket 478 micro ATX vsMSI H55M-E33 motherboard LGA 1156 (Socket H) micro ATXCompare specs
- MSI 945GCM478 motherboard Socket 478 micro ATX vsGIGABYTE GA-H55M-S2H motherboard LGA 1156 (Socket H) micro ATXCompare specs

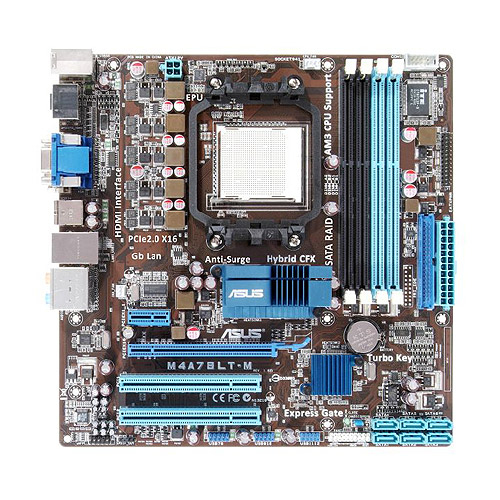

- MSI 945GCM478 motherboard Socket 478 micro ATX vsASUS M4A78LT-M Socket AM3 micro ATXCompare specs
- MSI 945GCM478 motherboard Socket 478 micro ATX vsASUS P6X58D PremiumCompare specs

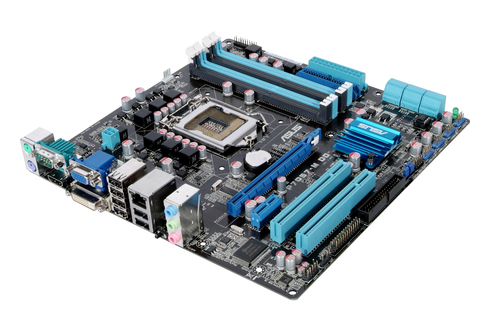

- MSI 945GCM478 motherboard Socket 478 micro ATX vsASUS P7Q57-M DOCompare specs
