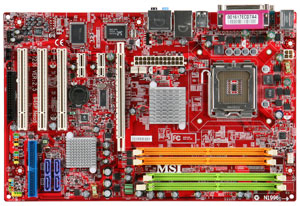

MSI 945 Neo5-F
Model 945 Neo5-FPart no. 945 NEO5-FEAN 816909041569
23 specifications
- Processor manufacturerIntel
- USB 2.0 connectors4
- Networking features10/100/1000 Mb/s
- Motherboard form factorATX
- Width300 mm
Overview
- Processor manufacturer
- Intel
- USB 2.0 connectors
- 4
- Networking features
- 10/100/1000 Mb/s
- Motherboard form factor
- ATX
- Width
- 300 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- 945 Neo5-F
- Part numbers
- 945 NEO5-F, 7236-090
- EAN / UPC
- 816909041569, 4719072063689
- Also known as
- MSI 945 Neo5-F LGA 775 (Socket T) ATX
Specifications
23 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron®, Intel® Celeron® D, Intel® Pentium® 4, Intel® Pentium® D |
| Processor system buses supported | 1333 MHz |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Microphone in | Yes |
| COM ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mb/s |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express 16X 2 x PCI Express 1X 3 x PCI 2.2 32-bit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 300 mm |
| Depth | 197 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
