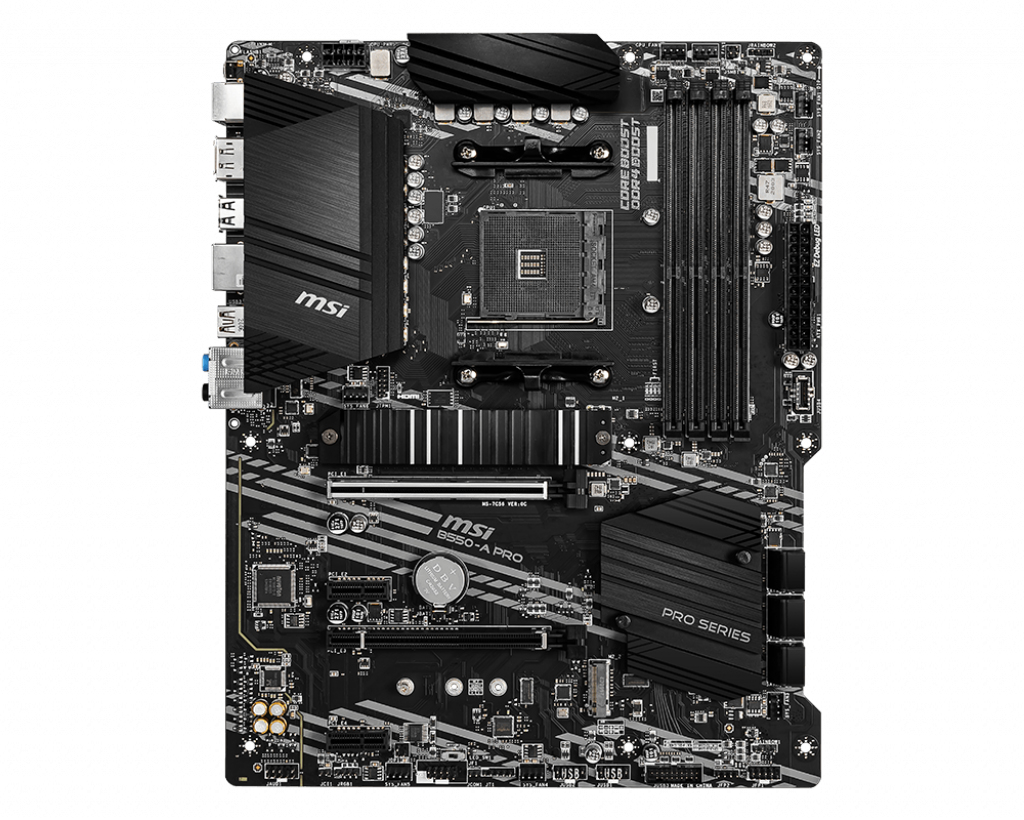

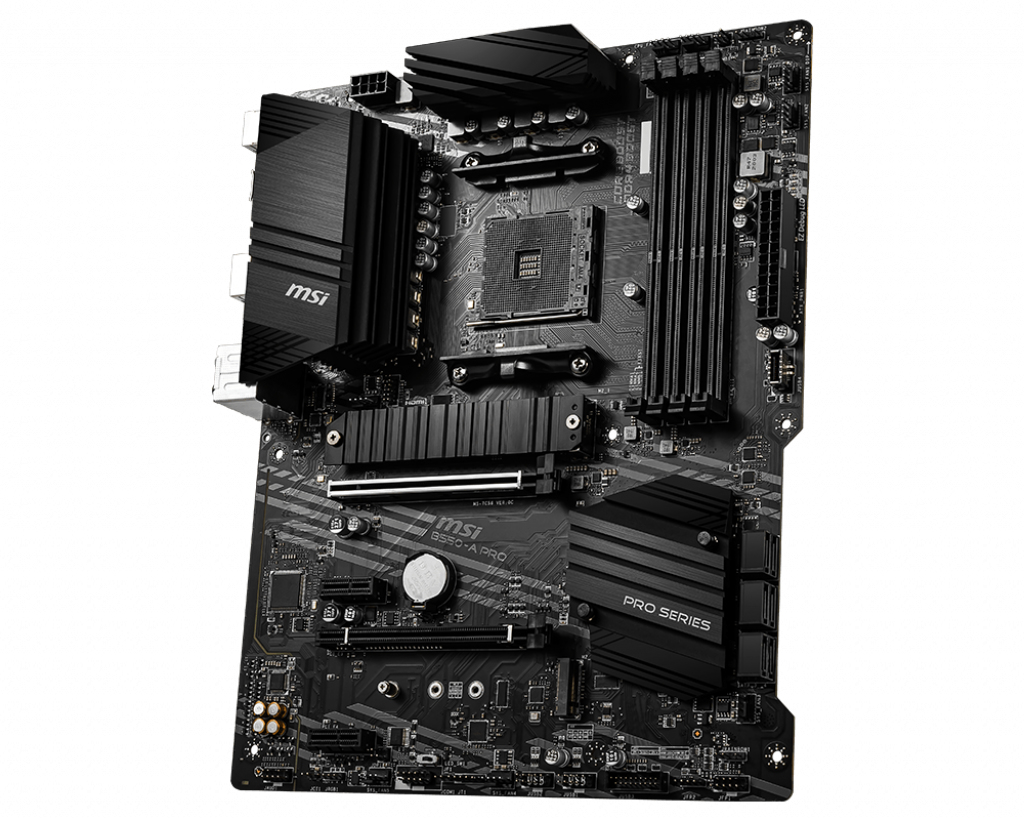

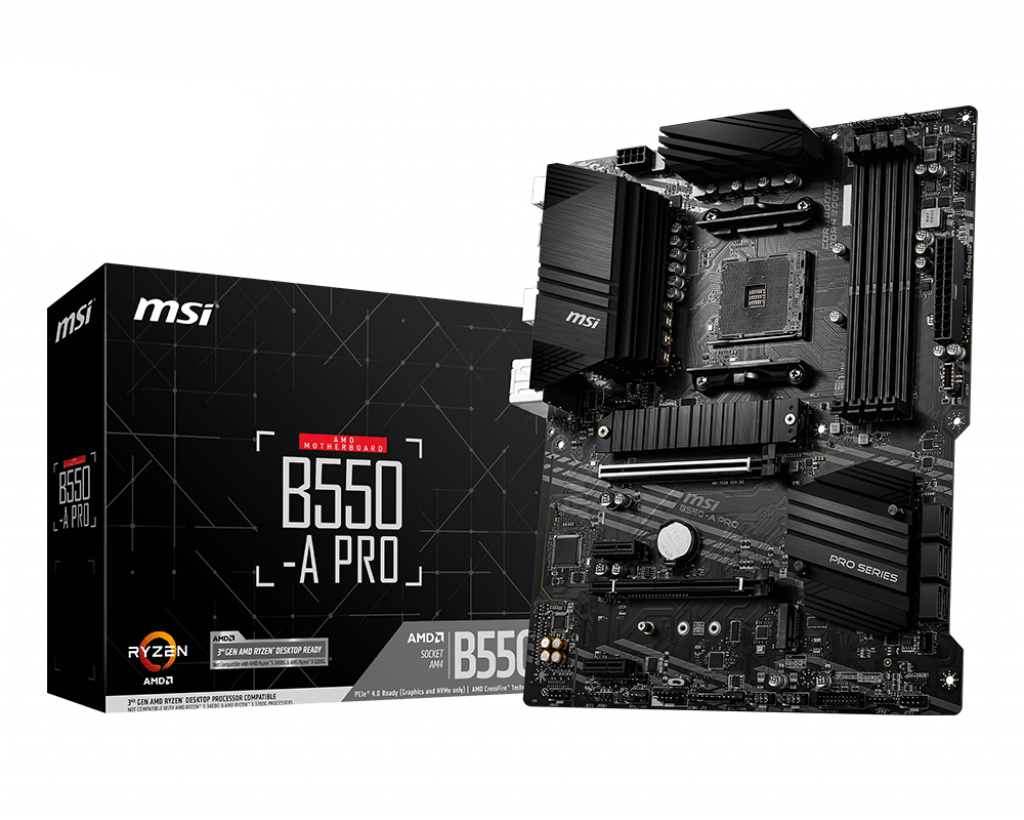

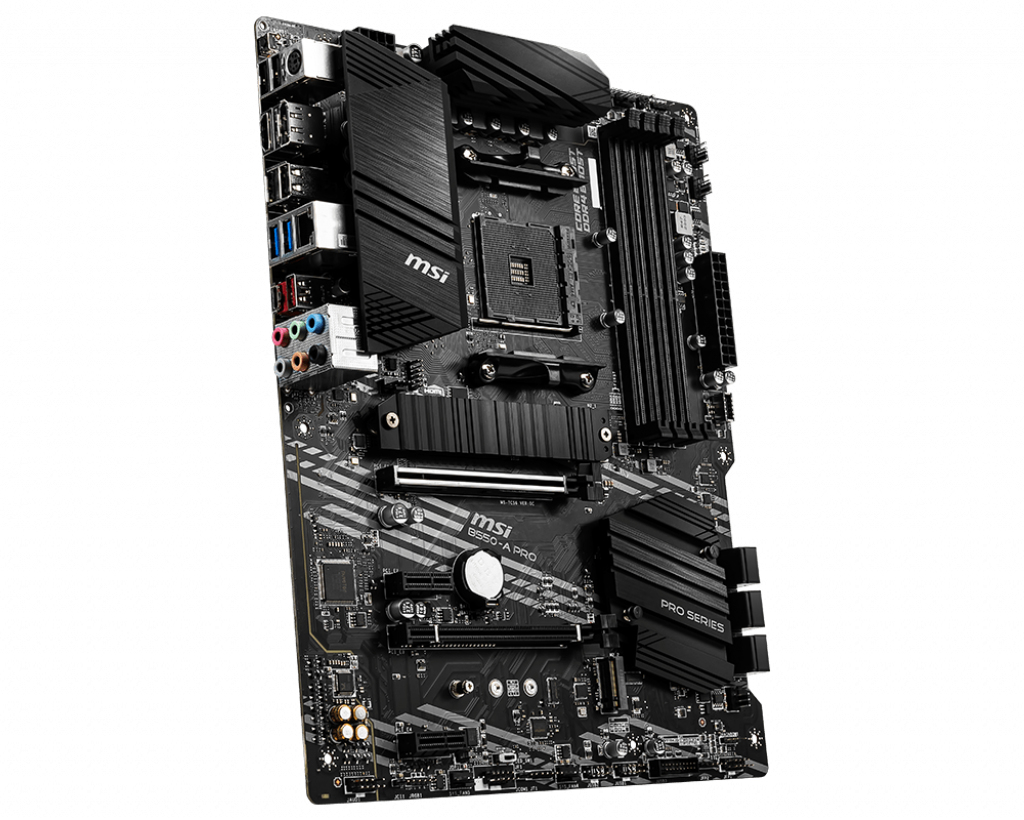

911-7C56-023 motherboard AMD B550 Socket AM4 ATX
Model 911-7C56-023
54 specifications
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- Parallel processing technology support2-Way CrossFireX
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- 2-Way CrossFireX
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- MSI
- Category
- Motherboard
- Model
- 911-7C56-023
- Part number
- 911-7C56-023
- Also known as
- MSI 911-7C56-023 motherboard AMD B550 Socket AM4 ATX
Specifications
54 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4800 MHz |
| Maximum internal memory | 128 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX |
| Maximum resolution | 4096 x 2160 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 6 |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |

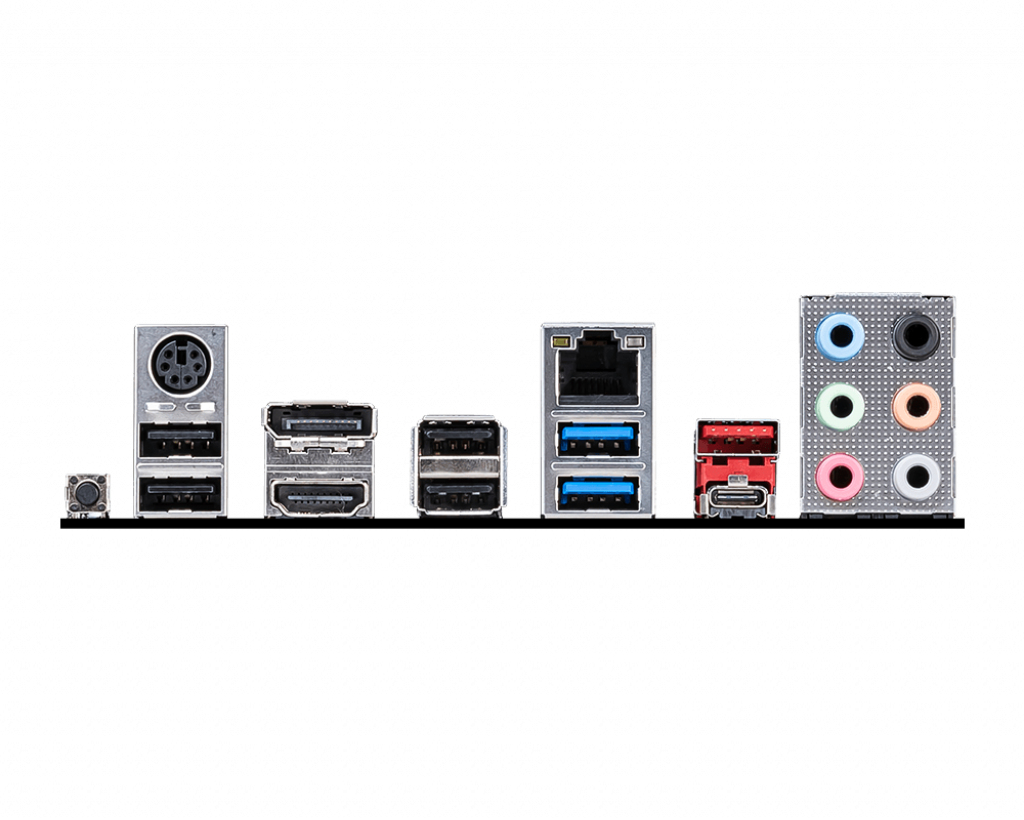

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek 8111H |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Number of mounting holes | 9 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
