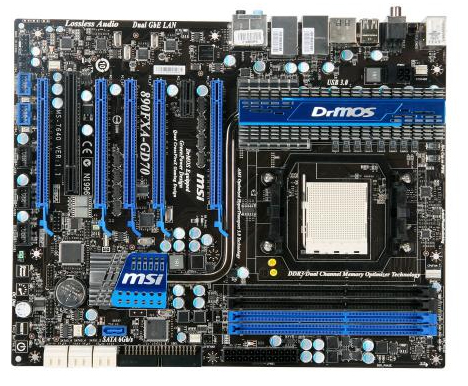

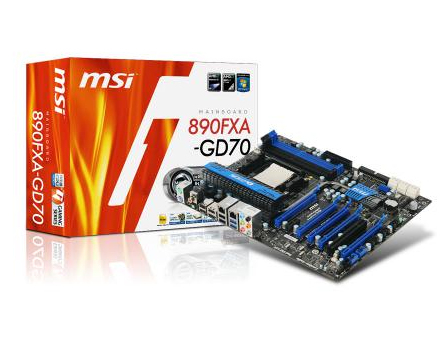

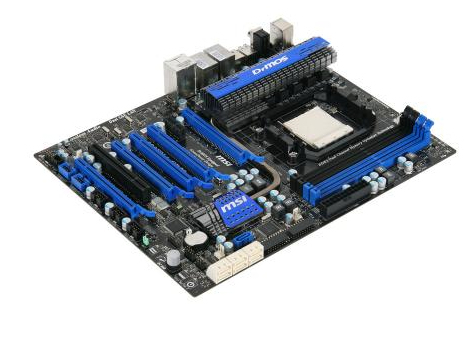

MSI 890FXA-GD70 Socket AM3 ATX
Model 890FXA-GD70Part no. 911-7640-001EAN 816909073539
44 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 10
- USB 2.0 connectors3
- USB 2.0 ports quantity5
- LAN controllerRealtek RTL8111D(L)
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 5
- LAN controller
- Realtek RTL8111D(L)
- Brand
- MSI
- Category
- Motherboard
- Model
- 890FXA-GD70
- Part numbers
- 911-7640-001, 890FXAGD70, 7640-010R, 890FXA-GD70
- EAN / UPC
- 816909073539, 4719072170530, 5052179492907
- Also known as
- MSI 890FXA-GD70 Socket AM3 ATX
Specifications
44 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Supported memory clock speeds | 800,1066,1333 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 2 |
| TPM connector | Yes |

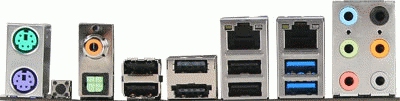

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111D(L) |
| Networking features | Fast Ethernet MAC / PHY |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 7 32/64bit/XP/Vista |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 5 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
Other features
| Specification | Value |
|---|---|
| Controller interface type | SATAIII |
| I/O ports | 1 x CMOS 1 x Coaxial S/PDIF-out 1 x Optical S/PDIF-out |
| RAID controller type | AMD SB850 |
