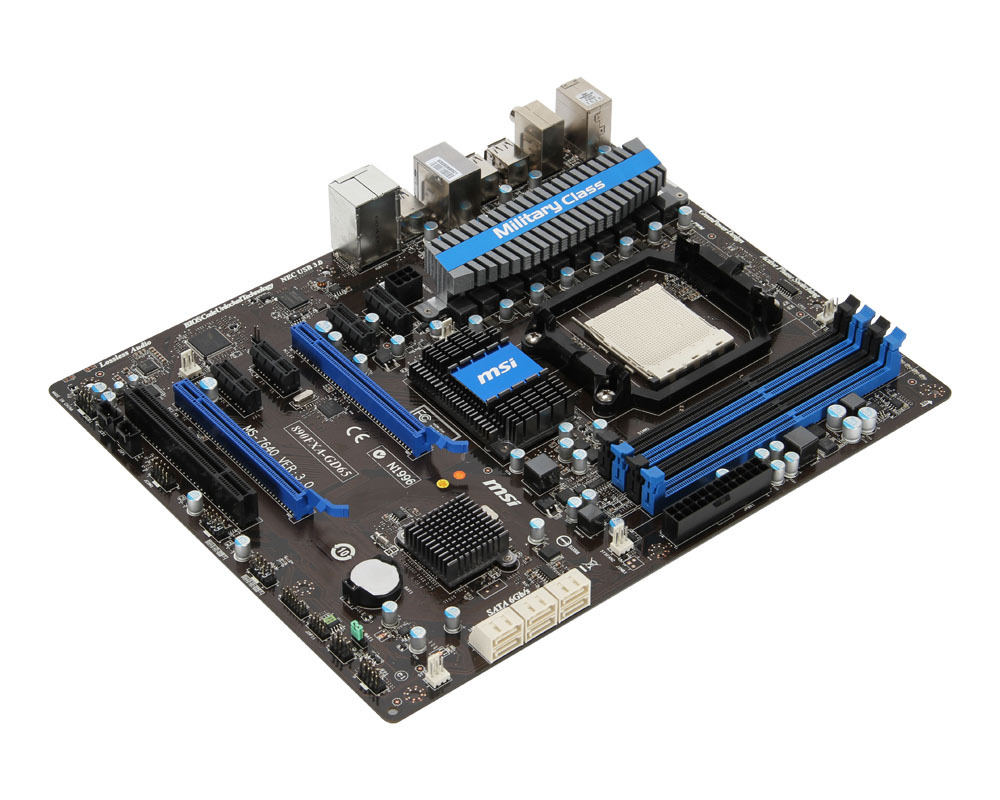

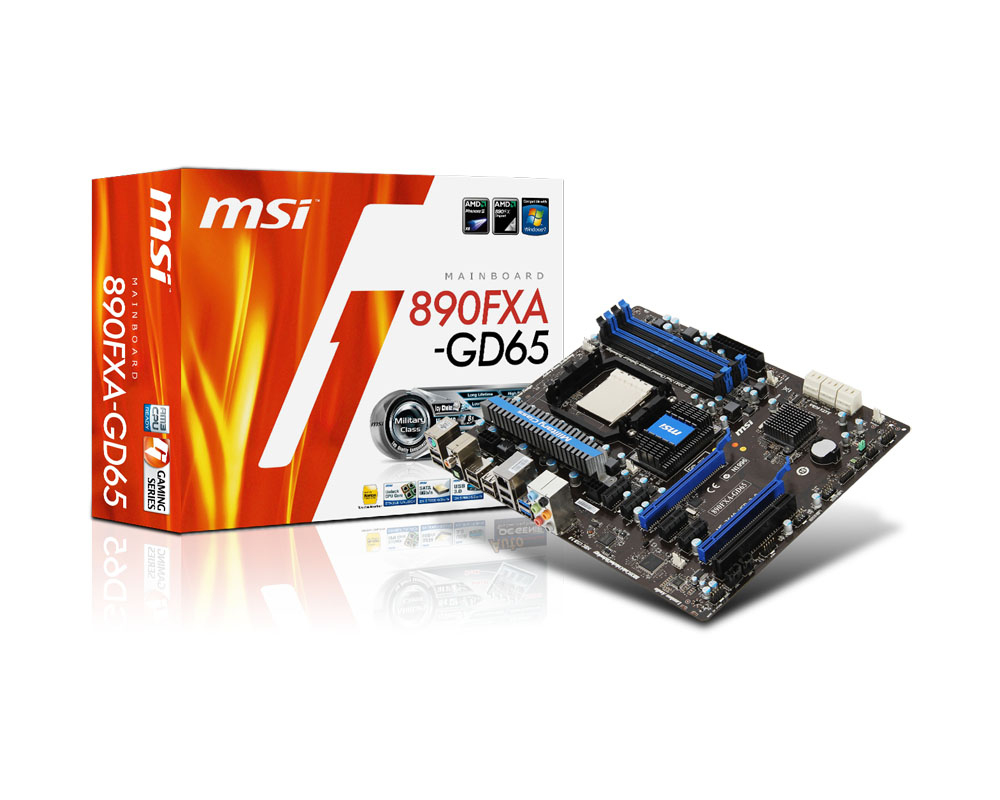

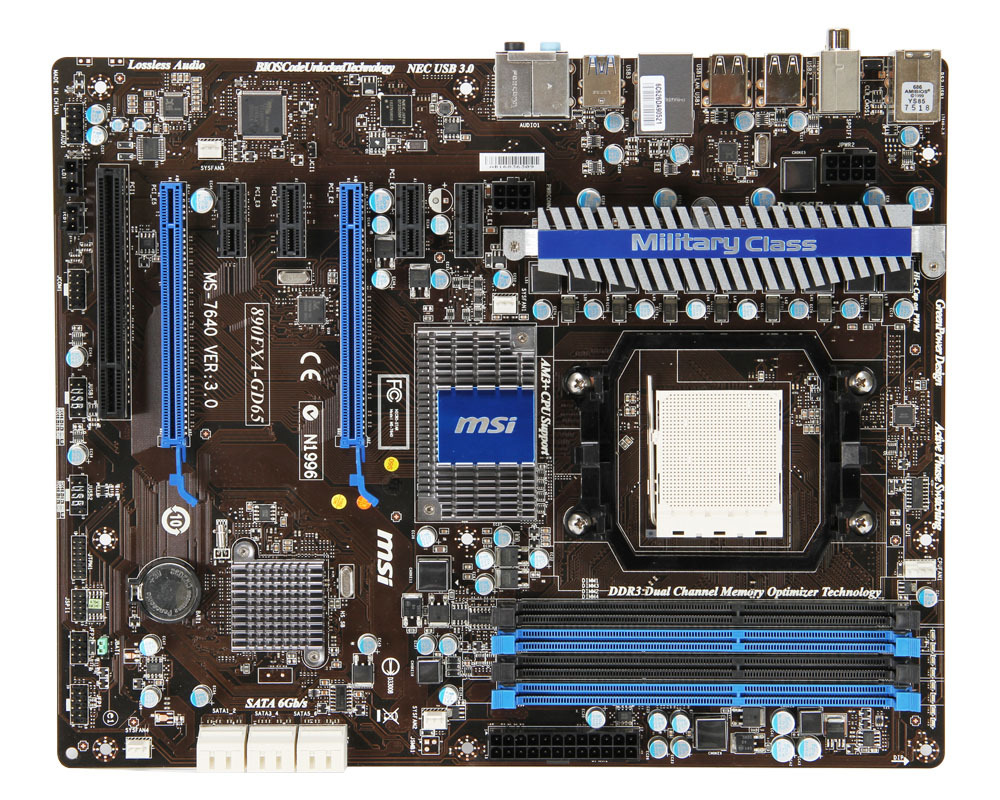

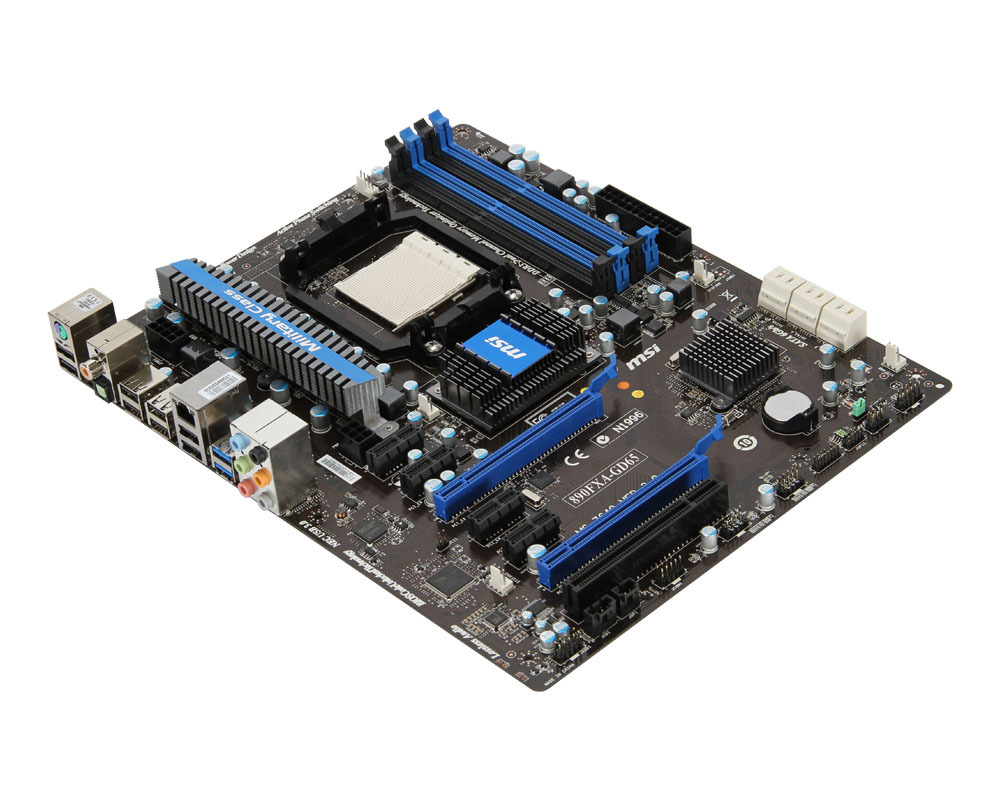

MSI 890FXA-GD65 AMD 890FX Socket AM3 ATX
Model 890FXA-GD65Part no. 7640-020REAN 4719072210465
48 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 5, 10
- On-board graphics cardNo
- USB 2.0 connectors2
- USB 2.0 ports quantity8
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- On-board graphics card
- No
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 8
- Brand
- MSI
- Category
- Motherboard
- Model
- 890FXA-GD65
- Part numbers
- 7640-020R, 890FXA-GD65
- EAN / UPC
- 4719072210465, 816909081879
- Also known as
- MSI 890FXA-GD65 AMD 890FX Socket AM3 ATX
Specifications
48 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
| Compatible processor series | AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 800,1066,1333,1600,1800,2133 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |

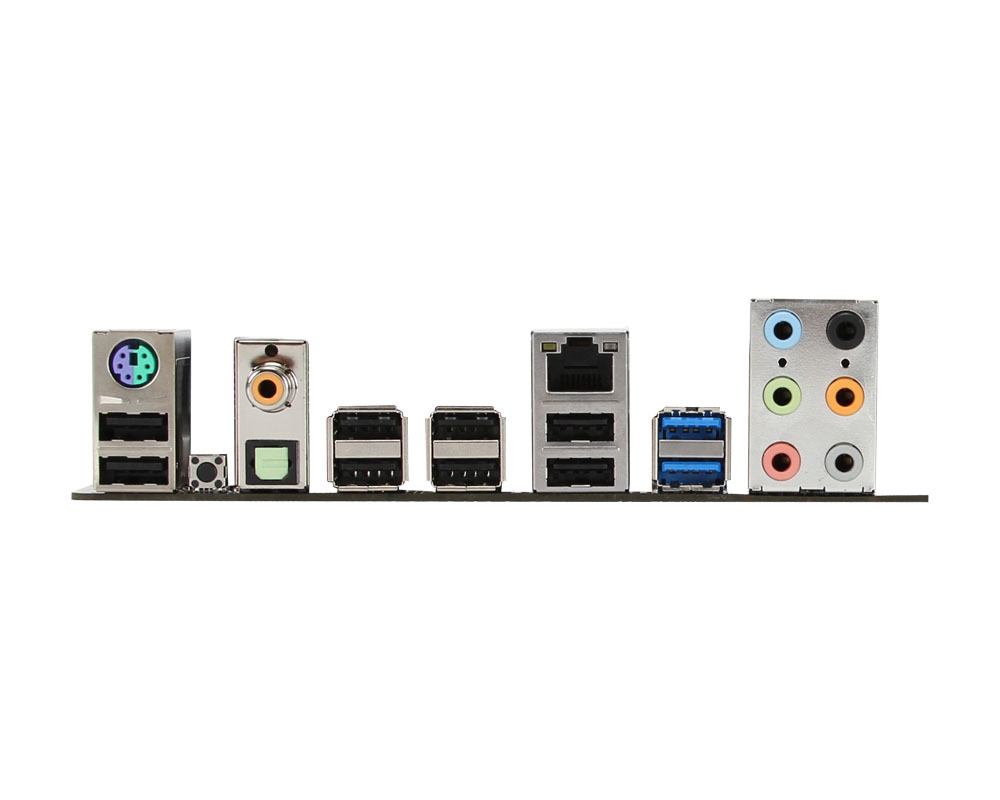

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 890FX |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 4 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| Controller interface type | SATA III 6Gb/s |
What people say
Reviews & ratings
MSI 890FXA-GD65 AMD 890FX Socket AM3 ATX
No reviews yet
Be the first to tell others how MSI 890FXA-GD65 AMD 890FX Socket AM3 ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI 890FXA-GD65 AMD 890FX Socket AM3 ATX
All motherboard comparisons- MSI 890FXA-GD65 AMD 890FX Socket AM3 ATX vsMSI 880GMA-E55 AMDCompare specs
- MSI 890FXA-GD65 AMD 890FX Socket AM3 ATX vsMSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATXCompare specs

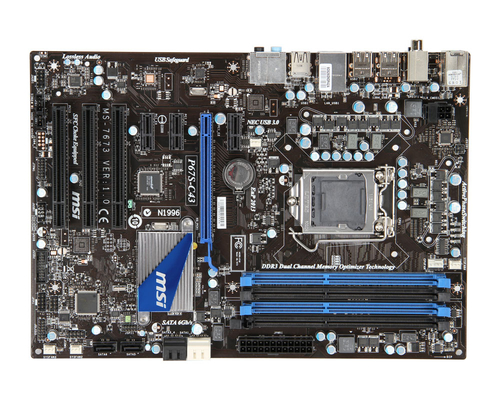

- MSI 890FXA-GD65 AMD 890FX Socket AM3 ATX vsMSI P67S-C43 motherboard LGA 1155 (Socket H2) ATXCompare specs

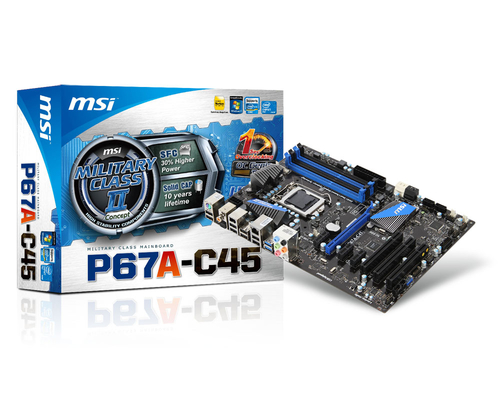

- MSI 890FXA-GD65 AMD 890FX Socket AM3 ATX vsMSI P67A-C45 LGA 1155 (Socket H2) ATXCompare specs
- MSI 890FXA-GD65 AMD 890FX Socket AM3 ATX vsASUS P8H67-M LXCompare specs
- MSI 890FXA-GD65 AMD 890FX Socket AM3 ATX vsASUS P8H67-M LECompare specs
- MSI 890FXA-GD65 AMD 890FX Socket AM3 ATX vsASUS P8H67-V LGA 1155 (Socket H2) ATXCompare specs

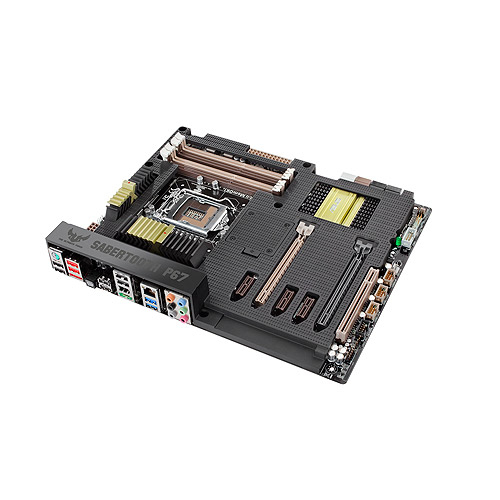

- MSI 890FXA-GD65 AMD 890FX Socket AM3 ATX vsASUS SABERTOOTH P67Compare specs
