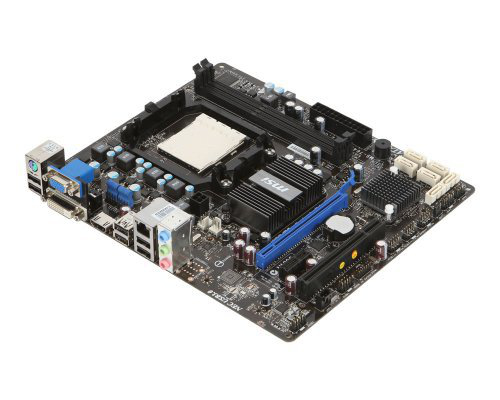

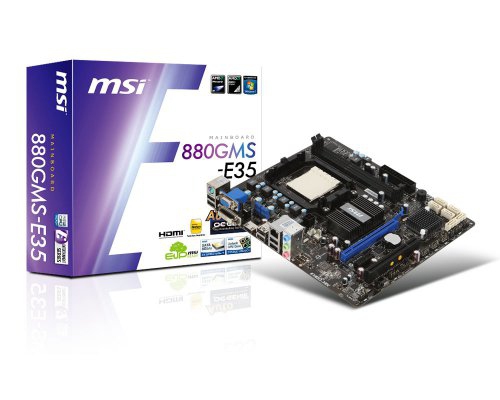

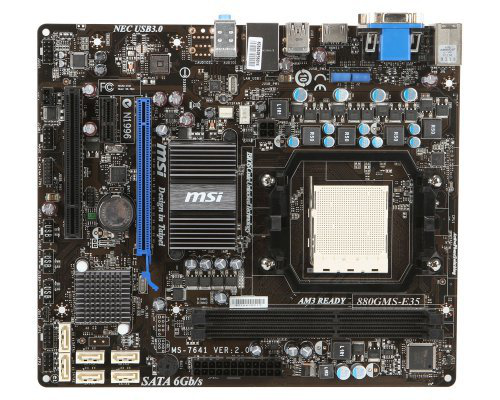

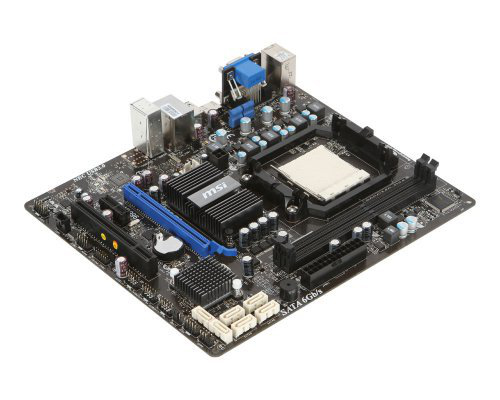

MSI 880GMS-E35 motherboard AMD

MSI 880GMS-E35 motherboard AMD

880G Socket AM3 micro ATX

Model 880GMS-E35EAN 816909084252

52 specifications
  • Processor manufacturerAMD
  • Number of memory slots2
  • RAID levels0, 1, 10, JBOD
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
2
RAID levels
0, 1, 10, JBOD
Parallel processing technology support
Not supported
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
MSI
Category
Motherboard
Model
880GMS-E35
Part number
880GMS-E35
EAN / UPC
816909084252, 4719072219413
Also known as
MSI 880GMS-E35 motherboard AMD 880G Socket AM3 micro ATX

Specifications

52 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6
Maximum number of SMP processors1

Memory

Number of memory slots2
Memory channelsDual-channel
Memory voltage1.5 V
ECC сompatibilityNon-ECC
Supported memory clock speeds800,1066,1333 MHz
Maximum internal memory16 GB

Storage controllers

RAID levels0, 1, 10, JBOD

Graphics

Parallel processing technology supportNot supported
On-board graphics cardYes

Internal I/O

USB 2.0 connectors3
Number of SATA III connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
TPM connectorYes

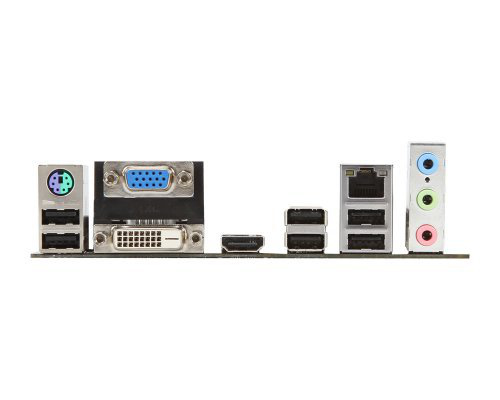

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs2
Microphone inYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipsetAMD 880G
Motherboard southbridgeAMD SB850
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots1

Weight & dimensions

Width244 mm
Depth205 mm

Packaging content

Drivers includedYes

Other features

Controller interface typeAMD SB850
