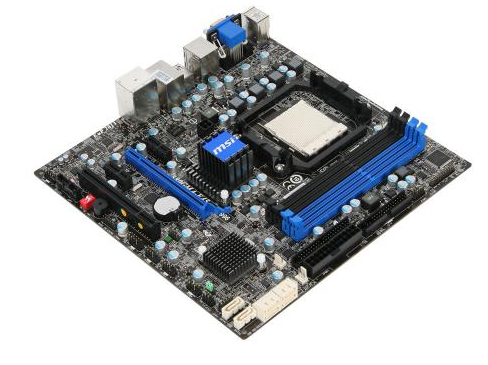

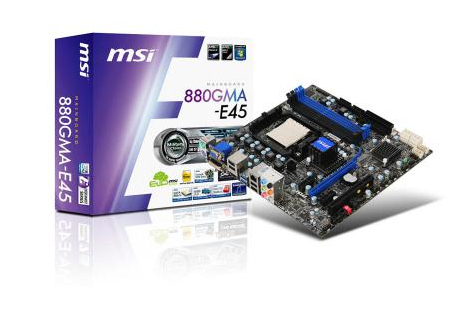

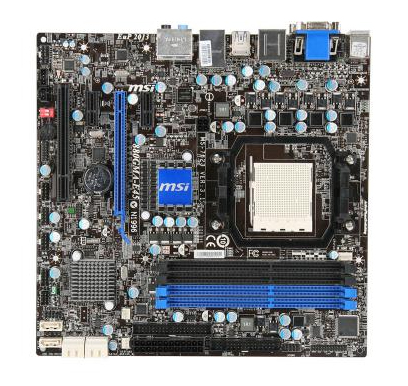

MSI 880GMA-E45 AMD
880G Socket AM3 micro ATX
Model 880GMA-E45Part no. 007623-020REAN 4719072171049
34 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 10
- Maximum graphics card memory512 MB
- LAN controllerRealtek RTL8111D(L)
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10
- Maximum graphics card memory
- 512 MB
- LAN controller
- Realtek RTL8111D(L)
- Motherboard form factor
- micro ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- 880GMA-E45
- Part numbers
- 007623-020R, 7623-020R, 880GMA-E45
- EAN / UPC
- 4719072171049
- Also known as
- MSI 880GMA-E45 AMD 880G Socket AM3 micro ATX
Specifications
34 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |

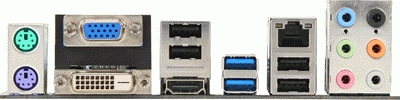

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111D(L) |
| Networking features | Fast Ethernet MAC / PHY |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | AMD 880G |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 237 mm |
What people say
Reviews & ratings
MSI 880GMA-E45 AMD
No reviews yet
Be the first to tell others how MSI 880GMA-E45 AMD works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI 880GMA-E45 AMD

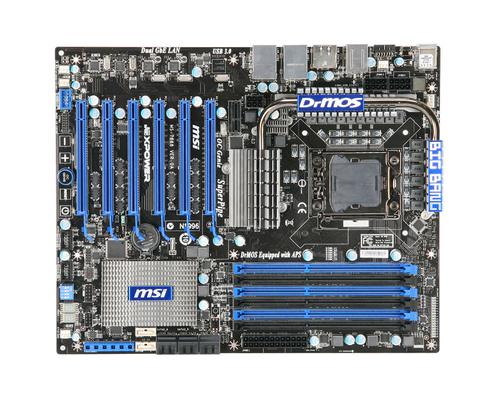

All motherboard comparisons- MSI 880GMA-E45 AMD vsMSI Big Bang-XPowerCompare specs

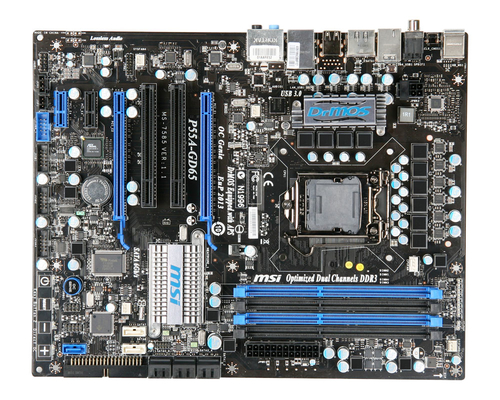

- MSI 880GMA-E45 AMD vsMSI P55A-GD65 LGA 1156 (Socket H) ATXCompare specs
- MSI 880GMA-E45 AMD vsMSI 890FXA-GD70 Socket AM3 ATXCompare specs
- MSI 880GMA-E45 AMD vsMSI 740GM-P25 AMDCompare specs

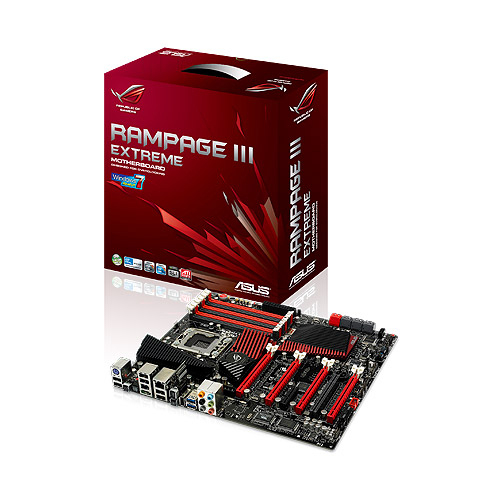

- MSI 880GMA-E45 AMD vsASUS Rampage III ExtremeCompare specs

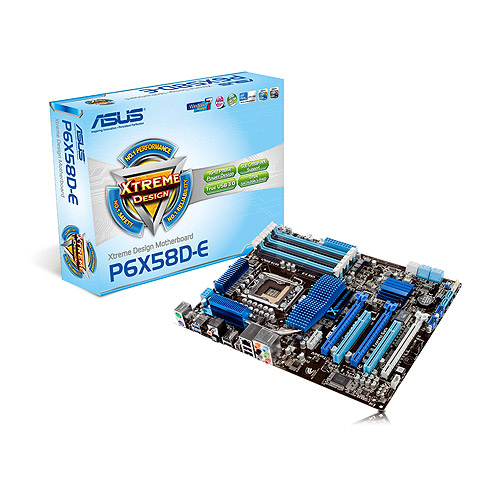

- MSI 880GMA-E45 AMD vsASUS P6X58D-E Socket B (LGA 1366) ATXCompare specs

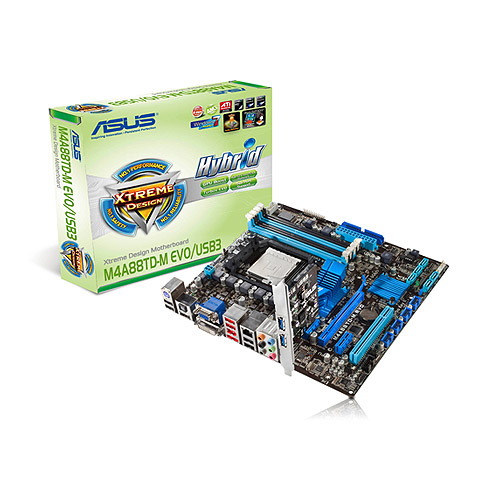

- MSI 880GMA-E45 AMD vsASUS M4A88TD-M EVO/USB3Compare specs
