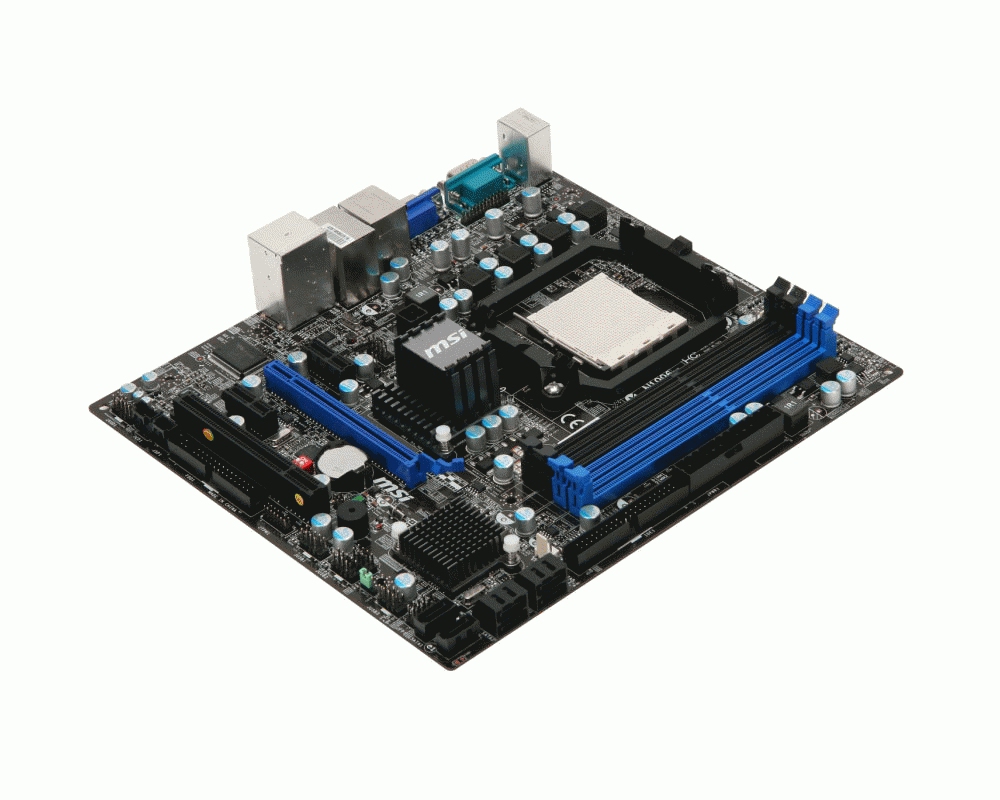

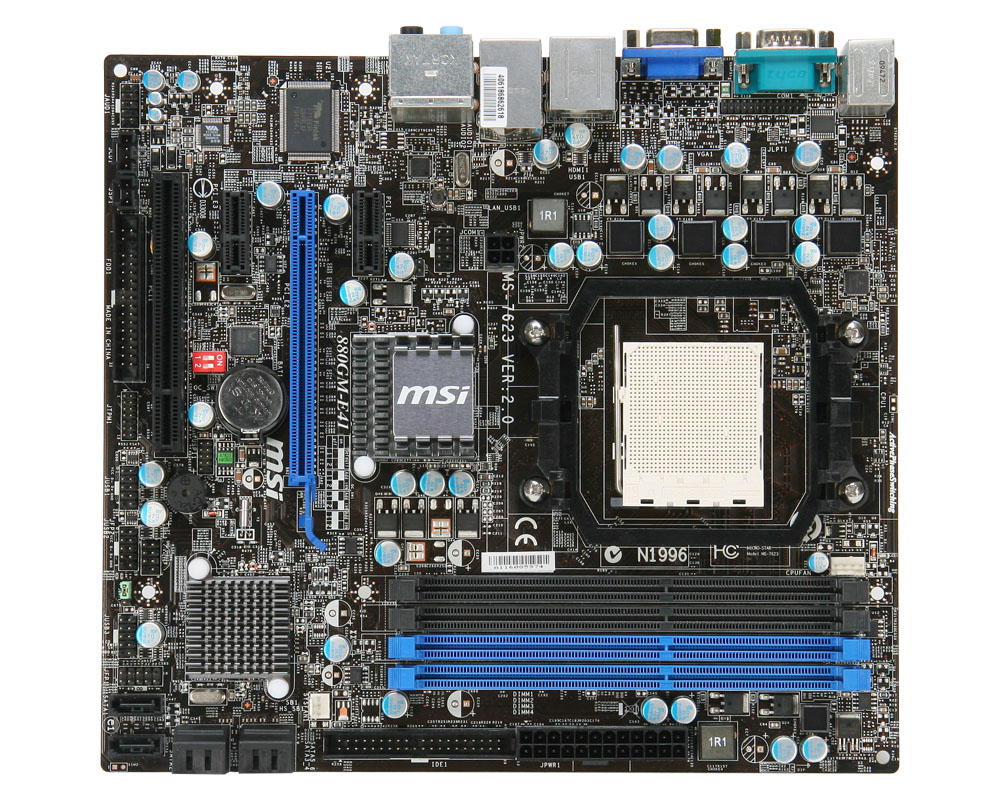

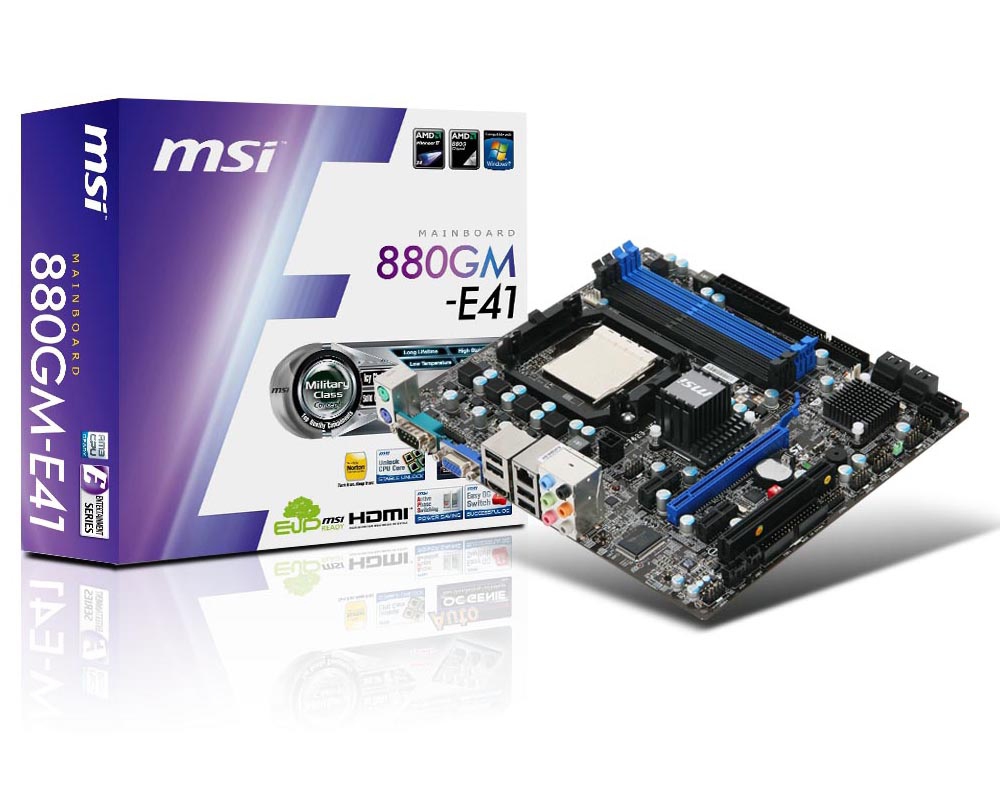

MSI 880GM-E41 motherboard AMD
880G Socket AM3 micro ATX
Model 880GM-E41EAN 816909074703
36 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 0+1, JBOD
- Maximum graphics card memory512 MB
- USB 2.0 connectors3
- LAN controllerAtheros AR8131M
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 0+1, JBOD
- Maximum graphics card memory
- 512 MB
- USB 2.0 connectors
- 3
- LAN controller
- Atheros AR8131M
- Brand
- MSI
- Category
- Motherboard
- Model
- 880GM-E41
- Part numbers
- 880GM-E41, 7623-040R
- EAN / UPC
- 816909074703, 4719072174941
- Also known as
- MSI 880GM-E41 motherboard AMD 880G Socket AM3 micro ATX
Specifications
36 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 0+1, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |

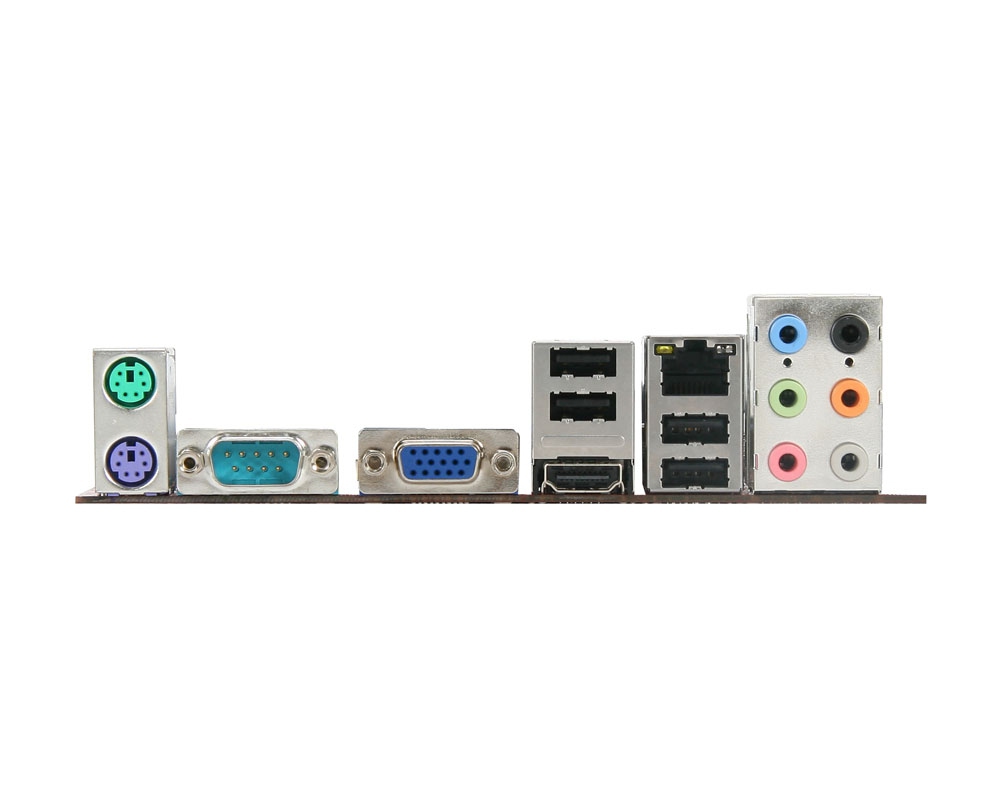

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Atheros AR8131M |
| Networking features | PCI-E GbLAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | AMD 880G |
| Audio chip | VIA VT1828S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | SATA II |
| RAID controller type | AMD SB710 |
What people say
Reviews & ratings
MSI 880GM-E41 motherboard AMD
No reviews yet
Be the first to tell others how MSI 880GM-E41 motherboard AMD works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI 880GM-E41 motherboard AMD
All motherboard comparisons- MSI 880GM-E41 motherboard AMD vsMSI G31TM-P31 motherboard LGA 775 (Socket T) micro ATXCompare specs
- MSI 880GM-E41 motherboard AMD vsMSI P55A FuzionCompare specs
- MSI 880GM-E41 motherboard AMD vsMSI 880GM-E43 motherboard AMDCompare specs

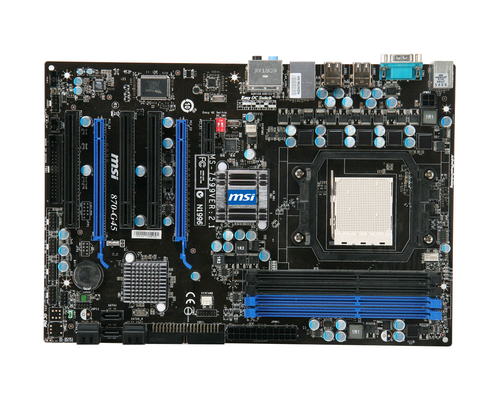

- MSI 880GM-E41 motherboard AMD vsMSI 870-G45 motherboard Socket AM3 ATXCompare specs
- MSI 880GM-E41 motherboard AMD vsASUS KGPE-D16-G0UAY00Z AMD SR5690 Socket G34 SSI EEBCompare specs
- MSI 880GM-E41 motherboard AMD vsASUS AT5IONT-I BGA 559 mini ITXCompare specs
- MSI 880GM-E41 motherboard AMD vsASUS P5QPL-AM LGA 775 (Socket T) micro ATXCompare specs

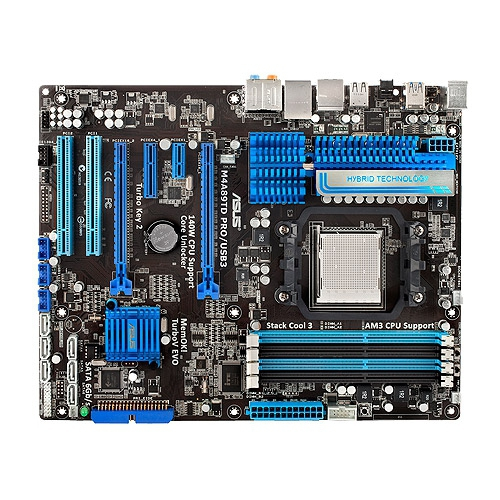

- MSI 880GM-E41 motherboard AMD vsASUS M4A89TD PRO/USB3Compare specs
