MSI 880G-E45 motherboard AMD
880G ATX
Model 880G-E45EAN 816909080261
40 specifications
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA
- Parallel processing technology supportNot supported
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- Ethernet interface typeGigabit Ethernet
Overview
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Ethernet interface type
- Gigabit Ethernet
- Brand
- MSI
- Category
- Motherboard
- Model
- 880G-E45
- Part number
- 880G-E45
- EAN / UPC
- 816909080261
- Also known as
- MSI 880G-E45 motherboard AMD 880G ATX
Specifications
40 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Compatible processor series | AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 800,1066,1333,1600 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA |
| RAID levels | 0, 1, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA II connectors | 5 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |

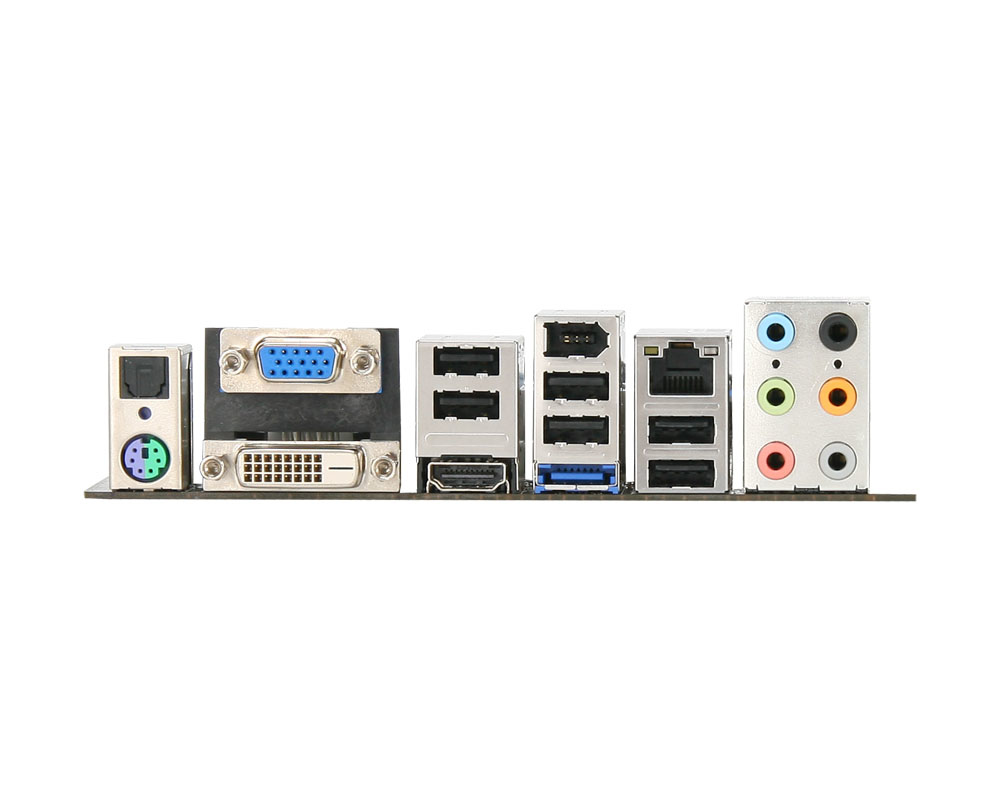

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111D(L) |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD 880G |
| Audio chip | Realtek ALC888S / ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
