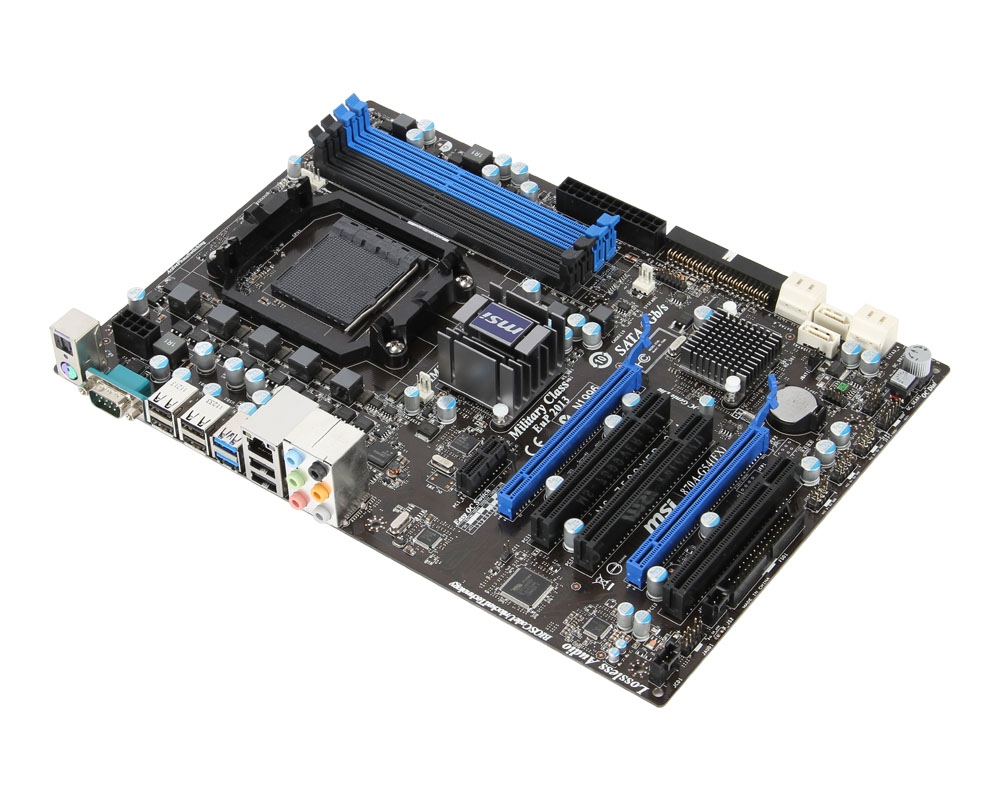

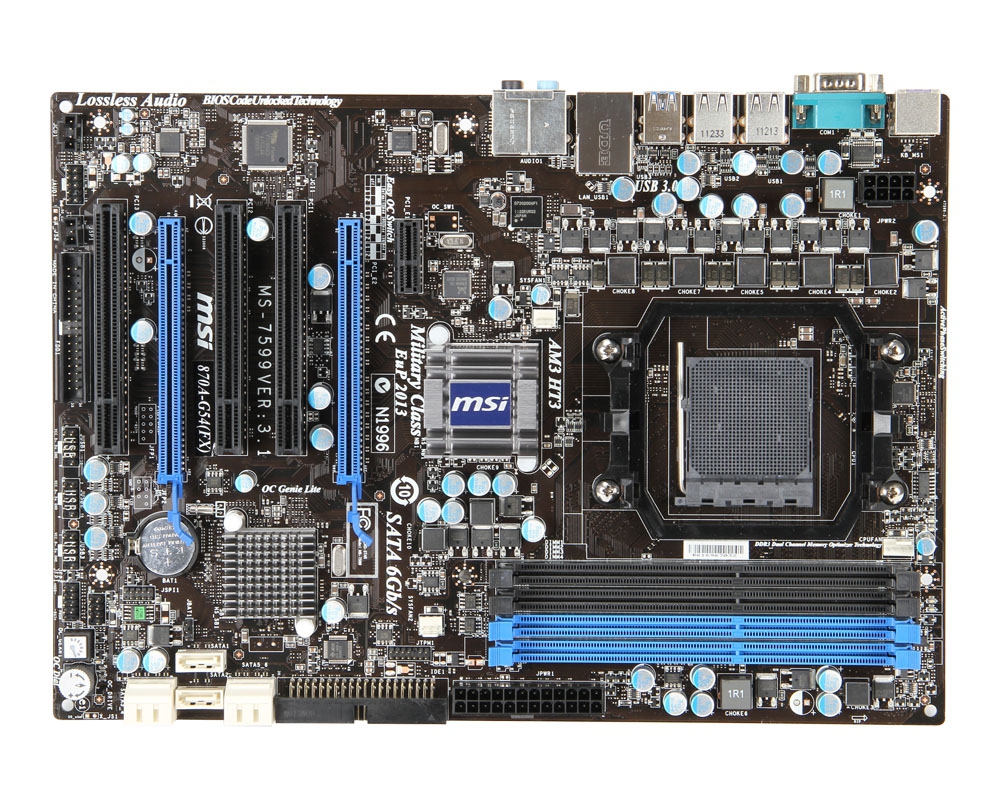

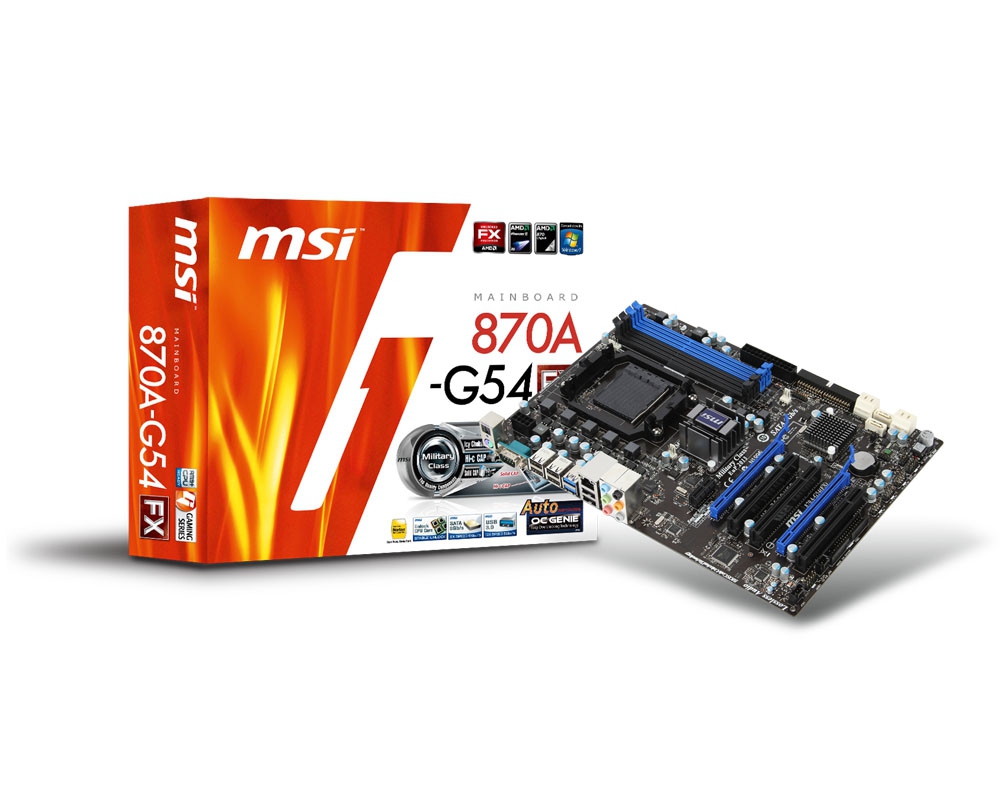

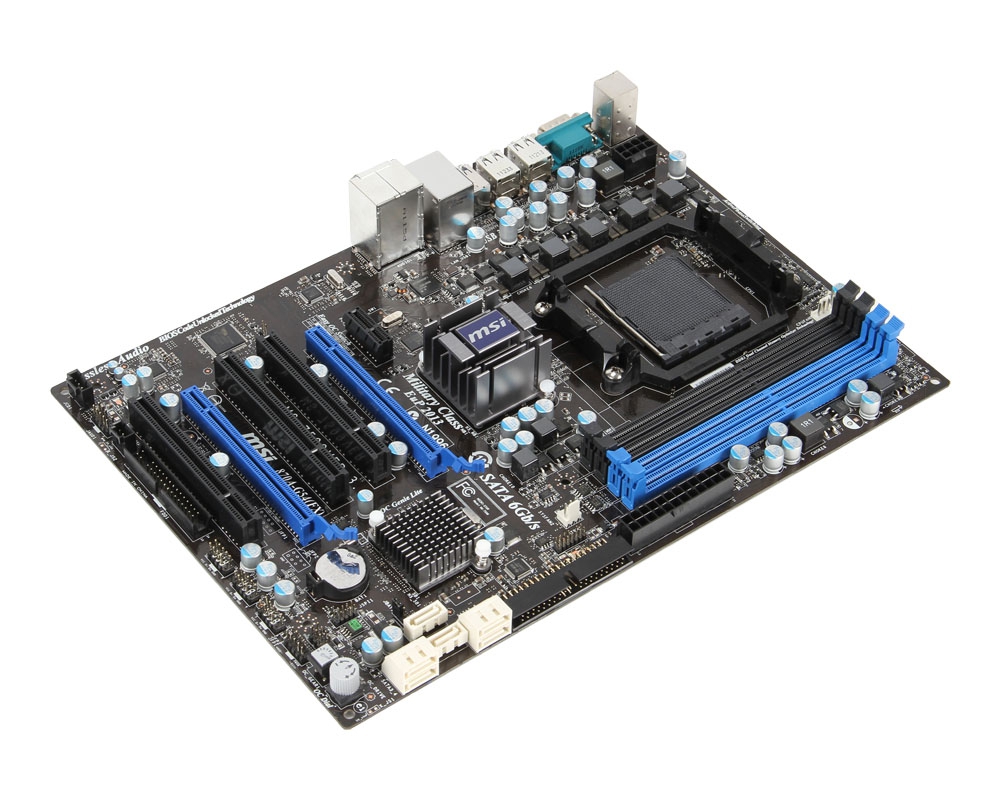

MSI 870A-G54 (FX)

MSI 870A-G54 (FX)

Model 870A-G54 (FX)EAN 816909088236

48 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
Not supported
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
MSI
Category
Motherboard
Model
870A-G54 (FX)
Part number
870A-G54 (FX)
EAN / UPC
816909088236
Also known as
MSI 870A-G54 (FX) motherboard AMD 870 (RX881) micro ATX

Specifications

48 specifications in 11 groups

Processor

Processor manufacturerAMD
Compatible processor seriesAMD Phenom FX, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom X4

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory voltage1.5 V
Supported memory clock speeds800,1066,1333,1600 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported

Internal I/O

USB 2.0 connectors3
Number of SATA III connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
TPM connectorYes

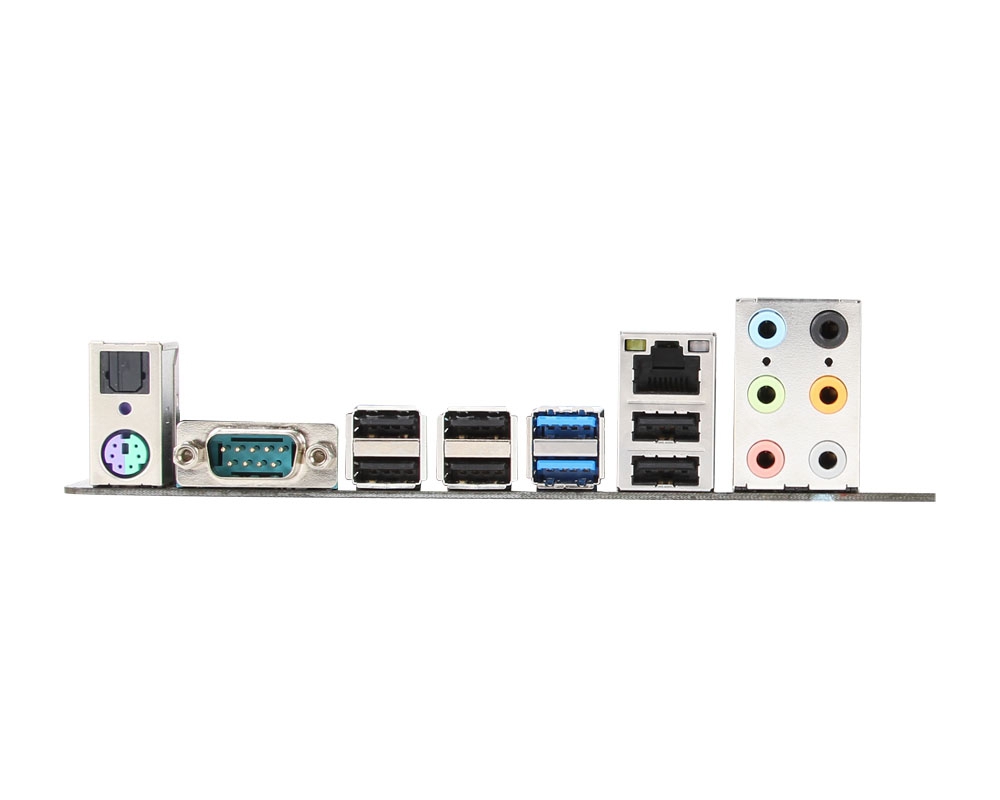

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
S/PDIF out portYes
Serial ports quantity1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111D(L)
Networking featuresGigabit ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 870 (RX881)
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots2
PCI slots3

BIOS

Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth205 mm
