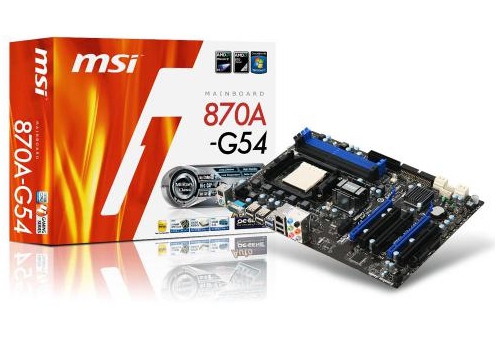

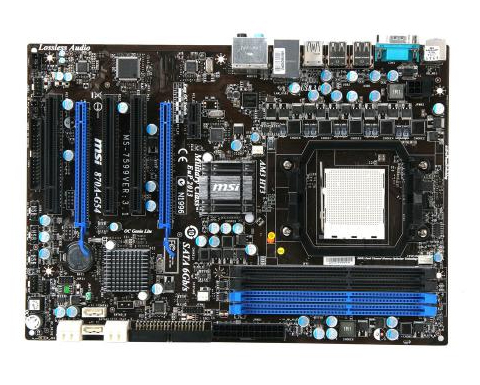

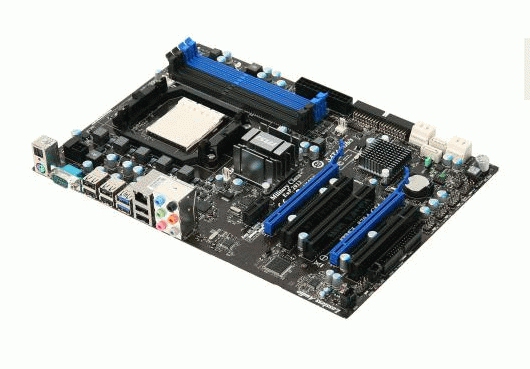

MSI 870A-G54 motherboard Socket AM3 ATX
Model 870A-G54Part no. 870AG54EAN 816909073386
32 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 10
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- 870A-G54
- Part numbers
- 870AG54, 7599-080R, 870A-G54, 7599-040R
- EAN / UPC
- 816909073386, 4719072170202, 4719072184988
- Also known as
- MSI 870A-G54 motherboard Socket AM3 ATX
Specifications
32 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |

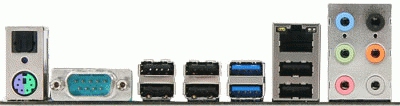

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
Other features
| Specification | Value |
|---|---|
| Controller interface type | SATA III |
What people say
Reviews & ratings
MSI 870A-G54 motherboard Socket AM3 ATX
No reviews yet
Be the first to tell others how MSI 870A-G54 motherboard Socket AM3 ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI 870A-G54 motherboard Socket AM3 ATX
All motherboard comparisons- MSI 870A-G54 motherboard Socket AM3 ATX vsMSI 740GM-P25 AMDCompare specs

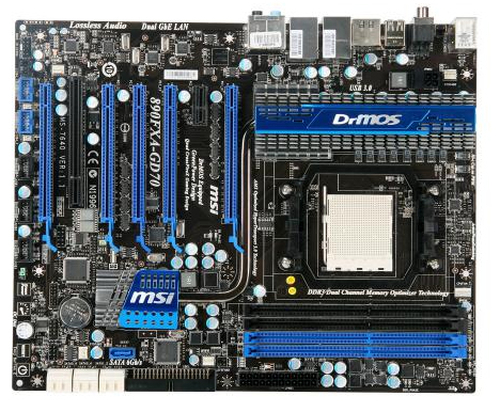

- MSI 870A-G54 motherboard Socket AM3 ATX vsMSI 890FXA-GD70 Socket AM3 ATXCompare specs
- MSI 870A-G54 motherboard Socket AM3 ATX vsMSI G41M-P25 motherboard LGA 775 (Socket T) micro ATXCompare specs
- MSI 870A-G54 motherboard Socket AM3 ATX vsMSI H55-G43 LGA 1156 (Socket H) ATXCompare specs
- MSI 870A-G54 motherboard Socket AM3 ATX vsGIGABYTE GA-Q57M-S2H motherboard LGA 1156 (Socket H) micro ATXCompare specs

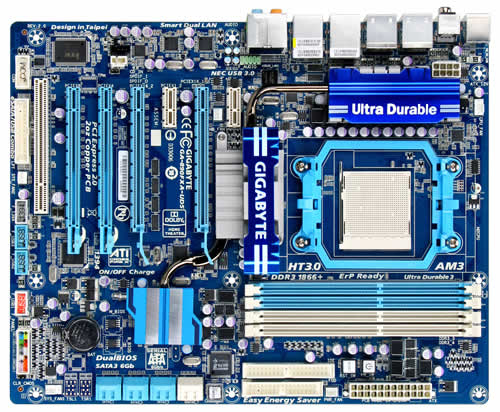

- MSI 870A-G54 motherboard Socket AM3 ATX vsGIGABYTE GA-890FXA-UD5 motherboard AMD 890FX Socket AM3 ATXCompare specs

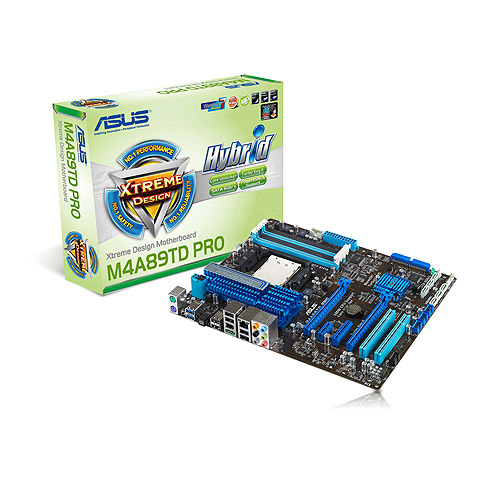

- MSI 870A-G54 motherboard Socket AM3 ATX vsASUS M4A89TD PROCompare specs

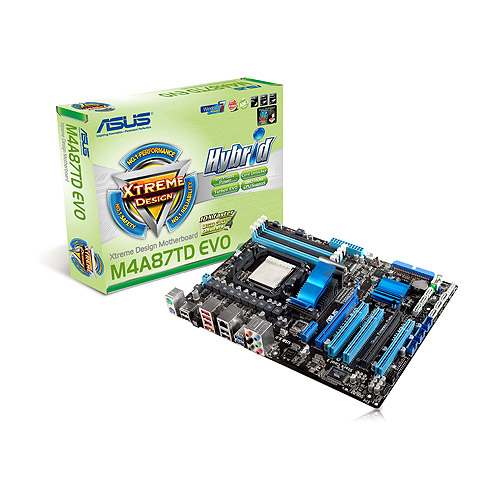

- MSI 870A-G54 motherboard Socket AM3 ATX vsASUS M4A87TD EVOCompare specs
