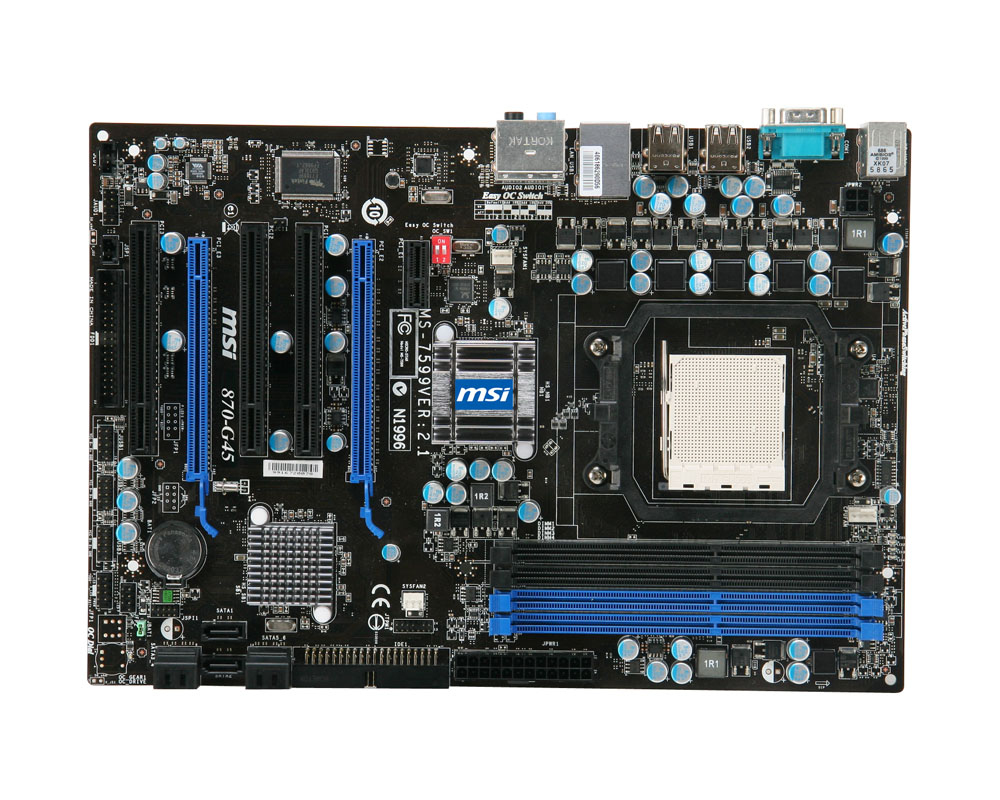

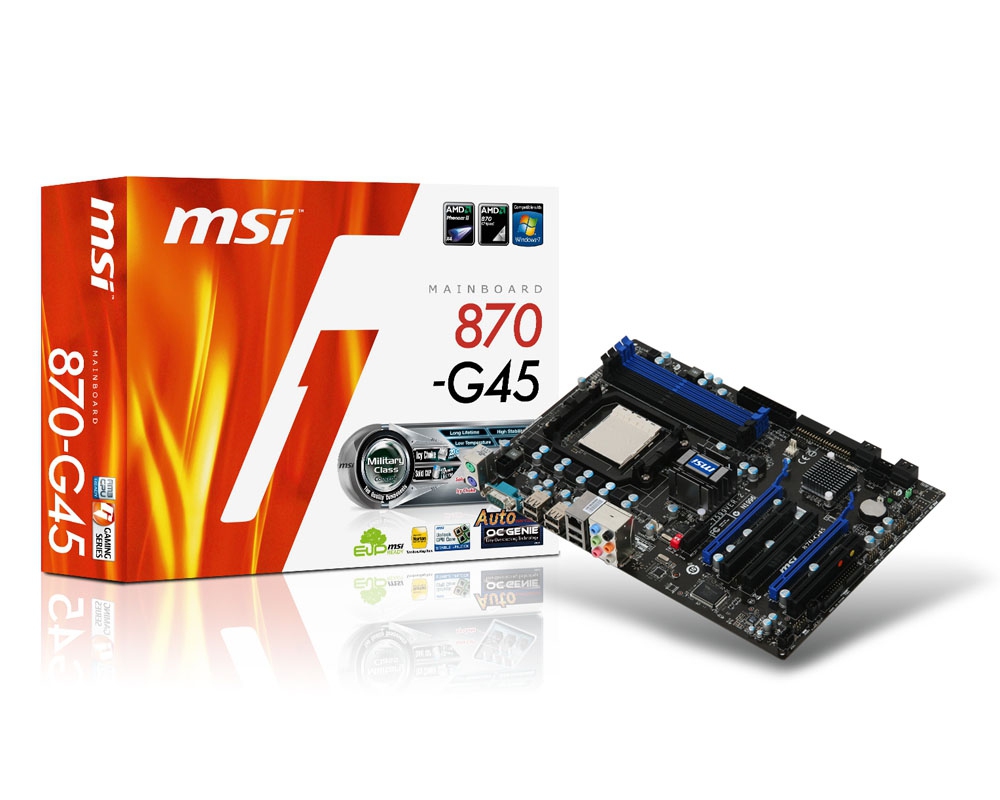

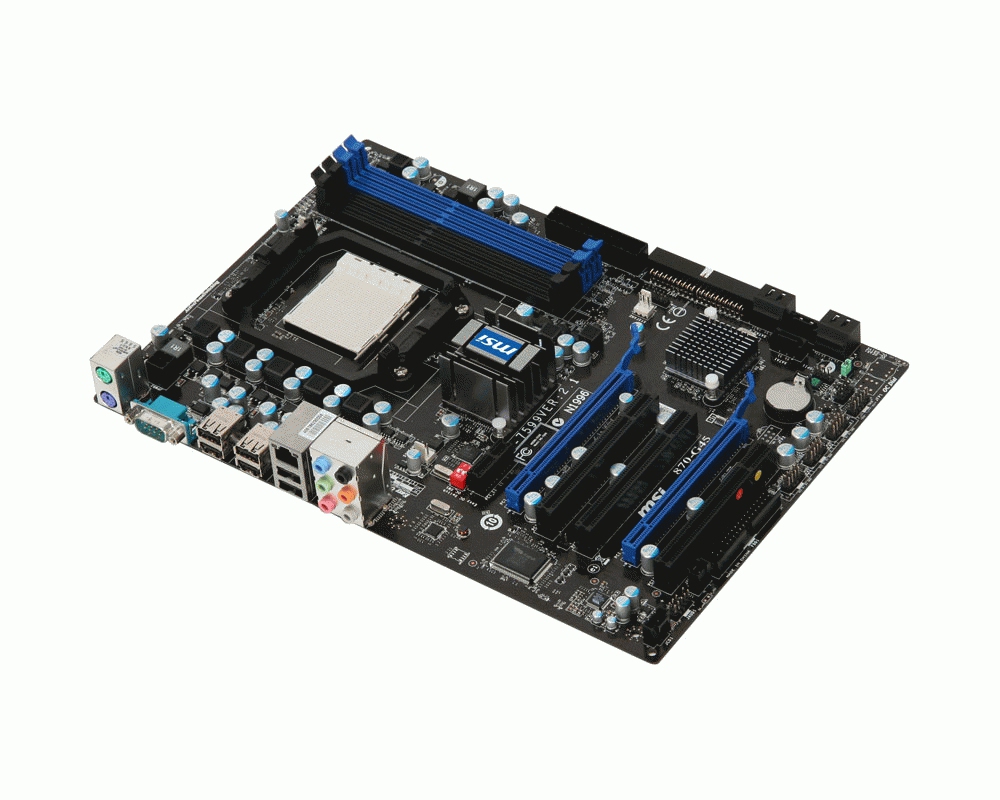

MSI 870-G45 motherboard Socket AM3 ATX
Model 870-G45EAN 4719072175252
32 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- LAN controllerAtheros AR8131M
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- LAN controller
- Atheros AR8131M
- Brand
- MSI
- Category
- Motherboard
- Model
- 870-G45
- Part numbers
- 870-G45, 7599-070R
- EAN / UPC
- 4719072175252
- Also known as
- MSI 870-G45 motherboard Socket AM3 ATX
Specifications
32 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |

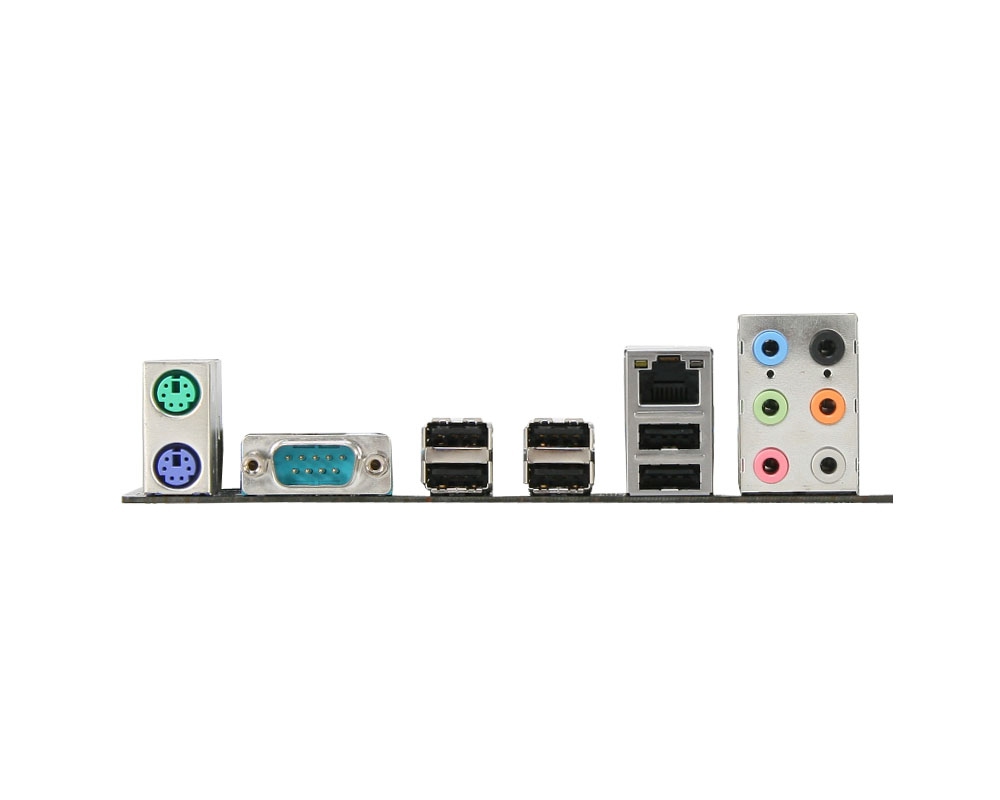

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Atheros AR8131M |
| Networking features | PCI-E GbLAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | VIA VT1828S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 305 mm |
