MSI 870-C45 FX V2

MSI 870-C45 FX V2

Model 870-C45 FX V2Part no. 7715-010REAN 4719072256074

54 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Parallel processing technology support
Not supported
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
MSI
Category
Motherboard
Model
870-C45 FX V2
Part number
7715-010R
EAN / UPC
4719072256074
Also known as
MSI 870-C45 FX V2 AMD 770 Socket AM3+ ATX

Specifications

54 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3+
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
System bus rate5.2 GT/s

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds800,1066,1333,1600 MHz
Maximum internal memory8 GB

Storage controllers

Supported storage drive interfacesSATA II

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
TPM connectorYes

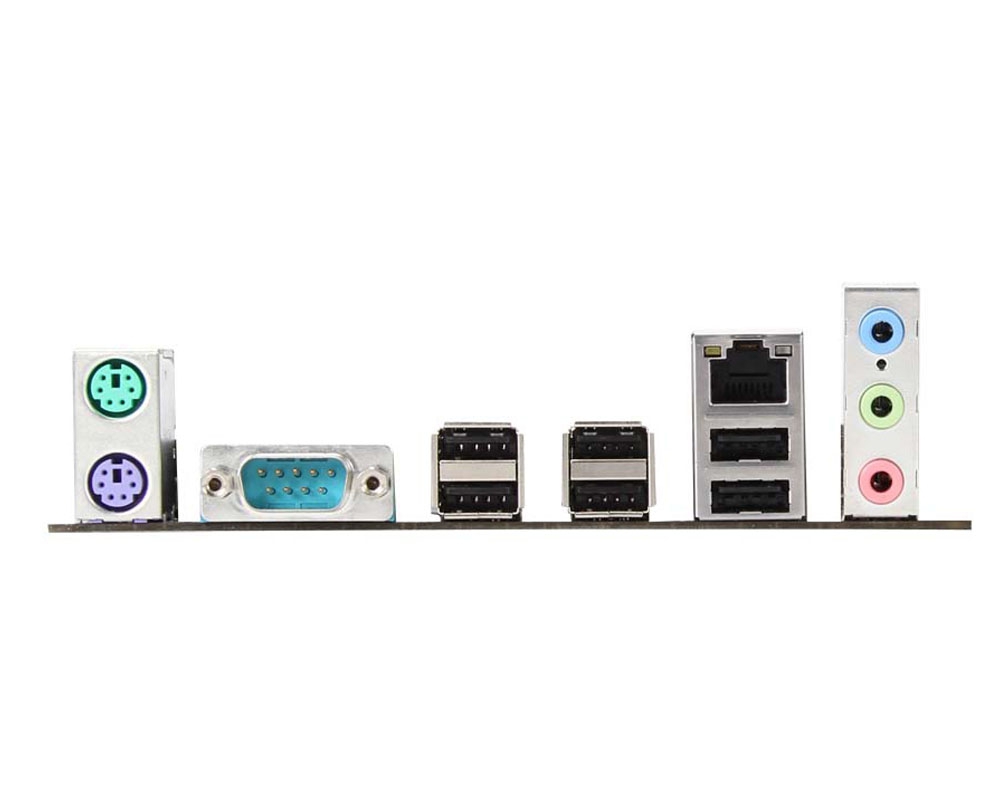

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Serial ports quantity1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 770
Motherboard southbridgeAMD SB710
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots1
PCI slots2

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width190 mm
Depth305 mm

Other features

Audio outputRealtek ALC887
