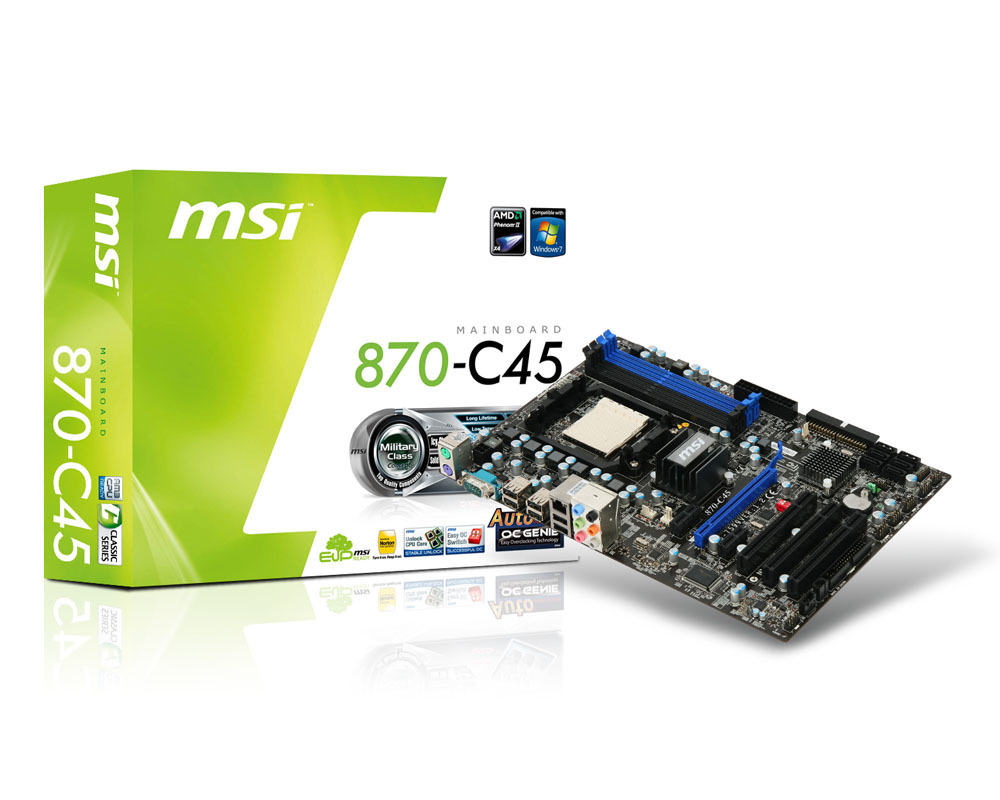

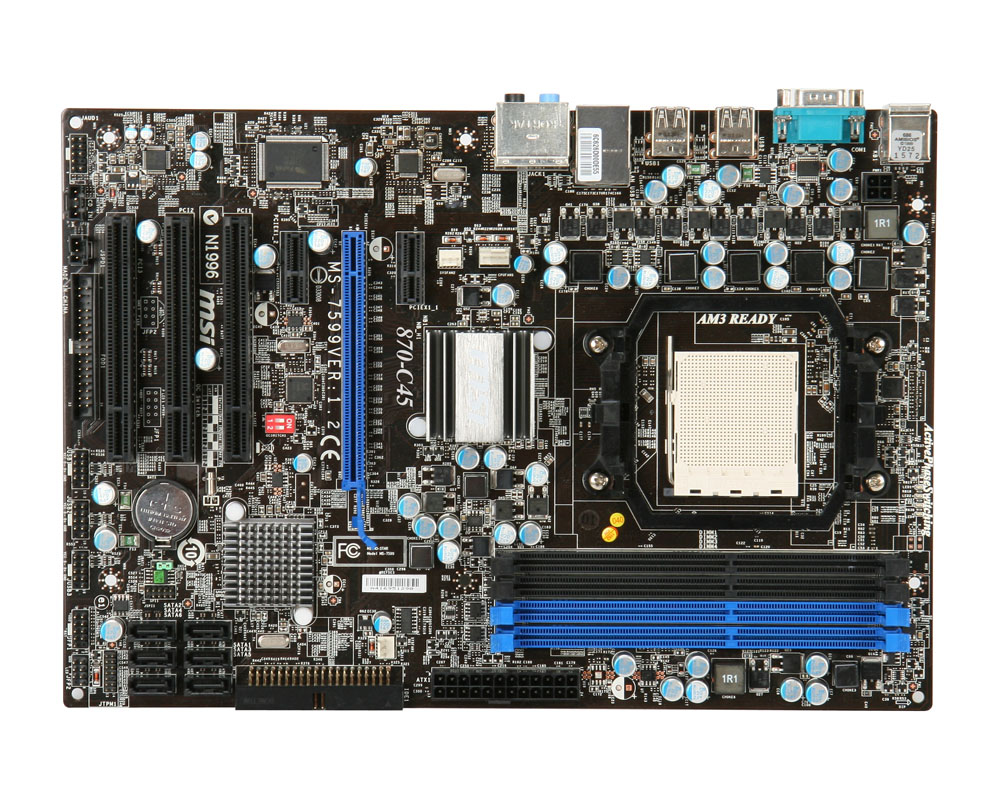

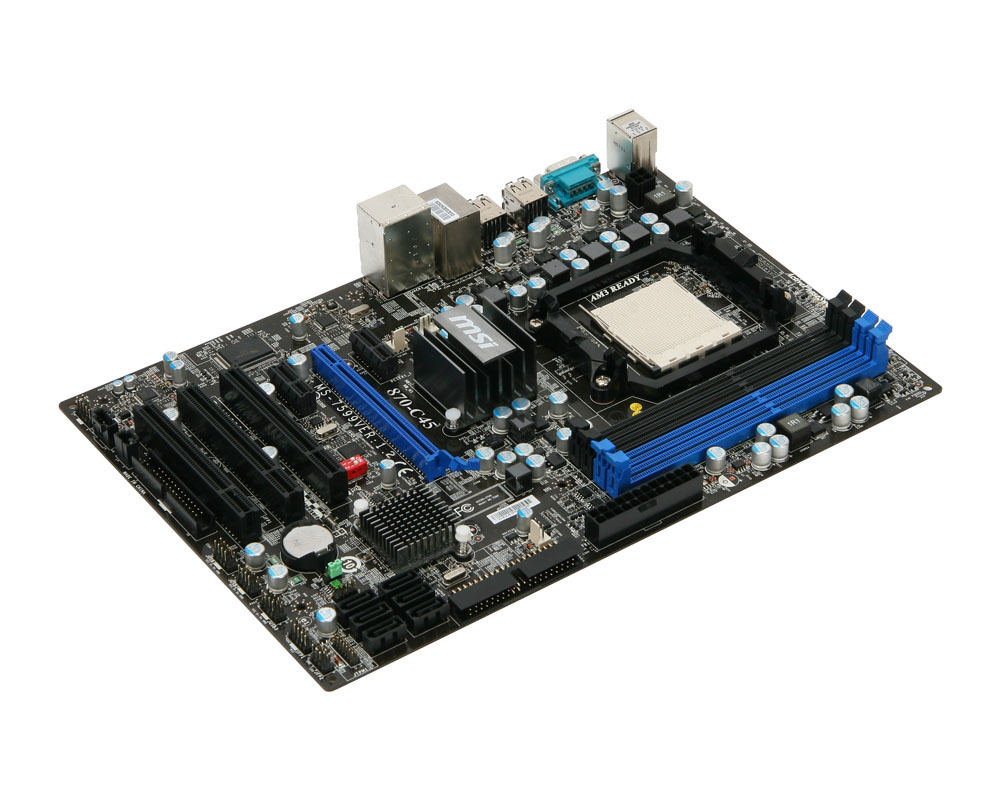

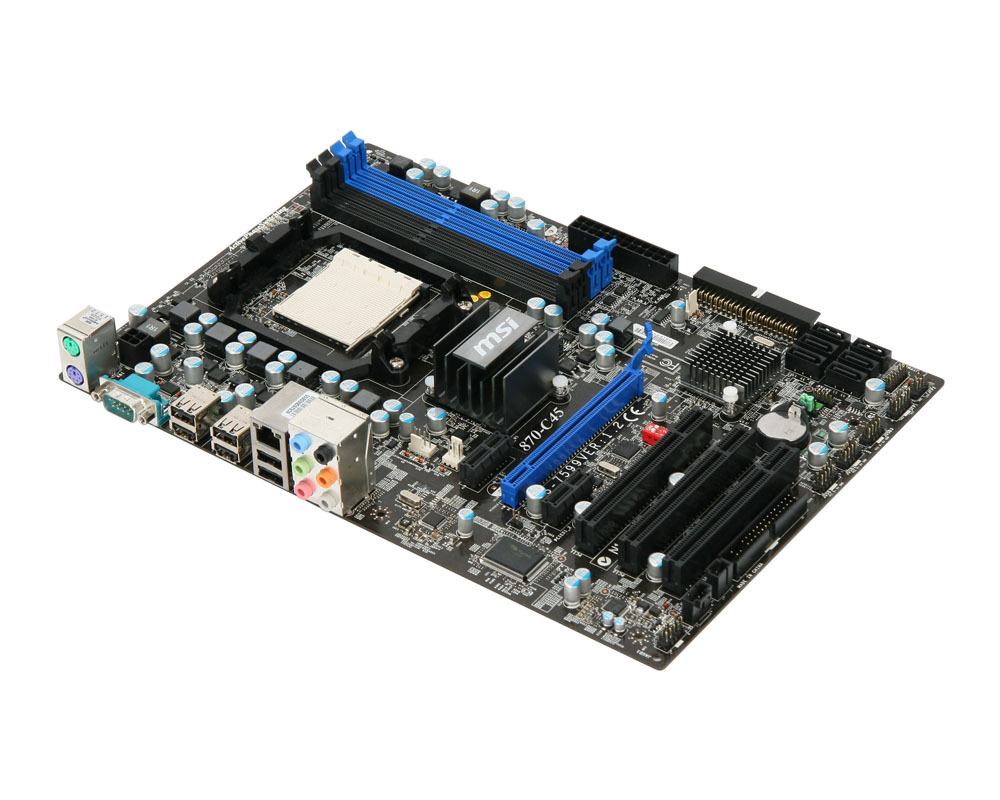

MSI 870-C45 AMD 770 Socket AM2 ATX
Model 870-C45Part no. 7599-050REAN 4719072179250
38 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1
- Parallel processing technology supportNot supported
- USB 2.0 connectors3
- USB 2.0 ports quantity6
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Brand
- MSI
- Category
- Motherboard
- Model
- 870-C45
- Part numbers
- 7599-050R, 870-C45
- EAN / UPC
- 4719072179250
- Also known as
- MSI 870-C45 AMD 770 Socket AM2 ATX
Specifications
38 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Supported memory clock speeds | 800,1066,1333 MHz |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |

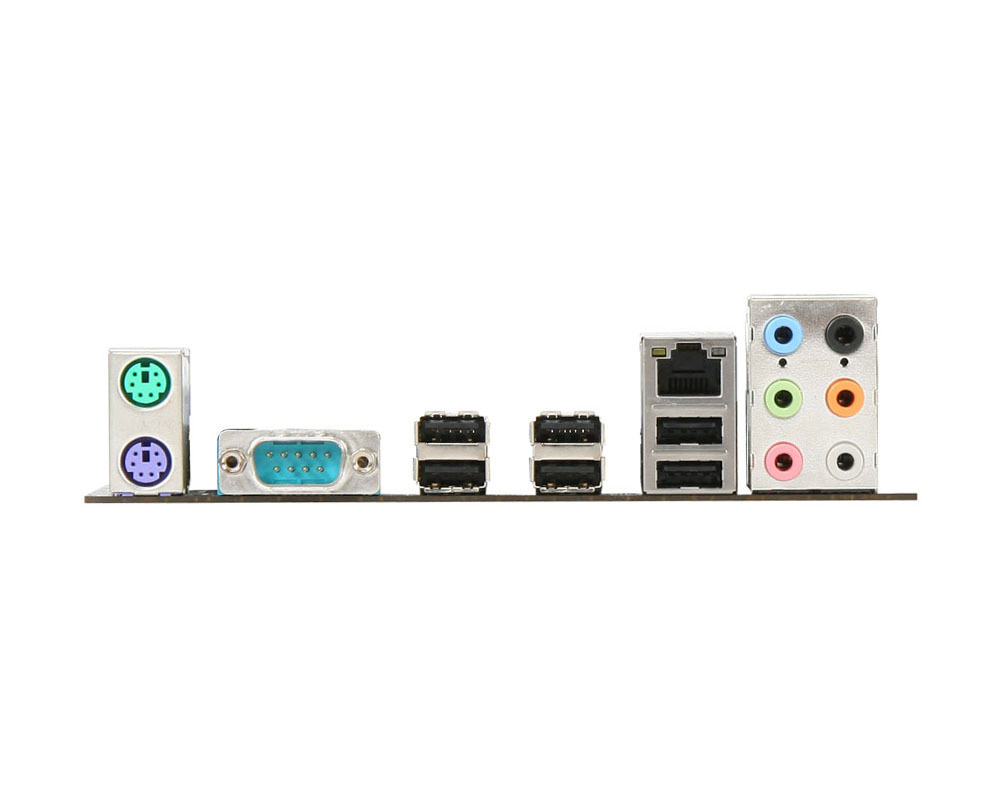

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111D(L) |
| Networking features | PCI-E GbLAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 770 |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 305 mm |
What people say
Reviews & ratings
MSI 870-C45 AMD 770 Socket AM2 ATX
No reviews yet
Be the first to tell others how MSI 870-C45 AMD 770 Socket AM2 ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI 870-C45 AMD 770 Socket AM2 ATX
All motherboard comparisons- MSI 870-C45 AMD 770 Socket AM2 ATX vsMSI H55M-P33 micro ATXCompare specs
- MSI 870-C45 AMD 770 Socket AM2 ATX vsMSI 870U-G55 AMD 770 Socket AM3 ATXCompare specs

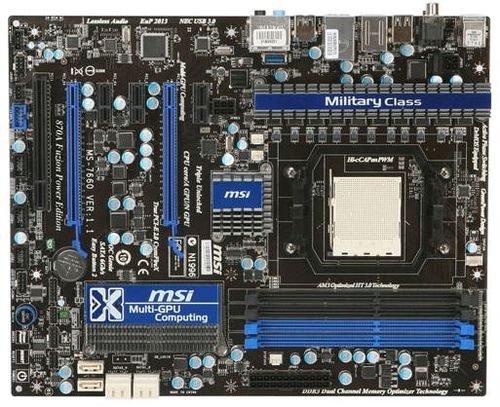

- MSI 870-C45 AMD 770 Socket AM2 ATX vsMSI 870A Fuzion Power EditionCompare specs
- MSI 870-C45 AMD 770 Socket AM2 ATX vsMSI Fuzzy GM965Compare specs

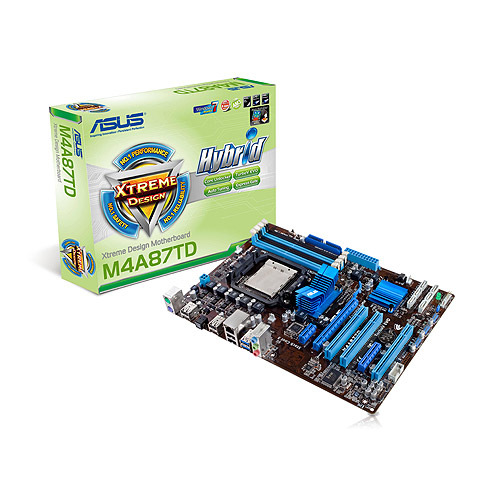

- MSI 870-C45 AMD 770 Socket AM2 ATX vsASUS M4A87TD motherboard Socket AM3 ATXCompare specs

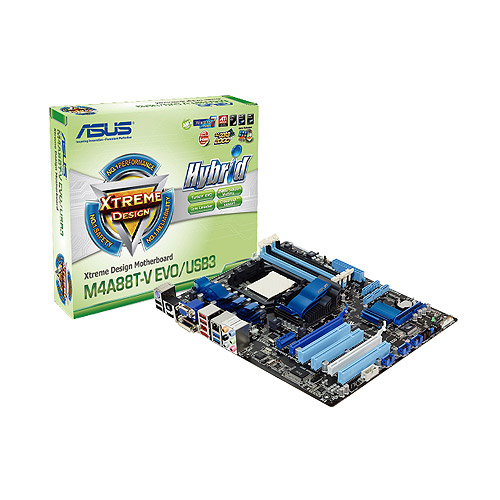

- MSI 870-C45 AMD 770 Socket AM2 ATX vsASUS M4A88T-V EVO/USB3Compare specs

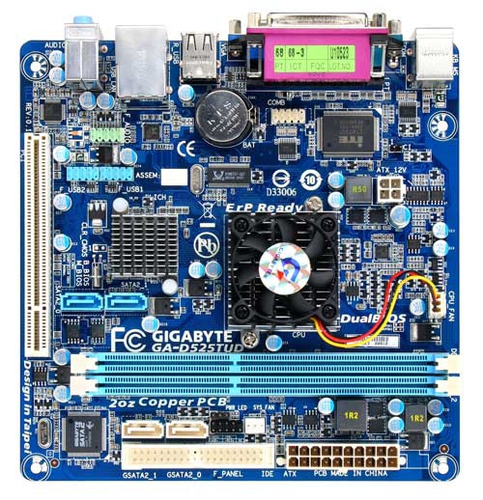

- MSI 870-C45 AMD 770 Socket AM2 ATX vsGIGABYTE GA-D525TUD motherboard Intel® NM10 Express NA (integrated CPU) mini ITXCompare specs

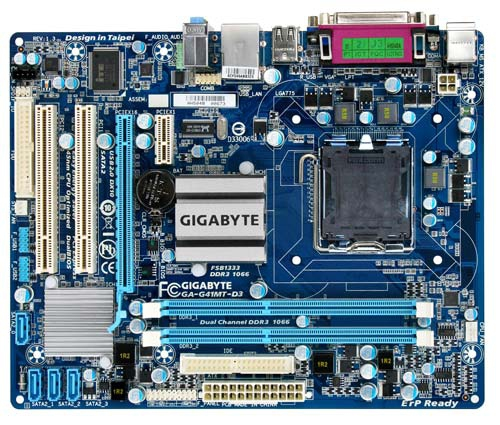

- MSI 870-C45 AMD 770 Socket AM2 ATX vsGIGABYTE GA-G41MT-D3 motherboard LGA 775 (Socket T) micro ATXCompare specs
