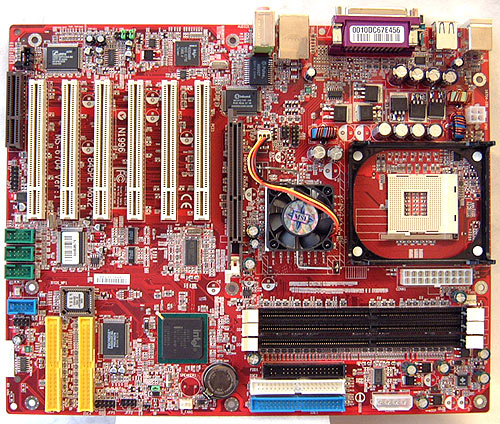

MSI 845PE MAX2
Model 845PE MAX2Part no. 845PE-MAX2
48 specifications
- Processor manufacturerIntel
- Supported memory typesDDR-SDRAM
- Supported storage drive interfacesIDE
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR-SDRAM
- Supported storage drive interfaces
- IDE
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- MSI
- Category
- Motherboard
- Model
- 845PE MAX2
- Part number
- 845PE-MAX2
- Also known as
- MSI 845PE MAX2 Intel® 845PE Socket 478 ATX
Specifications
48 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Processor system buses supported | 533 MHz |
| System bus rate | 3.06 GT/s |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR-SDRAM |
| Memory slots type | DIMM |
| Memory voltage | 2.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 266,333 MHz |
| Maximum internal memory | 2 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | IDE |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 4 |
| CPU fan connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® 845PE |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 6 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| Clear CMOS jumper | Yes |
Other features
| Specification | Value |
|---|---|
| AGP x4 slots | 1 |
| CNR slot | Yes |
| Floppy disk drive connector | Yes |
