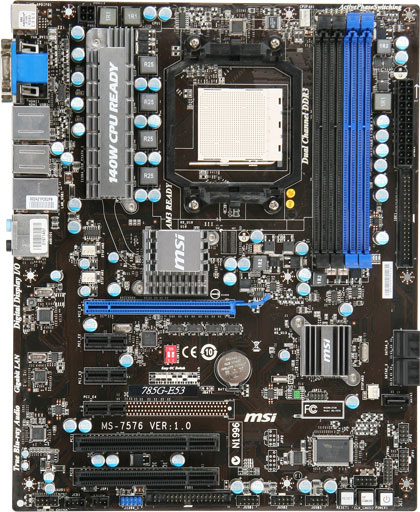

MSI 785G-E53 AMD
785G Socket AM3 ATX
Model 785G-E53Part no. 7576-030REAN 4719072135447
39 specifications
- Memory0 GB
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1
- USB 2.0 connectors3
- USB 2.0 ports quantity6
Overview
- Memory
- 0 GB
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Brand
- MSI
- Category
- Motherboard
- Model
- 785G-E53
- Part numbers
- 7576-030R, 785G-E53, 911-7576-014
- EAN / UPC
- 4719072135447
- Also known as
- MSI 785G-E53 AMD 785G Socket AM3 ATX
Specifications
39 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.5 V |
| Internal memory | 0 GB |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 5 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |

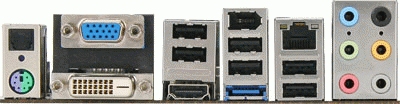

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek RTL8111DL - Ethernet, Fast Ethernet, Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 785G |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 304 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| I/O ports | On-Board: 1 x Front panel 1 x SPDIF-out 1 x Serial port 1 x Power LED button 1 x Reset LED button 1 x Clear CMOS button 1 x OC Switch |
