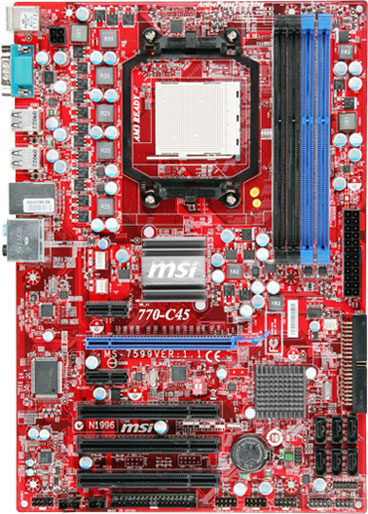

MSI 770-C45 AMD 770 Socket AM3 ATX
Model 770-C45Part no. 911-7599-005EAN 4719072116903
29 specifications
- Processor manufacturerAMD
- Number of memory slots4
- Number of SATA connectors6
- LAN controllerRealtek RTL8111D(L)
- Motherboard form factorATX
- PCI Express x1 slots2
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- Number of SATA connectors
- 6
- LAN controller
- Realtek RTL8111D(L)
- Motherboard form factor
- ATX
- PCI Express x1 slots
- 2
- Brand
- MSI
- Category
- Motherboard
- Model
- 770-C45
- Part numbers
- 911-7599-005, 7599-020R, 770-C45, 601-7599-020
- EAN / UPC
- 4719072116903, 816909058673, 4016138570472, 4719072111571 +1 more
- Also known as
- MSI 770-C45 AMD 770 Socket AM3 ATX
Specifications
29 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111D(L) |
| Networking features | 10/100/1000 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 770 |
| Audio chip | Realtek ALC888S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 210 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
