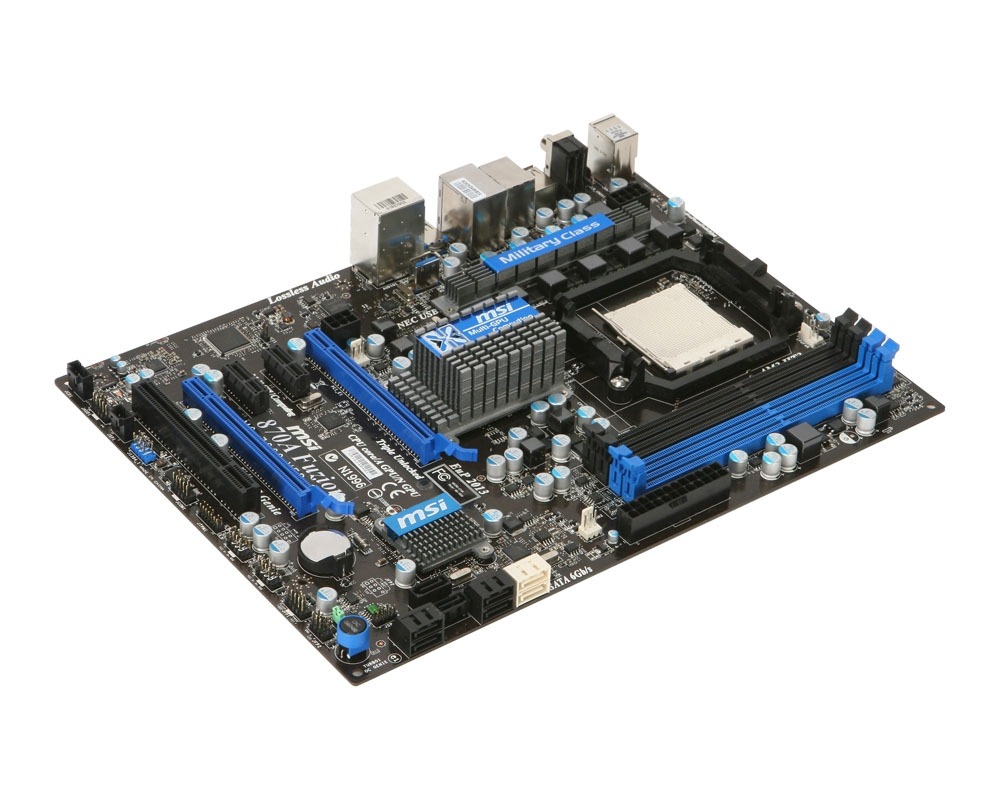

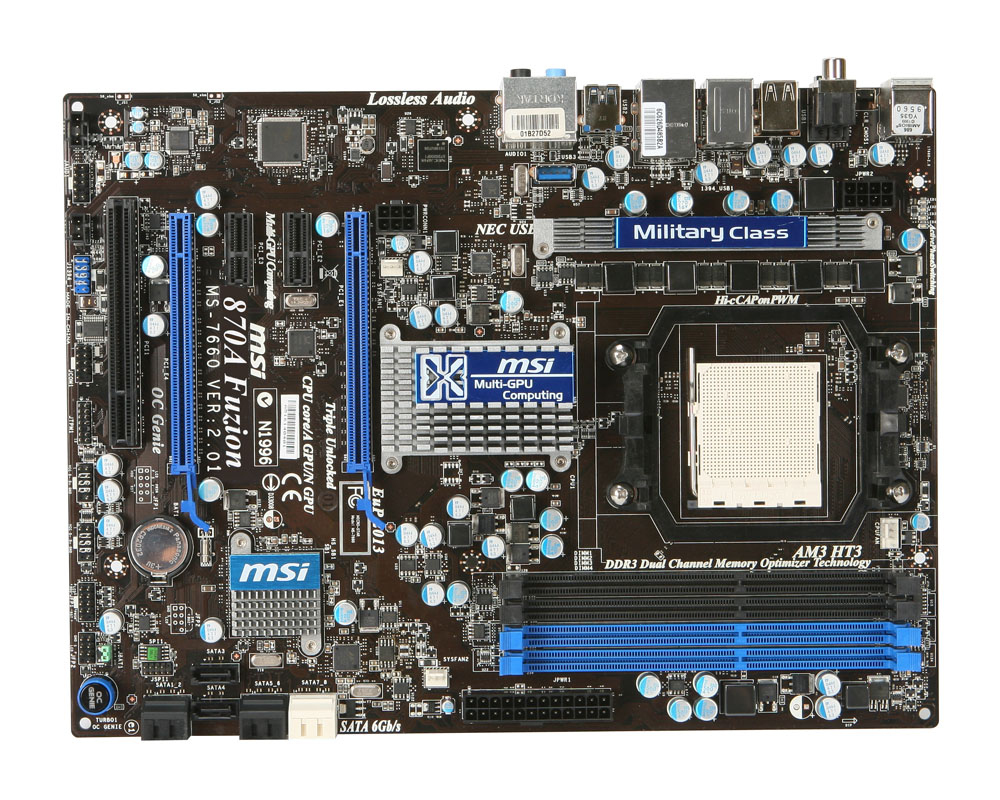

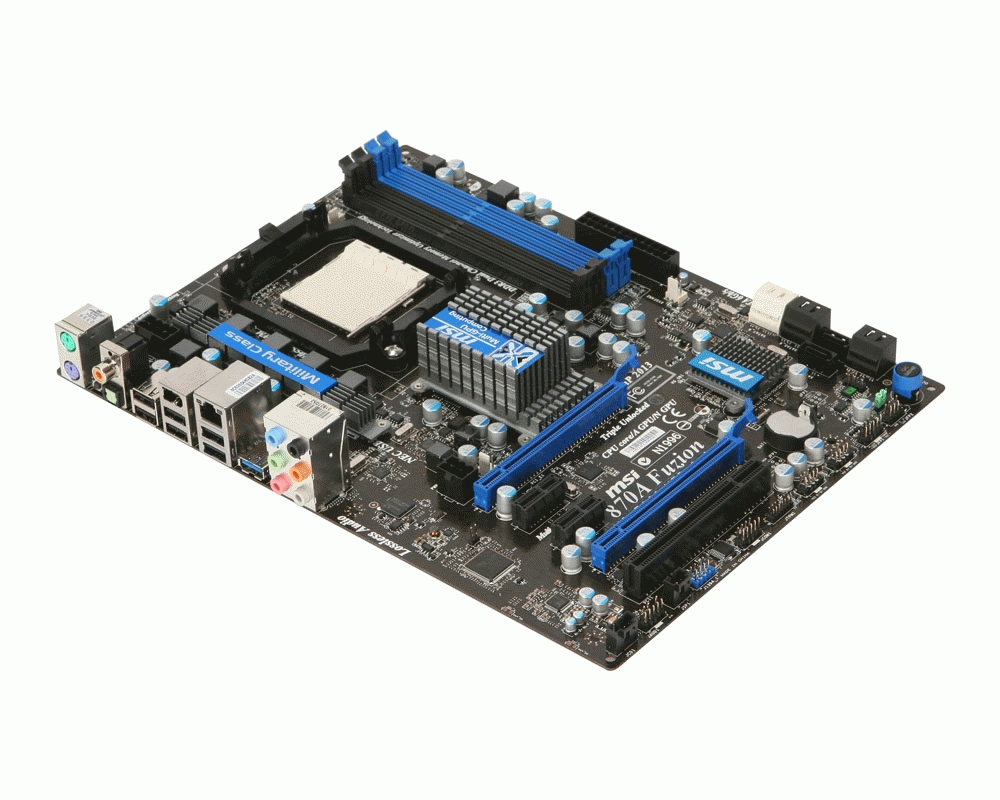

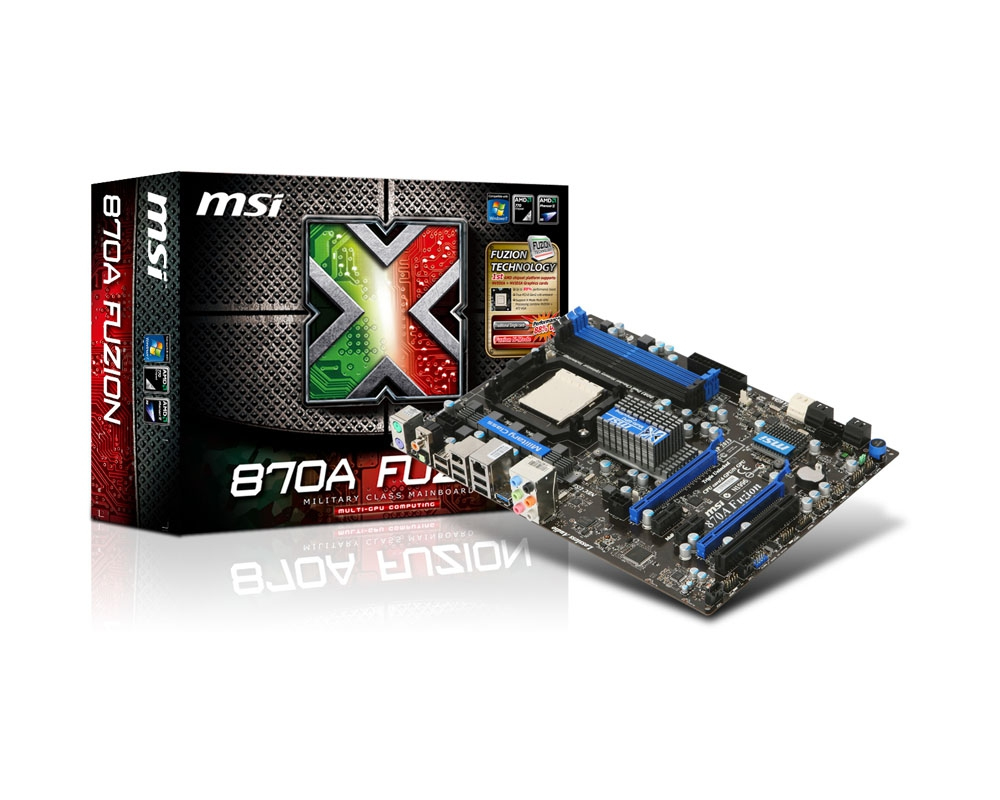

MSI 7660-020R motherboard AMD 770 Socket AM3 ATX
Model 7660-020R
40 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8111E
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8111E
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- 7660-020R
- Part number
- 7660-020R
- Also known as
- MSI 7660-020R motherboard AMD 770 Socket AM3 ATX
Specifications
40 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
| Compatible processor series | AMD Sempron |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.5 V |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |

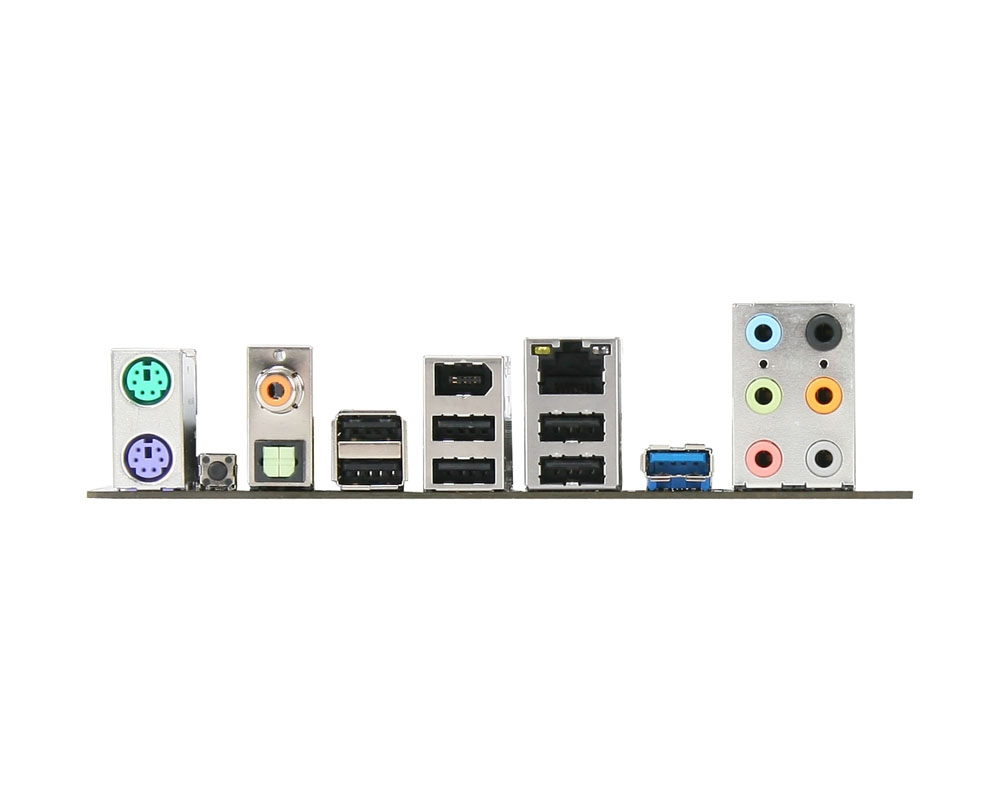

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 770 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 225 mm |
Other features
| Specification | Value |
|---|---|
| PCI Express power connectors (6-pin) | 1 |
What people say
Reviews & ratings
MSI 7660-020R motherboard AMD 770 Socket AM3 ATX
No reviews yet
Be the first to tell others how MSI 7660-020R motherboard AMD 770 Socket AM3 ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI 7660-020R motherboard AMD 770 Socket AM3 ATX
All motherboard comparisons- MSI 7660-020R motherboard AMD 770 Socket AM3 ATX vsMSI 870A FuzionCompare specs
- MSI 7660-020R motherboard AMD 770 Socket AM3 ATX vsMSI 870S-G54 motherboard Socket AM3 ATXCompare specs

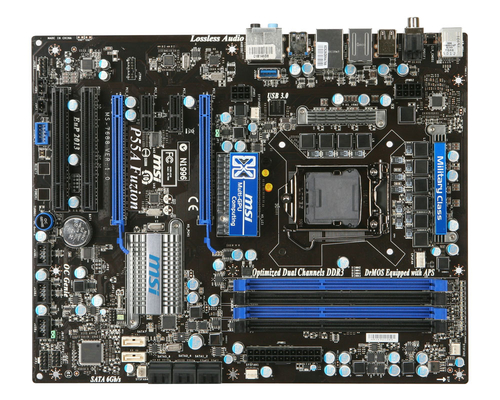

- MSI 7660-020R motherboard AMD 770 Socket AM3 ATX vsMSI P55A FuzionCompare specs

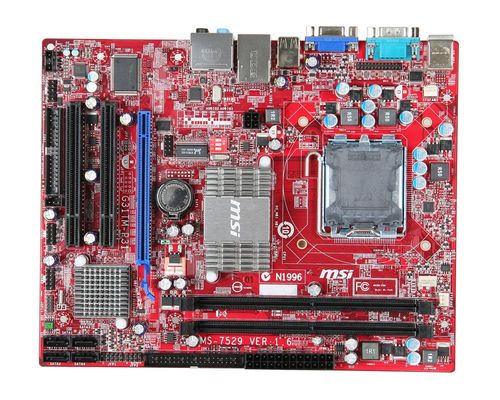

- MSI 7660-020R motherboard AMD 770 Socket AM3 ATX vsMSI G31TM-P31 motherboard LGA 775 (Socket T) micro ATXCompare specs
- MSI 7660-020R motherboard AMD 770 Socket AM3 ATX vsASUS M4A88TD-M/USB3 motherboard AMDCompare specs
- MSI 7660-020R motherboard AMD 770 Socket AM3 ATX vsASUS P7H55-M/USB3 LGA 1156 (Socket H) micro ATXCompare specs

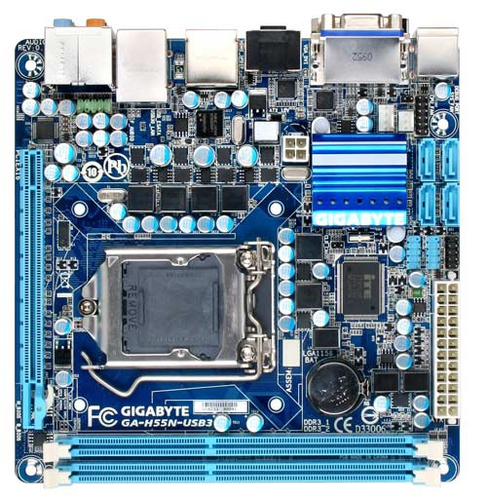

- MSI 7660-020R motherboard AMD 770 Socket AM3 ATX vsGIGABYTE GA-H55N-USB3 motherboard LGA 1156 (Socket H) mini ITXCompare specs
