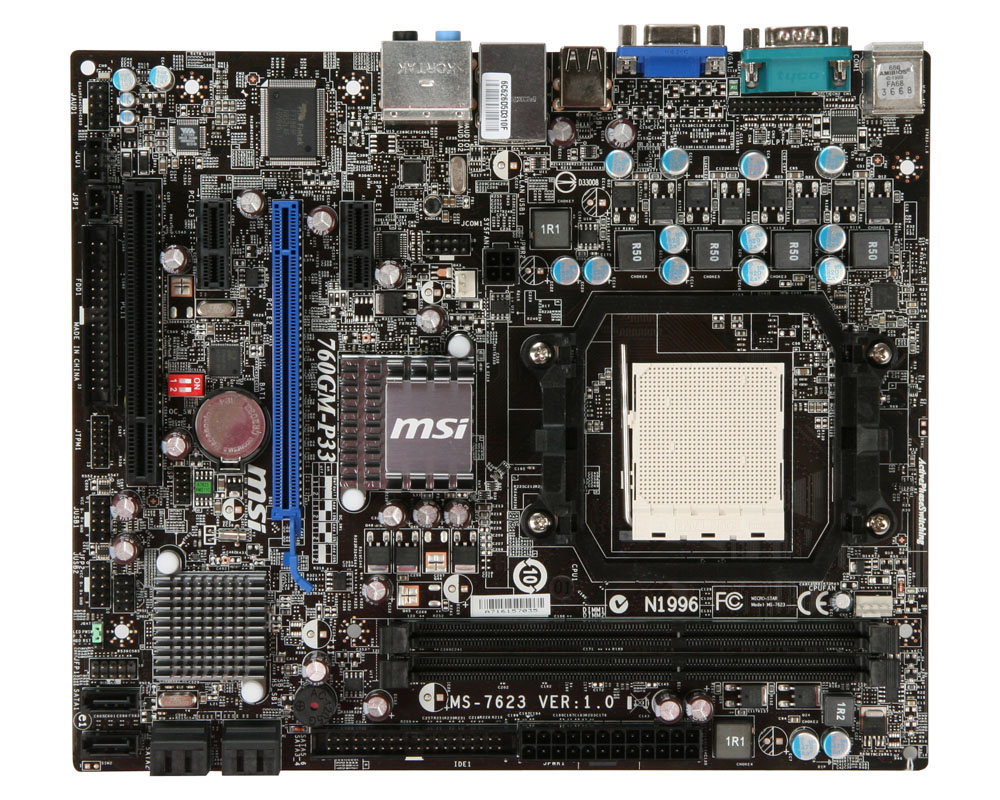

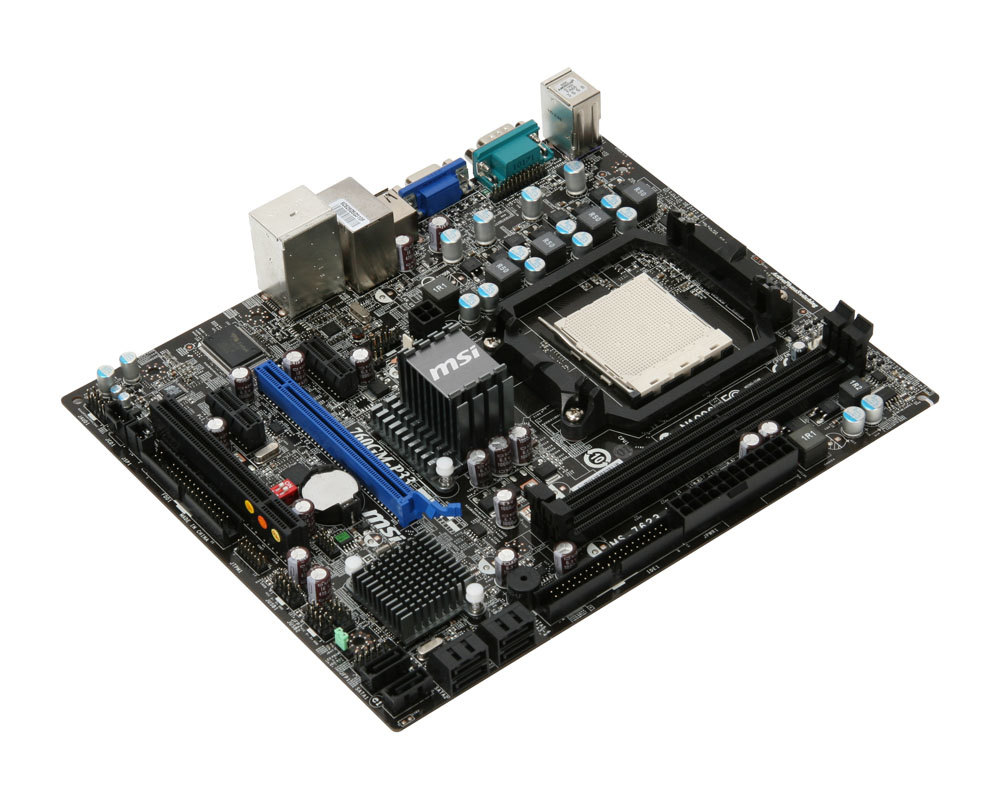

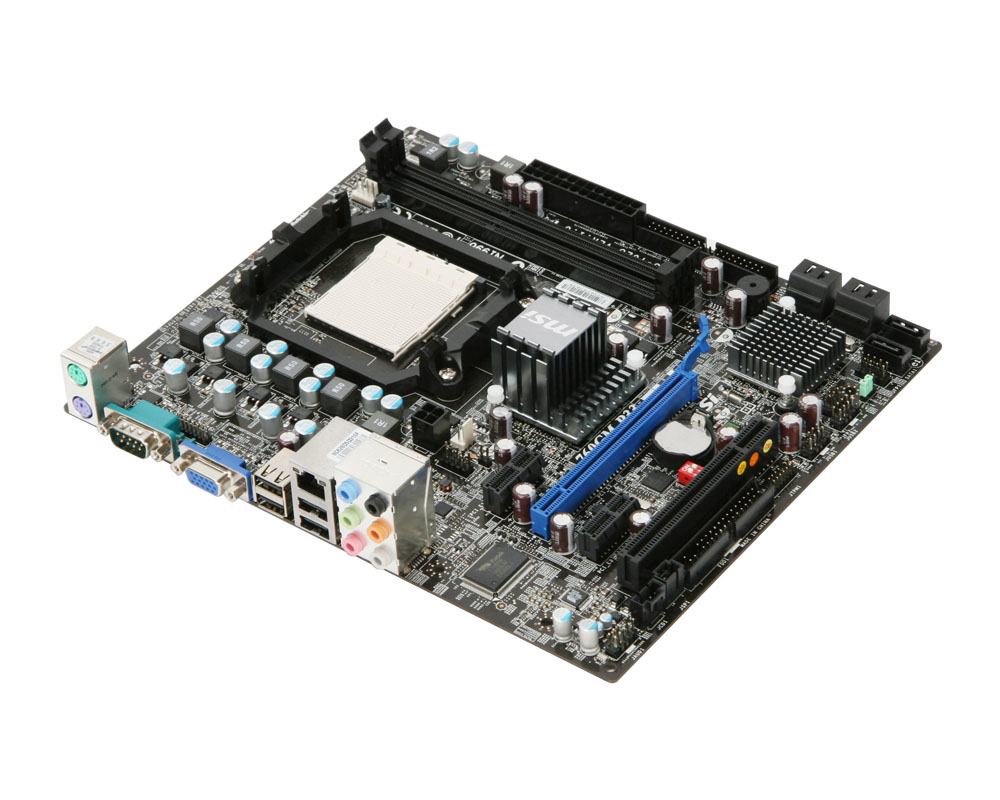

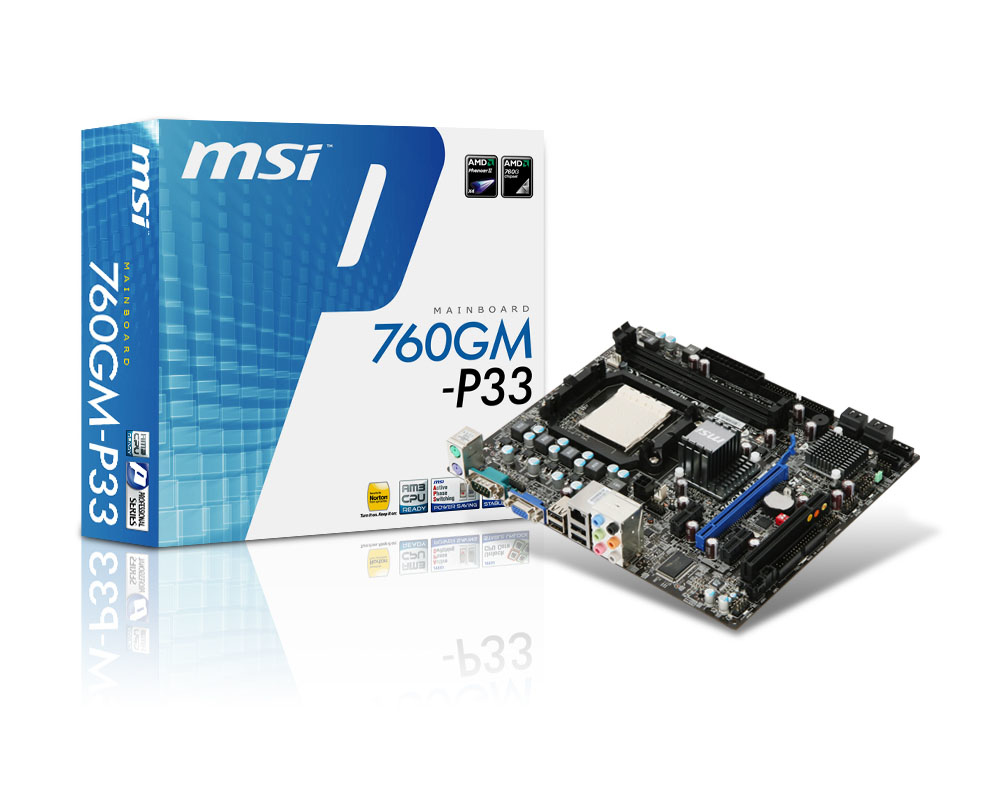

MSI 760GM-P33 Socket AM3 micro ATX
Model 760GM-P33Part no. 7623-050REAN 4719072182649
41 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1, 0+1, JBOD
- Maximum graphics card memory512 MB
- USB 2.0 ports quantity4
- LAN controllerAtheros AR8131M
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1, 0+1, JBOD
- Maximum graphics card memory
- 512 MB
- USB 2.0 ports quantity
- 4
- LAN controller
- Atheros AR8131M
- Brand
- MSI
- Category
- Motherboard
- Model
- 760GM-P33
- Part numbers
- 7623-050R, 760GM-P33
- EAN / UPC
- 4719072182649, 816909076356
- Also known as
- MSI 760GM-P33 Socket AM3 micro ATX
Specifications
41 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Supported memory clock speeds | 800,1066,1333,1600 MHz |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
| Parallel processing technology support | Hybrid CrossFireX |
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |

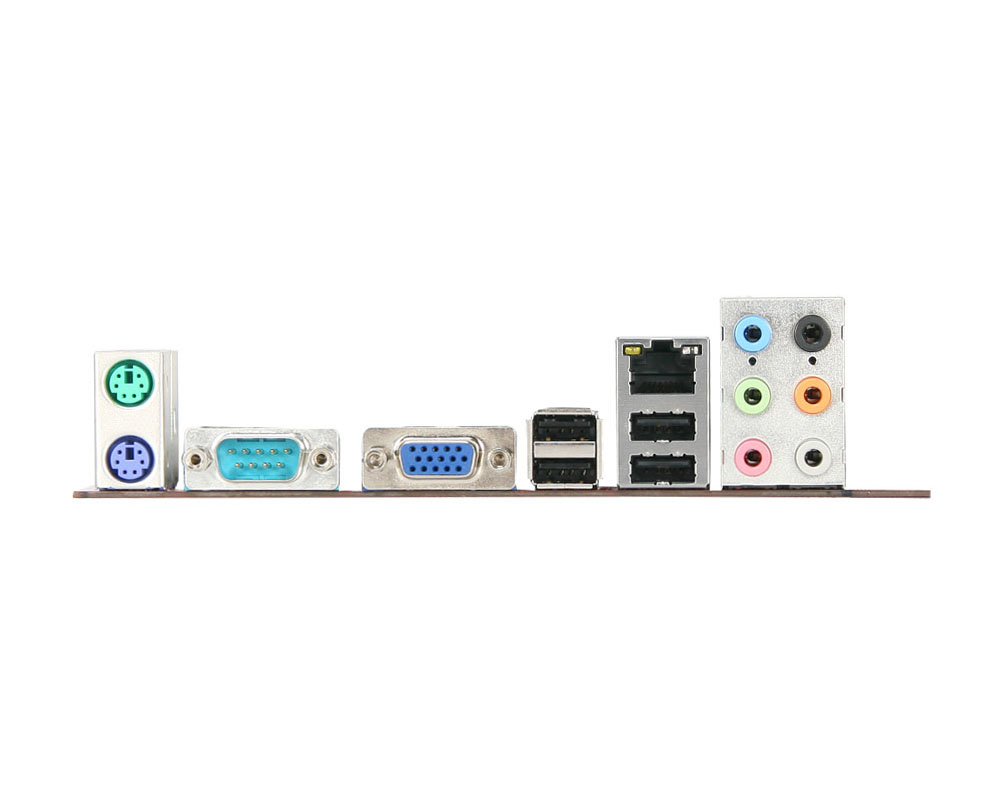

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Atheros AR8131M |
| Networking features | PCI-E GbLAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | VIA VT1708S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 244 mm |
