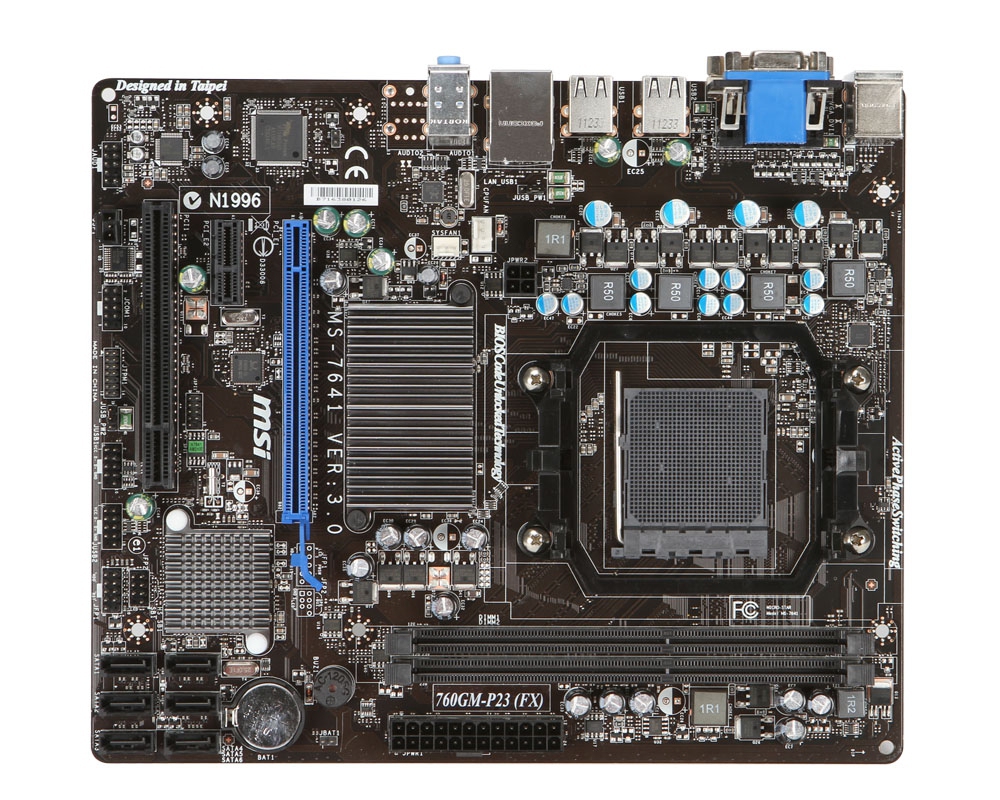

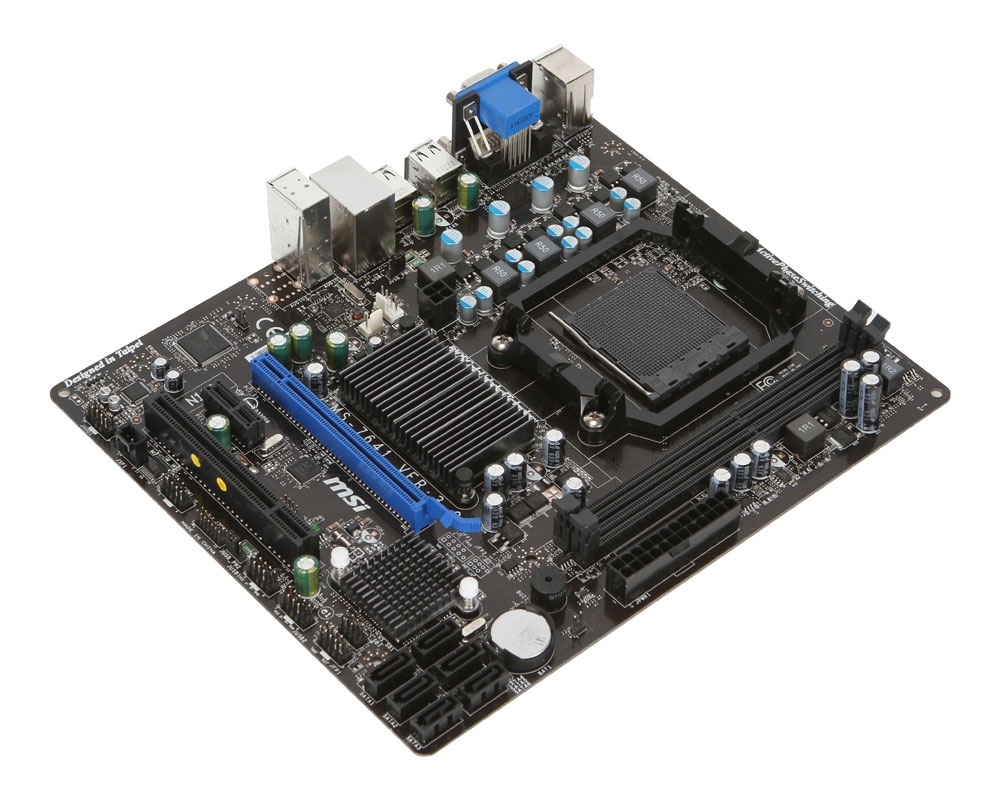

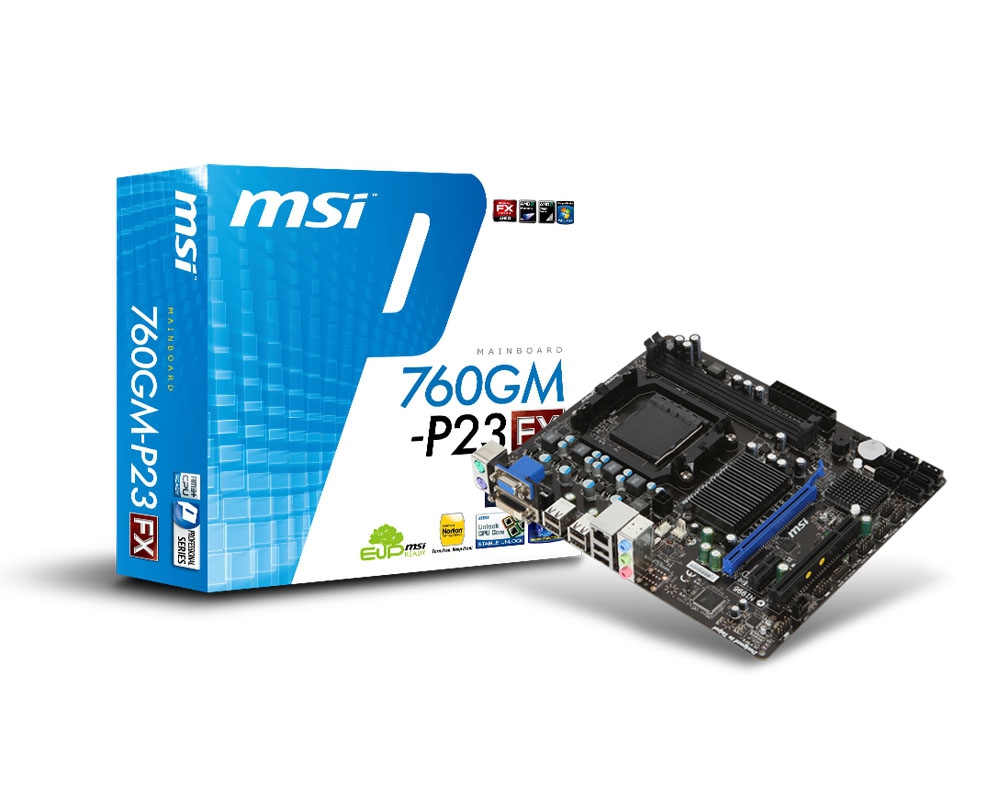

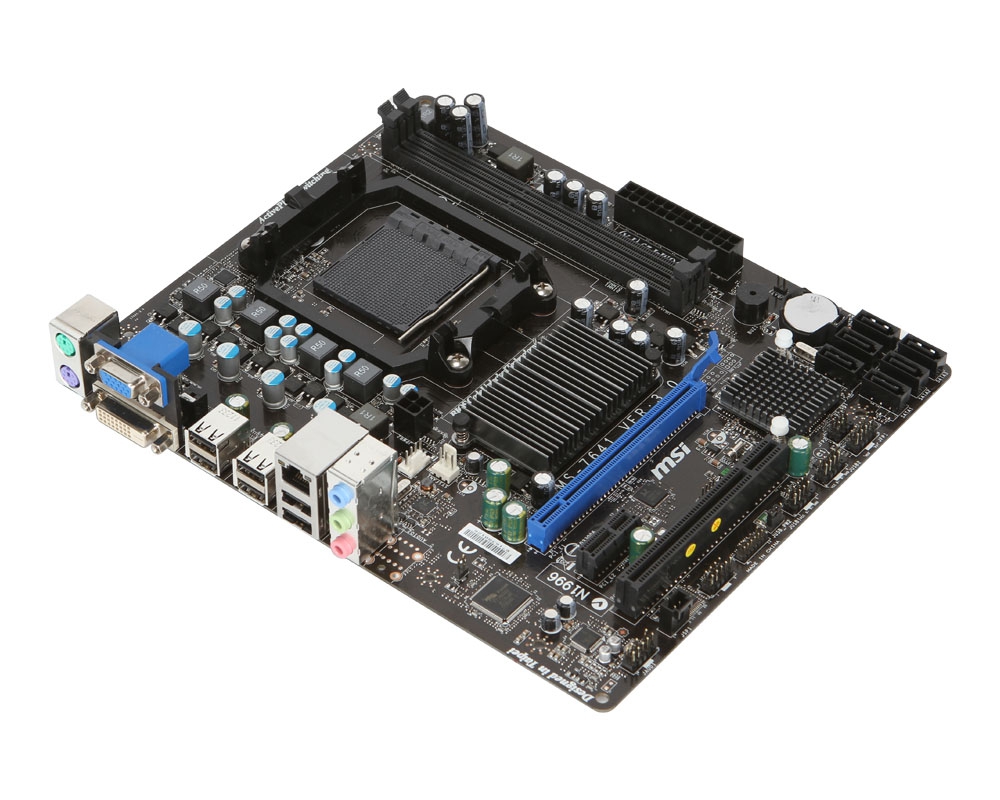

MSI 760GM-P23 (FX) Mainboard

MSI 760GM-P23 (FX) Mainboard

Model 760GM-P23 (FX) MainboardPart no. 760GM-P23 (FX)EAN 8169090884036

47 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA
Parallel processing technology support
Not supported
USB 2.0 connectors
2
USB 2.0 ports quantity
6
Brand
MSI
Category
Motherboard
Model
760GM-P23 (FX) Mainboard
Part number
760GM-P23 (FX)
EAN / UPC
8169090884036, 112840376402, 151903008430, 320127535118 +8 more
Also known as
MSI 760GM-P23 (FX) Mainboard AMD 760G Socket AM3+ micro ATX

Specifications

47 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3+
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory voltage1.5 V
Supported memory clock speeds800,1066,1333 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesSATA

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors2
Number of SATA II connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
TPM connectorYes

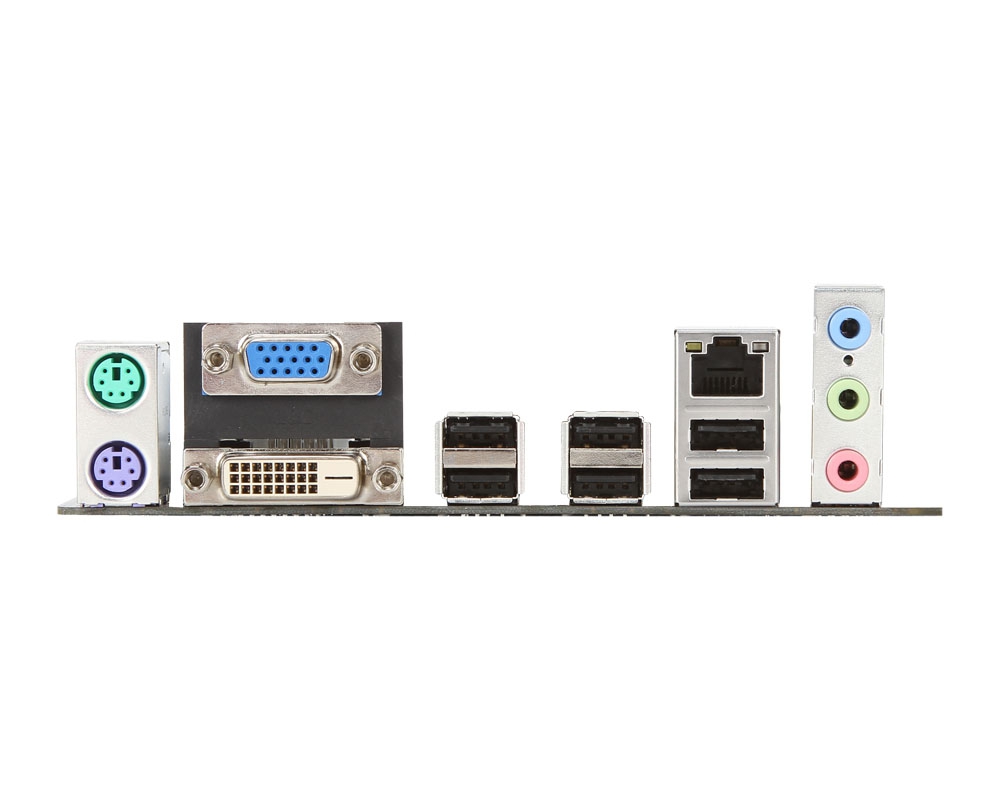

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 760G
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI slots1

BIOS

Clear CMOS buttonYes

Weight & dimensions

Width205 mm
Depth244 mm
