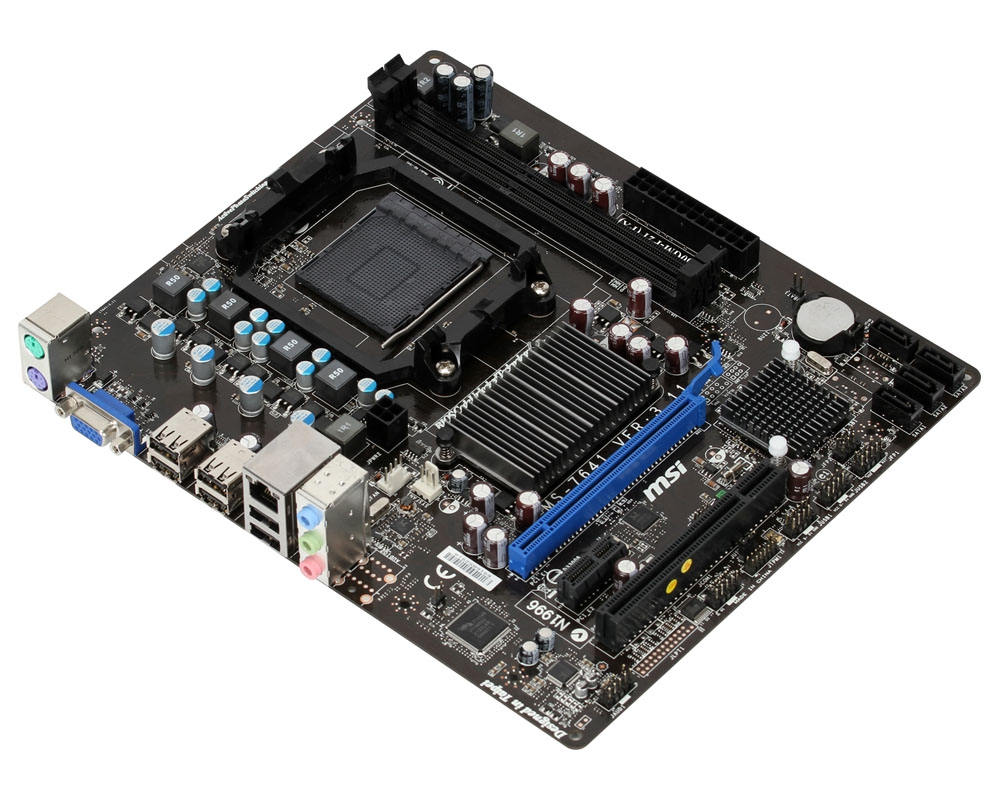

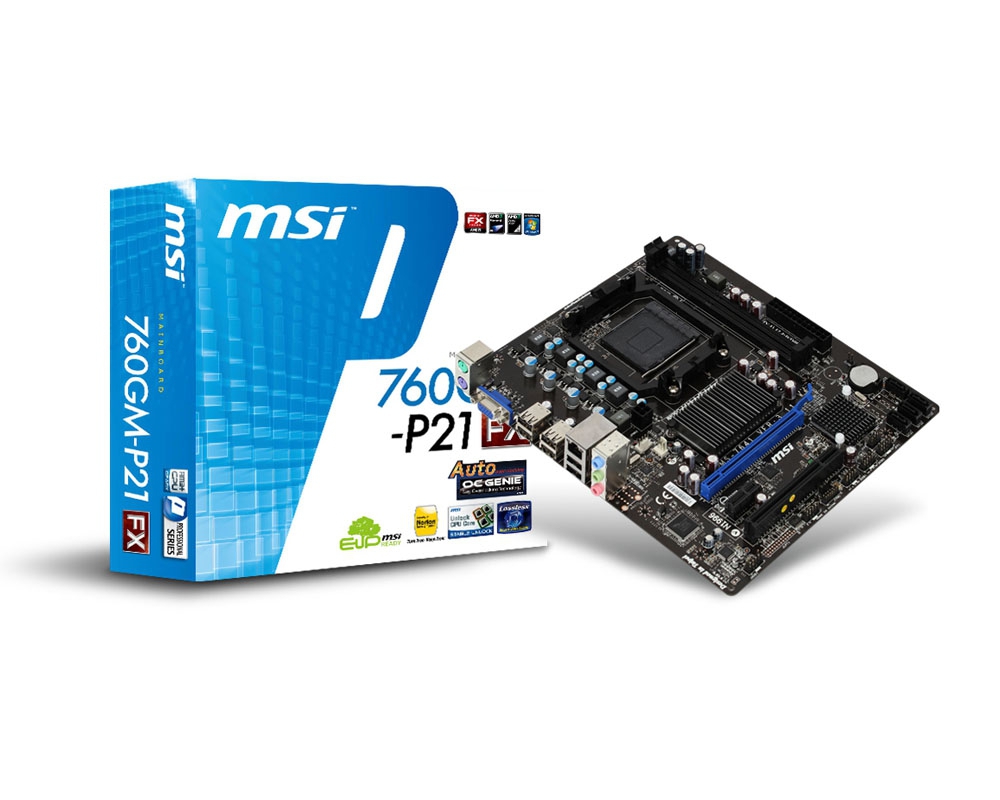

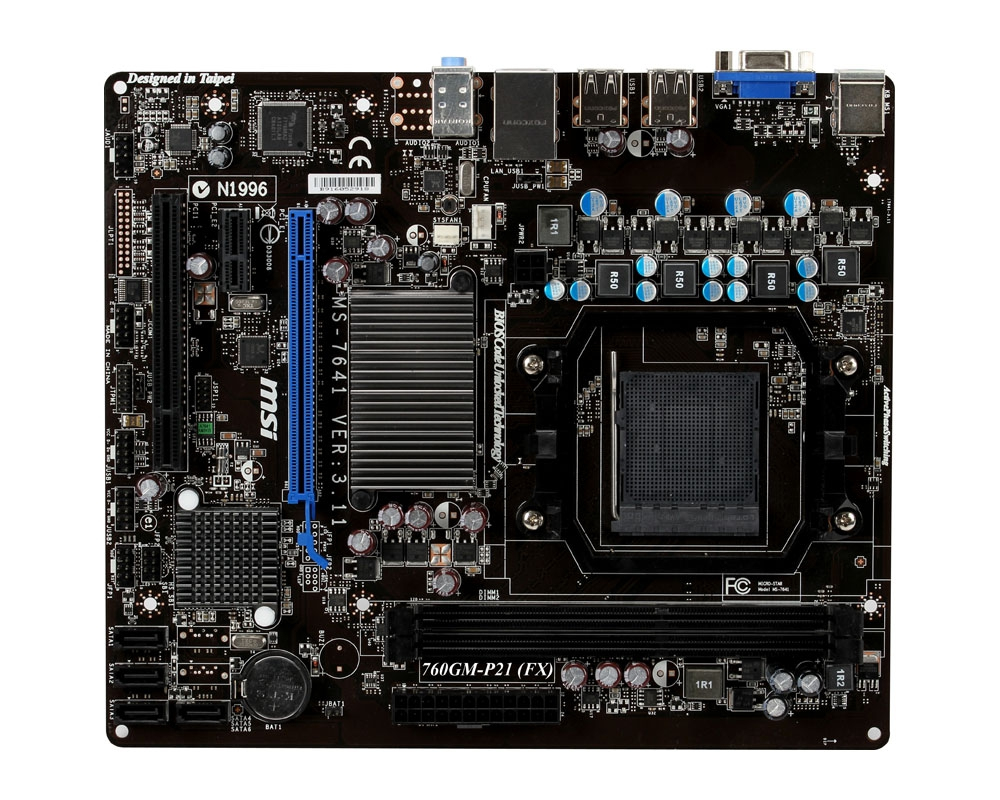

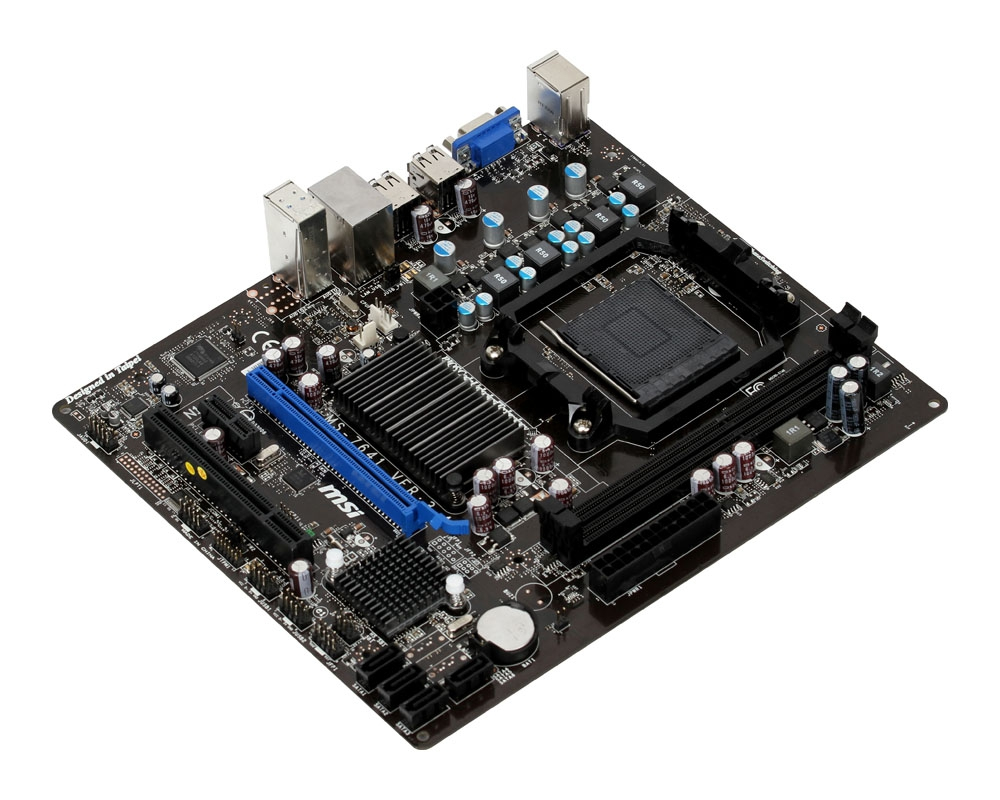

MSI 760GM-P21 (FX)

MSI 760GM-P21 (FX)

Model 760GM-P21 (FX)EAN 816909091830

58 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Parallel processing technology supportHybrid CrossFireX
  • USB 2.0 connectors2
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Parallel processing technology support
Hybrid CrossFireX
USB 2.0 connectors
2
USB 2.0 ports quantity
6
Brand
MSI
Category
Motherboard
Model
760GM-P21 (FX)
Part number
760GM-P21 (FX)
EAN / UPC
816909091830, 4719072243548, 4719072246020, 5053785402335
Also known as
MSI 760GM-P21 (FX) motherboard AMD 760G Socket AM3+ micro ATX

Specifications

58 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3+
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
System bus rate5.2 GT/s

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds800,1066,1333 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesSATA II
RAID levels0, 1, 10, JBOD

Graphics

Parallel processing technology supportHybrid CrossFireX
DirectX version10.1

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
TPM connectorYes

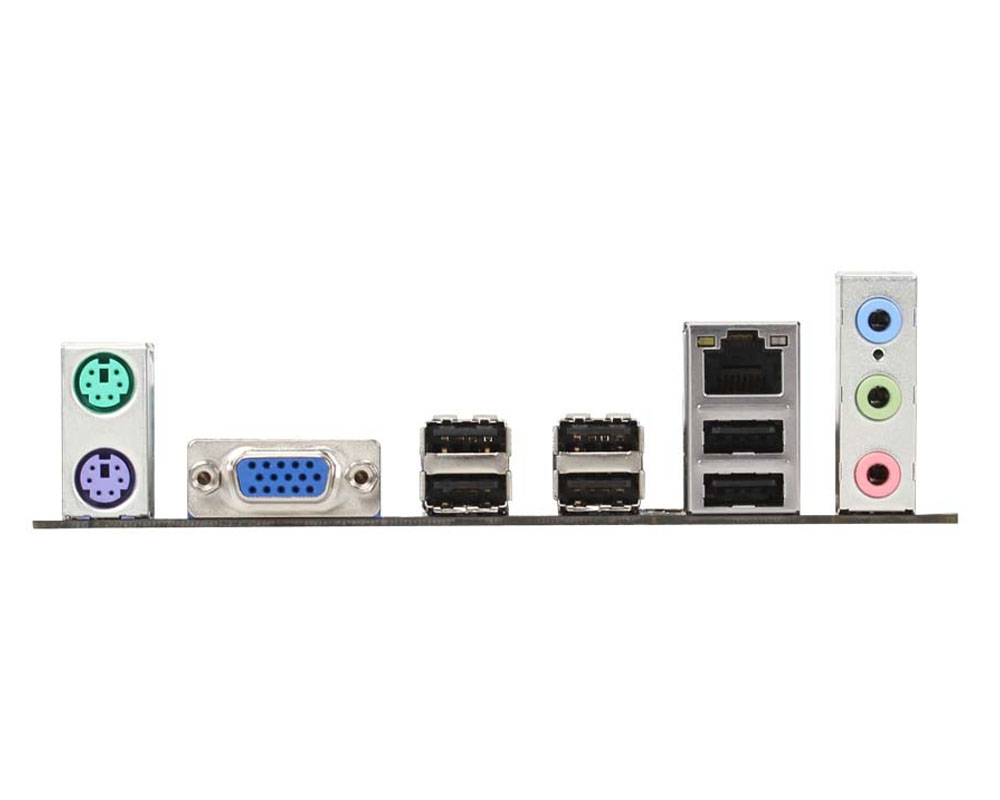

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
LAN controllerRealtek RTL8101E

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 760G
Motherboard southbridgeAMD SB710
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98SE, Windows

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots1

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width209 mm
Depth244 mm
