MSI 760GM-E51 (FX)

MSI 760GM-E51 (FX)

Model 760GM-E51 (FX)EAN 8169090892574

57 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Parallel processing technology support
Not supported
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
MSI
Category
Motherboard
Model
760GM-E51 (FX)
Part numbers
760GM-E51 (FX), 911-7596-038, 760GM-E51(FX)
EAN / UPC
8169090892574, 816909089257, 4719072235468
Also known as
MSI 760GM-E51 (FX) motherboard AMD 760G Socket AM3+ micro ATX

Specifications

57 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3+
Compatible processor seriesAMD Phenom FX, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory channelsDual-channel
Memory voltage1.5 V
ECC сompatibilityNon-ECC
Supported memory clock speeds800,1066,1333 MHz
Supported memory module capacities1GB, 2GB, 4GB, 8GB

Storage controllers

Supported storage drive interfacesSATA II
RAID levels0, 1, 0+1, JBOD

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
Number of SATA II connectors5
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
TPM connectorYes

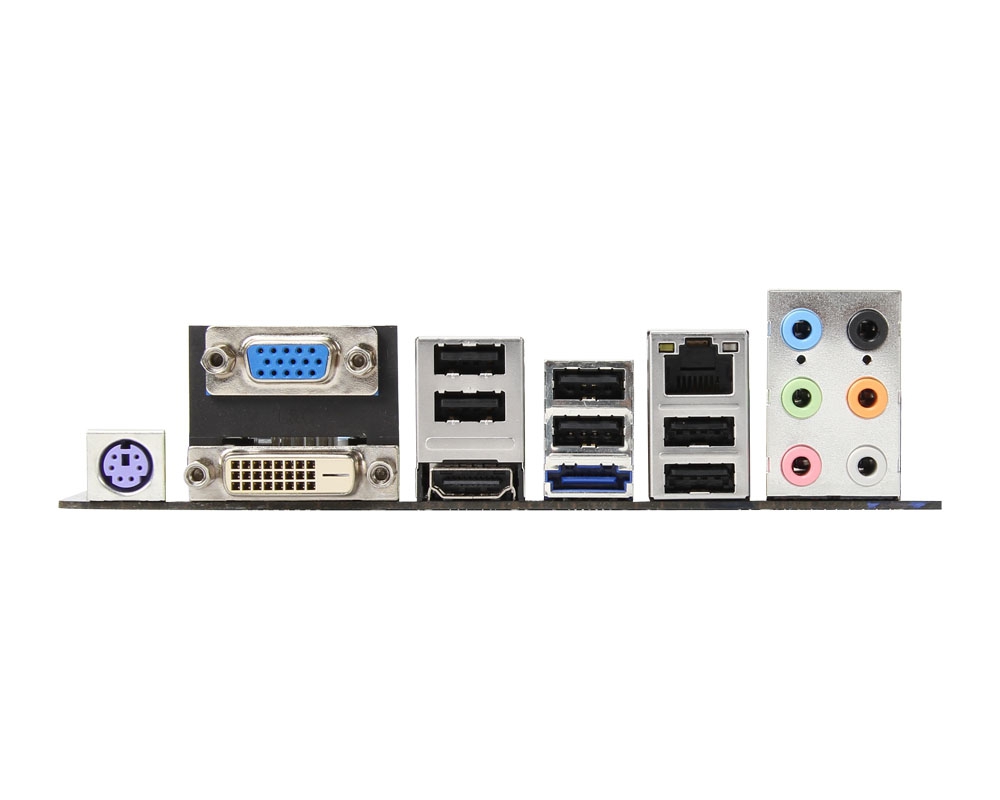

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.3
DVI-D ports quantity1
Headphone outputs6
Microphone inYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111D(L)

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 760G
Motherboard southbridgeAMD SB710
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots2

BIOS

Clear CMOS buttonYes

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Drivers includedYes

Other features

Controller interface typeAMD SB710
Quick installation guideYes
