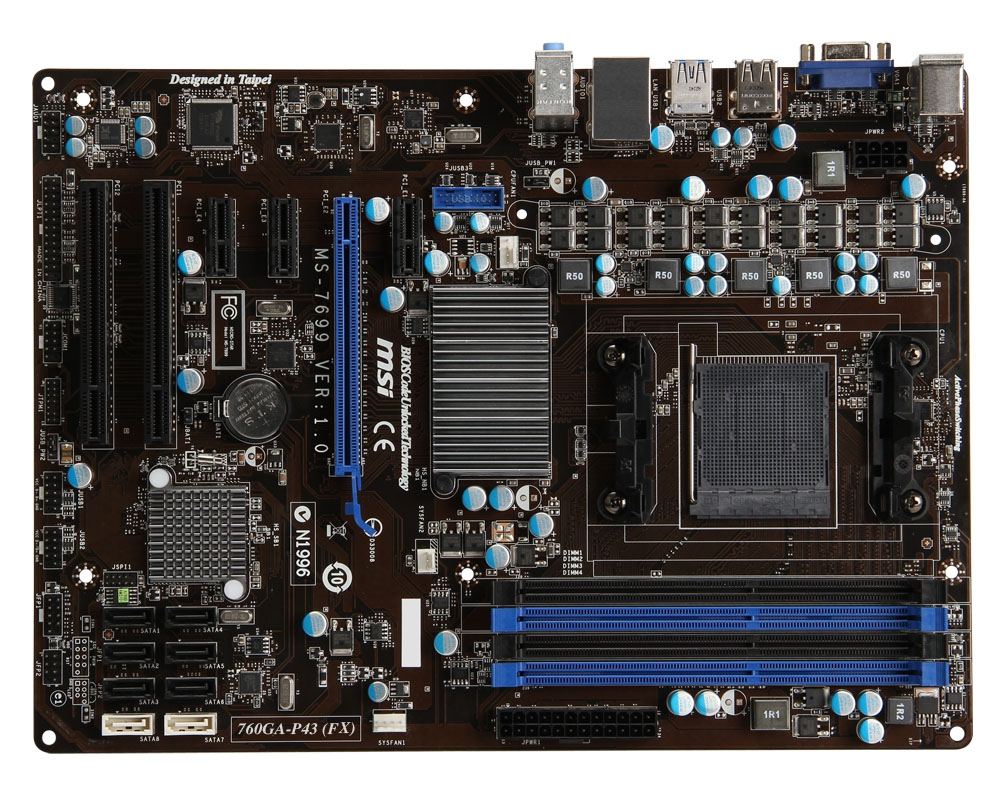

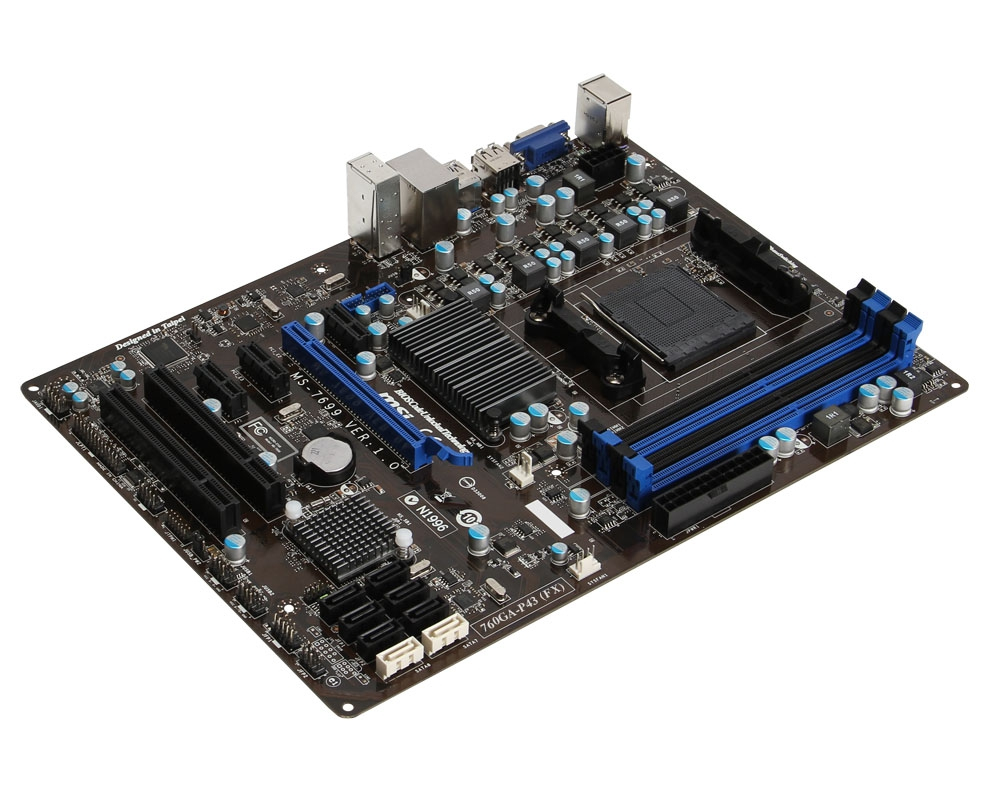

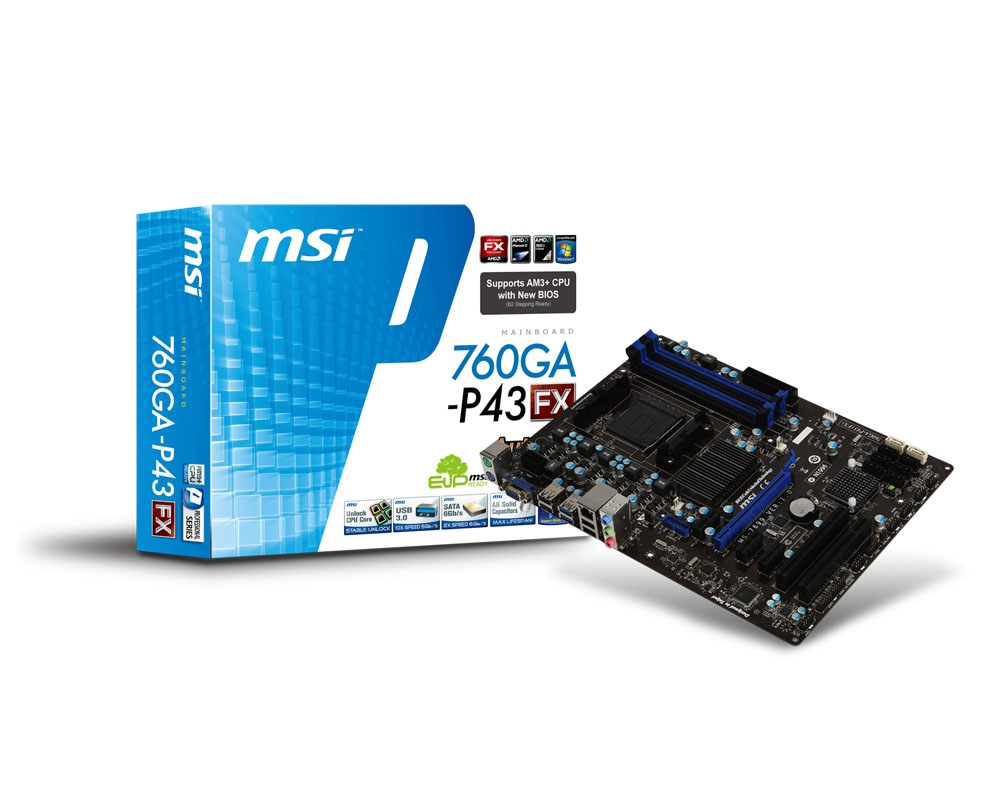

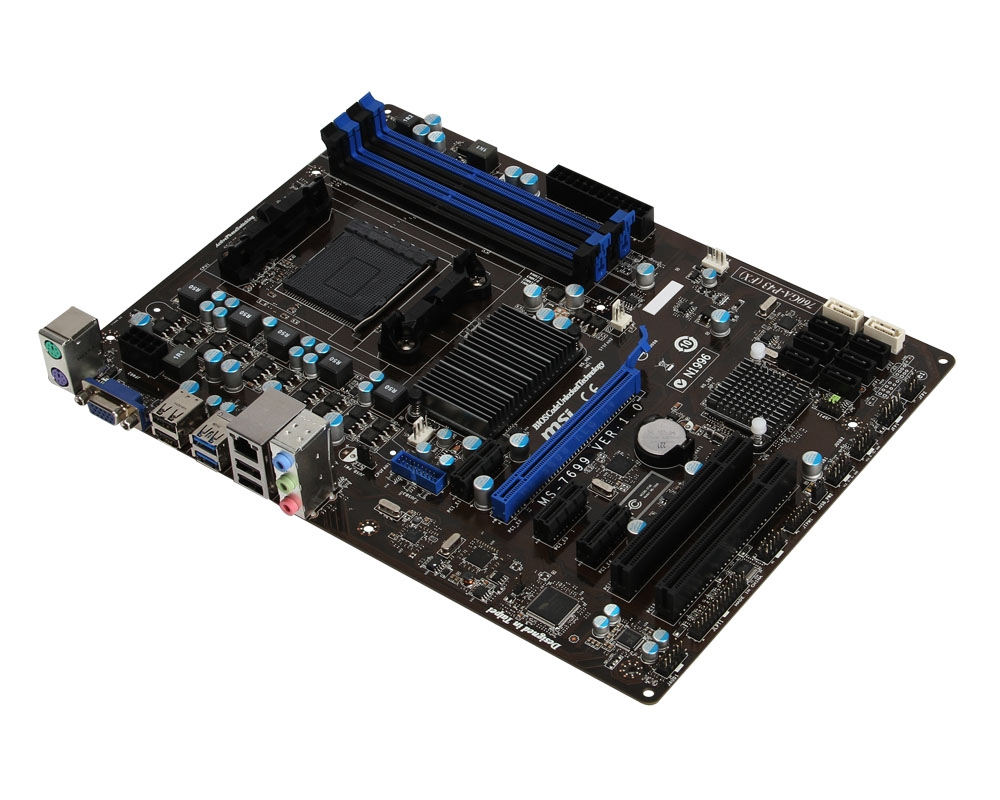

MSI 760GA-P43 (FX)

MSI 760GA-P43 (FX)

Model 760GA-P43 (FX)Part no. 7699-010REAN 4719072271084

56 specifications
  • Memory0.03125 GB
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
See all specifications

Overview

Memory
0.03125 GB
Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Parallel processing technology support
Not supported
USB 2.0 connectors
2
Brand
MSI
Category
Motherboard
Model
760GA-P43 (FX)
Part number
7699-010R
EAN / UPC
4719072271084
Also known as
MSI 760GA-P43 (FX) AMD 760G Socket AM3+ ATX

Specifications

56 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3+
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.5 V
Internal memory0.03125 GB
Supported memory clock speeds1066,1333,1600,1866,2133 MHz

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 10, JBOD

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors2
Number of SATA II connectors6
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Parallel connectorYes
TPM connectorYes

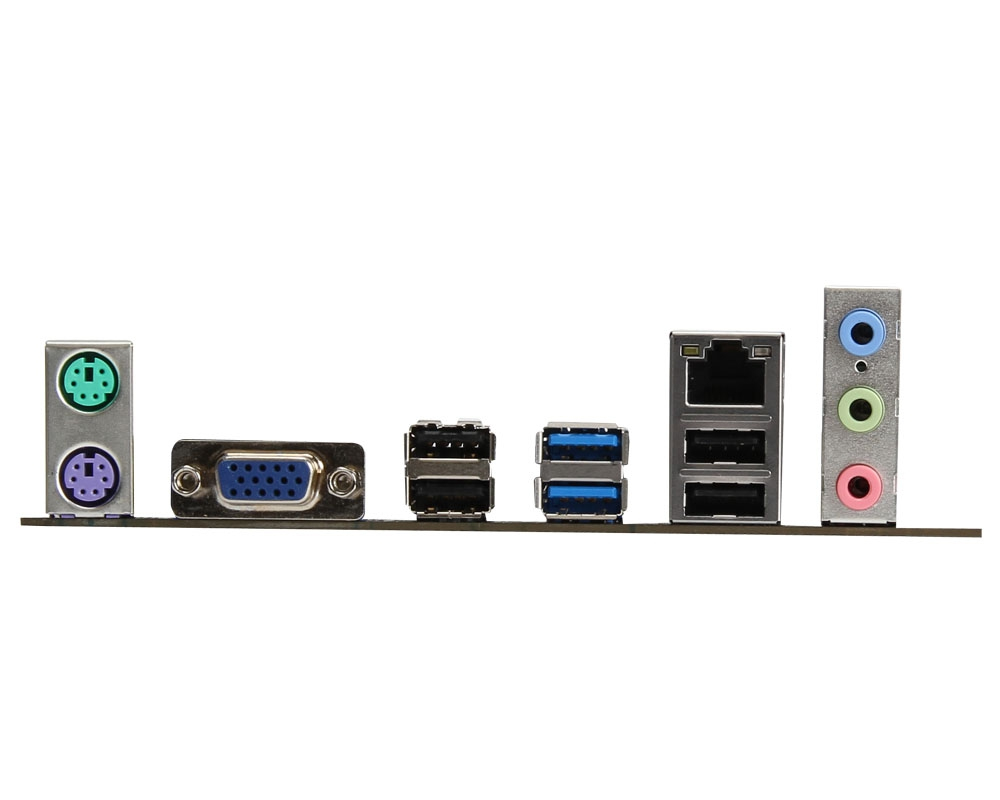

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 760G
Motherboard southbridgeAMD SB710
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots2

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width222.5 mm
Depth304.8 mm

Other features

Controller 2nd interface typeAsmedia ASM1061
Controller interface typeAMD SB710
