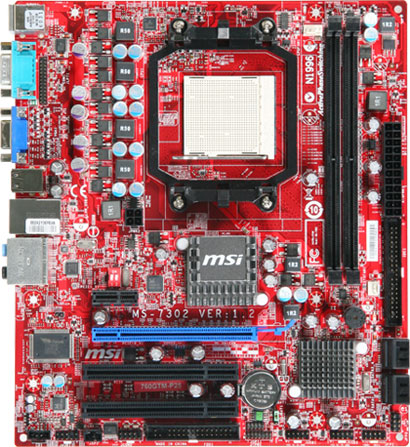

MSI 740GTM-P25 motherboard AMD
740G Socket AM2 micro ATX
Model 740GTM-P25EAN 4719072130169
35 specifications
- Processor manufacturerAMD
- Number of memory slots2
- Maximum graphics card memory512 MB
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8111DL
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- Maximum graphics card memory
- 512 MB
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8111DL
- Motherboard form factor
- micro ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- 740GTM-P25
- Part numbers
- 740GTM-P25, 911-7302-023, 7302-140R
- EAN / UPC
- 4719072130169
- Also known as
- MSI 740GTM-P25 motherboard AMD 740G Socket AM2 micro ATX
Specifications
35 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |

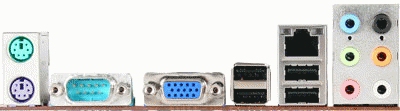

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111DL |
| Networking features | PCI-E GbLAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | AMD 740G |
| Audio chip | Realtek ALC888S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 215 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
