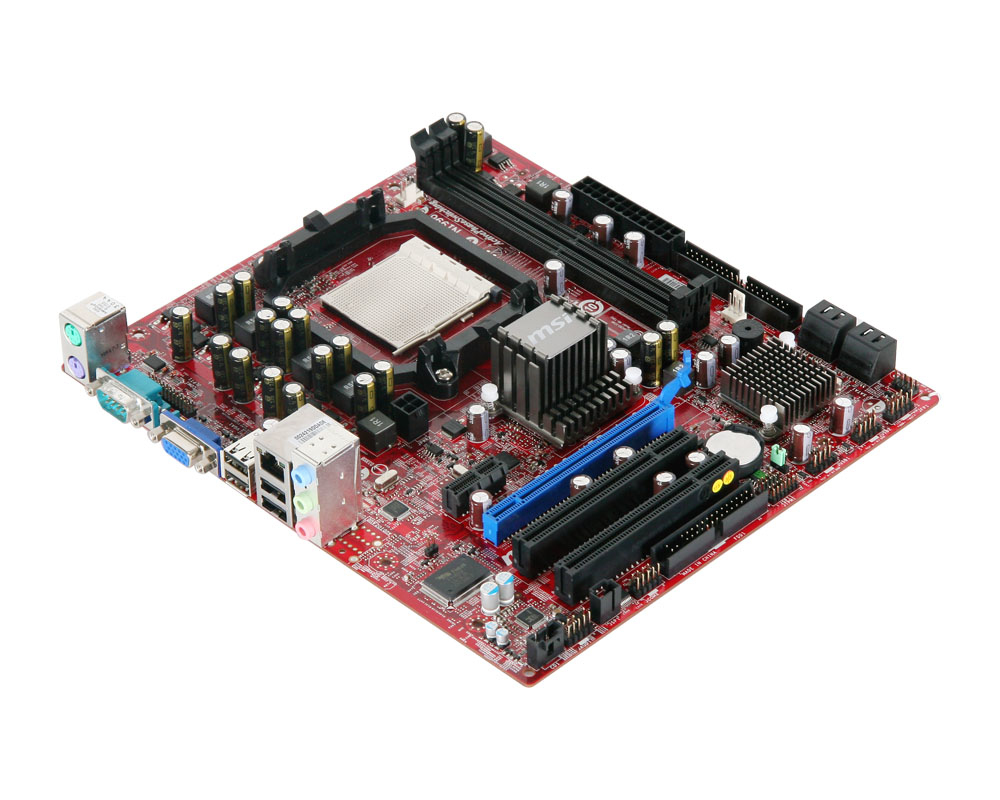

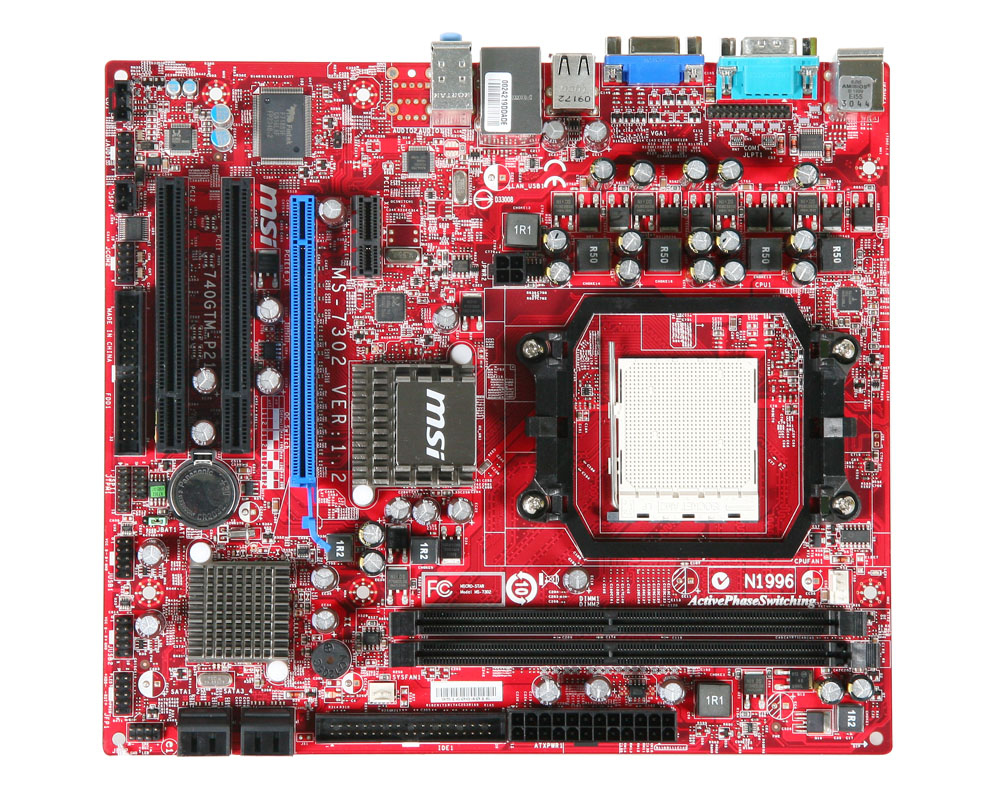

MSI 740GTM-P21 motherboard AMD

MSI 740GTM-P21 motherboard AMD

740G Socket AM3 micro ATX

Model 740GTM-P21

50 specifications
  • Processor manufacturerAMD
  • Number of memory slots8
  • RAID levels0, 1, 0+1
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
8
RAID levels
0, 1, 0+1
Parallel processing technology support
Not supported
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
740GTM-P21
Part number
740GTM-P21
Also known as
MSI 740GTM-P21 motherboard AMD 740G Socket AM3 micro ATX

Specifications

50 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom X4

Memory

Number of memory slots8
Memory voltage1.8 V
Supported memory clock speeds667,800,1066 MHz
Maximum internal memory8 GB

Storage controllers

RAID levels0, 1, 0+1

Graphics

Parallel processing technology supportNot supported
On-board graphics cardYes

Internal I/O

USB 2.0 connectors2
Number of SATA II connectors4
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
TPM connectorYes

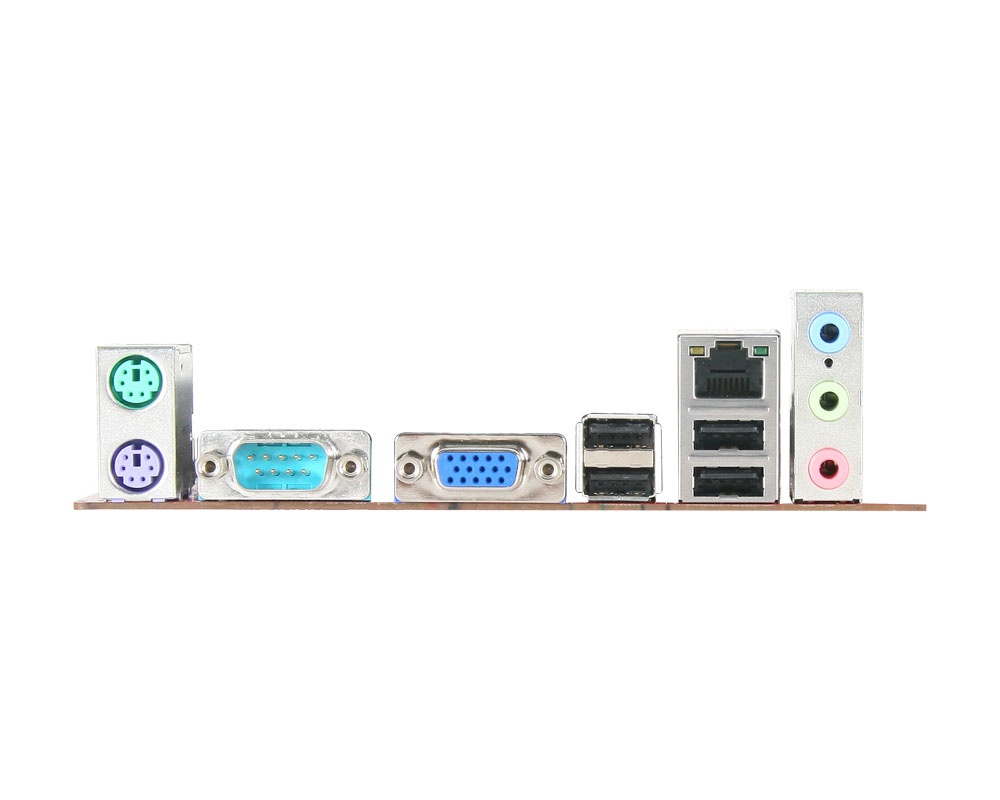

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs3
Microphone inYes
Serial ports quantity1

Network

Ethernet interface typeFast Ethernet
LAN controllerRealtek RTL8103E(L)
Networking featuresFast Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipsetAMD 740G
Motherboard southbridgeAMD SB710
Audio chipRealtek ALC888S
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI slots2

Weight & dimensions

Width244 mm
Depth215 mm

Other features

Floppy disk drive connectorYes
