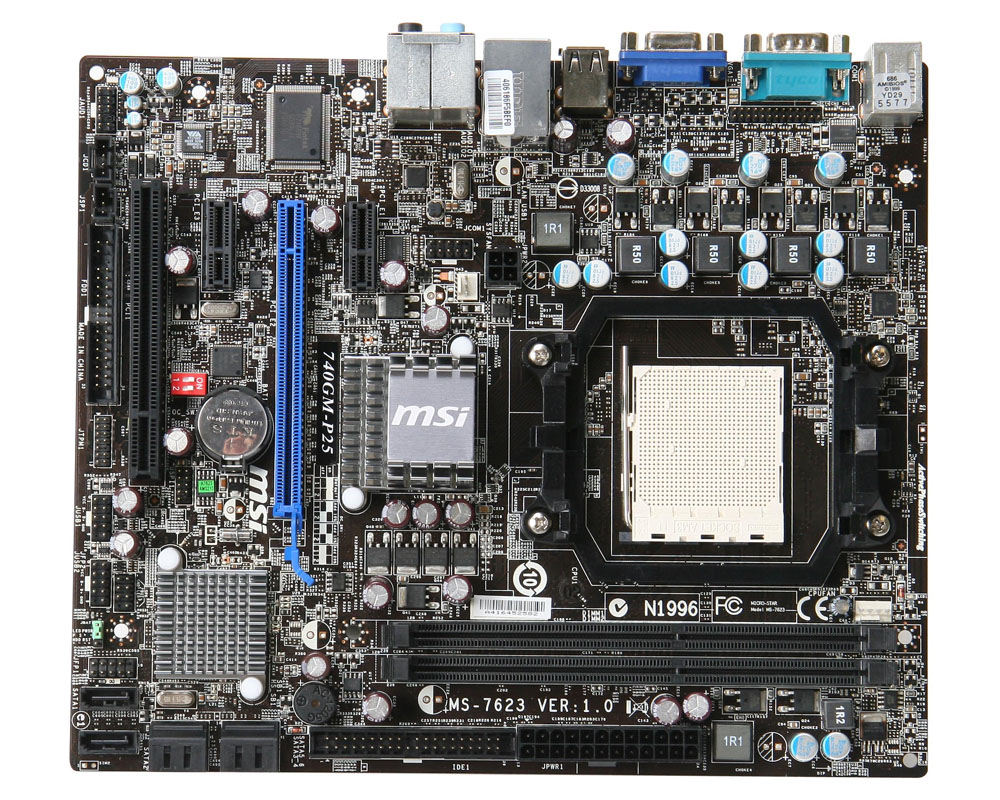

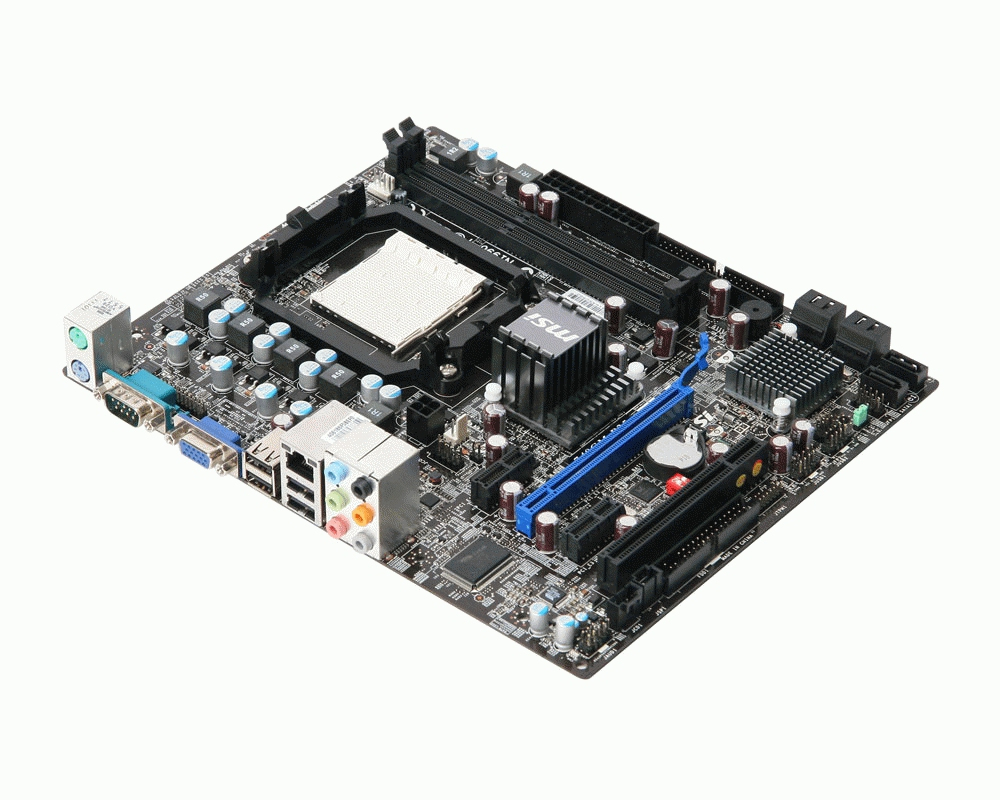

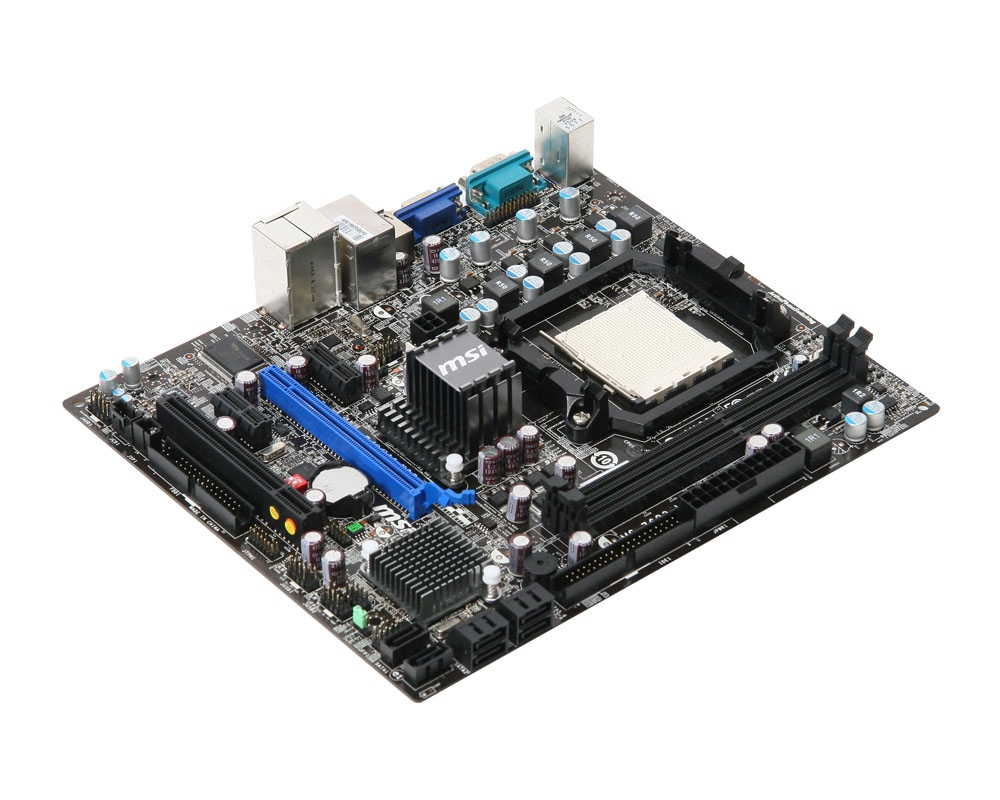

MSI 740GM-P25 AMD

MSI 740GM-P25 AMD

740G Socket AM3 micro ATX

Model 740GM-P25Part no. 7623-010REAN 4719072169954

43 specifications
  • Processor manufacturerAMD
  • Number of memory slots2
  • USB 2.0 ports quantity4
  • LAN controllerAtheros AR8131M
  • Motherboard form factormicro ATX
  • Width244 mm
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
2
USB 2.0 ports quantity
4
LAN controller
Atheros AR8131M
Motherboard form factor
micro ATX
Width
244 mm
Brand
MSI
Category
Motherboard
Model
740GM-P25
Part numbers
7623-010R, 740GM-P25, 7623 -010R
EAN / UPC
4719072169954
Also known as
MSI 740GM-P25 AMD 740G Socket AM3 micro ATX

Specifications

43 specifications in 9 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3

Memory

Number of memory slots2
Maximum internal memory8 GB

Internal I/O

USB 2.0 connectors2
Number of SATA connectors6
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
Number of COM connectors1
TPM connectorYes

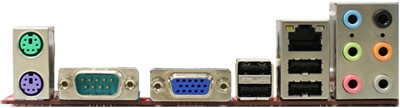

Rear panel I/O ports

USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Parallel ports quantity1
Serial ports quantity1

Network

LAN controllerAtheros AR8131M
Networking featuresGb LAN

Features

Motherboard form factormicro ATX
Motherboard chipsetAMD 740G
Audio chipVIA VT1708S
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI slots1

Weight & dimensions

Width244 mm
Depth205 mm

Other features

Controller 2nd interface typeSATAII
Controller interface typeIDE
Floppy disk drive connectorYes
