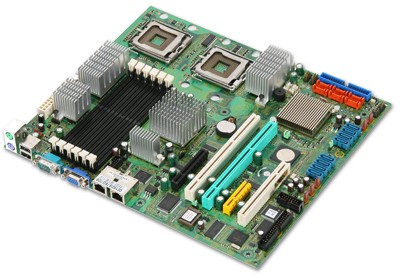

MSI 5000V Master2-S8M(SAS)
Model 5000V Master2-S8M(SAS)Part no. 609-9638-130
23 specifications
- Processor manufacturerIntel
- Maximum internal memory16 GB
- RAID levels0, 1
- USB 2.0 connectors2
- USB 2.0 ports quantity4
- LAN controllerIntel® 82563EB
Overview
- Processor manufacturer
- Intel
- Maximum internal memory
- 16 GB
- RAID levels
- 0, 1
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- LAN controller
- Intel® 82563EB
- Brand
- MSI
- Category
- Motherboard
- Model
- 5000V Master2-S8M(SAS)
- Part numbers
- 609-9638-130, 609-9638-150
- Also known as
- MSI 5000V Master2-S8M(SAS) Intel® 5000V LGA 771 (Socket J) SSI CEB
Specifications
23 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 771 (Socket J) |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82563EB |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | SSI CEB |
| Motherboard chipset | Intel® 5000V |
| Certification | UL, cUL, CB, CCC CE/FCC Class A, BSMI. |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 266 mm |
