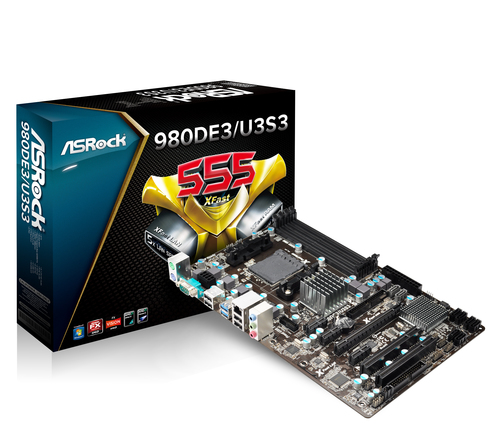

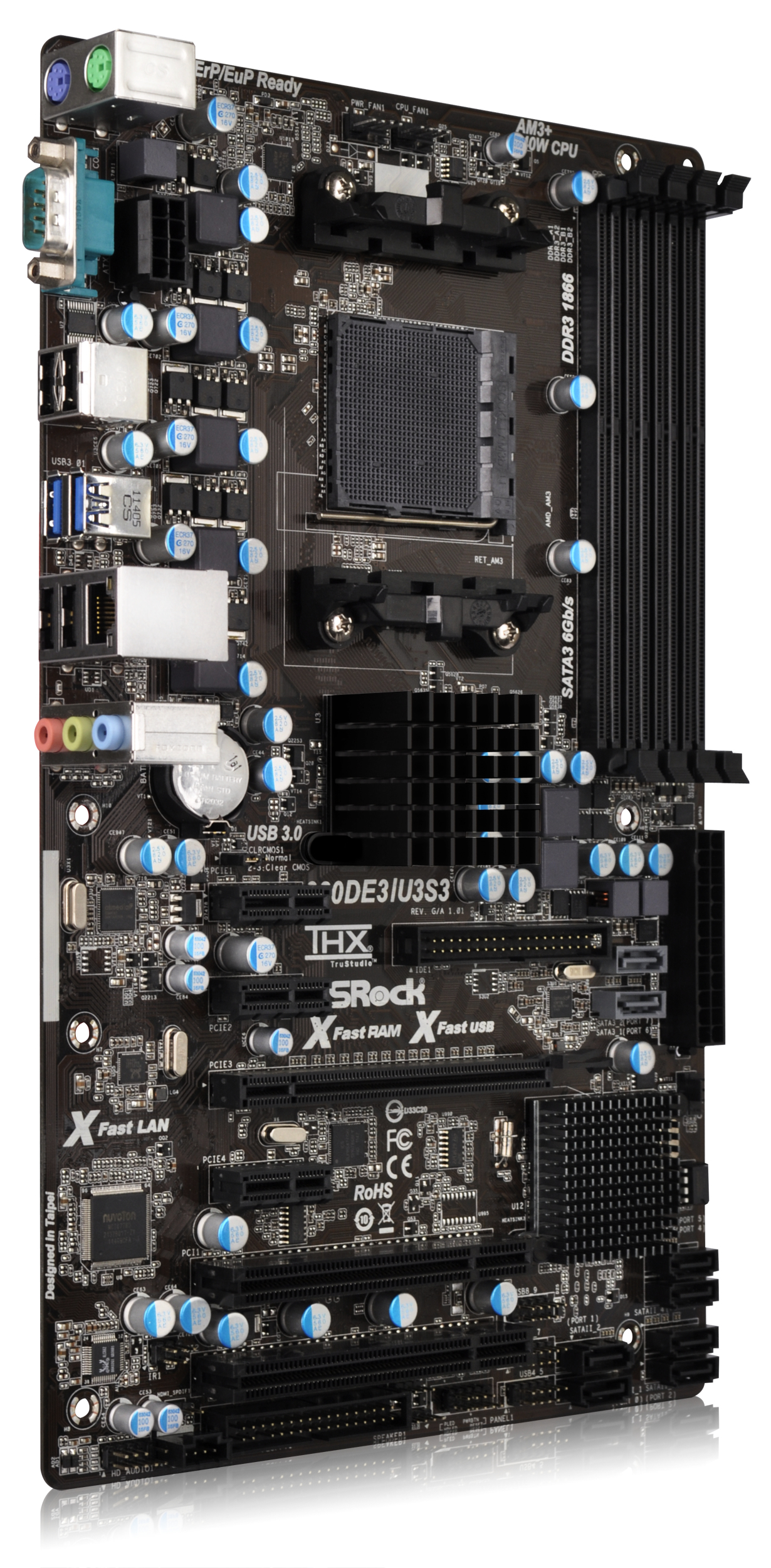

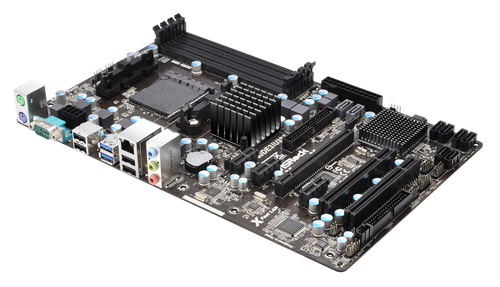

HP Asrock 980DE3/U3S3

HP Asrock 980DE3/U3S3

Model Asrock 980DE3/U3S3Part no. 90-MXGLR0-A0UAYZ

63 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesIDE, SATA II, SATA III
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
IDE, SATA II, SATA III
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
HP
Category
Motherboard
Model
Asrock 980DE3/U3S3
Part number
90-MXGLR0-A0UAYZ
Also known as
HP Asrock 980DE3/U3S3 AMD 760G Socket AM3+ ATX

Specifications

63 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3+
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Maximum number of SMP processors1
Processor system buses supported2600 MHz
System bus rate5.2 GT/s
Processor thermal power (max)140 W

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds800,1066,1333,1600,1866 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesIDE, SATA II, SATA III
RAID levels0, 1, 10, JBOD

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors2
Number of SATA II connectors6
Number of Parallel ATA connectors1
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1

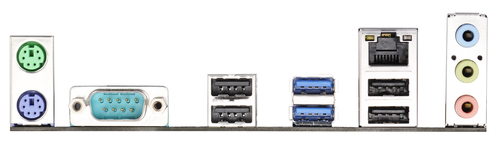

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
COM ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Wake-on-LAN readyYes

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 760G
Motherboard southbridgeAMD SB710
Audio output channels5.1 channels
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win
CertificationFCC, CE, WHQL, ErP/EuP

Expansion slots

PCI Express x1 (Gen 2.x) slots3
PCI Express x16 (Gen 2.x) slots1
PCI slots2

BIOS

BIOS typeAMI
BIOS memory size16 Mbit
ACPI version1.1

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Floppy disk drive connectorYes
