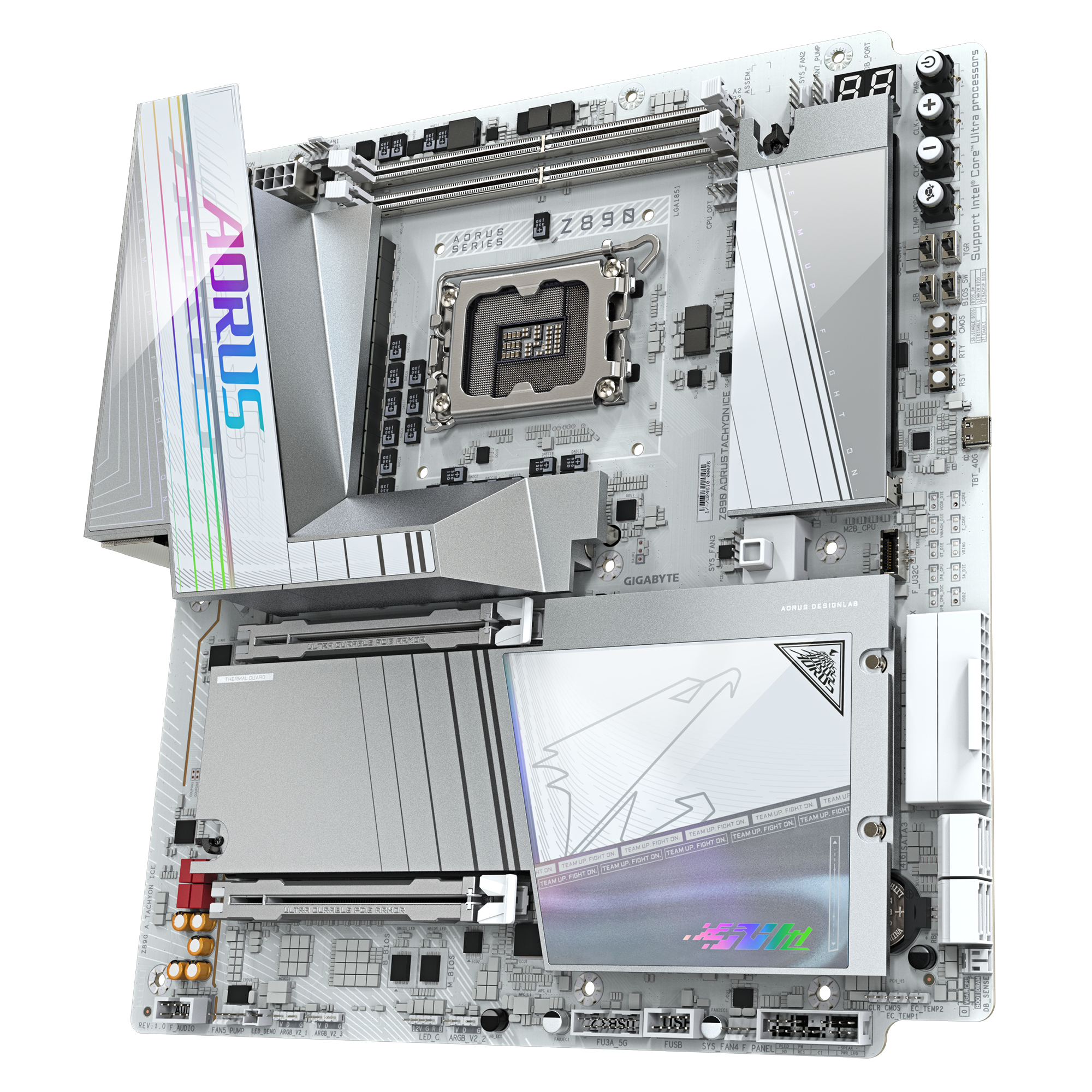

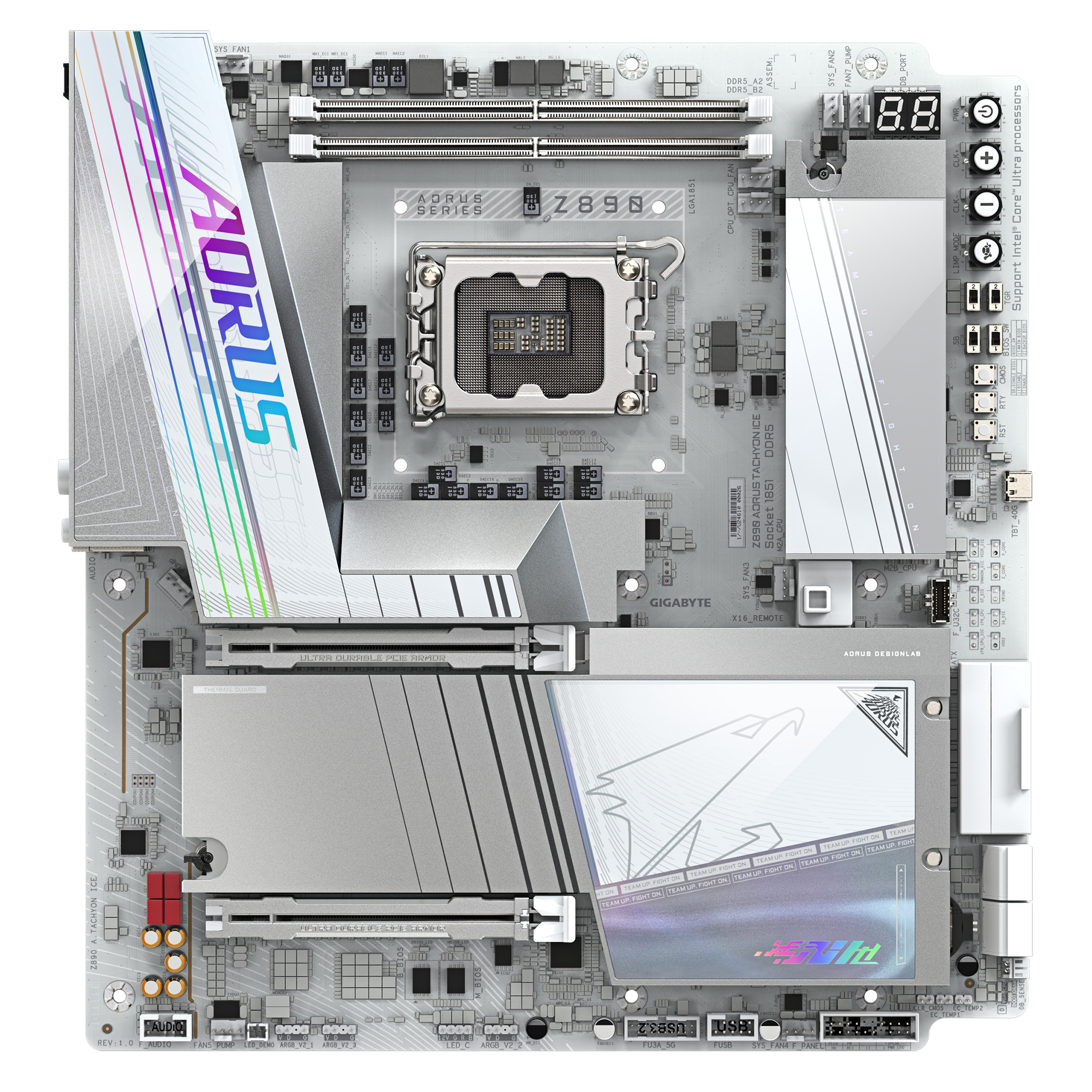

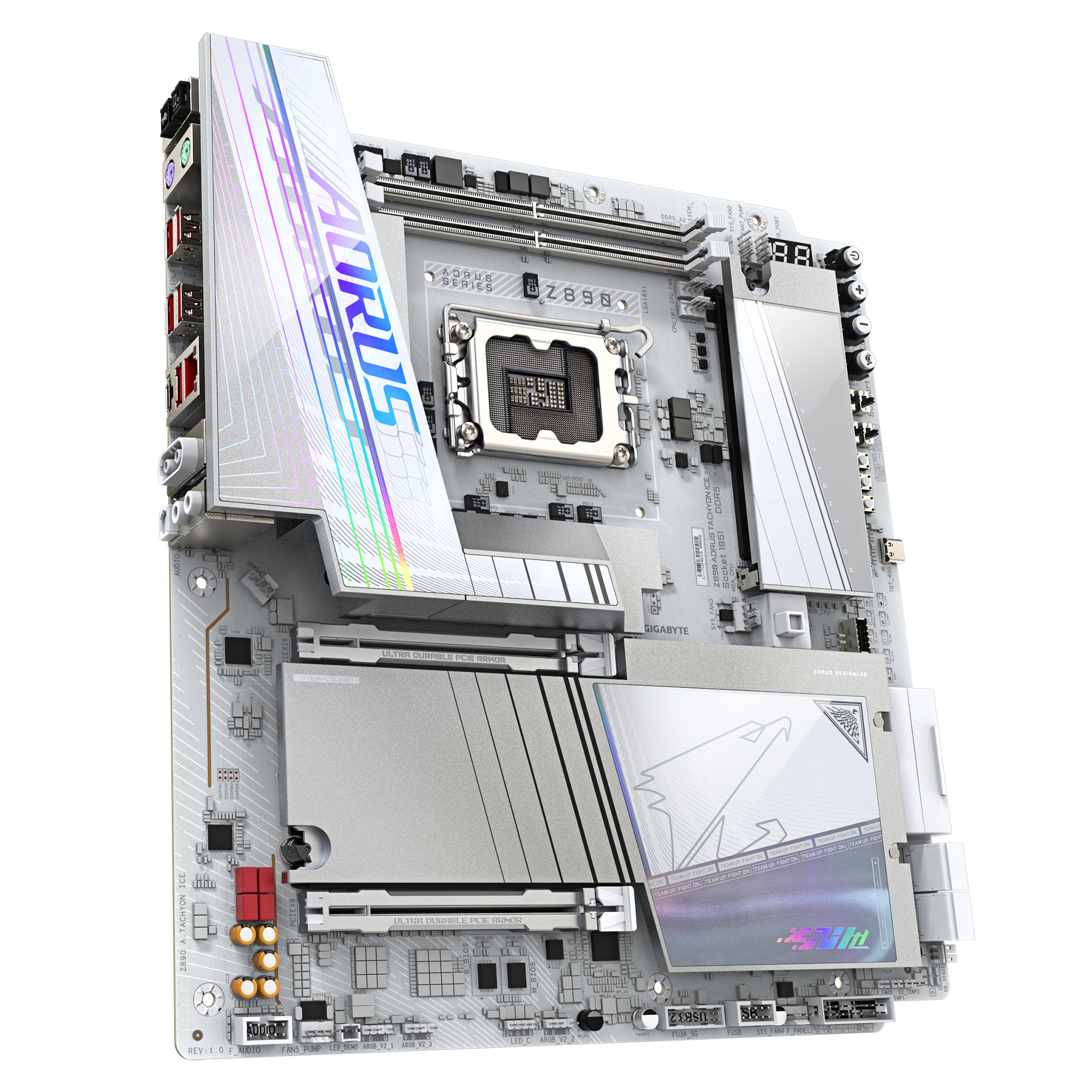

GIGABYTE Z890 AORUS TACHYON ICE
GIGABYTE

Z890 AORUS TACHYON ICE

Model Z890 AORUS TACHYON ICEPart no. Z890 A TACHYON ICEEAN 889523049549

115 specifications
  • SpeedWi-Fi 7 (802.11be)
  • Weight3.22 kg
  • ColourWhite
  • Processor manufacturerIntel
  • Supported memory typesDDR5-SDRAM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Speed
Wi-Fi 7 (802.11be)
Weight
3.22 kg
Colour
White
Processor manufacturer
Intel
Supported memory types
DDR5-SDRAM
Supported storage drive types
HDD & SSD
Brand
GIGABYTE
Category
Motherboard
Model
Z890 AORUS TACHYON ICE
Part number
Z890 A TACHYON ICE
EAN / UPC
889523049549, 4719331870898
Also known as
GIGABYTE Z890 AORUS TACHYON ICE Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 18+1+2 phases VRM, up to 9500MHz DDR5 (O.C), 1xPCIe 5.0 + 3xPCIe 4.0, W

Specifications

115 specifications in 17 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Compatible processor seriesIntel Core Ultra (Series 2)
Supported processor socketsLGA 1851

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds9500,9466,9333,9200,9066,8933,8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600 MHz
Supported memory clock speed (max)9500 MHz
Maximum internal memory128 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express 4.0, PCI Express 5.0, SATA III
Number of HDDs supported4
Number of storage drives supported8
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported
Maximum resolution5120 x 2880 pixels
HDCPYes
DirectX version12.0

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors2
Number of chassis fan connectors7
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)1
12V power connectorYes
Number of noise detection headers1
Number of temperature sensor headers2
Number of water pump connectors4
Thunderbolt headers1
RGB LED pin headerYes
Number of RGB LED pin headers4

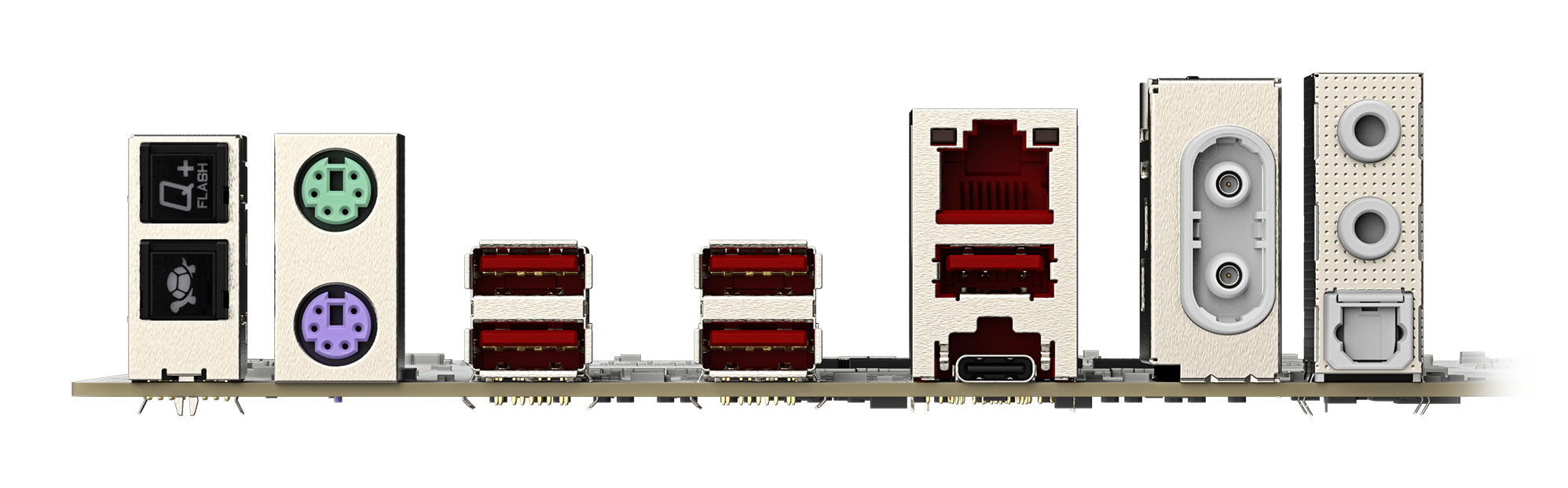

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
DisplayPort version2.1
Headphone outputs1
Line-inYes
S/PDIF out portYes
Digital audio optical out1
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8126
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller modelRealtek RTL8922AE
BluetoothYes
Bluetooth version5.4

Features

Component forPC
Motherboard form factorExtended ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z890
Audio chipRealtek ALC1220-VB
Audio output channels7.1 channels
Product colourWhite
PC health monitoringFan, Temperature, Voltage, Water cooling
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 11 x64

Expansion slots

PCI Express x16 (Gen 5.x) slots2
Number of M.2 (M) slots4
1st M.2 largest key size25110
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size25110
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size22110
3rd M.2 highest PCI Express generation4.0
4th M.2 largest key size22110
4th M.2 highest PCI Express generation4.0

BIOS

BIOS typeUEFI AMI
BIOS memory size512 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Logistics data

Country of originTaiwan
Products per shipping (inner) case1 pc(s)

Battery

Battery weight3 g
Lithium weight per battery0.07 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032

Packaging data

Package width400 mm
Package depth335 mm
Package height430 mm
Package weight3.87 kg

Weight & dimensions

Width305 mm
Depth285 mm
Height35 mm

Packaging content

Antenna includedYes
Batteries includedYes
Screws includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software

Other features

Weight3.22 kg

Technical details

Warranty period3 year(s)
