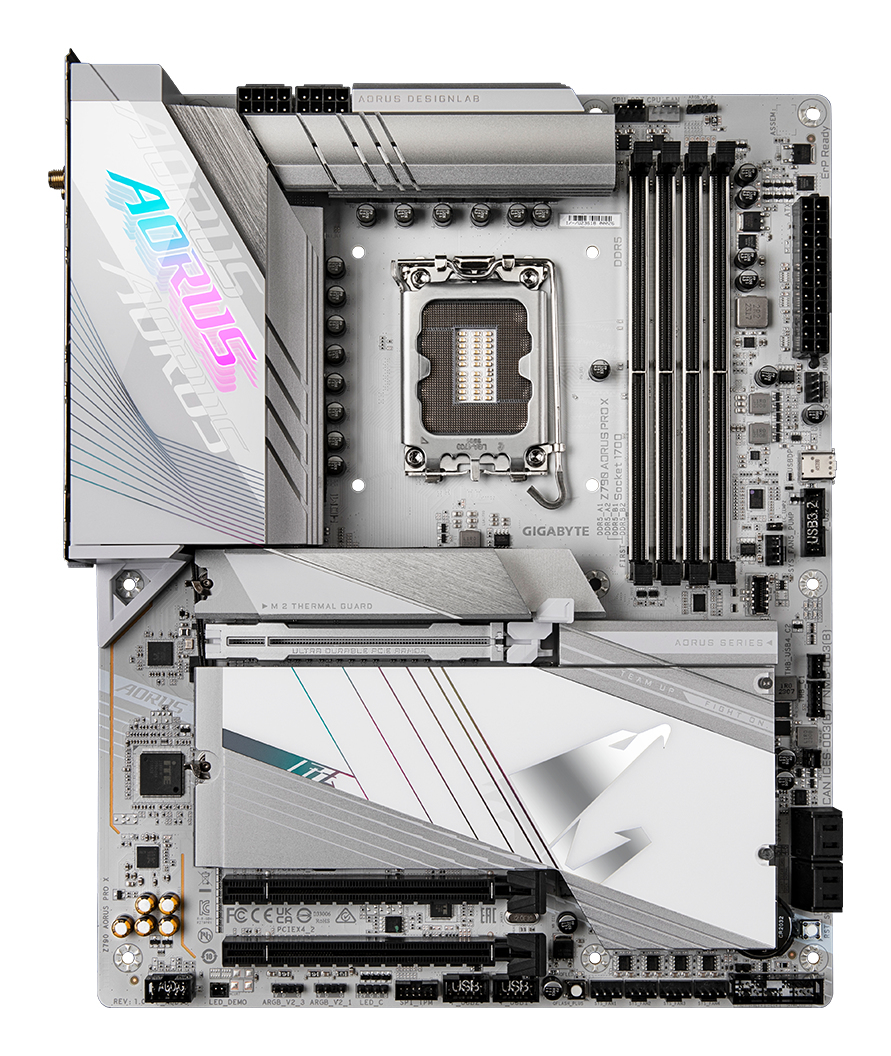

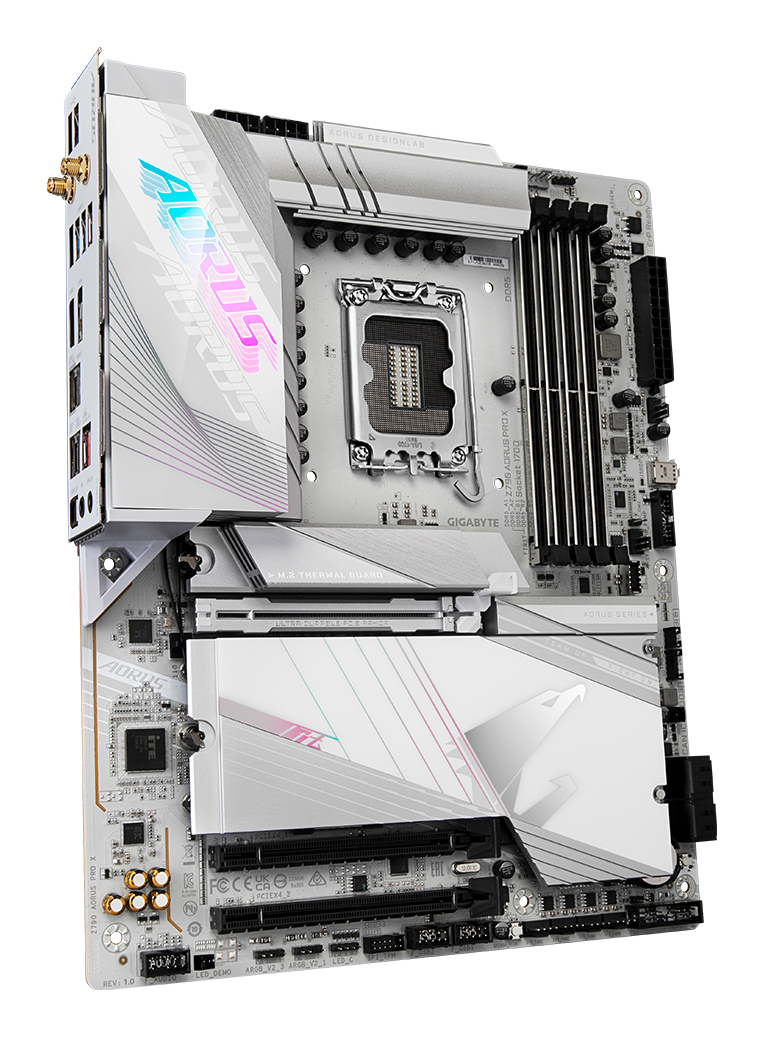

Z790 AORUS PRO X
Model Z790 AORUS PRO XEAN 889523039403
112 specifications
- SpeedWi-Fi 7 (802.11be)
- ColourWhite
- Processor manufacturerIntel
- Supported memory typesDDR5-SDRAM
- Supported storage drive typesHDD & SSD
- Parallel processing technology supportNot supported
Overview
- Speed
- Wi-Fi 7 (802.11be)
- Colour
- White
- Processor manufacturer
- Intel
- Supported memory types
- DDR5-SDRAM
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- Not supported
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- Z790 AORUS PRO X
- Part number
- Z790 AORUS PRO X
- EAN / UPC
- 889523039403, 4719331857608
- Also known as
- GIGABYTE Z790 AORUS PRO X Motherboard - Supports Intel 14th Gen CPUs, 18+1+2 phases VRM, up to 8266MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0 M.2, Wi-Fi 7, 5GbE LAN
Specifications
112 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 192 GB |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266 MHz |
| Supported memory clock speed (max) | 8266 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 9 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 2 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 6 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Thunderbolt headers | 2 |
| RGB LED pin header | Yes |

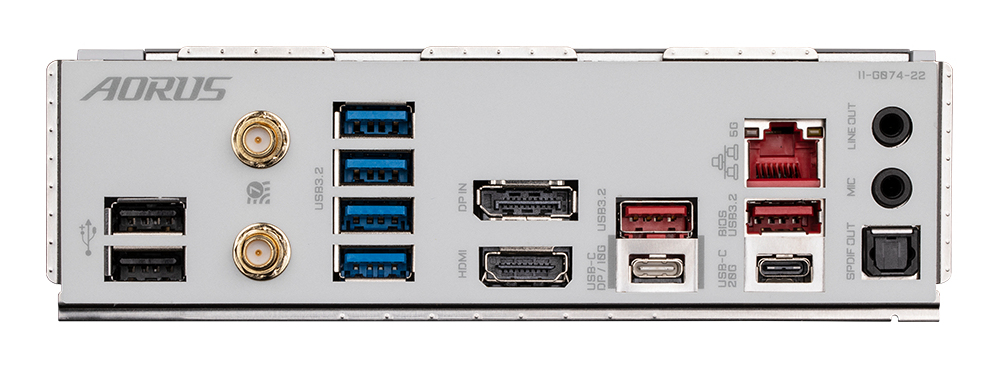

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| Thunderbolt ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8126 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Audio chip | Realtek ALC1220-VB |
| Audio output channels | 7.1 channels |
| Product colour | White |
| PC health monitoring | Fan, Noise, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 11 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 5 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Products per shipping (inner) case | 1 pc(s) |
Battery
| Specification | Value |
|---|---|
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
Packaging data
| Specification | Value |
|---|---|
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.59 kg |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
Packaging content
| Specification | Value |
|---|---|
| Antenna included | Yes |
| Batteries included | Yes |
| Cables included | SATA |
| Bundled software | Norton Internet Security LAN bandwidth management software |
Other features
| Specification | Value |
|---|---|
| mSATA ports quantity | 0 |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
