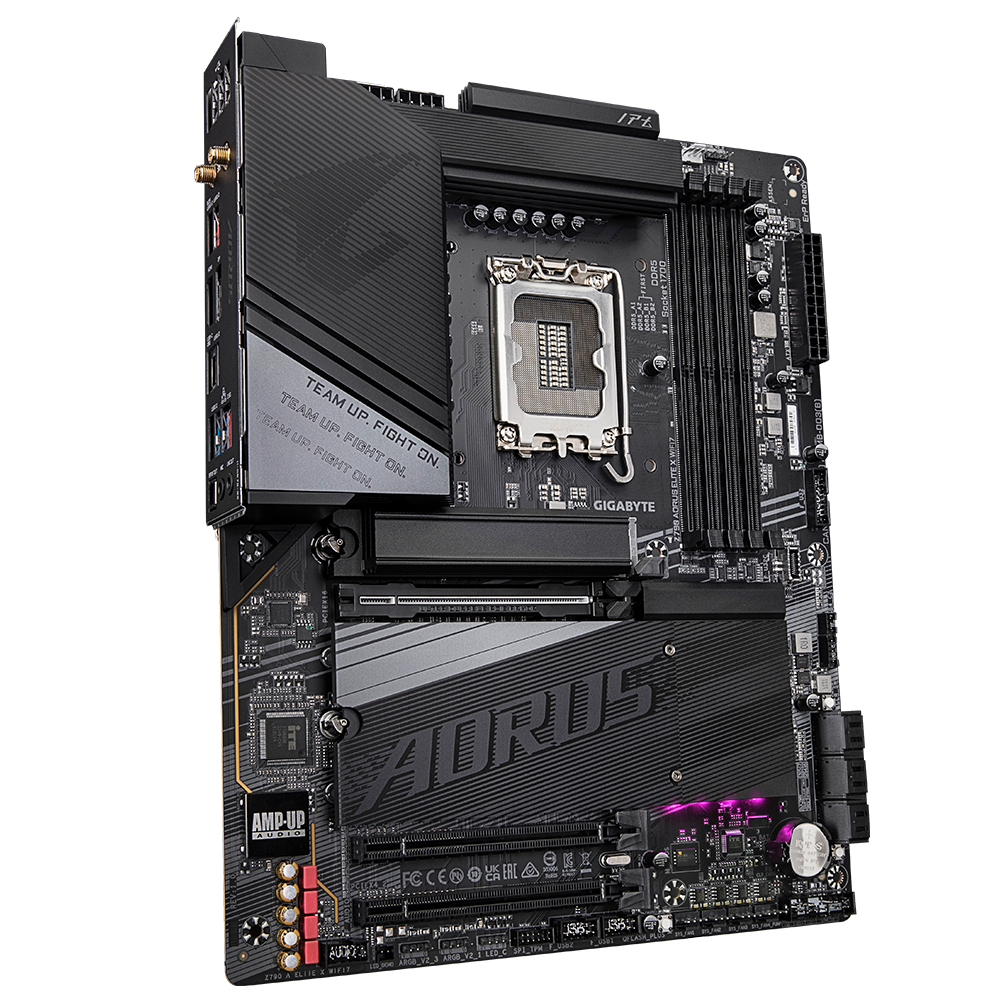

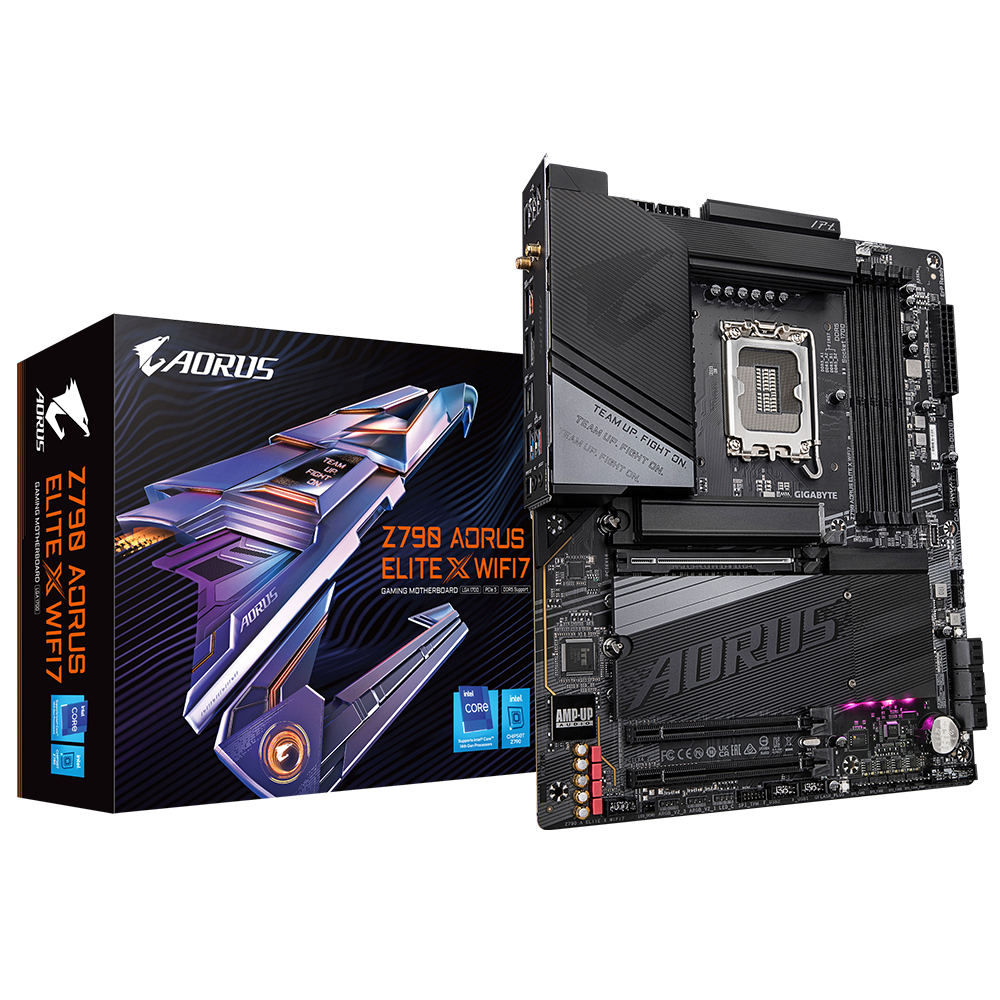

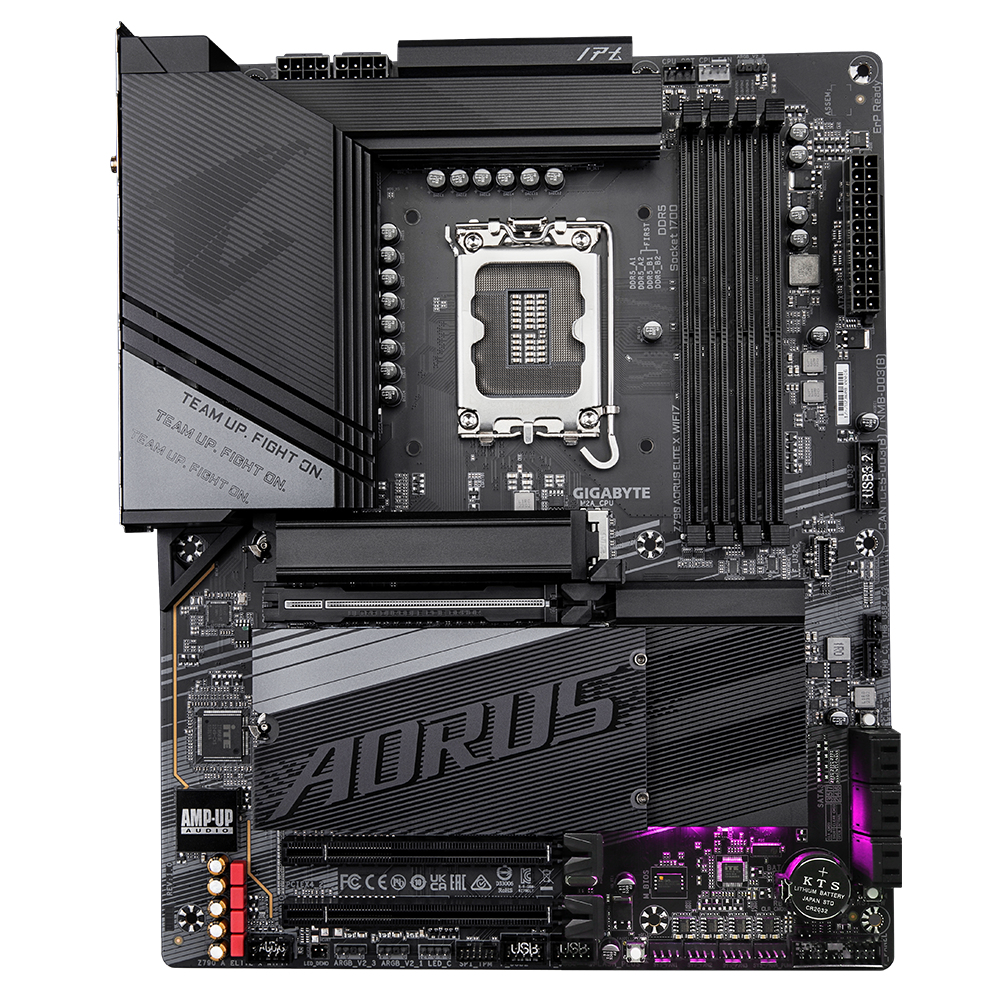

GIGABYTE Z790 AORUS ELITE X WIFI7

GIGABYTE Z790 AORUS ELITE X WIFI7

Model Z790 AORUS ELITE X WIFI7EAN 889523039298

108 specifications
  • SpeedWi-Fi 7 (802.11be)
  • ColourBlack
  • Processor manufacturerIntel
  • Supported memory typesDDR5-SDRAM
  • Supported storage drive typesHDD & SSD
  • Parallel processing technology supportNot supported
See all specifications

Overview

Speed
Wi-Fi 7 (802.11be)
Colour
Black
Processor manufacturer
Intel
Supported memory types
DDR5-SDRAM
Supported storage drive types
HDD & SSD
Parallel processing technology support
Not supported
Brand
GIGABYTE
Category
Motherboard
Model
Z790 AORUS ELITE X WIFI7
Part number
Z790 AORUS ELITE X WIFI7
EAN / UPC
889523039298, 4719331857592
Also known as
GIGABYTE Z790 AORUS ELITE X WIFI7 Motherboard - Supports Intel 14th Gen CPUs, 16+1+2 phases VRM, up to 8266MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, U

Specifications

108 specifications in 17 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum number of SMP processors1
Supported processor socketsLGA 1700

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266 MHz
Supported memory clock speed (max)8266 MHz
Maximum internal memory192 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported6
Number of storage drives supported10
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo
Maximum resolution4096 x 2304 pixels
HDCPYes
DirectX version12.0

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors2
CPU fan connectorYes
Number of chassis fan connectors4
EPS power connector (8-pin)Yes
12V power connectorYes
TPM connectorYes
Thunderbolt headers2
RGB LED pin headerYes

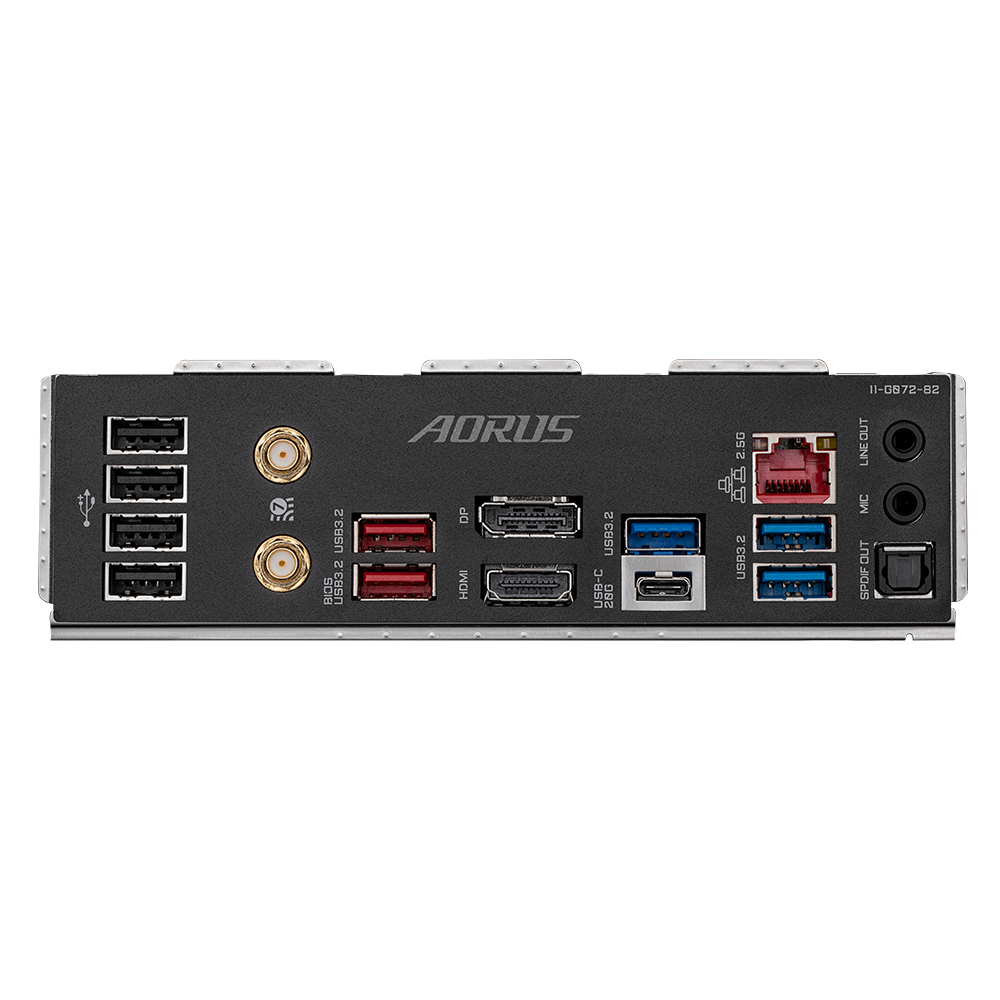

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version2.0
DVI-D ports quantity0
DisplayPorts quantity1
DisplayPort version1.2
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Digital audio optical out1
WiFi-AP antenna jack2
USB connector typeUSB Type-A, USB Type-C

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
BluetoothYes
Bluetooth version5.3

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z790 Express
Audio chipRealtek ALC1220-VB
Audio output channels7.1 channels
Product colourBlack
PC health monitoringFan, Temperature, Voltage, Water cooling
Windows operating systems supportedWindows 11 x64

Expansion slots

PCI Express x16 (Gen 4.x) slots2
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots4

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes
Clear CMOS buttonYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Logistics data

Country of originChina
Products per shipping (inner) case1 pc(s)

Battery

Battery weight3 g
Lithium weight per battery0.07 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032

Packaging data

Package width335 mm
Package depth270 mm
Package height80 mm
Package weight2.52 kg

Weight & dimensions

Width305 mm
Depth244 mm
Height35 mm

Packaging content

Antenna includedYes
Batteries includedYes
Cables includedSATA
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software

Other features

mSATA ports quantity0

Technical details

Warranty period3 year(s)
