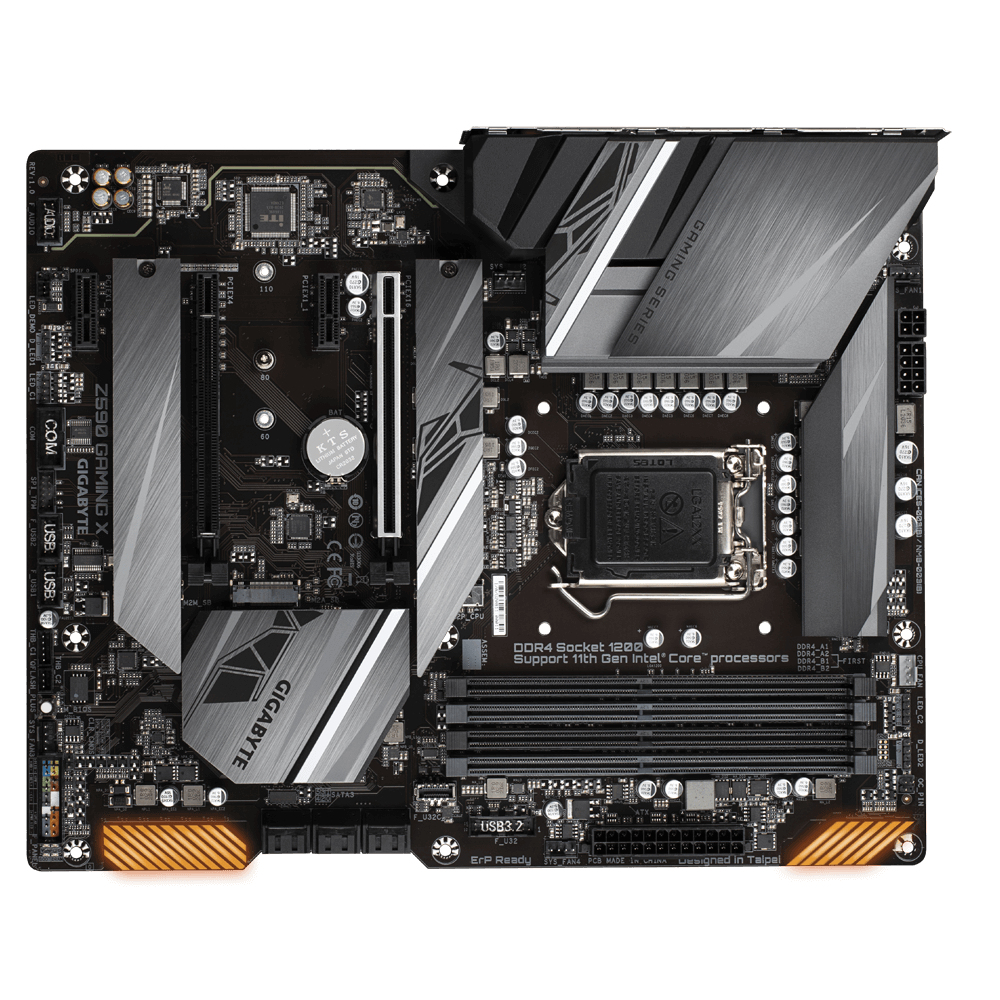

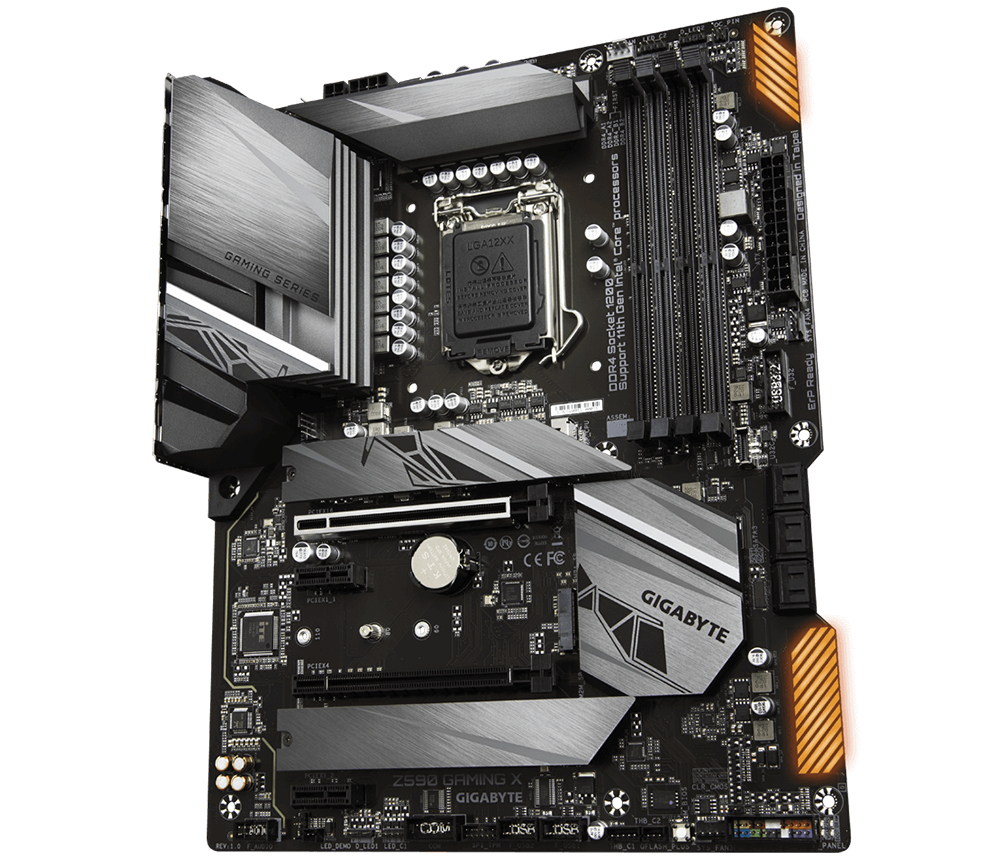

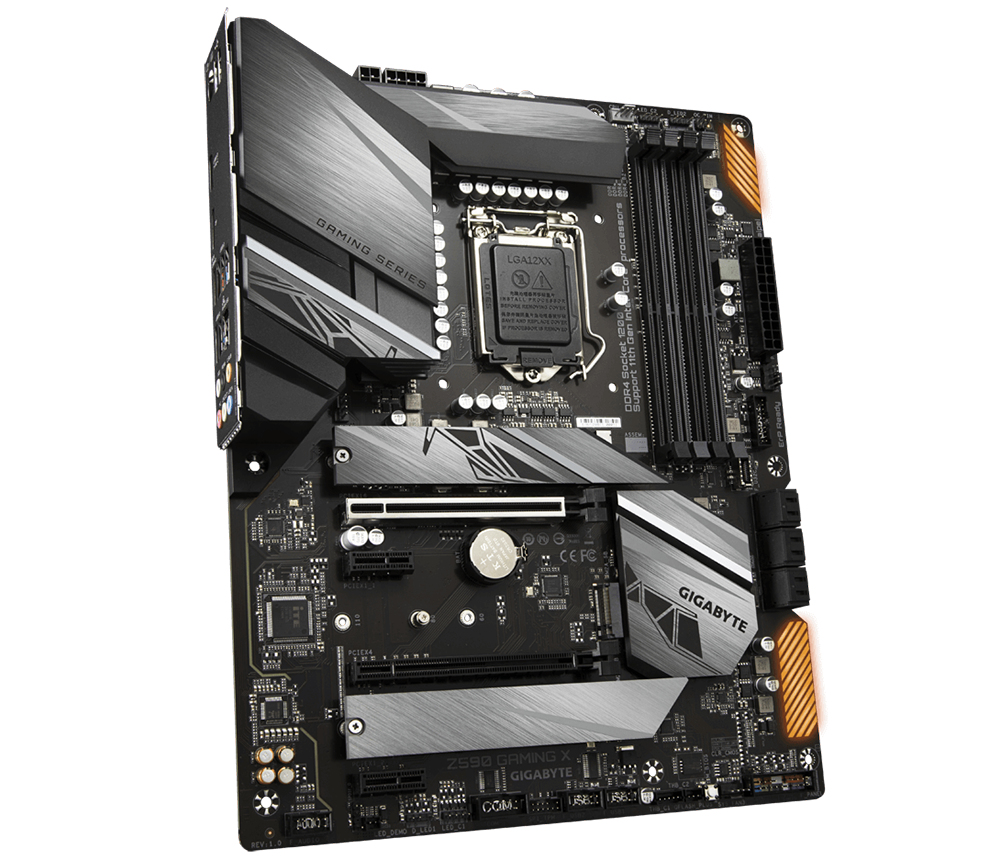

GIGABYTE Z590 GAMING X (rev. 1.0)

GIGABYTE Z590 GAMING X (rev. 1.0)

Model Z590 GAMING X (rev. 1.0)Part no. Z590 GAMING X 1.0

60 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • Parallel processing technology supportCrossfire
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Parallel processing technology support
Crossfire
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
Z590 GAMING X (rev. 1.0)
Part number
Z590 GAMING X 1.0
Also known as
GIGABYTE Z590 GAMING X (rev. 1.0) Intel Z590 LGA 1200 (Socket H5) ATX

Specifications

60 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1200 (Socket H5)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333,5400 MHz
Maximum internal memory128 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, NVMe 3.0, PCI Express 4.0, SATA III
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportCrossfire

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors6
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
RGB LED pin headerYes

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
DisplayPorts quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet, Gigabit Ethernet
Wi-FiNo

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z590
Audio output channels7.1 channels
PC health monitoringCPU, Fan
Cooling typePassive
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots2

BIOS

BIOS typeAMI
BIOS memory size256 Mbit
ACPI version5.0
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Bundled softwareNorton Internet Security (OEM version) Realtek 8125 Gaming LAN Bandwidth Control Utility
