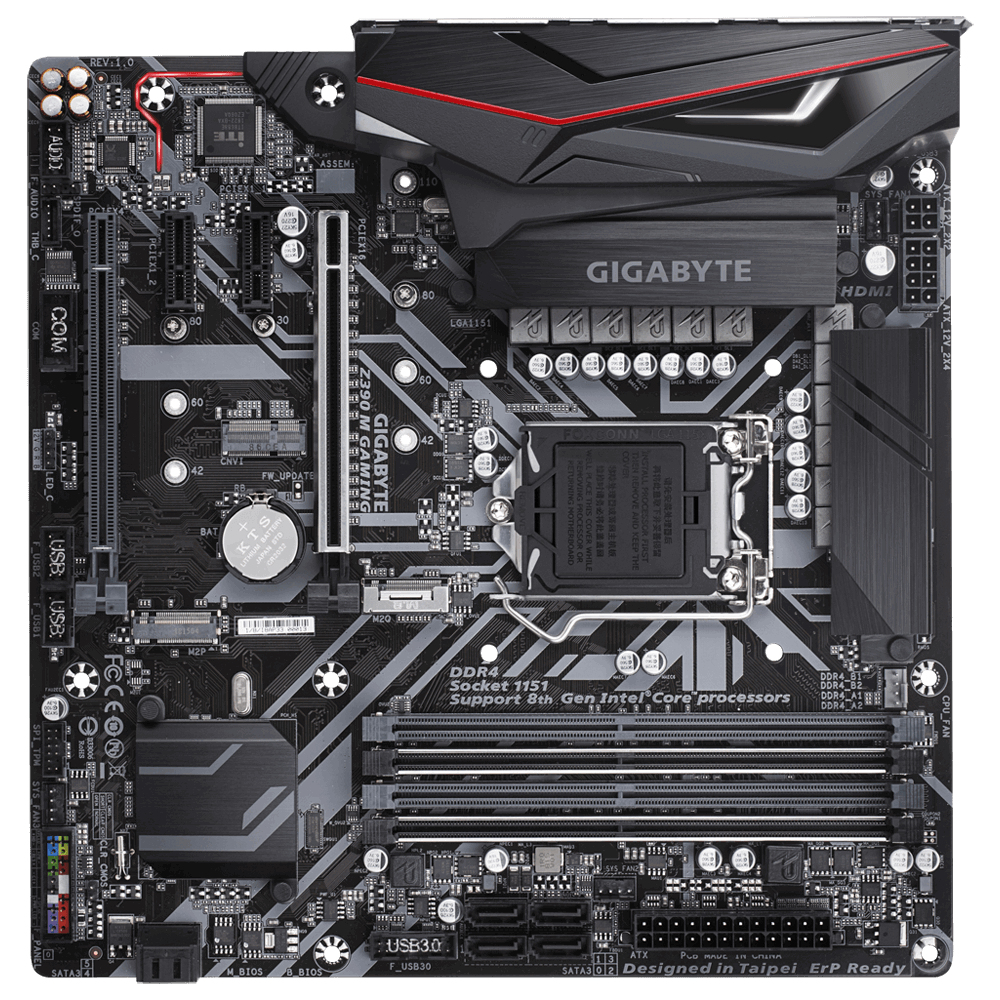

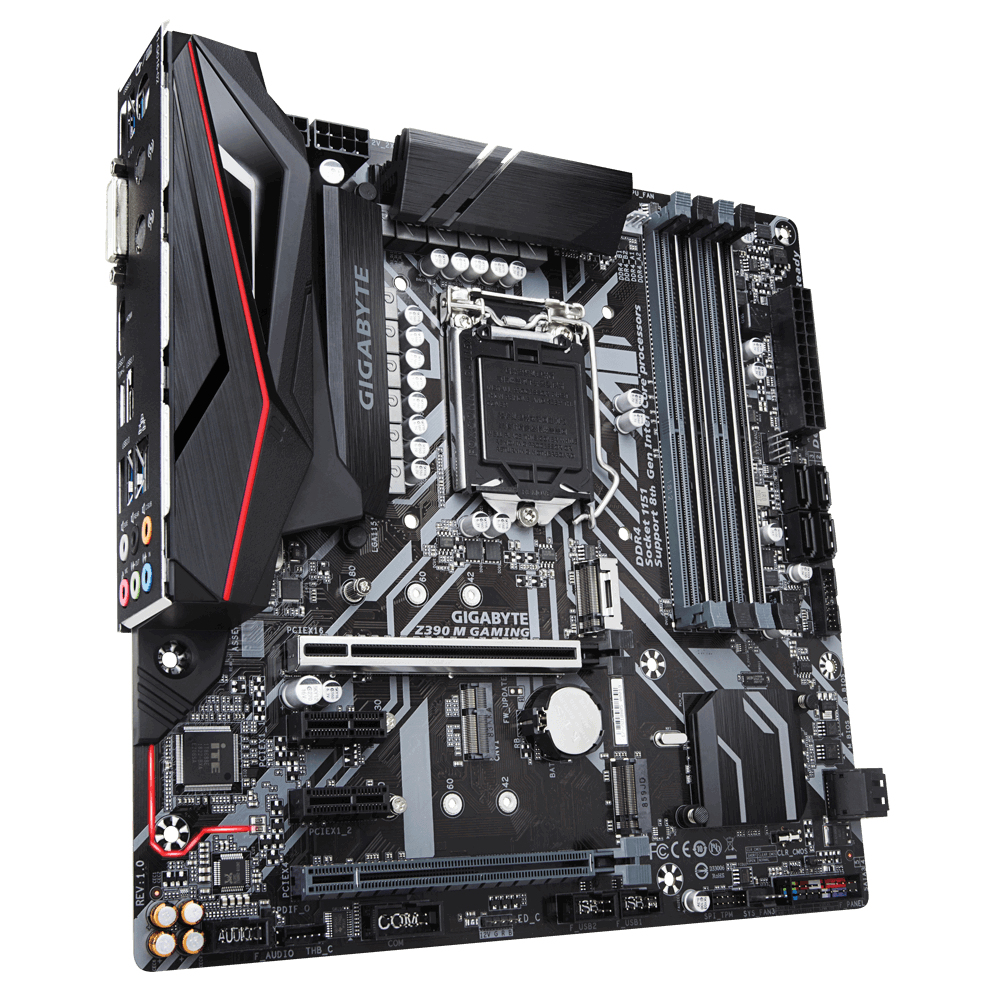

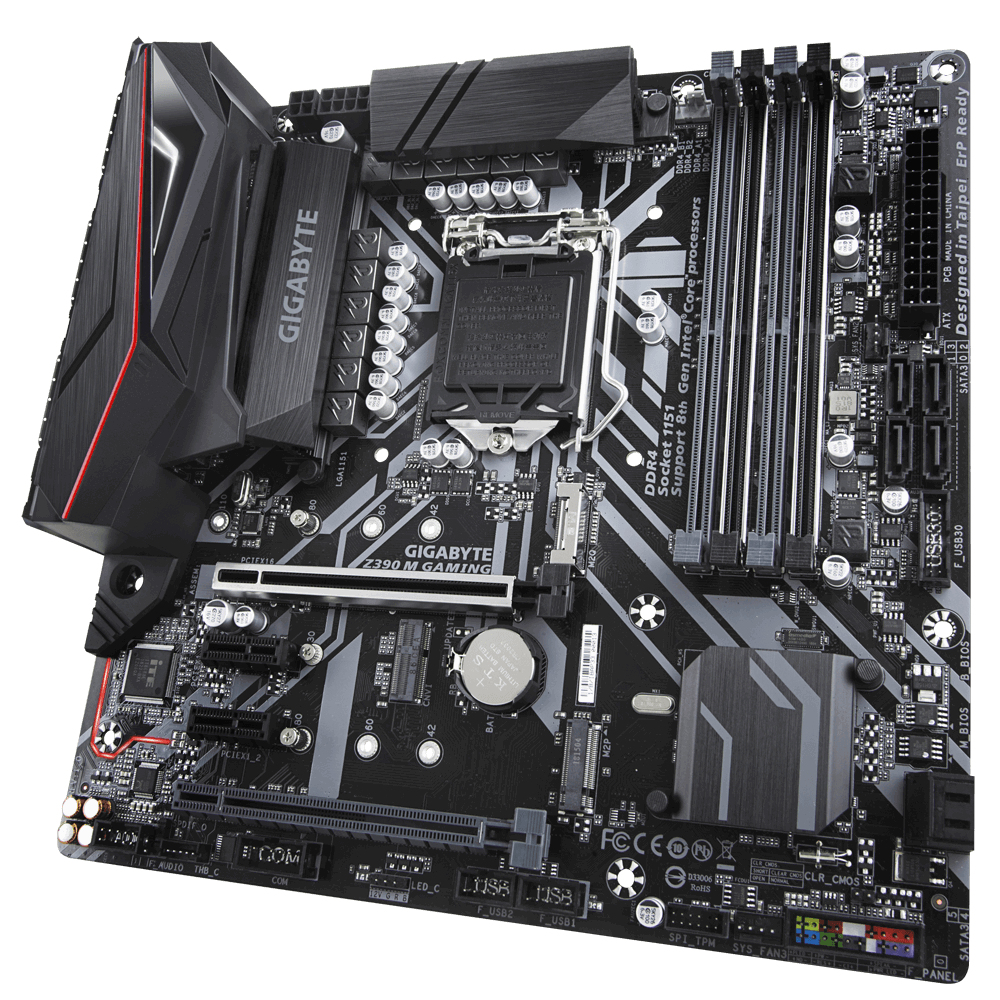

GIGABYTE Z390 M Gaming

GIGABYTE Z390 M Gaming

Model Z390 M GamingPart no. Z390 M GAMINGEAN 889523015100

73 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 5, 10
  • On-board graphics cardYes
  • USB 2.0 connectors2
  • USB 2.0 ports quantity0
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 5, 10
On-board graphics card
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
0
Brand
GIGABYTE
Category
Motherboard
Model
Z390 M Gaming
Part number
Z390 M GAMING
EAN / UPC
889523015100, 4719331804428
Also known as
GIGABYTE Z390 M Gaming Intel Z390 LGA 1151 (Socket H4) micro ATX

Specifications

73 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX, Quad-GPU CrossFireX
On-board graphics cardYes
Graphics cardHD Graphics
Maximum resolution4096 x 2160 pixels
HDCPYes
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes
Thunderbolt headers1
RGB LED pin headerYes

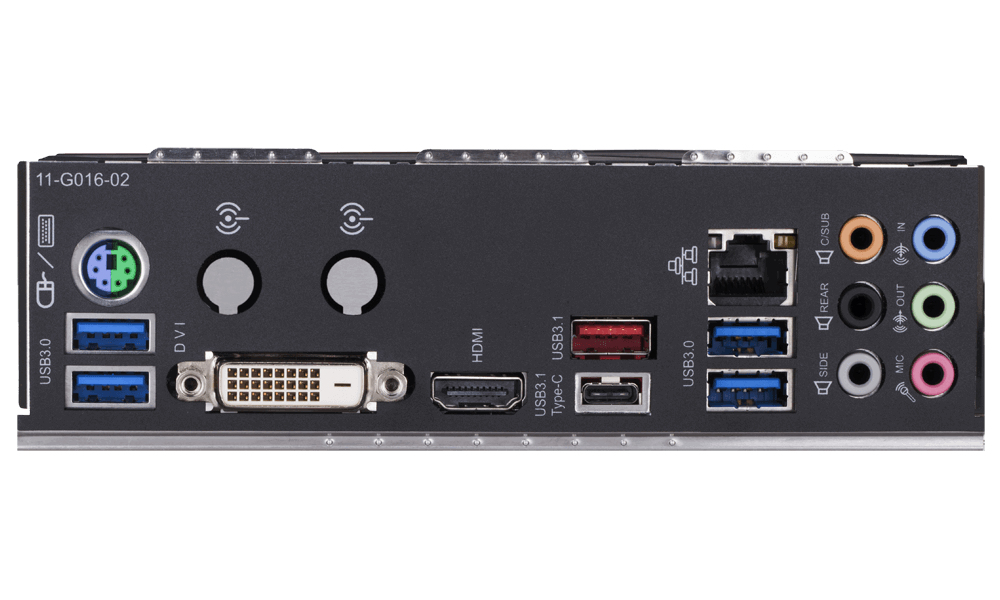

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version1.4
DVI-D ports quantity1
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forMini PC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z390
Audio chipRealtek ALC892
Audio output channels7.1 channels
PC health monitoringFan, Temperature, Voltage
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 slots1
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Processor special features

Trusted Platform Module (TPM)Yes

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Bundled softwareNorton Internet Security, cFosSpeed

Other features

DualBIOSYes
