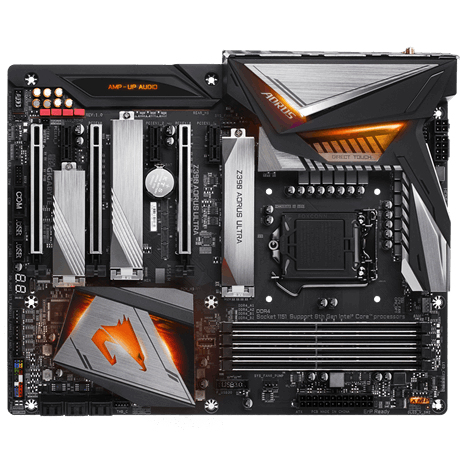

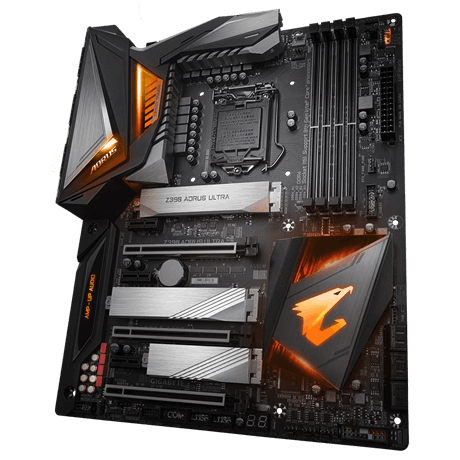

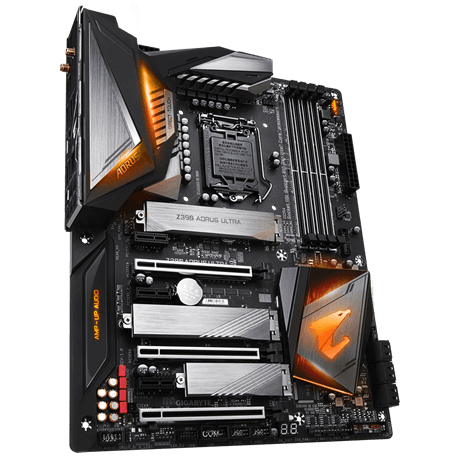

GIGABYTE Z390 AORUS ULTRA (rev. 1.0)

Model Z390 AORUS ULTRA (rev. 1.0)Part no. GAZ39UTRA-00-GA

86 specifications

Overview

Brand: GIGABYTE
Category: Motherboard
Model: Z390 AORUS ULTRA (rev. 1.0)
Part number: GAZ39UTRA-00-GA
Also known as: GIGABYTE Z390 AORUS ULTRA (rev. 1.0) Intel Z390 Express LGA 1151 (Socket H4) ATX

86 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Maximum number of SMP processors	1
Intel Core i3/i5/i7/i9 series	i9-8xxx, i9-9xxx, i5-9xxx, i7-9xxx, i3-8xxx, i5-8xxx, i7-8xxx
Supported processor sockets	LGA 1151 (Socket H4)

Specification	Value
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speeds	2133,2400,2666,2800,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266 MHz
Maximum internal memory	64 GB
Unbuffered memory	Yes

Specification	Value
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10

Specification	Value
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, Quad-GPU CrossFireX, Quad-GPU SLI
On-board graphics card	Yes
Graphics card family	Intel
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
HDCP	Yes

Specification	Value
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	6
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
S/PDIF out connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	4
Peripheral (Molex) power connectors (4-pin)	1
EPS power connector (8-pin)	Yes
Serial port headers	1
TPM connector	Yes
Thunderbolt headers	1
RGB LED pin header	Yes

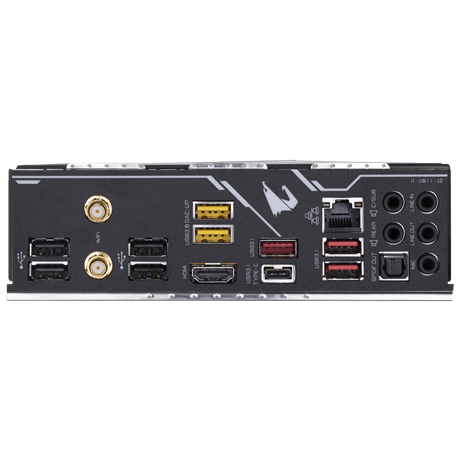

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
eSATA ports quantity	0
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
S/PDIF out port	Yes

Specification	Value
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel Z390 Express
Audio chip	Realtek ALC1220-VB
Audio output channels	7.1 channels
PC health monitoring	Fan, Temperature, Voltage
Windows operating systems supported	Windows 10

Specification	Value
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7

Specification	Value
Intel Extreme Memory Profile (XMP)	Yes
Intel® Optane™ Memory Ready	Yes
Intel® Optane™ Memory module installed	No

Specification	Value
Width	305 mm
Depth	244 mm

Specification	Value
Bundled software	Norton Internet Security, cFosSpeed

Specification	Value
Analog audio output	5
DualBIOS	Yes
Special features	3D OSD @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker USB DAC-UP 2
