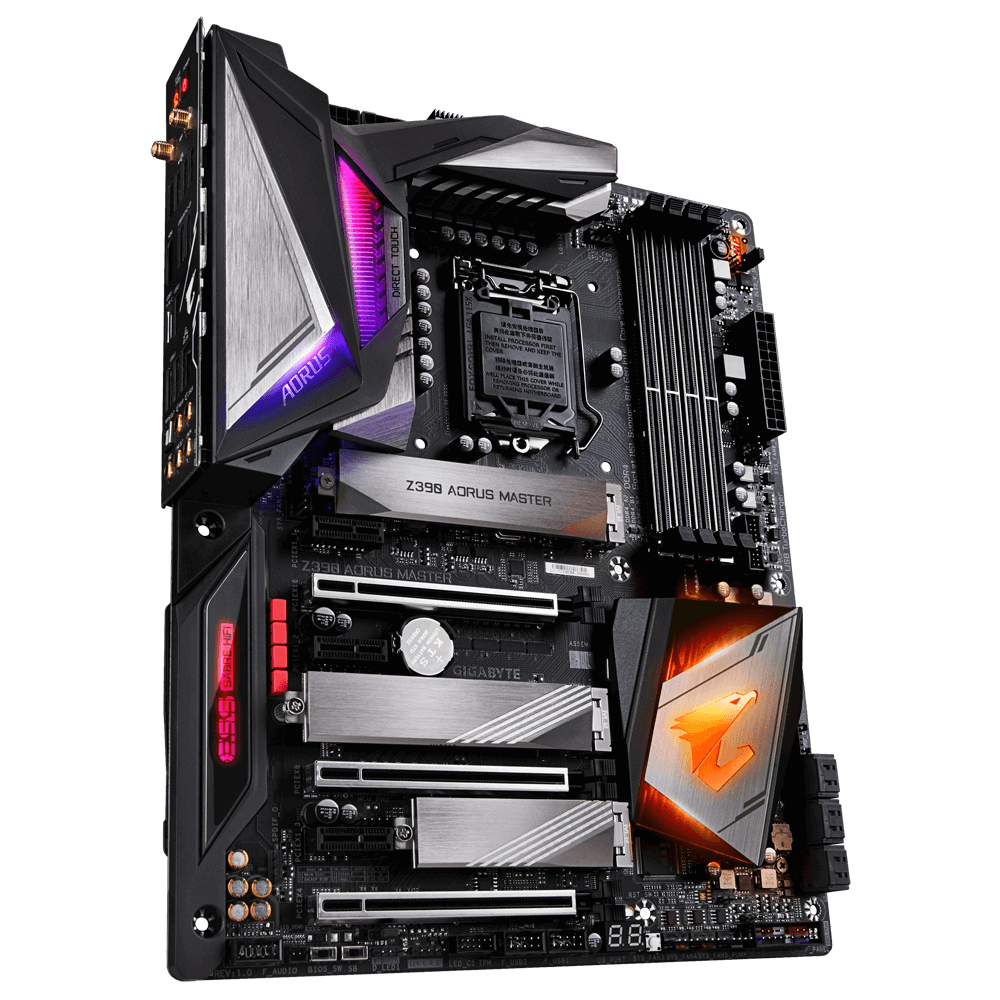

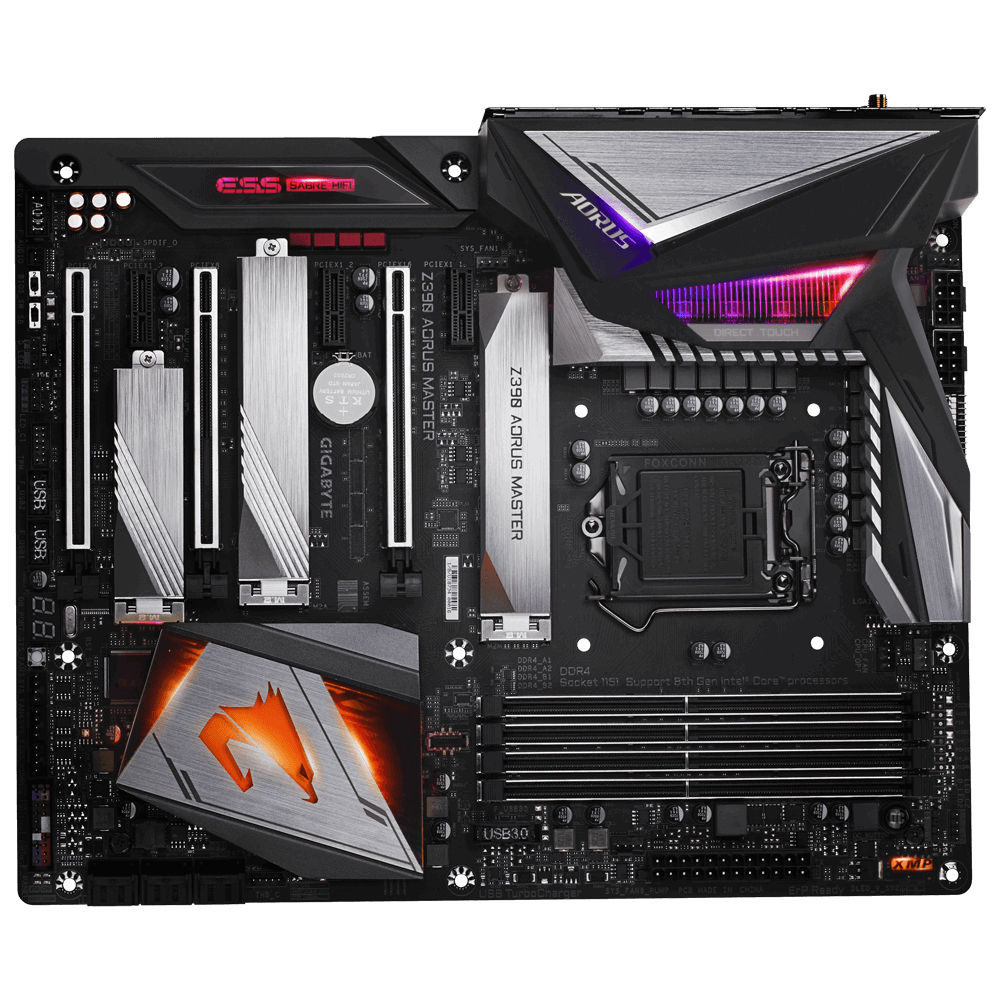

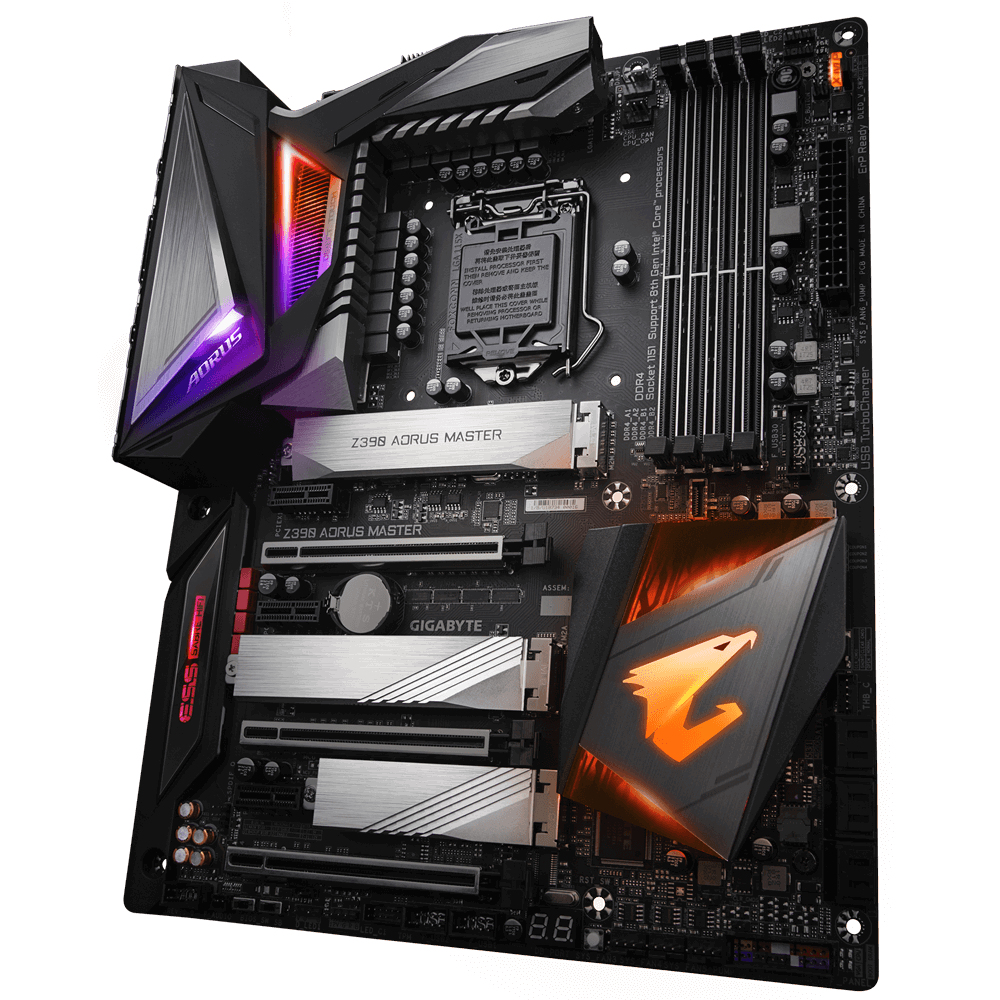

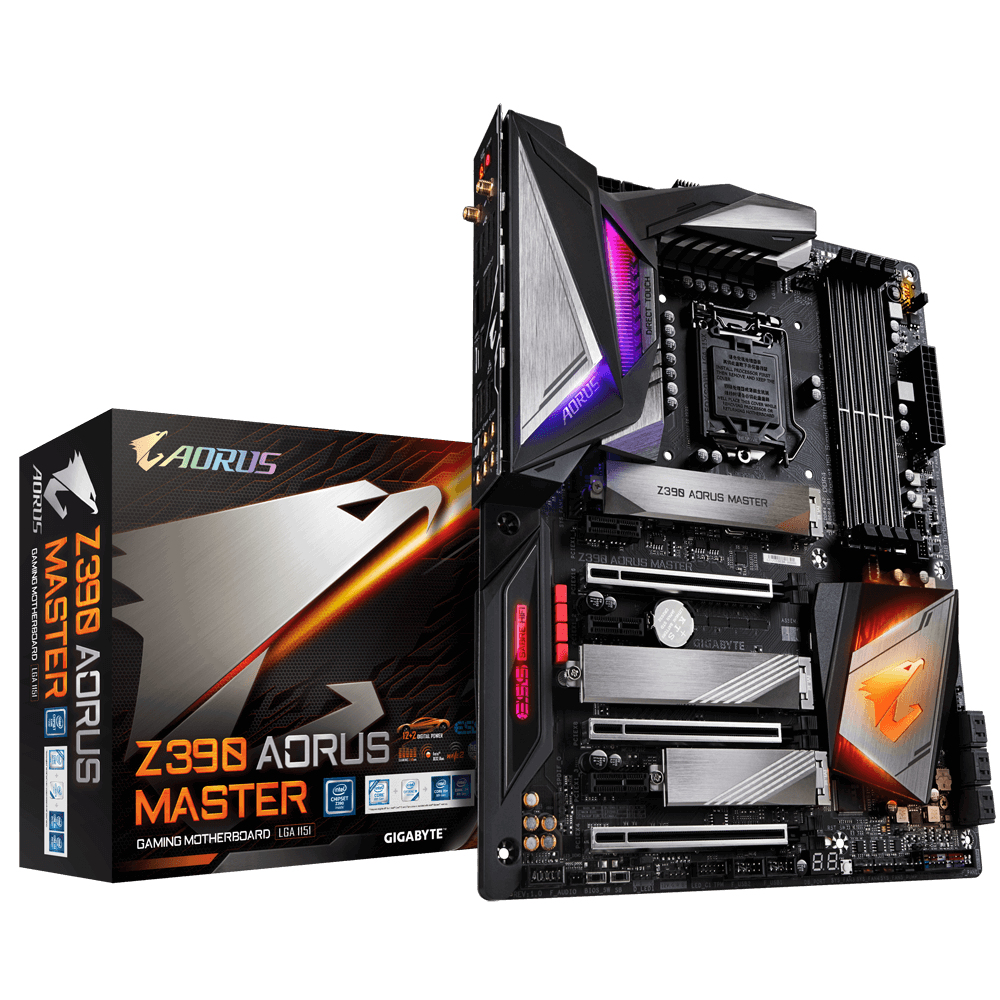

GIGABYTE Z390 AORUS MASTER

GIGABYTE Z390 AORUS MASTER

Model Z390 AORUS MASTEREAN 889523014820

75 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
Z390 AORUS MASTER
Part numbers
Z390 AORUS MASTER, GAZ39MSTR-00-GA
EAN / UPC
889523014820, 4719331804305
Also known as
GIGABYTE Z390 AORUS MASTER motherboard Intel Z390 LGA 1151 (Socket H4) ATX

Specifications

75 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133 MHz
Maximum internal memory64 GB
Supported memory module capacities16GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, Quad-GPU CrossFireX, Quad-GPU SLI

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors6
EPS power connector (8-pin)Yes
TPM connectorYes
Thunderbolt headers1
RGB LED pin headerYes

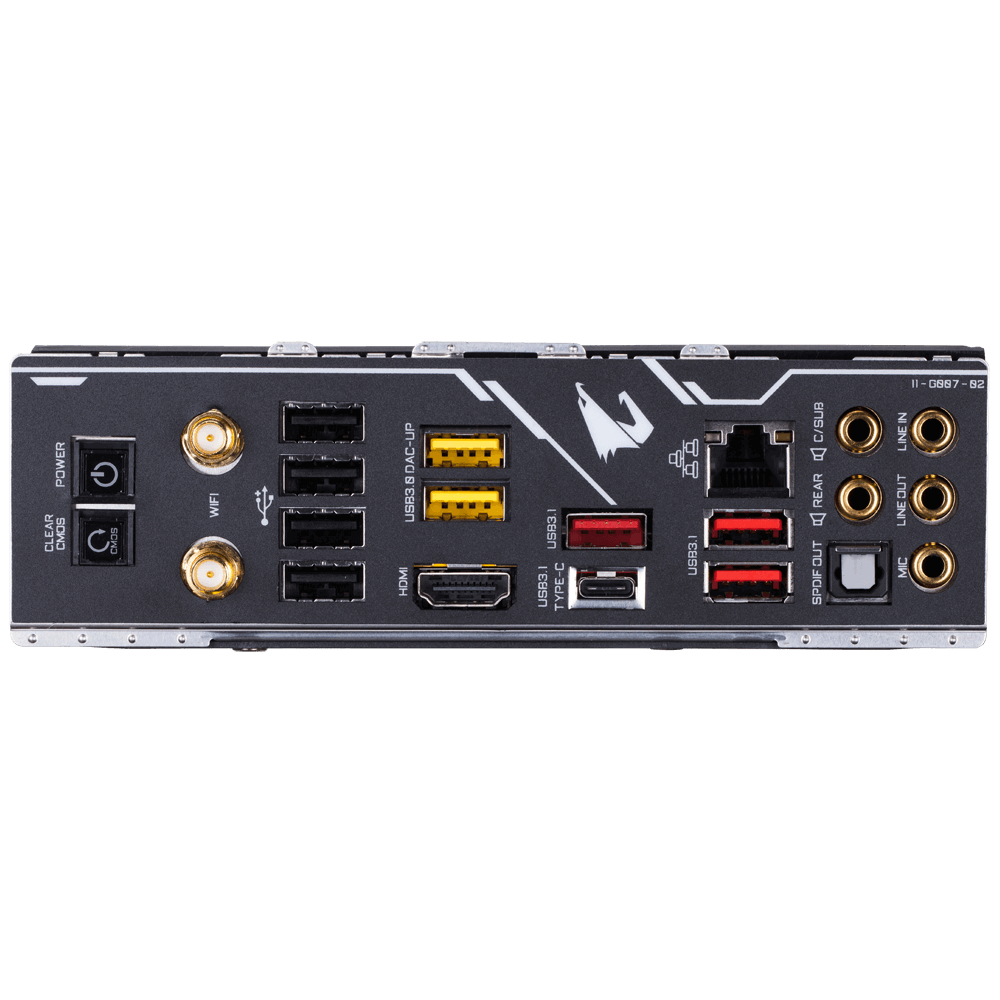

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version5.0

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z390
Audio chipRealtek ALC1220-VB
Audio output channels7.1 channels
Windows operating systems supportedWindows 10

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots3
Number of M.2 (M) slots3

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
ACPI version5.0
Clear CMOS jumperYes
Clear CMOS buttonYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Processor special features

Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Bundled softwareNorton® Internet Security cFosSpeed XSplit Gamecaster + Broadcaster

Other features

DualBIOSYes
