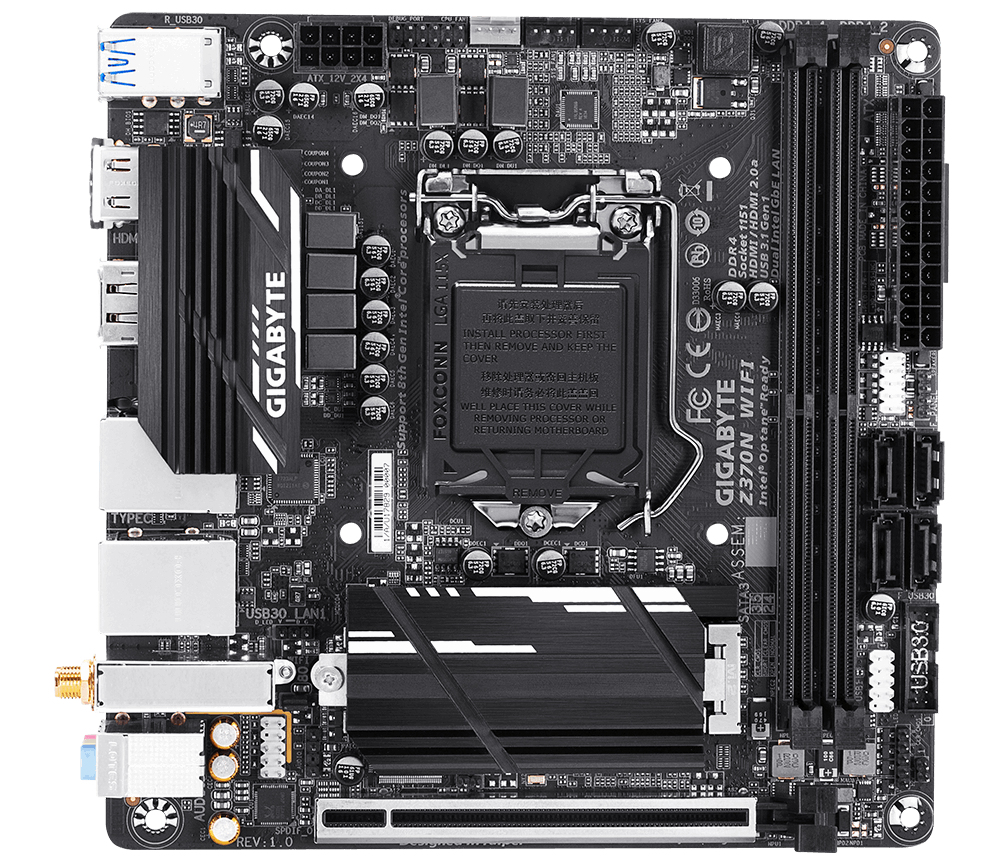

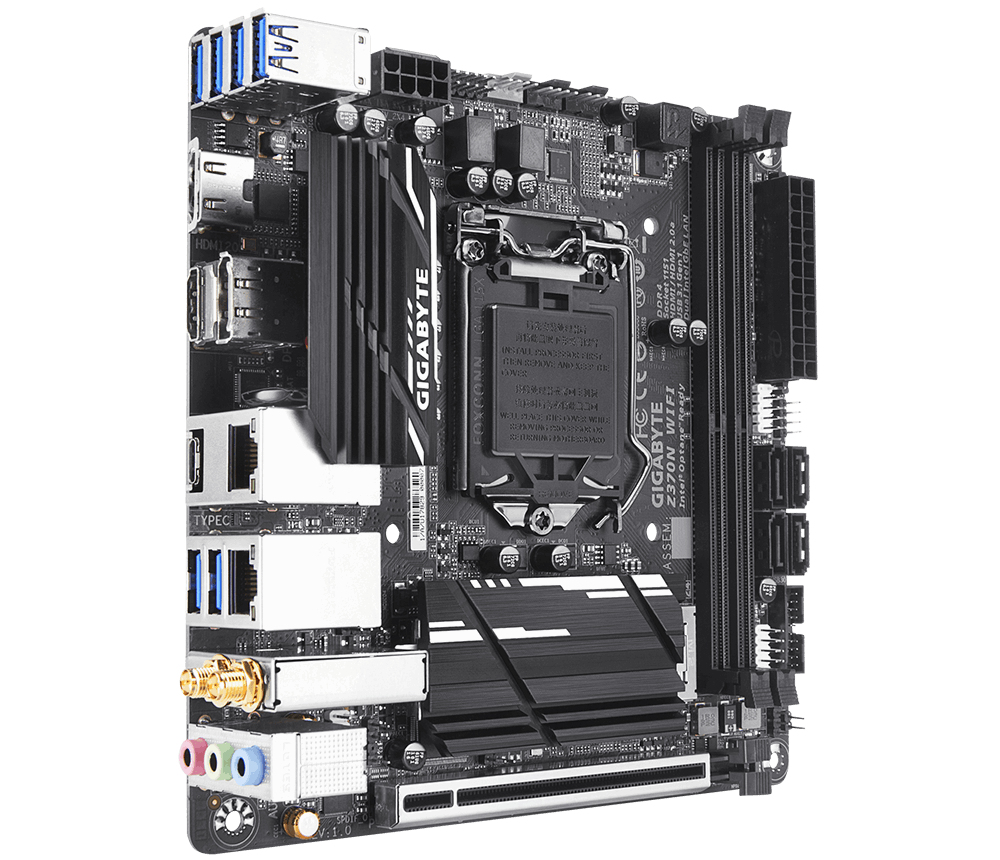

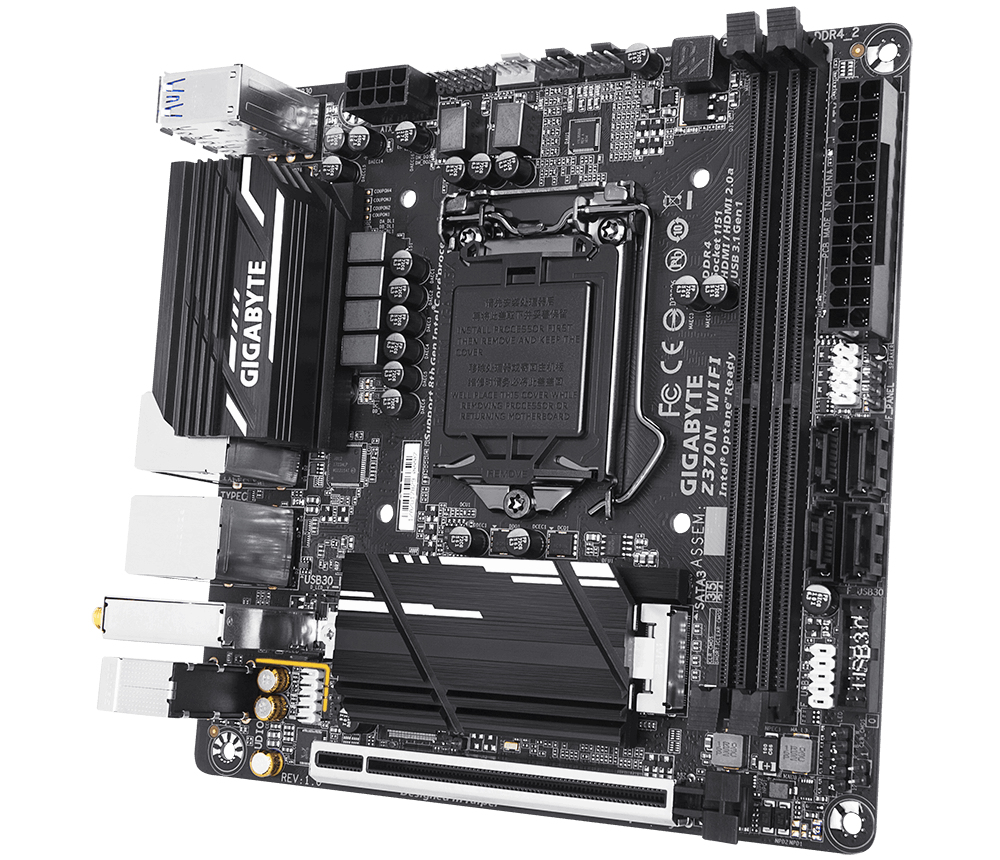

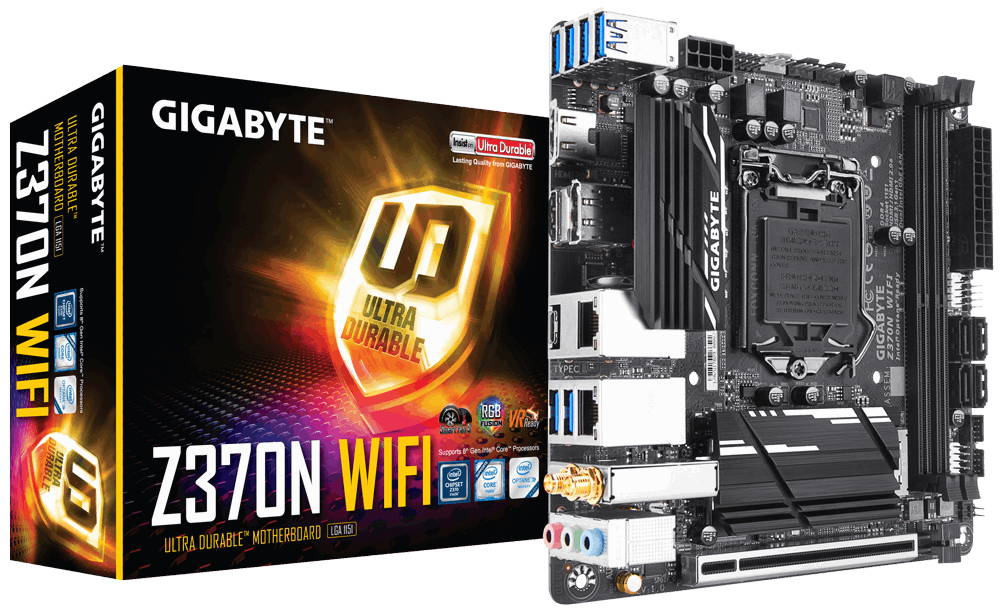

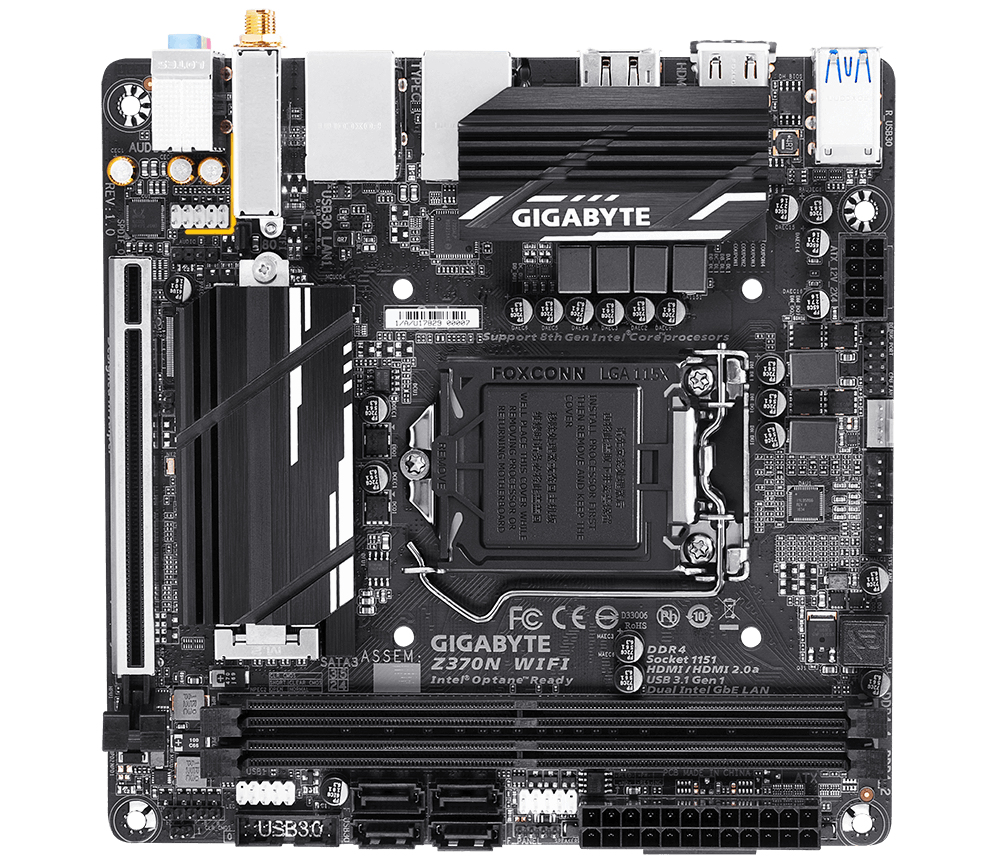

GIGABYTE Z370N WIFI

GIGABYTE Z370N WIFI

Model Z370N WIFIPart no. GA-Z370N-WIFIEAN 889523011638

72 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 5, 10
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors1
  • USB 2.0 ports quantity0
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 5, 10
Maximum graphics card memory
1024 MB
USB 2.0 connectors
1
USB 2.0 ports quantity
0
Brand
GIGABYTE
Category
Motherboard
Model
Z370N WIFI
Part number
GA-Z370N-WIFI
EAN / UPC
889523011638, 4719331802370
Also known as
GIGABYTE Z370N WIFI Intel® Z370 LGA 1151 (Socket H4) mini ITX

Specifications

72 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2666,2800,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4400 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1024 MB
Graphics card familyIntel
Graphics cardHD Graphics
Maximum resolution4096 x 2304 pixels
HDCPYes

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Audio connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
12V power connectorYes

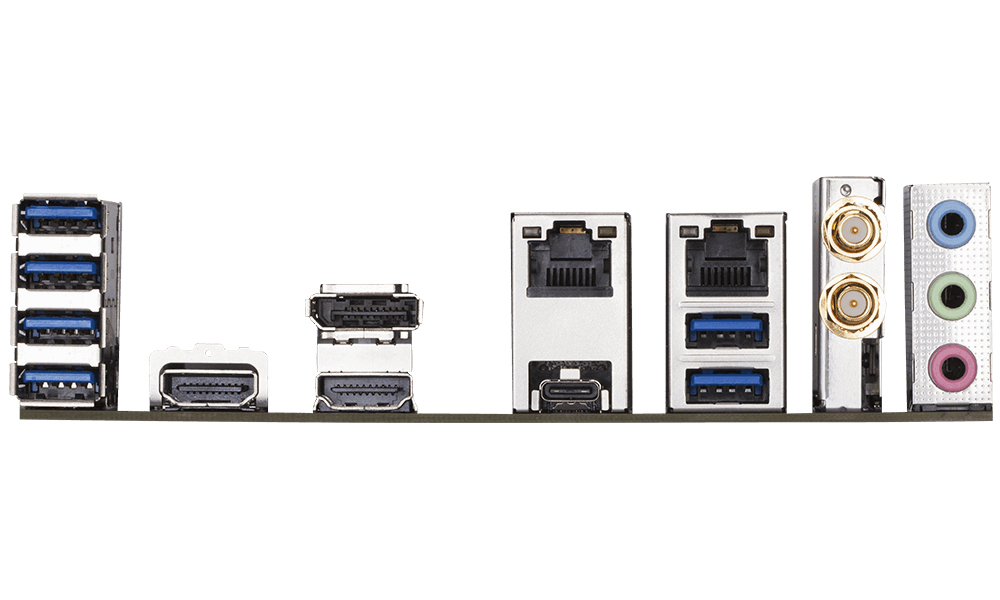

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity2
DVI-D ports quantity0
DisplayPorts quantity1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version4.2

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z370
Audio output channels5.1 channels
PC health monitoringFan, Temperature, Voltage
Power source typeATX
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64
Overclocking featuresRealtek ALC1220

Expansion slots

PCI Express x16 slots1
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width170 mm
Depth170 mm

Packaging content

Bundled softwareNorton Internet Security, cFosSpeed
