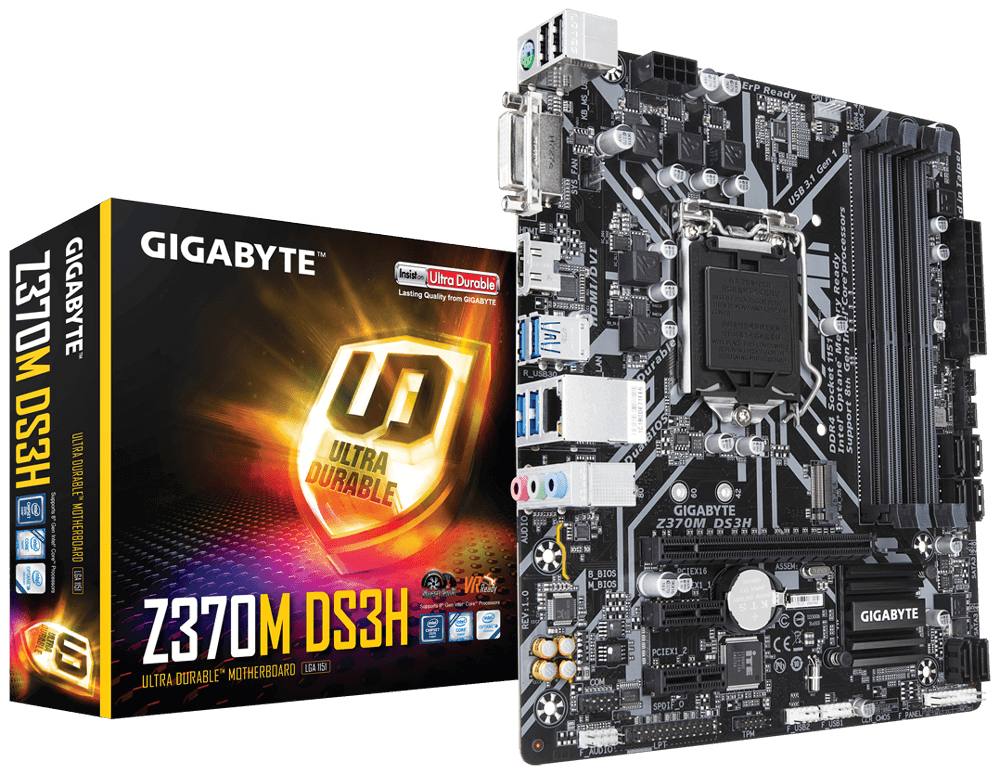

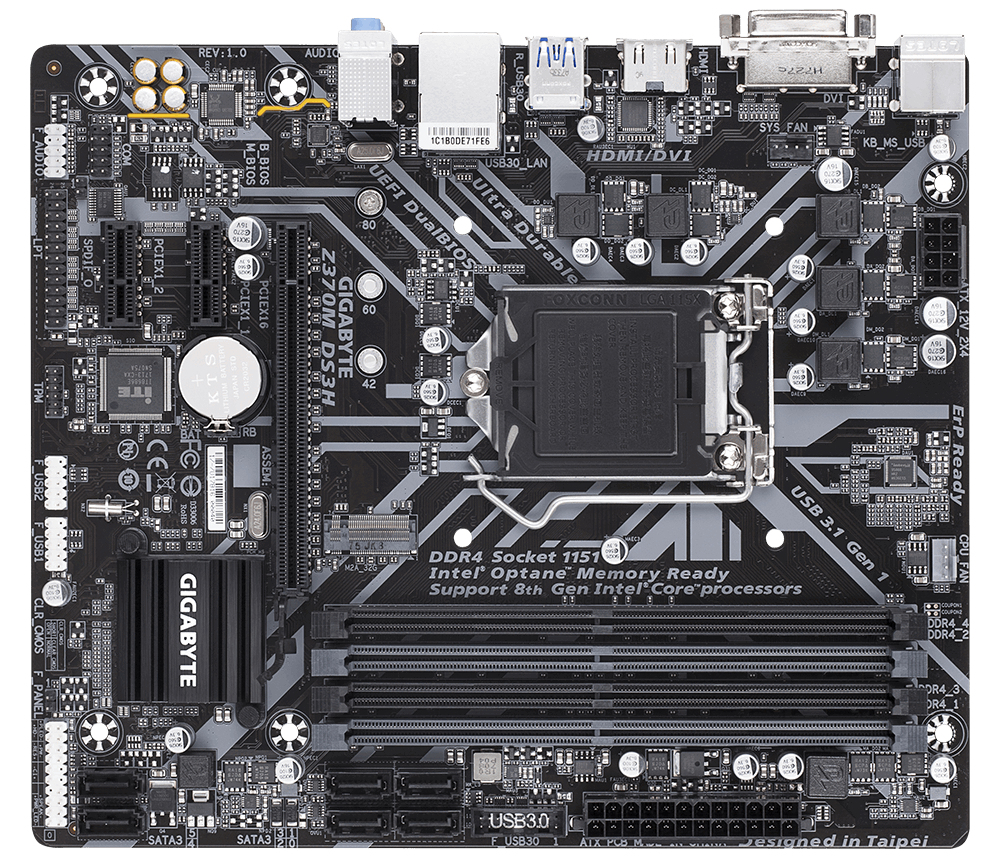

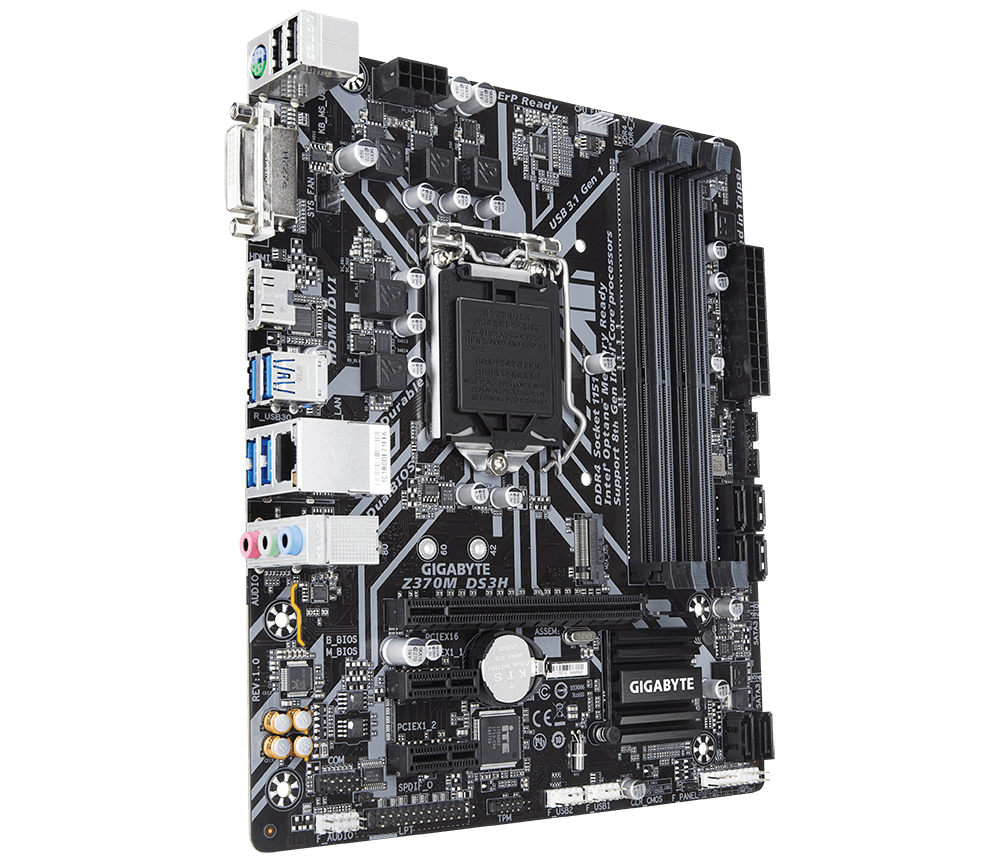

GIGABYTE Z370M-DS3H Intel® Z370 Express LGA 1151 (Socket H4) mini ATX

GIGABYTE Z370M-DS3H Intel® Z370 Express LGA 1151 (Socket H4) mini ATX

Model Z370M-DS3HPart no. GA-Z370M-DS3HEAN 889523012215

52 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Maximum graphics card memory1000 MB
  • USB 2.0 connectors4
  • USB 2.0 ports quantity2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Maximum graphics card memory
1000 MB
USB 2.0 connectors
4
USB 2.0 ports quantity
2
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
Z370M-DS3H
Part number
GA-Z370M-DS3H
EAN / UPC
889523012215, 4719331802622
Also known as
GIGABYTE Z370M-DS3H Intel® Z370 Express LGA 1151 (Socket H4) mini ATX

Specifications

52 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Maximum internal memory64 GB

Graphics

Maximum graphics card memory1000 MB
On-board graphics cardYes
Graphics card familyIntel
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Audio connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Serial port headers1
TPM connectorYes

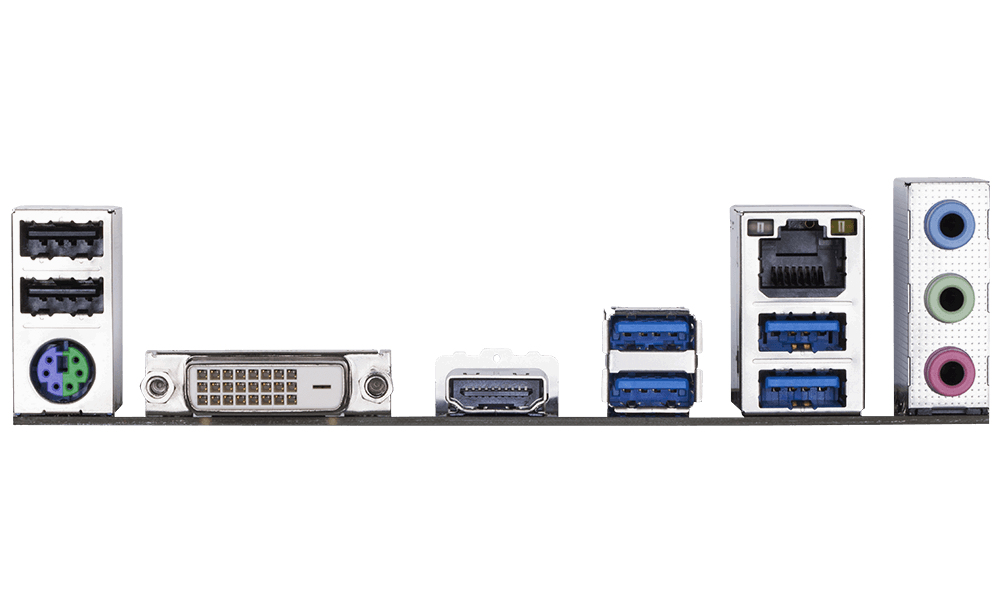

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Microphone inYes

Network

Ethernet LANYes

Features

Component forPC
Motherboard form factormini ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z370 Express
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI

Processor special features

Trusted Platform Module (TPM) version2.0
Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width22.6 mm
Depth19.3 mm

Packaging content

ManualYes

Other features

S/PDIF in connectorYes
PCI Express x16 (Gen 1.x) slots2
Parallel port via internal headerYes
