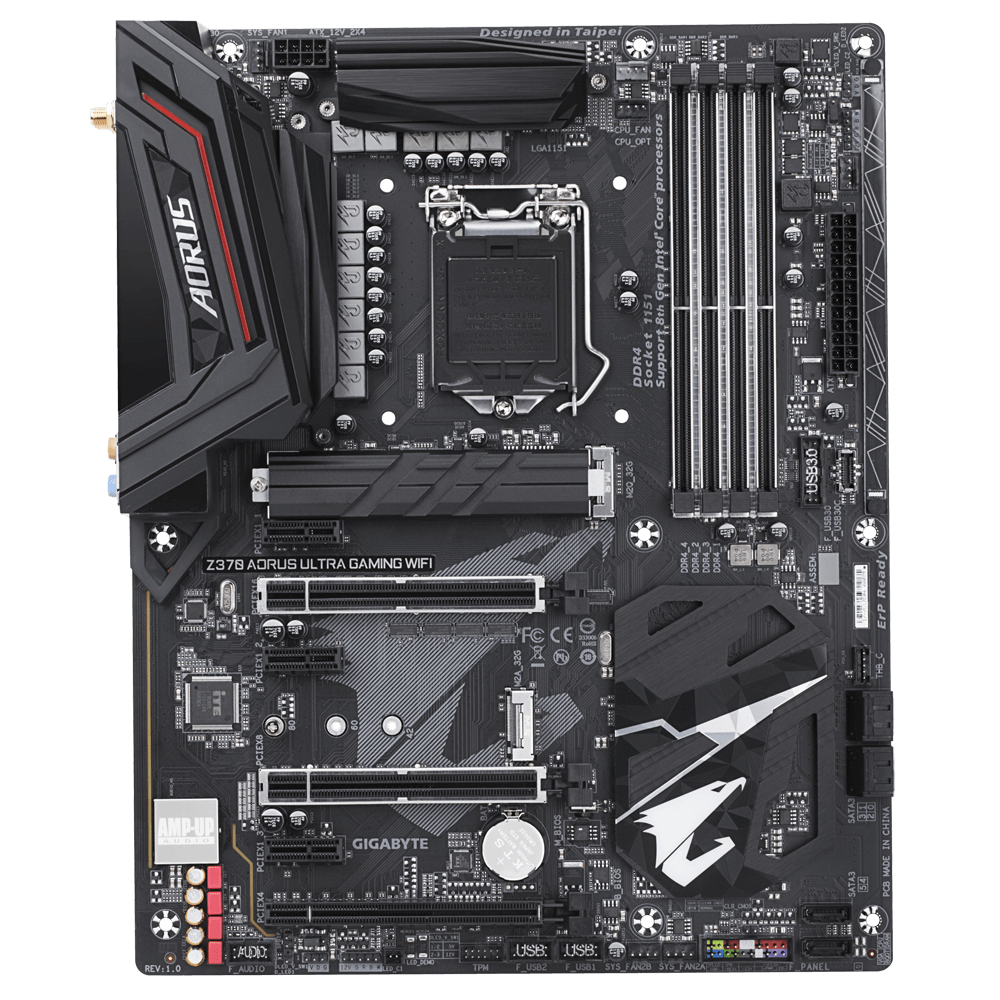

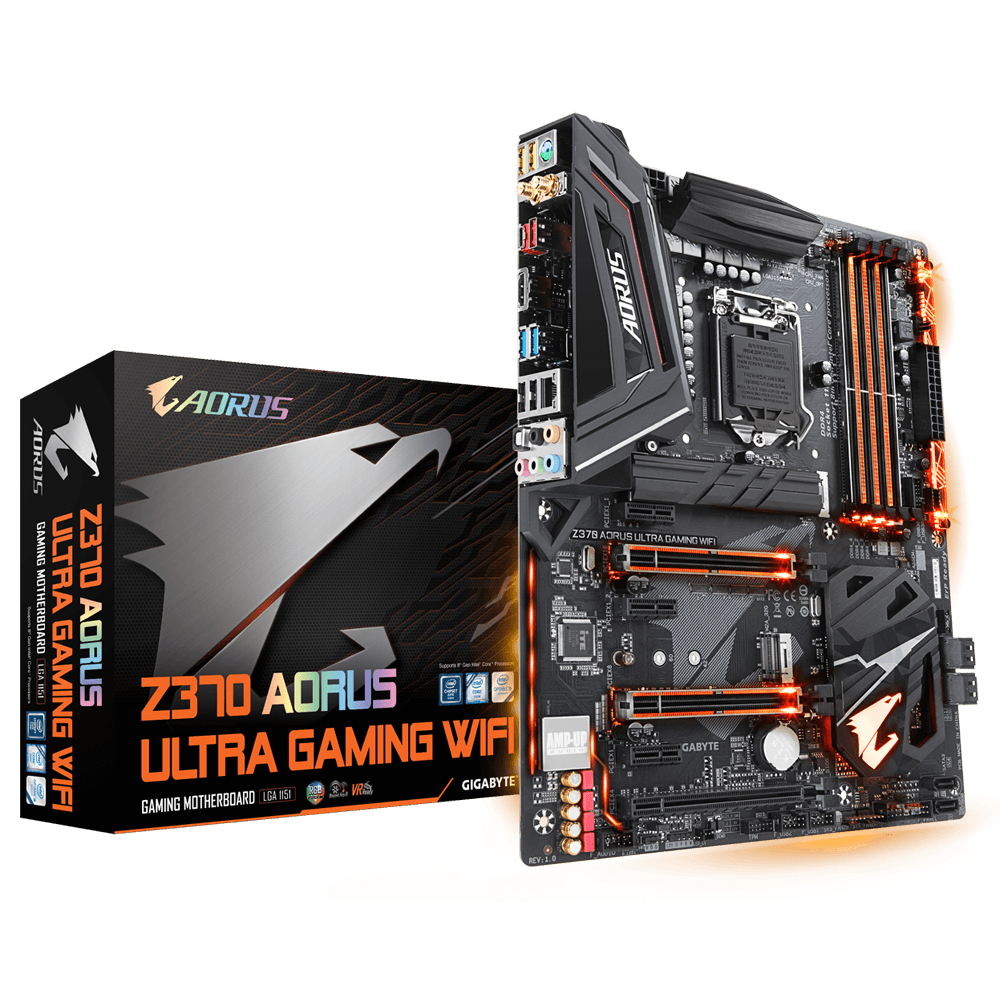

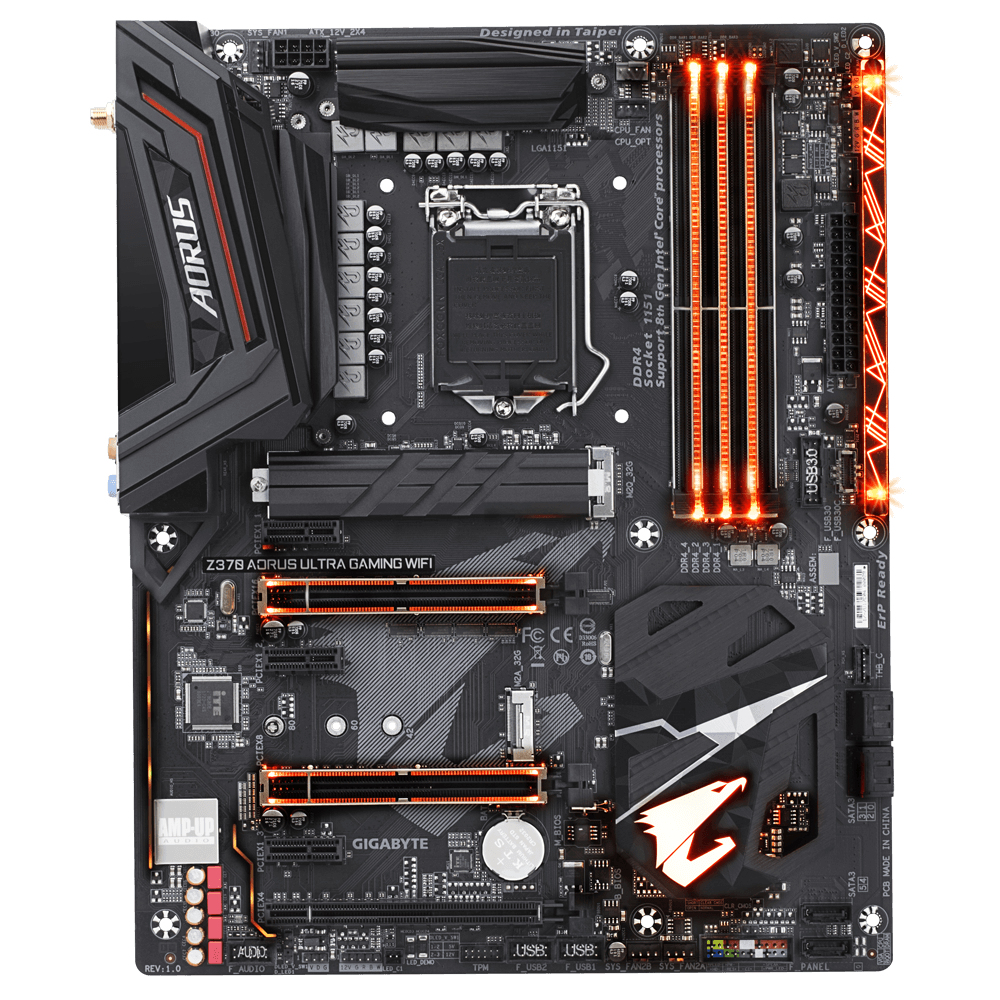

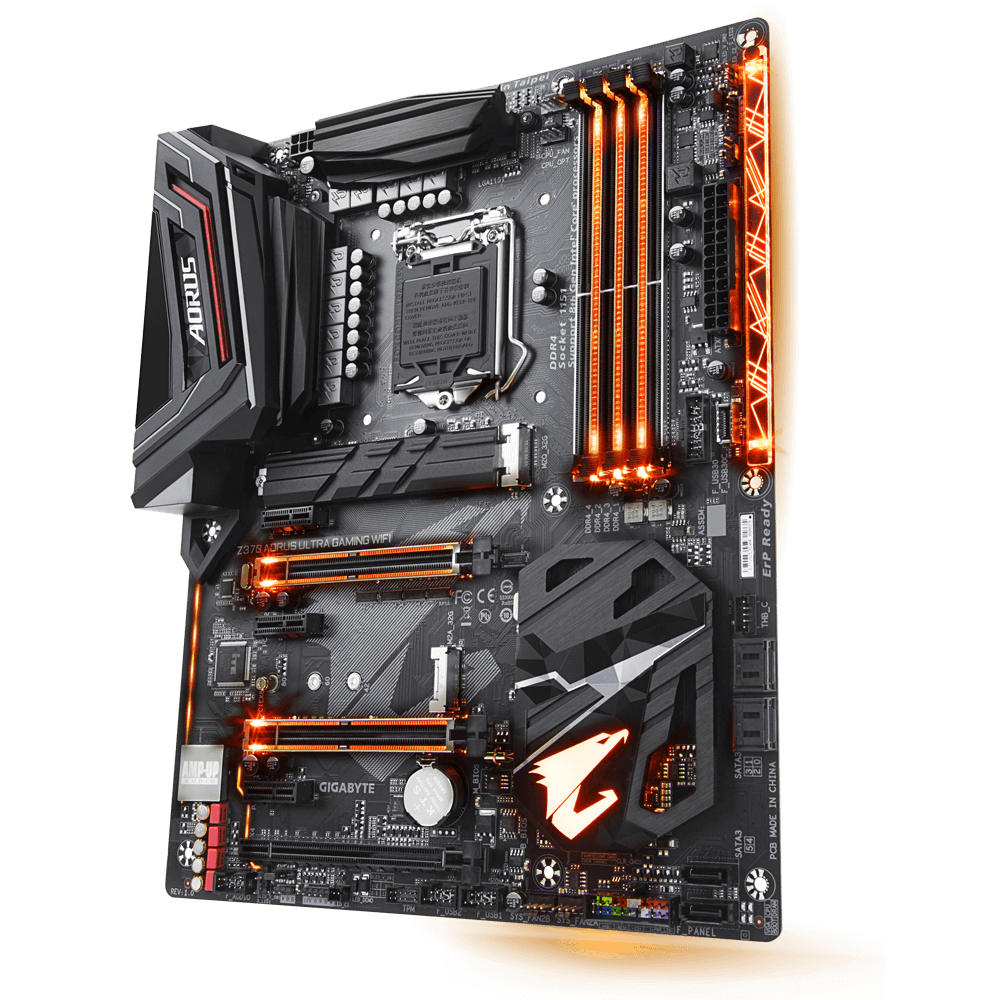

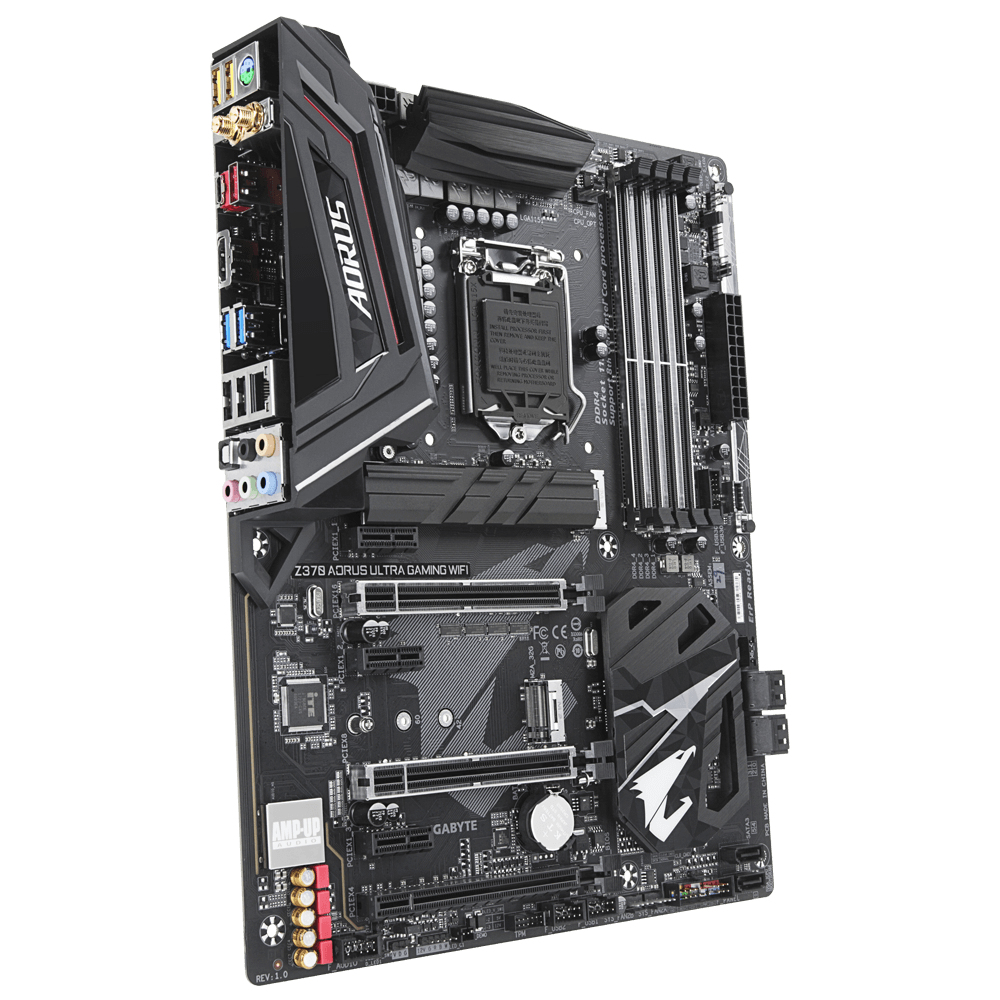

GIGABYTE Z370 AORUS ULTRA GAMING WIFI (rev. 1.0)

GIGABYTE Z370 AORUS ULTRA GAMING WIFI (rev. 1.0)

Model Z370 AORUS ULTRA GAMING WIFI (rev. 1.0)Part no. Z370 AORUSULTRAGAMINGWIFI

67 specifications
  • SpeedWi-Fi 5 (802.11ac)
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • HDCPYes
  • USB 2.0 connectors2
See all specifications

Overview

Speed
Wi-Fi 5 (802.11ac)
Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
HDCP
Yes
USB 2.0 connectors
2
Brand
GIGABYTE
Category
Motherboard
Model
Z370 AORUS ULTRA GAMING WIFI (rev. 1.0)
Part number
Z370 AORUSULTRAGAMINGWIFI
Also known as
GIGABYTE Z370 AORUS ULTRA GAMING WIFI (rev. 1.0) Intel® Z370 Express LGA 1151 (Socket H4) ATX

Specifications

67 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speed (max)4000 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, CrossFire, SLI
HDCPYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors6
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
12V power connectorYes
Parallel connectorYes
TPM connectorYes
RGB LED pin headerYes

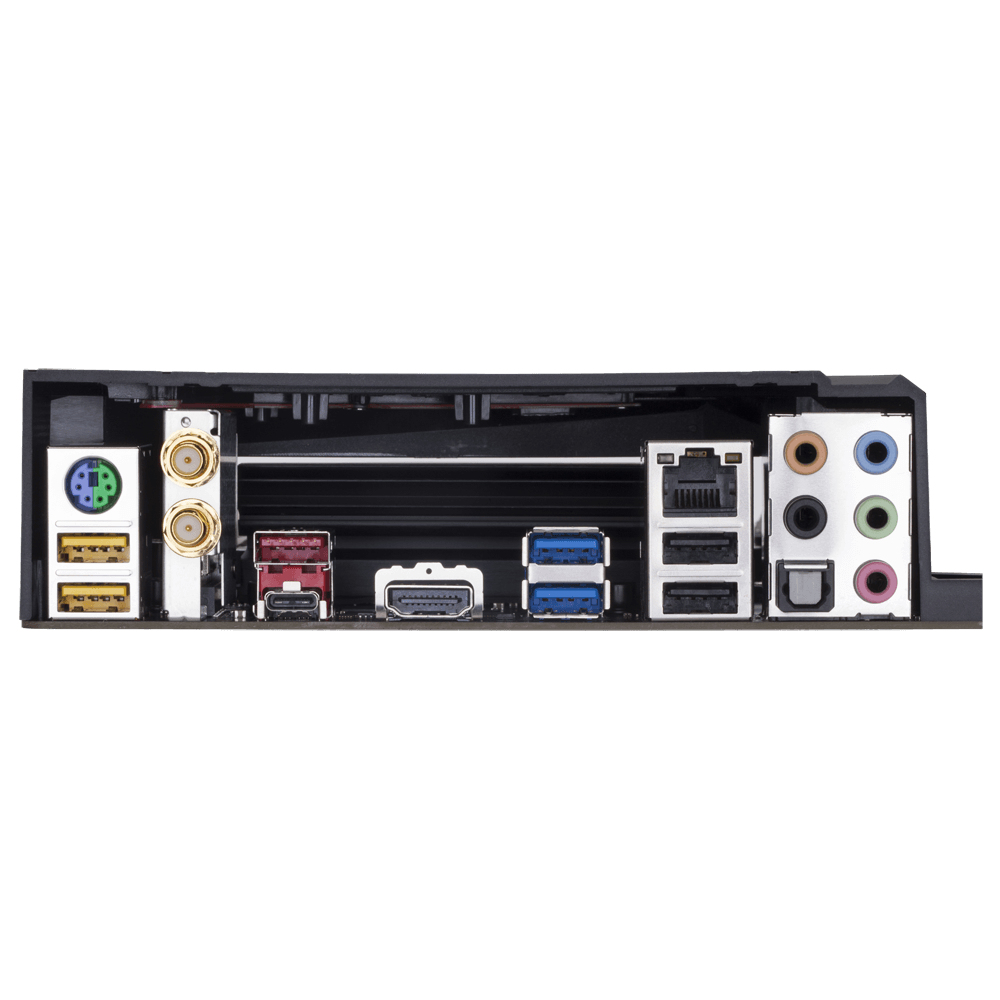

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
HDMI ports quantity1
HDMI version1.4
Line-inYes
Microphone inYes
Rear speaker outYes
Subwoofer outYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
BluetoothYes
Bluetooth version4.2

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z370 Express
Audio chipRealtek ALC1220
Audio output channels7.1 channels
Windows operating systems supportedWindows 10 x64

Expansion slots

PCI Express x1 slots3
PCI Express x1 (Gen 3.x) slots3
PCI Express x4 slots1
PCI Express x8 slots1
PCI Express x16 slots1
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Weight & dimensions

Width244 mm
Depth305 mm
