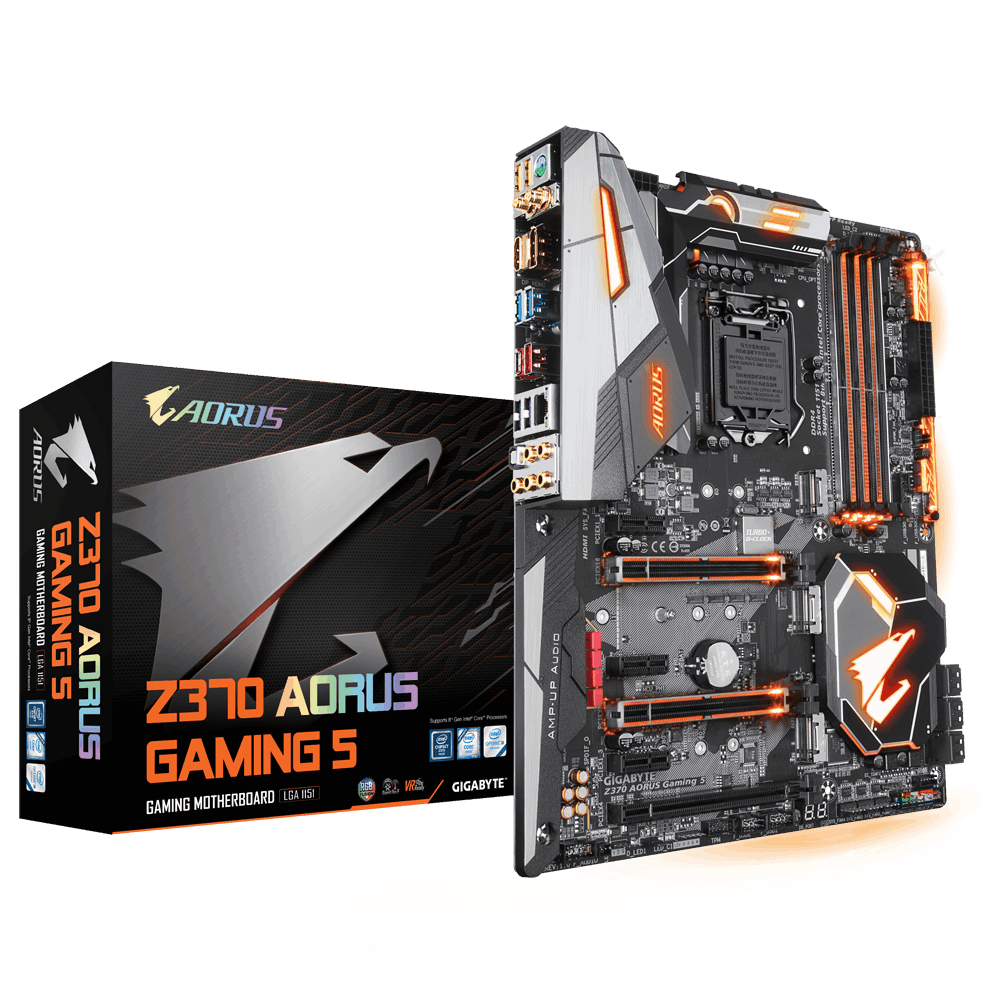

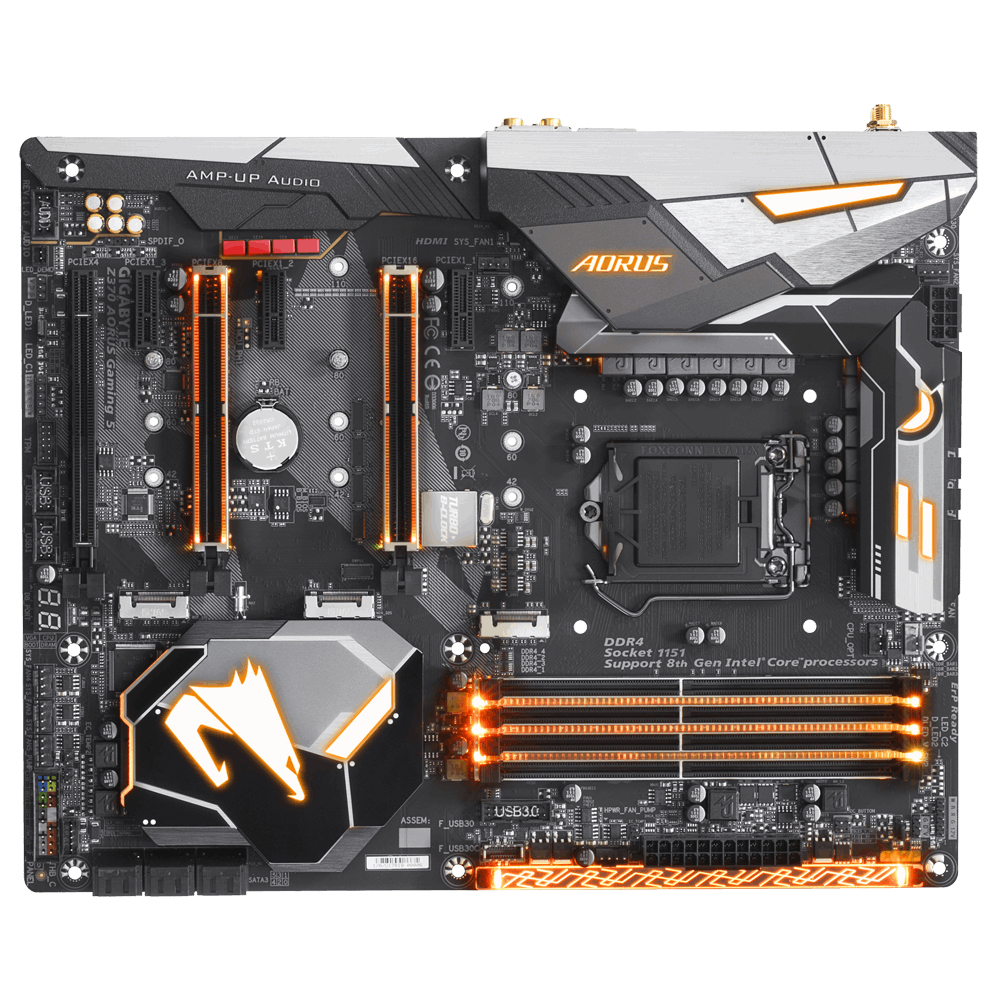

GIGABYTE Z370 AORUS Gaming 5 (rev. 1.0)

Model Z370 AORUS Gaming 5 (rev. 1.0)Part no. GAZ370ARG5-00-GA

81 specifications

Overview

Brand: GIGABYTE
Category: Motherboard
Model: Z370 AORUS Gaming 5 (rev. 1.0)
Part number: GAZ370ARG5-00-GA
Also known as: GIGABYTE Z370 AORUS Gaming 5 (rev. 1.0) Intel® Z370 Express LGA 1151 (Socket H4) ATX

81 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Maximum number of SMP processors	1
Intel Core i3/i5/i7/i9 series	i3-8xxx, i5-8xxx, i7-8xxx

Specification	Value
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speeds	2133,2400,2666,2800,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133 MHz
Maximum internal memory	64 GB
Unbuffered memory	Yes

Specification	Value
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10

Specification	Value
Maximum graphics card memory	1024 MB
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, Quad-GPU CrossFireX, Quad-GPU SLI
On-board graphics card	Yes
Graphics card family	Intel
Graphics card	HD Graphics
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
Discrete graphics support	Yes

Specification	Value
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	6
S/PDIF out connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	4
EPS power connector (8-pin)	Yes
TPM connector	Yes
Thunderbolt headers	1

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
eSATA ports quantity	0
PS/2 ports quantity	1
Firewire (IEEE 1394) ports	0
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Headphone outputs	1
Microphone in	Yes
S/PDIF out port	Yes

Specification	Value
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel® Z370 Express
Audio output channels	7.1 channels
PC health monitoring	Fan, Temperature, Voltage
Power source type	ATX
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64

Specification	Value
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7

Specification	Value
Intel Extreme Memory Profile (XMP)	Yes
Intel® Optane™ Memory Ready	Yes

Specification	Value
Width	305 mm
Depth	244 mm

Specification	Value
Bundled software	Norton Internet Security, XSplit Gamecaster + Broadcaster, cFosSpeed

Specification	Value
Other features	3D OSD @BIOS AutoGreen BIOS Setup Color Temperature Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker USB DAC-UP 2 V-Tuner
