GIGABYTE X470 AORUS Gaming 5 WIFI

GIGABYTE X470 AORUS Gaming 5 WIFI

Model X470 AORUS Gaming 5 WIFIPart no. X470 AORUS GAMING 5 WIFIEAN 889523013298

64 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 10
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 10
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
X470 AORUS Gaming 5 WIFI
Part numbers
X470 AORUS GAMING 5 WIFI, GAX47AG5W-00-G
EAN / UPC
889523013298, 4719331802950
Also known as
GIGABYTE X470 AORUS Gaming 5 WIFI AMD X470 Socket AM4 ATX

Specifications

64 specifications in 10 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds3200,3000,2933,2667,2400,2133 MHz
Maximum internal memory64 GB
Supported memory module capacities16GB

Storage controllers

RAID levels0, 1, 10

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors6
EPS power connector (8-pin)Yes
TPM connectorYes

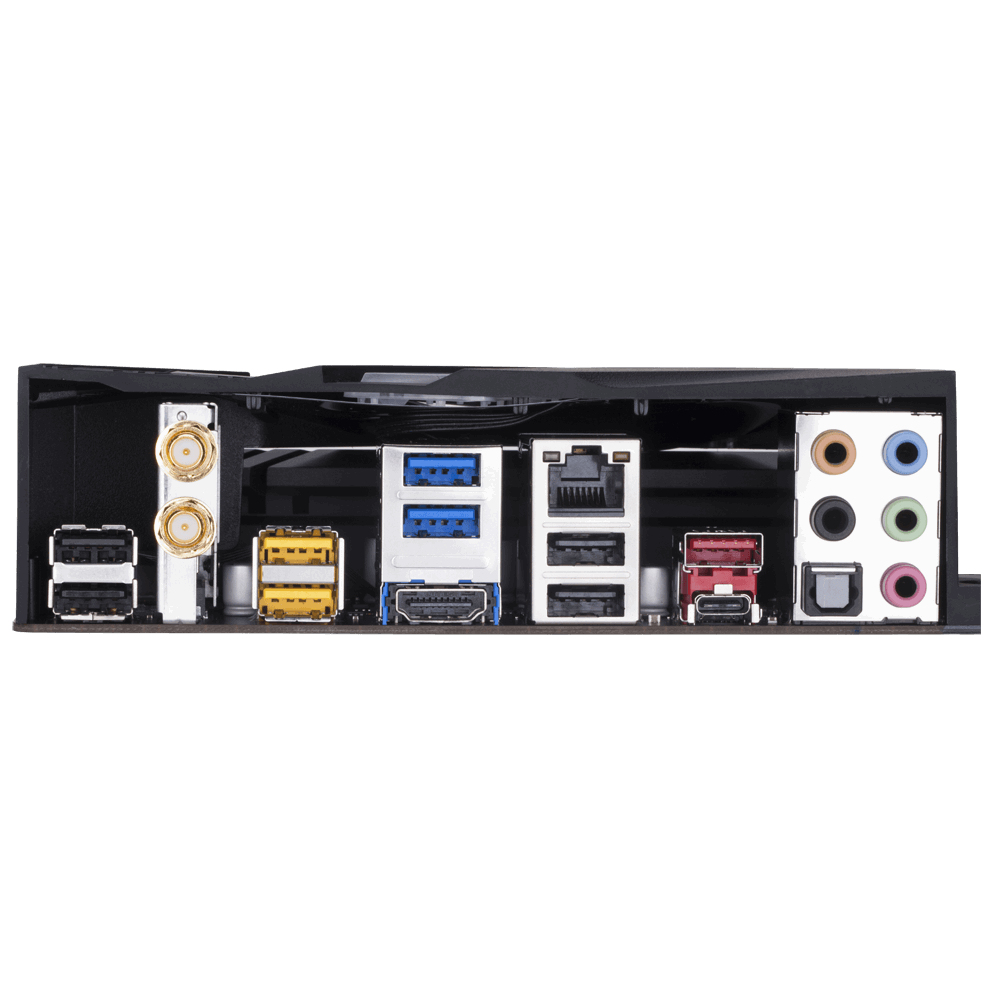

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version5.0

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD X470
Audio output channels7.1 channels
Power source typeATX
Linux operating systems supportedYes
Windows operating systems supportedYes

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots3
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
Clear CMOS jumperYes

Weight & dimensions

Width244 mm
Depth305 mm
