GIGABYTE X399 DESIGNARE EX

GIGABYTE X399 DESIGNARE EX

Model X399 DESIGNARE EXEAN 889523011539

76 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 10
  • USB 2.0 connectors2
  • USB 2.0 ports quantity0
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 10
USB 2.0 connectors
2
USB 2.0 ports quantity
0
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
X399 DESIGNARE EX
Part number
X399 DESIGNARE EX
EAN / UPC
889523011539, 4719331802387
Also known as
GIGABYTE X399 DESIGNARE EX motherboard AMD X399 Socket TR4 ATX

Specifications

76 specifications in 14 groups

Processor

Processor manufacturerAMD
Processor socketSocket TR4
Compatible processor seriesAMD Ryzen Threadripper 1000 Series, AMD Ryzen Threadripper 2000 Series
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2667 MHz
Maximum internal memory128 GB
Unbuffered memoryYes

Storage controllers

RAID levels0, 1, 10

Graphics

Parallel processing technology support2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors8
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
EPS power connector (8-pin)Yes
12V power connectorYes
TPM connectorYes

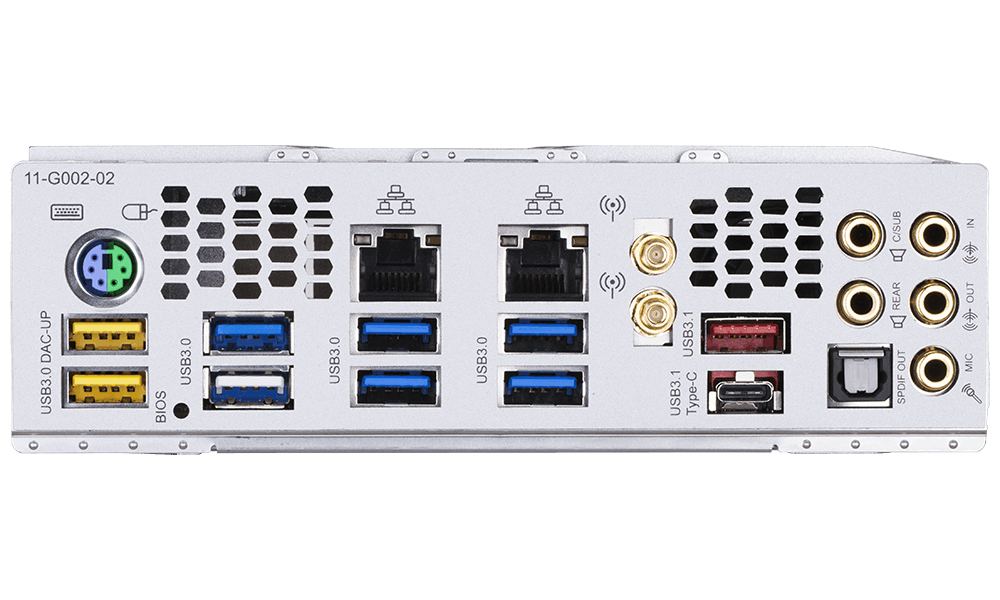

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version4.2

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD X399
Audio chipRealtek ALC1220
Audio output channels7.1 channels
PC health monitoringFan, Temperature, Voltage
Power source typeATX
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64

Expansion slots

PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots4
Number of M.2 (M) slots3

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes
Clear CMOS buttonYes
Desktop Management Interface (DMI) version2.7
Plug and PlayYes
System Management BIOS (SMBIOS) version2.7

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes
Bundled softwareNorton Internet Security, XSplit Gamecaster + Broadcaster, cFosSpeed

Other features

Quick installation guideYes
