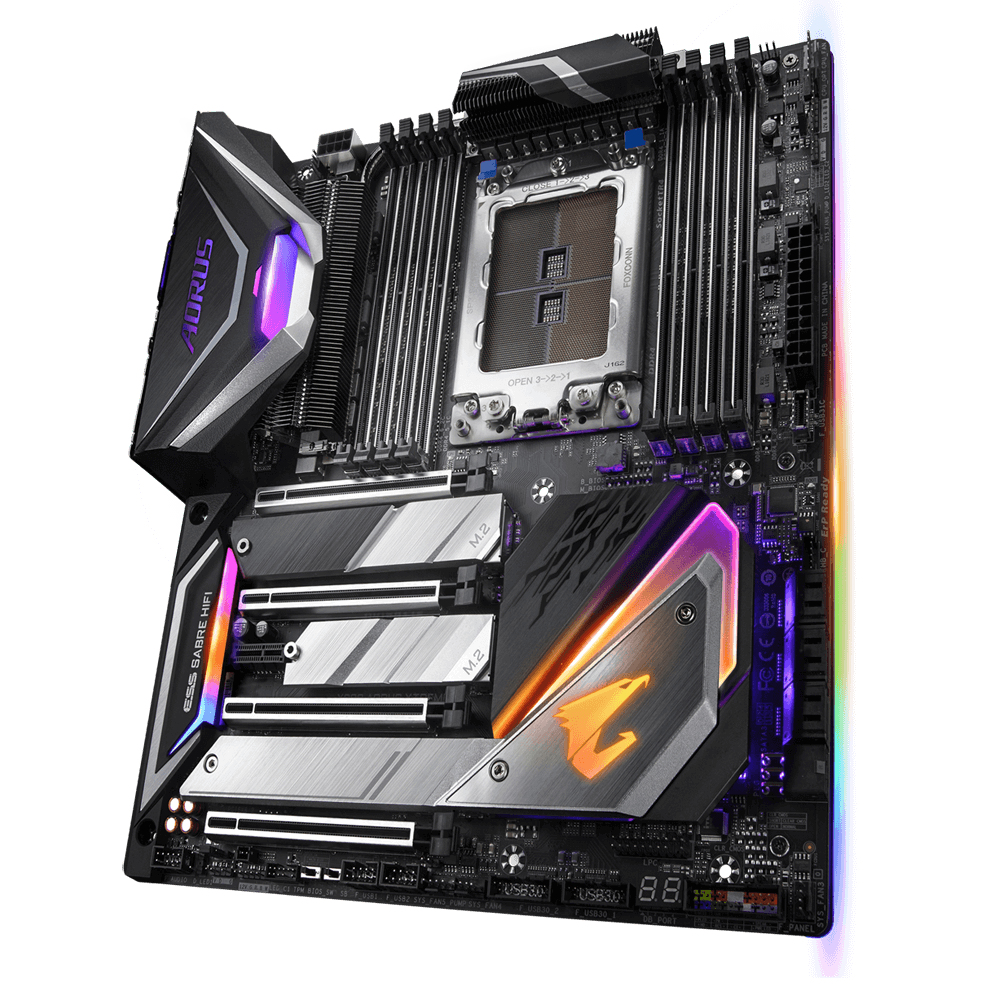

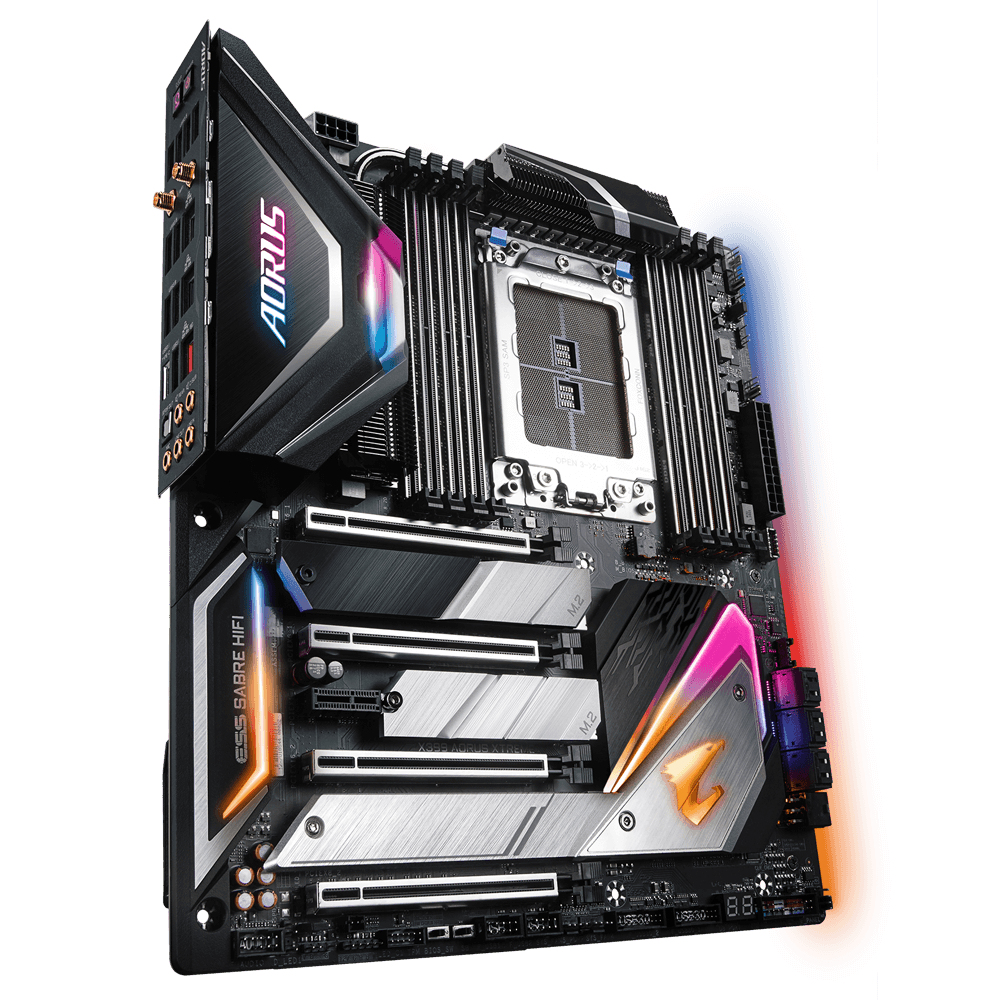

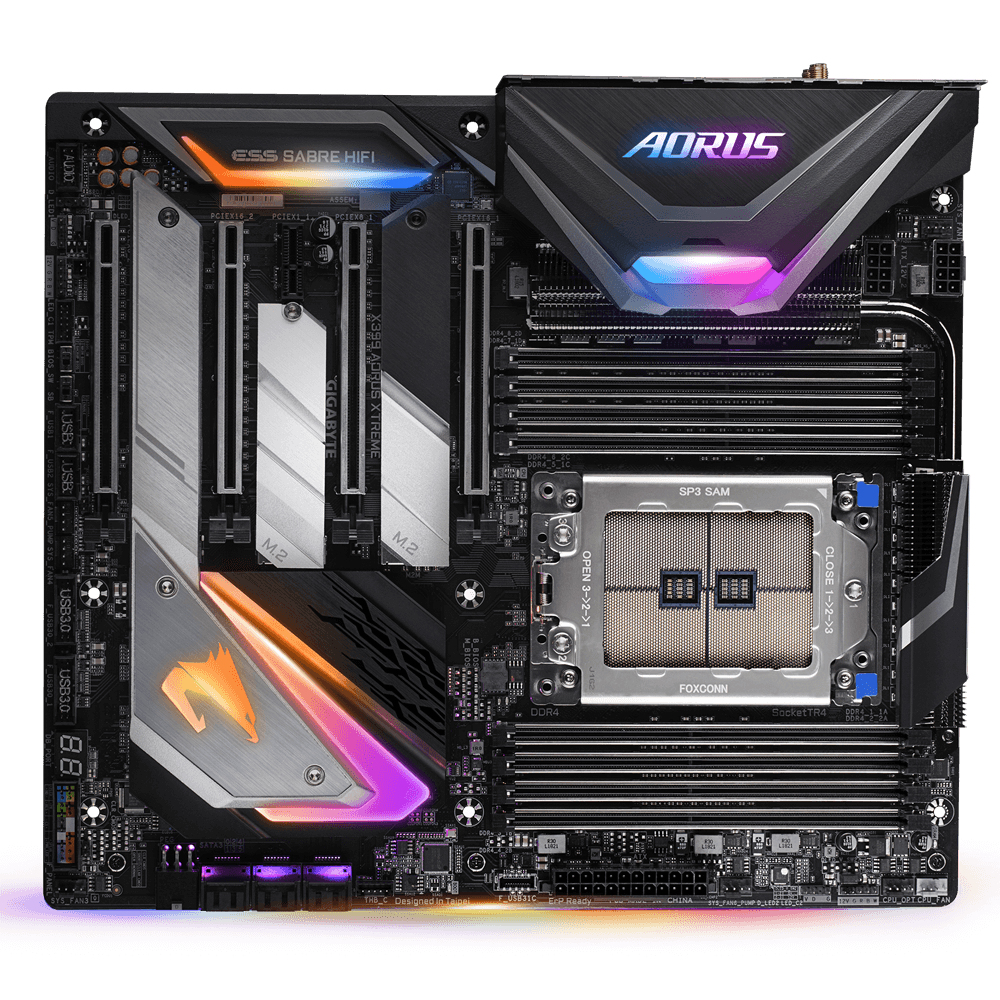

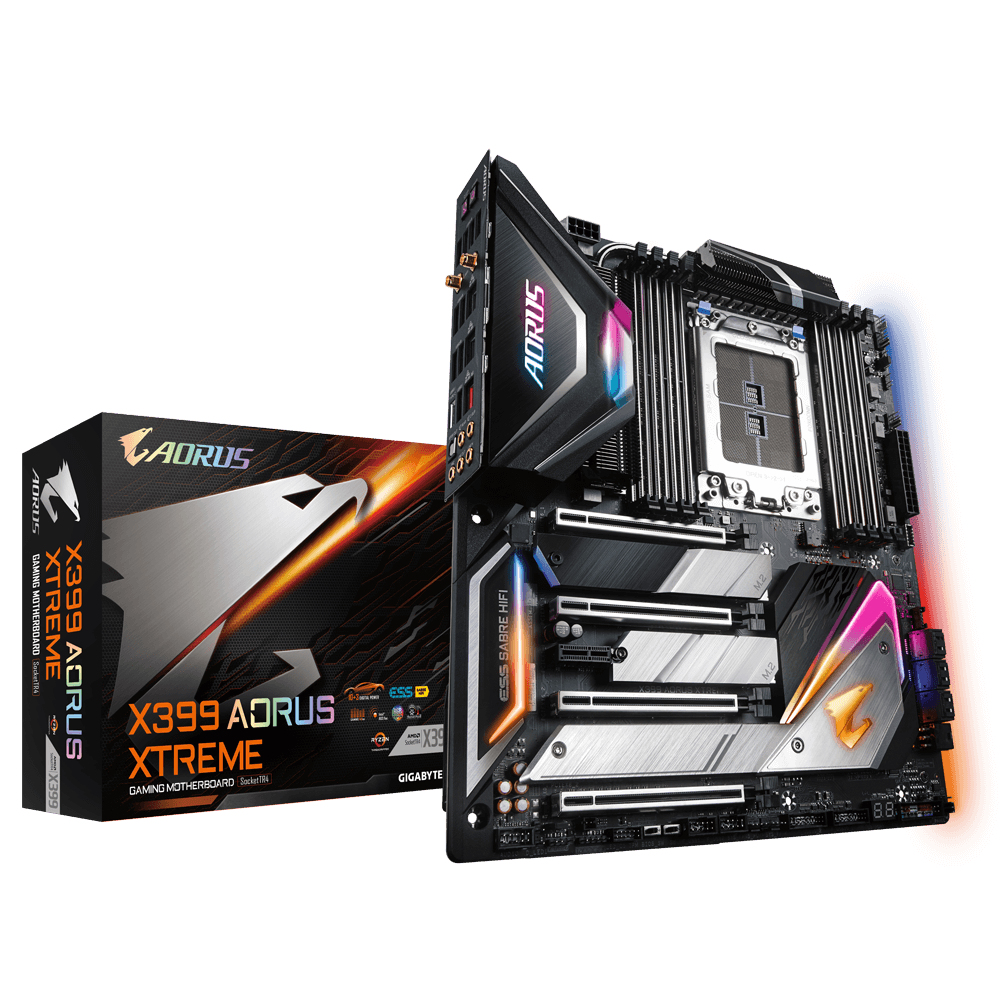

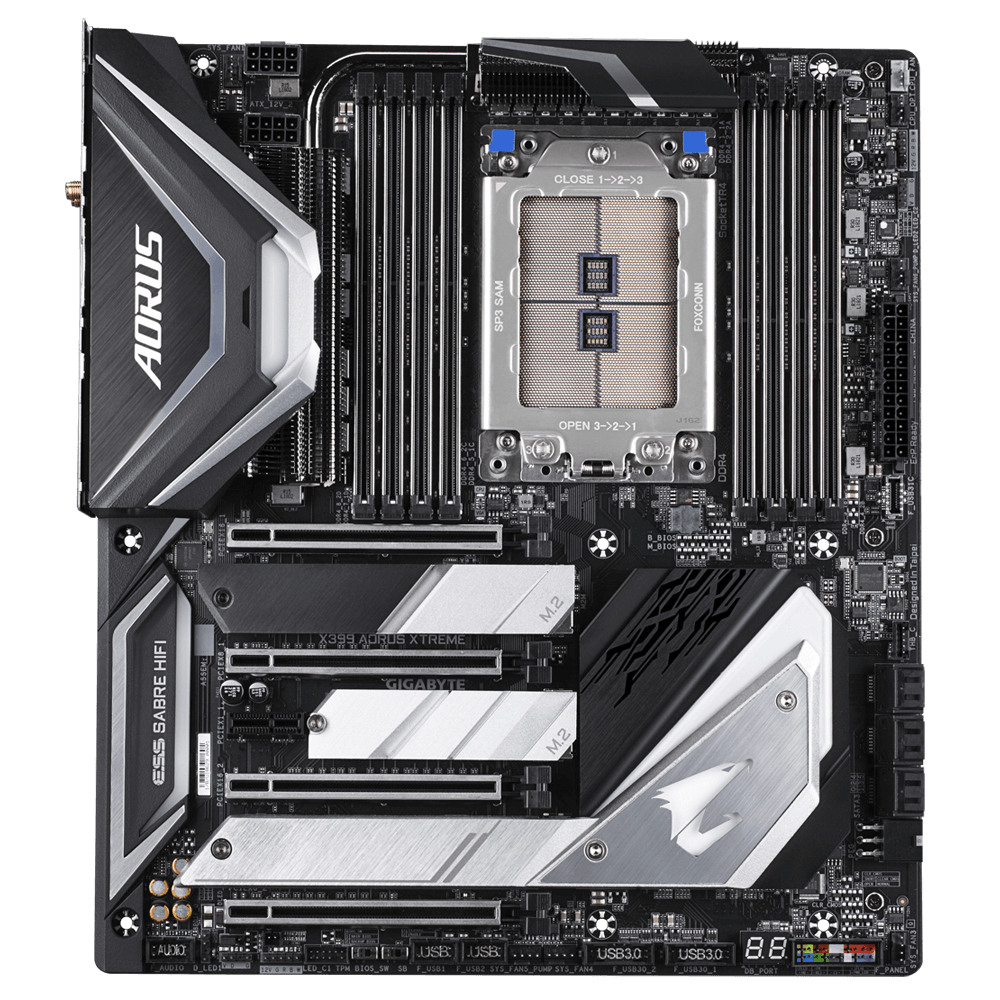

GIGABYTE X399 Aorus Xtreme

GIGABYTE X399 Aorus Xtreme

Model X399 Aorus XtremePart no. X399 AORUS XTREMEEAN 889523014516

72 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 10
  • USB 2.0 connectors2
  • USB 2.0 ports quantity0
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 10
USB 2.0 connectors
2
USB 2.0 ports quantity
0
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
X399 Aorus Xtreme
Part number
X399 AORUS XTREME
EAN / UPC
889523014516, 4719331803896
Also known as
GIGABYTE X399 Aorus Xtreme AMD X399 Socket TR4 Extended ATX

Specifications

72 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket TR4
Compatible processor seriesAMD Ryzen Threadripper 1000 Series, AMD Ryzen Threadripper 2000 Series

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots8
Memory channelsQuad-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2667,2933,3466,3600 MHz
Maximum internal memory128 GB
Unbuffered memoryYes

Storage controllers

RAID levels0, 1, 10

Graphics

Parallel processing technology support2-Way SLI, 3-Way SLI, 4-Way SLI, CrossFire, SLI

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
12V power connectorYes
TPM connectorYes

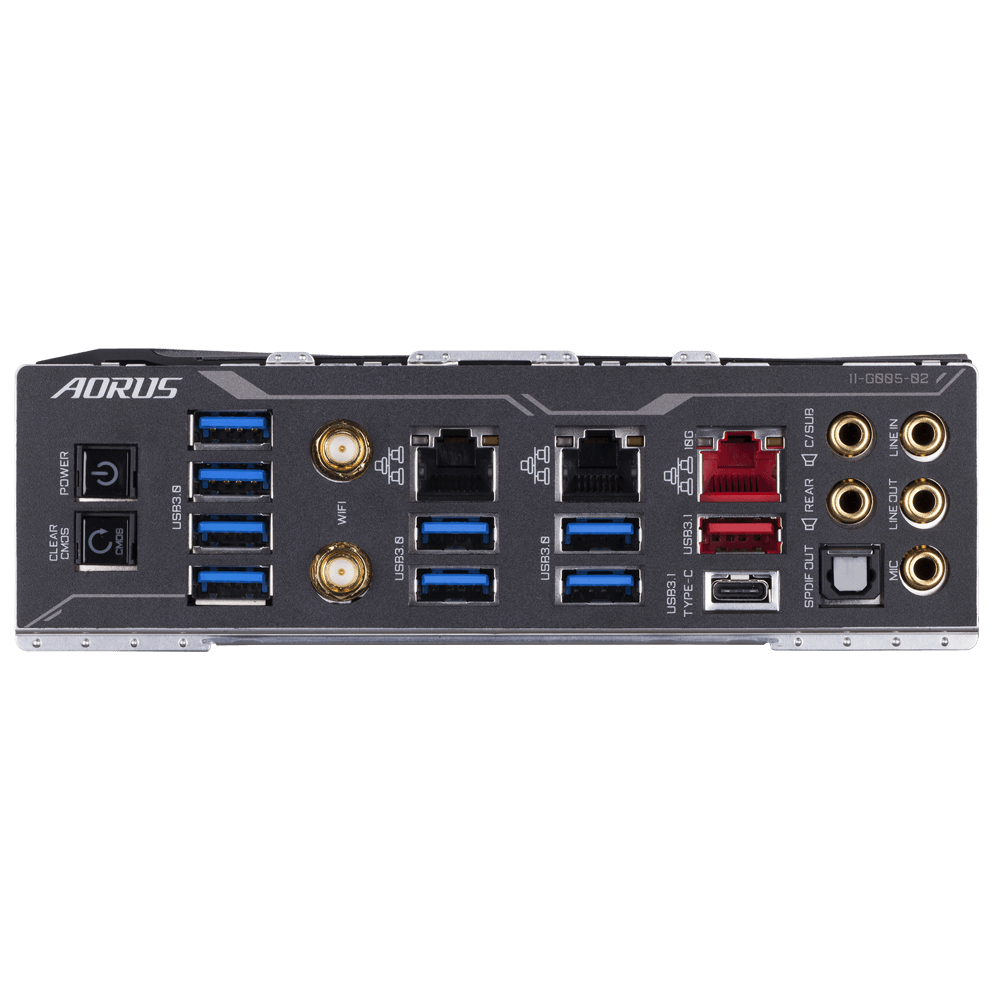

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports3
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface type5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version4.2

Features

Component forPC
Motherboard form factorExtended ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD X399
Audio chipRealtek ALC1220-VB
Audio output channels7.1 channels
PC health monitoringFan, Temperature, Voltage
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x16 slots4
Number of M.2 (M) slots3

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes
Clear CMOS buttonYes
Desktop Management Interface (DMI) version2.7
Plug and PlayYes
System Management BIOS (SMBIOS) version2.7

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width269 mm
Depth305 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes
Trial softwareXSplit Gamecaster + Broadcaster
Bundled softwareNorton Internet Security (OEM), cFosSpeed
