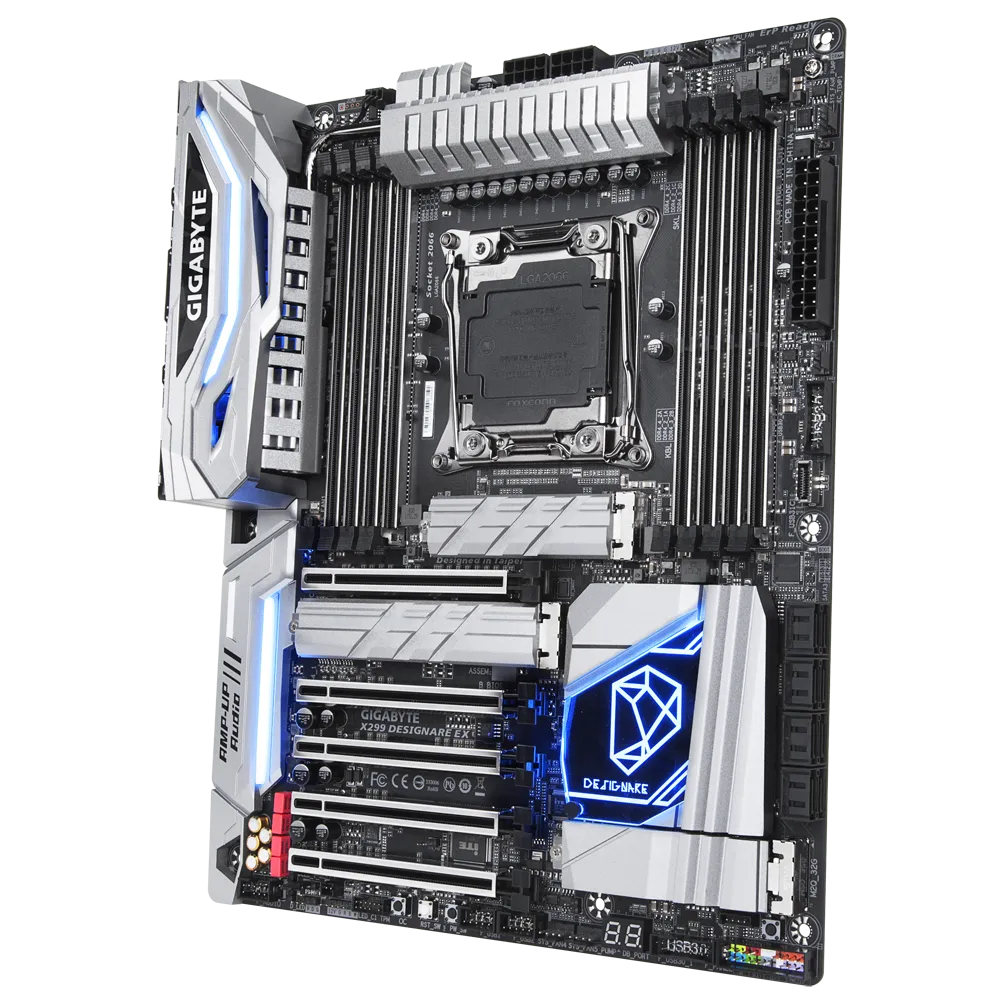

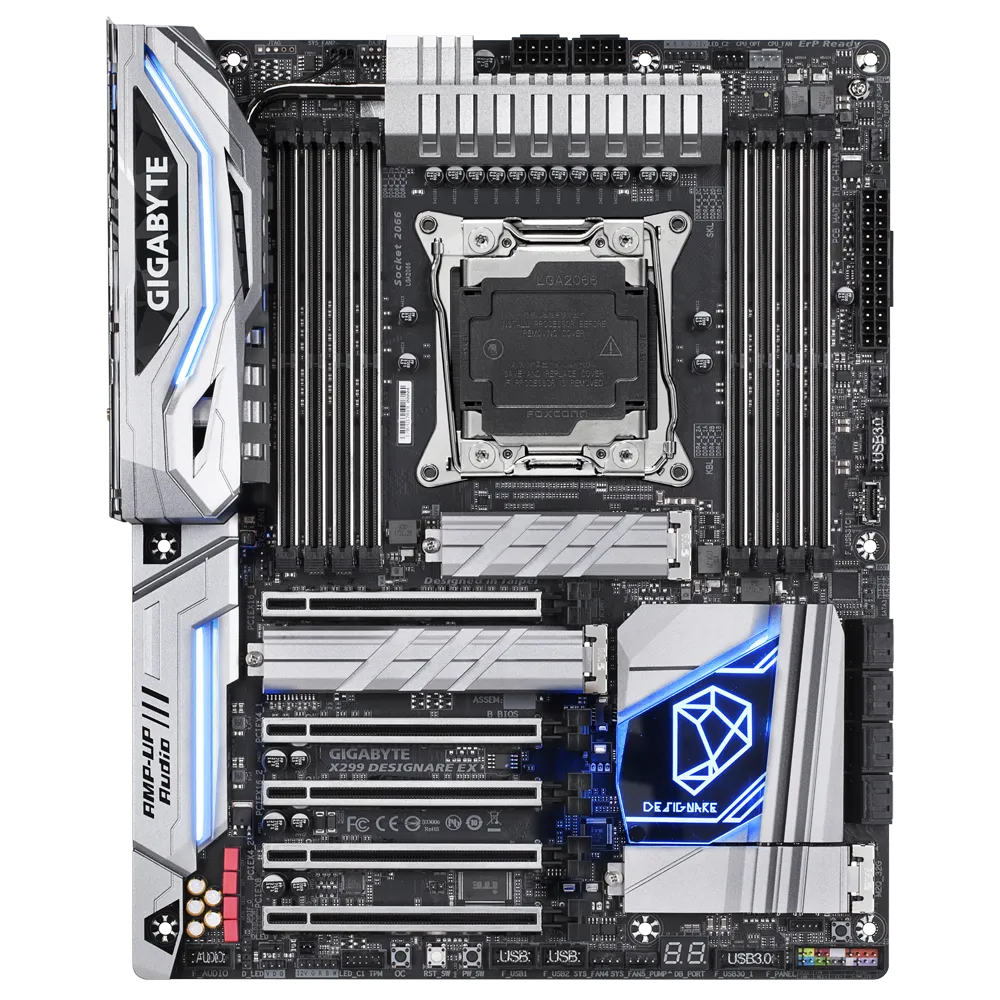

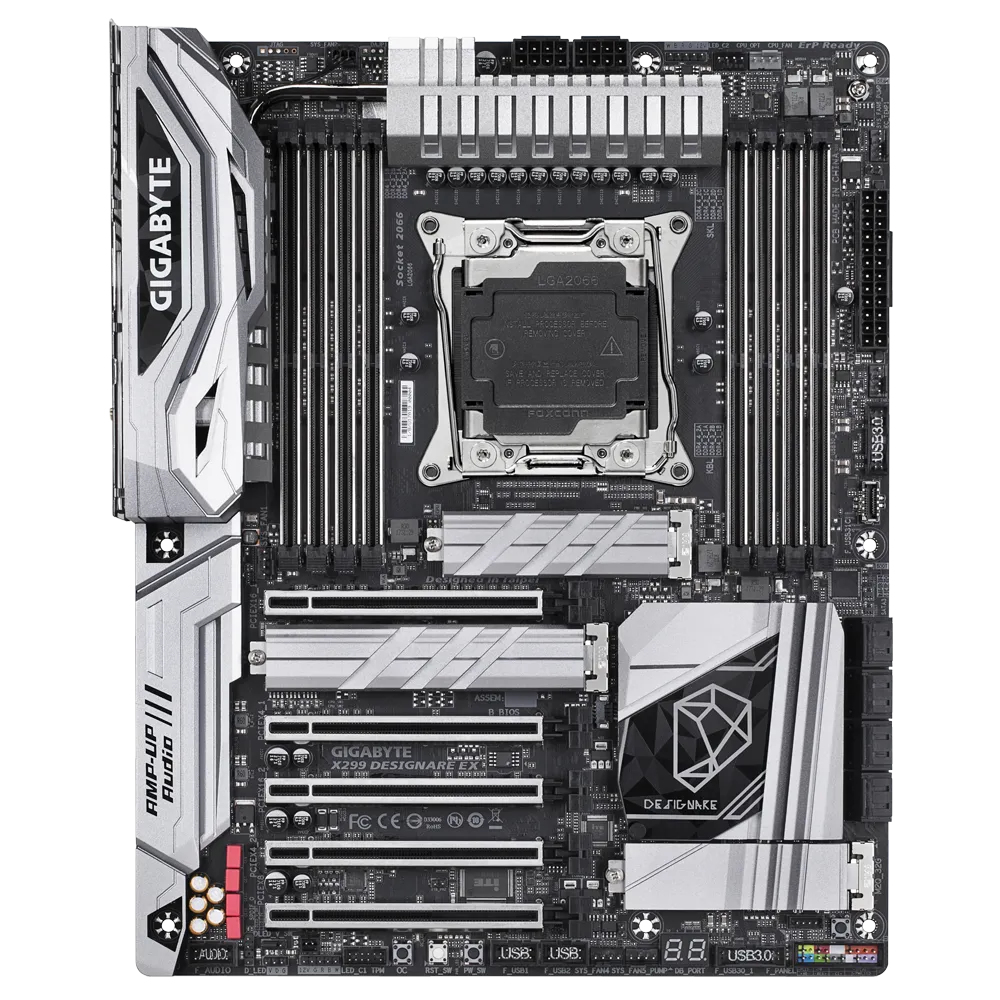

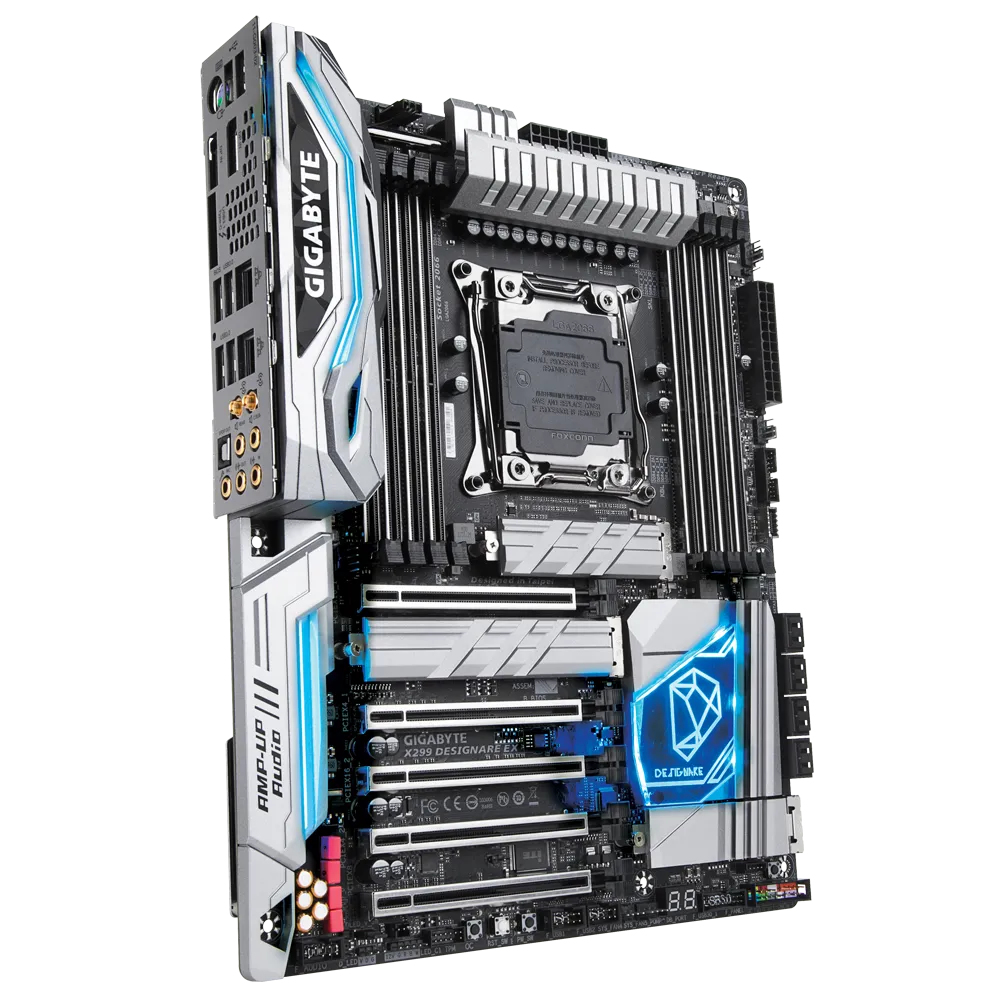

GIGABYTE X299 DESIGNARE EX

GIGABYTE X299 DESIGNARE EX

Model X299 DESIGNARE EXEAN 889523010372

77 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 5, 10
  • Maximum resolution4096 x 2304 pixels
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 5, 10
Maximum resolution
4096 x 2304 pixels
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
X299 DESIGNARE EX
Part number
X299 DESIGNARE EX
EAN / UPC
889523010372, 889523011966, 4719331802493
Also known as
GIGABYTE X299 DESIGNARE EX motherboard Intel® X299 LGA 2066 (Socket R4) ATX

Specifications

77 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2066 (Socket R4)
Compatible processor seriesIntel® Core™ X-series
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2667 MHz
Maximum internal memory128 GB
Unbuffered memoryYes

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI
Maximum resolution4096 x 2304 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors8
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors4
EPS power connector (8-pin)Yes
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
DisplayPorts quantity2
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version4.2

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® X299
Audio chipRealtek ALC1220
Audio output channels7.1 channels
PC health monitoringFan, Temperature, Voltage
Power source typeATX
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64

Expansion slots

PCI Express x16 slots5
Number of M.2 (M) slots3

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS buttonYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes
Trial softwareXSplit Gamecaster + Broadcaster
Bundled softwareNorton Internet Security, cFosSpeed

Other features

RegisteredYes
Quick installation guideYes
