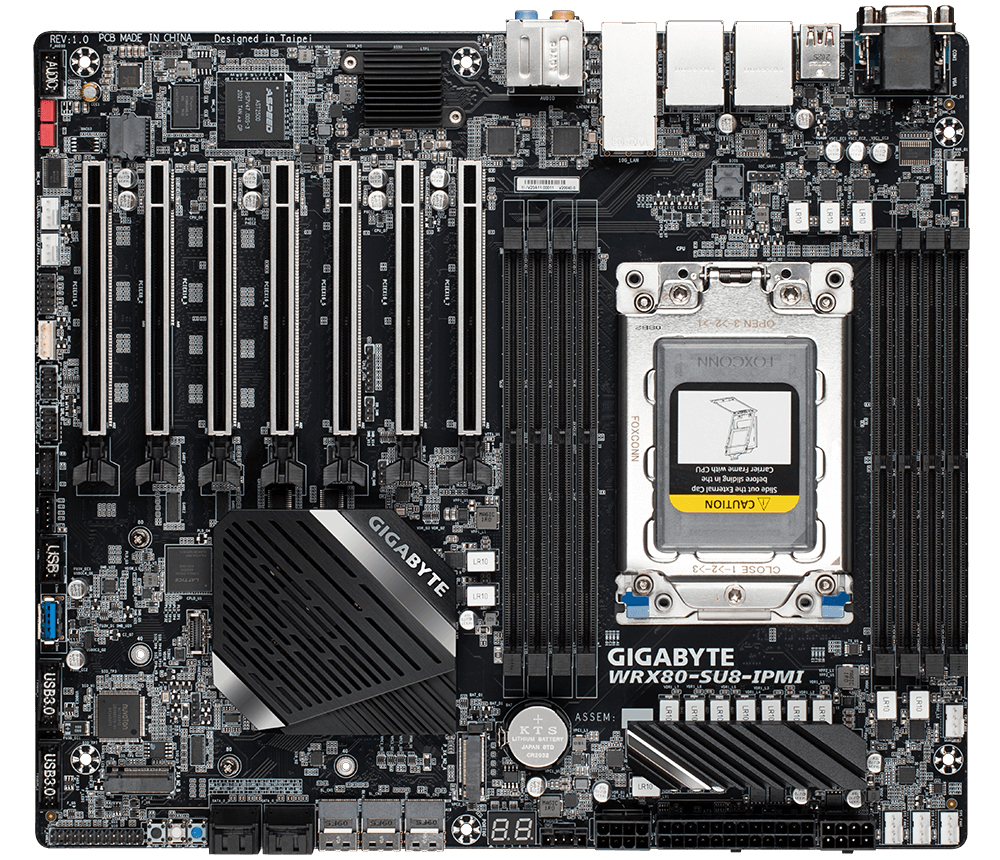

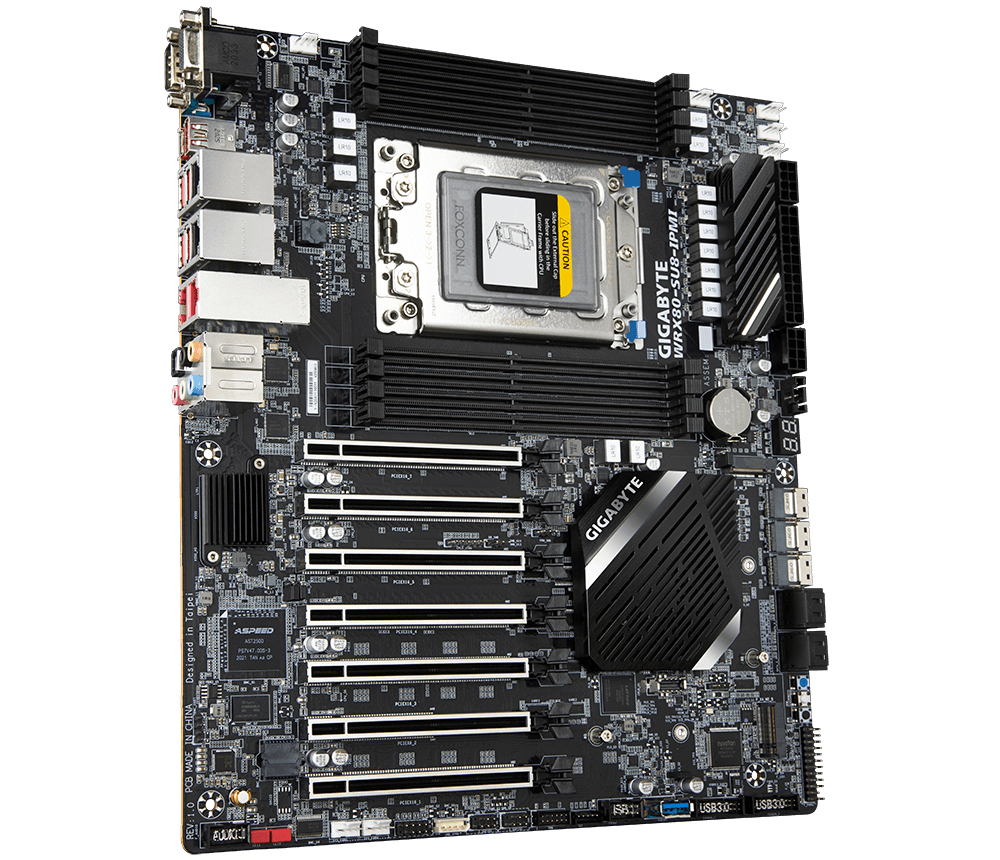

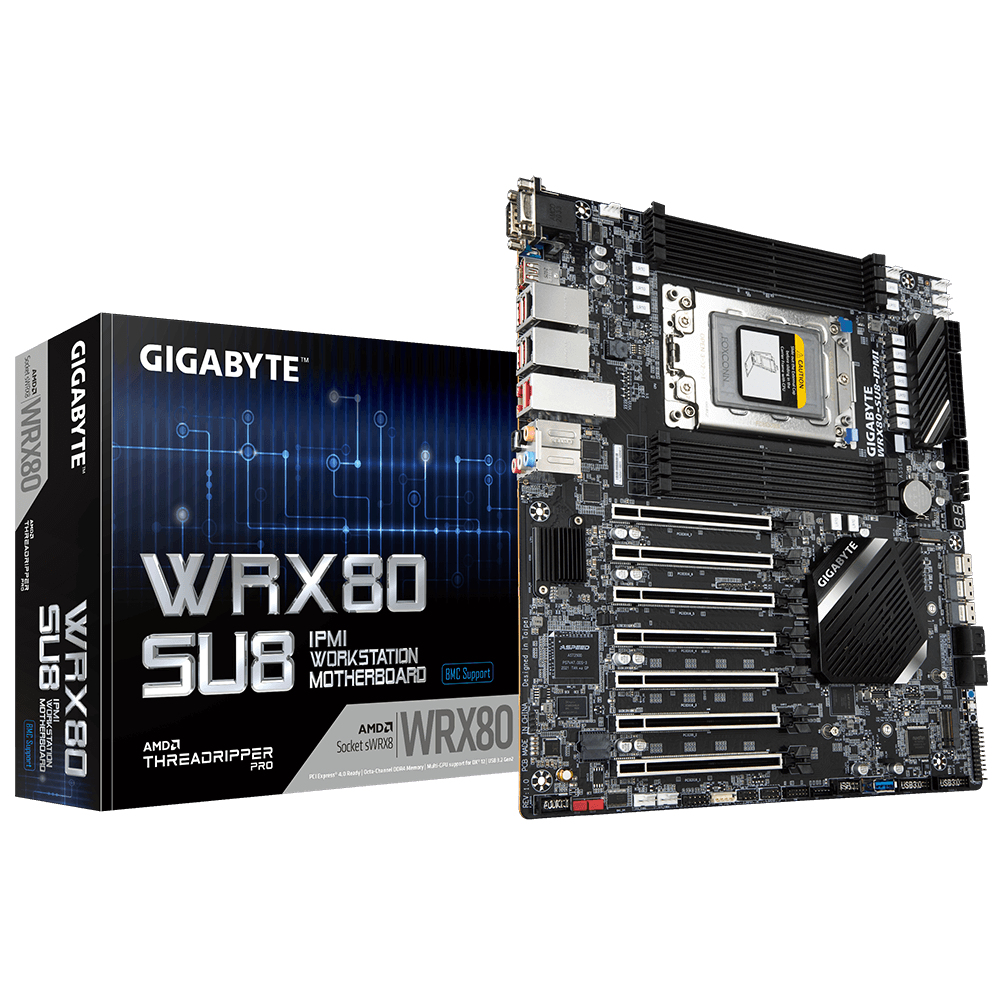

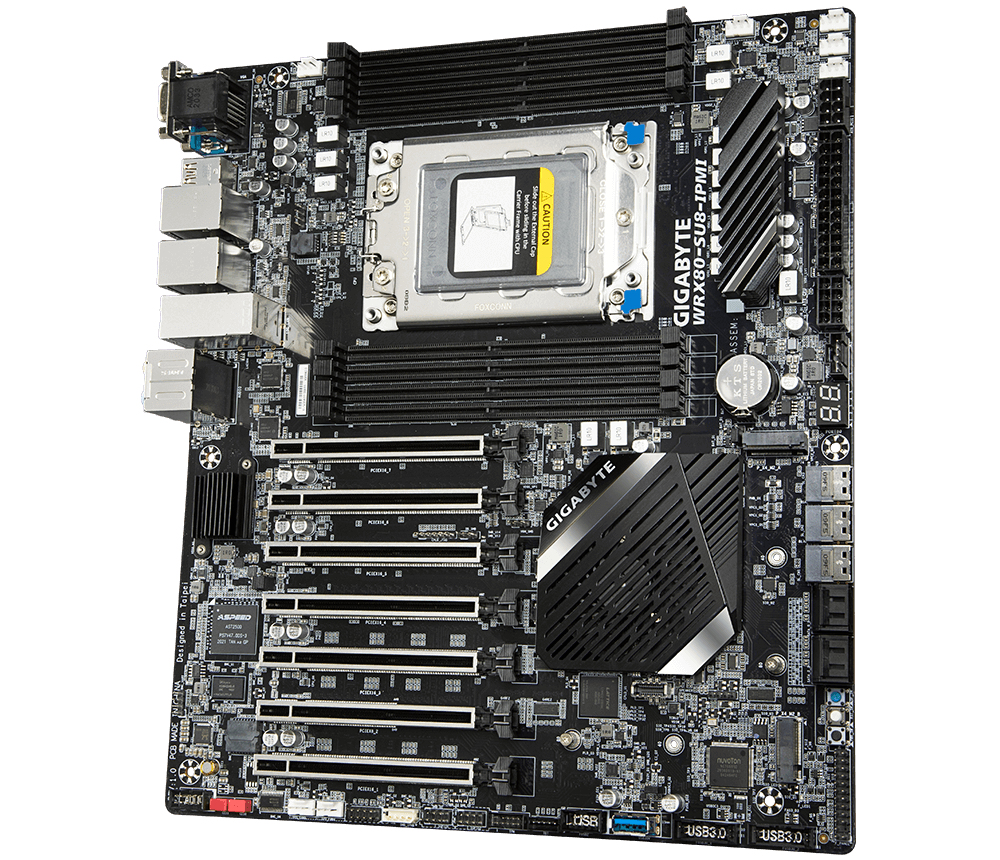

WRX80-SU8-IPMI motherboard AMD WRX80 Socket sWRX8 CEB
Model WRX80-SU8-IPMIEAN 4719331811945
68 specifications
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- Parallel processing technology supportNot supported
- USB 2.0 connectors1
- USB 2.0 ports quantity0
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 0
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- WRX80-SU8-IPMI
- Part number
- WRX80-SU8-IPMI
- EAN / UPC
- 4719331811945
- Also known as
- GIGABYTE WRX80-SU8-IPMI motherboard AMD WRX80 Socket sWRX8 CEB
Specifications
68 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket sWRX8 |
| Compatible processor series | AMD Ryzen Threadripper PRO 3000 WX-Series |
| Processor number of cores supported | 64 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Octa-channel |
| Memory voltage | 1.2 V |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 2600,2933,3200 MHz |
| Maximum RDIMM memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 6 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Integrated SAS ports | 3 |
| Serial port headers | 1 |
| TPM connector | Yes |

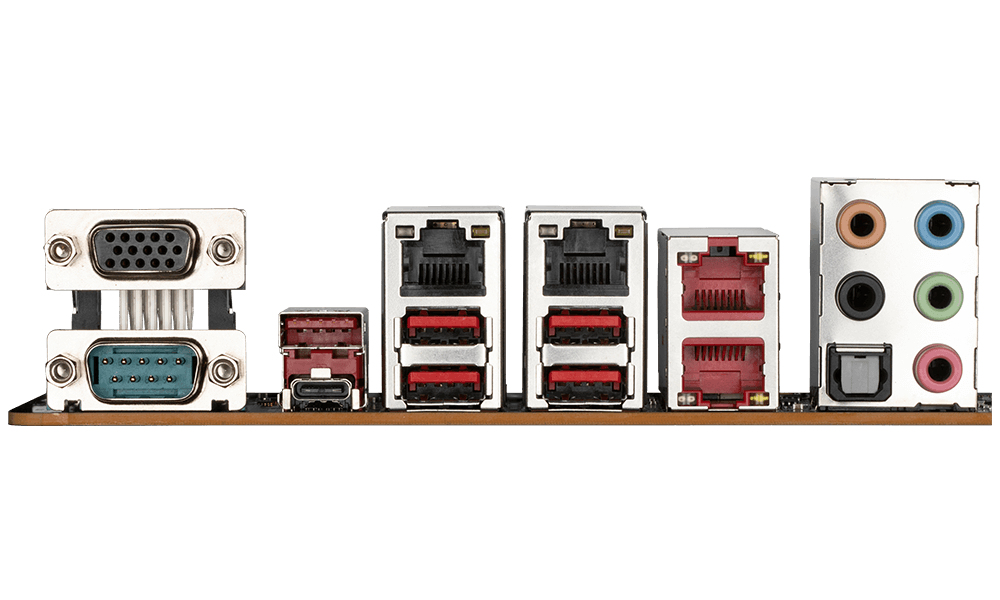

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 5 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| LAN controller | Intel® I210-AT, Intel® X550 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Workstation |
| Motherboard form factor | CEB |
| Motherboard chipset | AMD WRX80 |
| Audio output channels | 7.1 channels |
| Compatible operating systems | Windows 10, Linux |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| PCI Express x16 slots | 7 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 0 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 267 mm |
Other features
| Specification | Value |
|---|---|
| Supported LRDIMM module capacity | 64GB, 128GB |
| Supported LRDIMM clock speeds | 2666,2933 MHz |
| Maximum LRDIMM memory | 128 GB |
| Supported RDIMM clock speeds | 2666,2933,3200 MHz |
| Supported RDIMM module capacity | 8GB, 16GB, 32GB, 64GB |
| Number of DIMM slots | 8 |
| Number of processors supported | 1 |
| Thermal Design Power (TDP) | 280 W |
