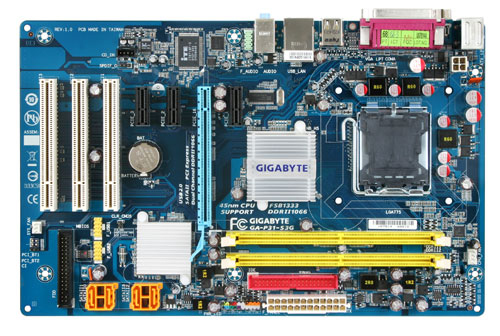

GIGABYTE P31-S3G Socket 775 P31
Model P31-S3G Socket 775 P31Part no. GA-P31-S3GEAN 818313004734
38 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8111B
- Motherboard form factorATX
- PCI Express x1 slots3
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8111B
- Motherboard form factor
- ATX
- PCI Express x1 slots
- 3
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- P31-S3G Socket 775 P31
- Part number
- GA-P31-S3G
- EAN / UPC
- 818313004734, 4719331838140
- Also known as
- GIGABYTE P31-S3G Socket 775 P31 LGA 775 (Socket T) ATX
Specifications
38 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows Vista / XP / 2000 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 194 mm |
Packaging content
| Specification | Value |
|---|---|
| Trial software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE P31-S3G Socket 775 P31
No reviews yet
Be the first to tell others how GIGABYTE P31-S3G Socket 775 P31 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE P31-S3G Socket 775 P31

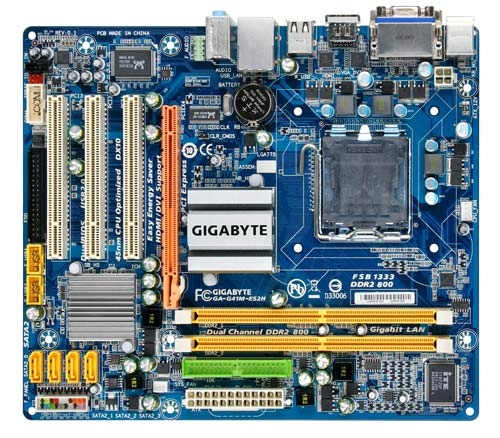

All motherboard comparisons- GIGABYTE P31-S3G Socket 775 P31 vsGIGABYTE GA-G41M-ES2H motherboard LGA 775 (Socket T) micro ATXCompare specs
- GIGABYTE P31-S3G Socket 775 P31 vsGIGABYTE GA-MA790GPT-UD3H motherboard AMD 790GX Socket AM3 ATXCompare specs
- GIGABYTE P31-S3G Socket 775 P31 vsGIGABYTE GA-MA74GM-S2H rev. 3.0Compare specs
- GIGABYTE P31-S3G Socket 775 P31 vsGIGABYTE GA-P55M-UD2 motherboard LGA 1156 (Socket H) micro ATXCompare specs
- GIGABYTE P31-S3G Socket 775 P31 vsMSI P55-GD80 Intel® P55 LGA 1156 (Socket H) ATXCompare specs
- GIGABYTE P31-S3G Socket 775 P31 vsASUS P7P55D PROCompare specs

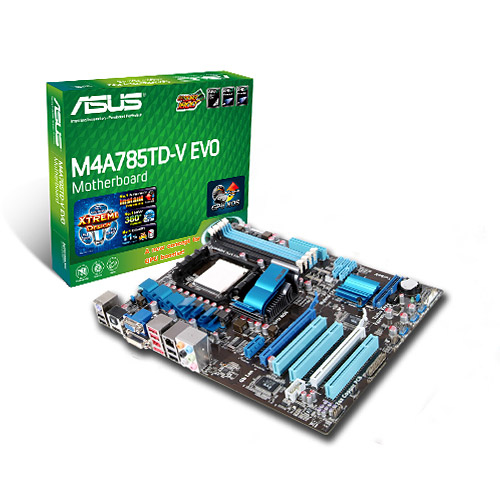

- GIGABYTE P31-S3G Socket 775 P31 vsASUS M4A785TD-V EVOCompare specs
