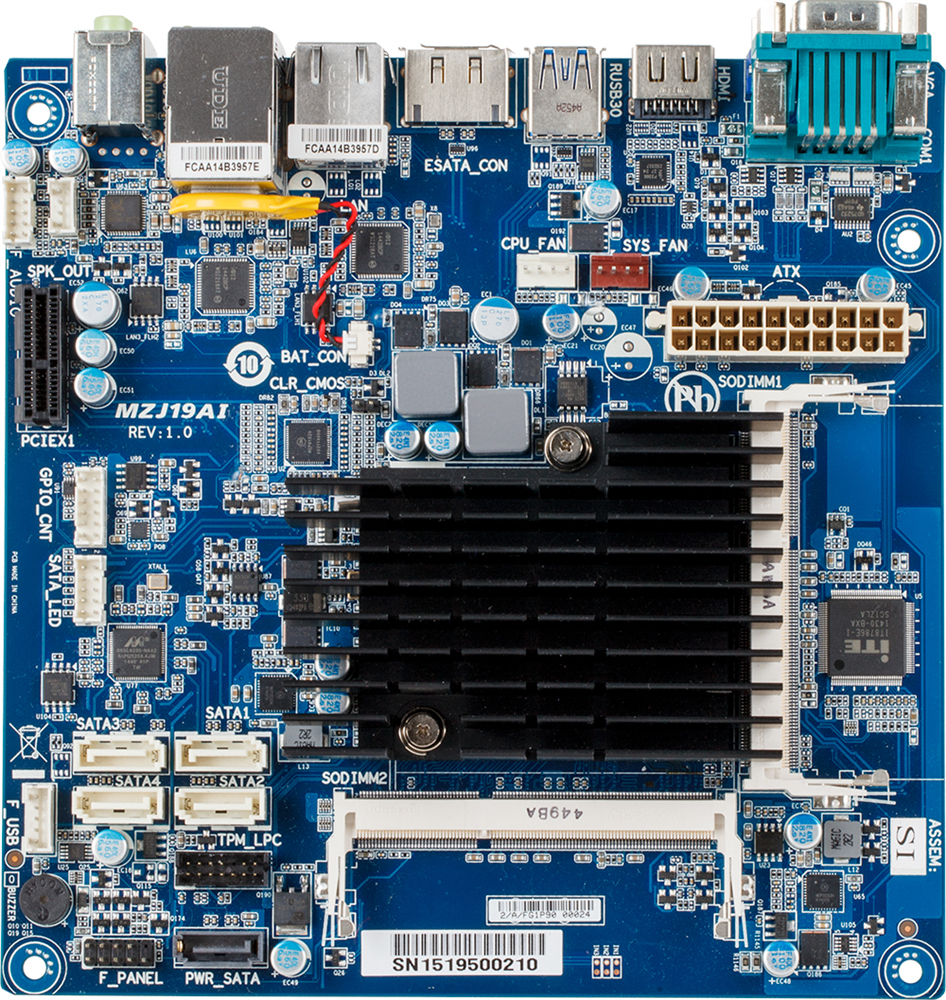

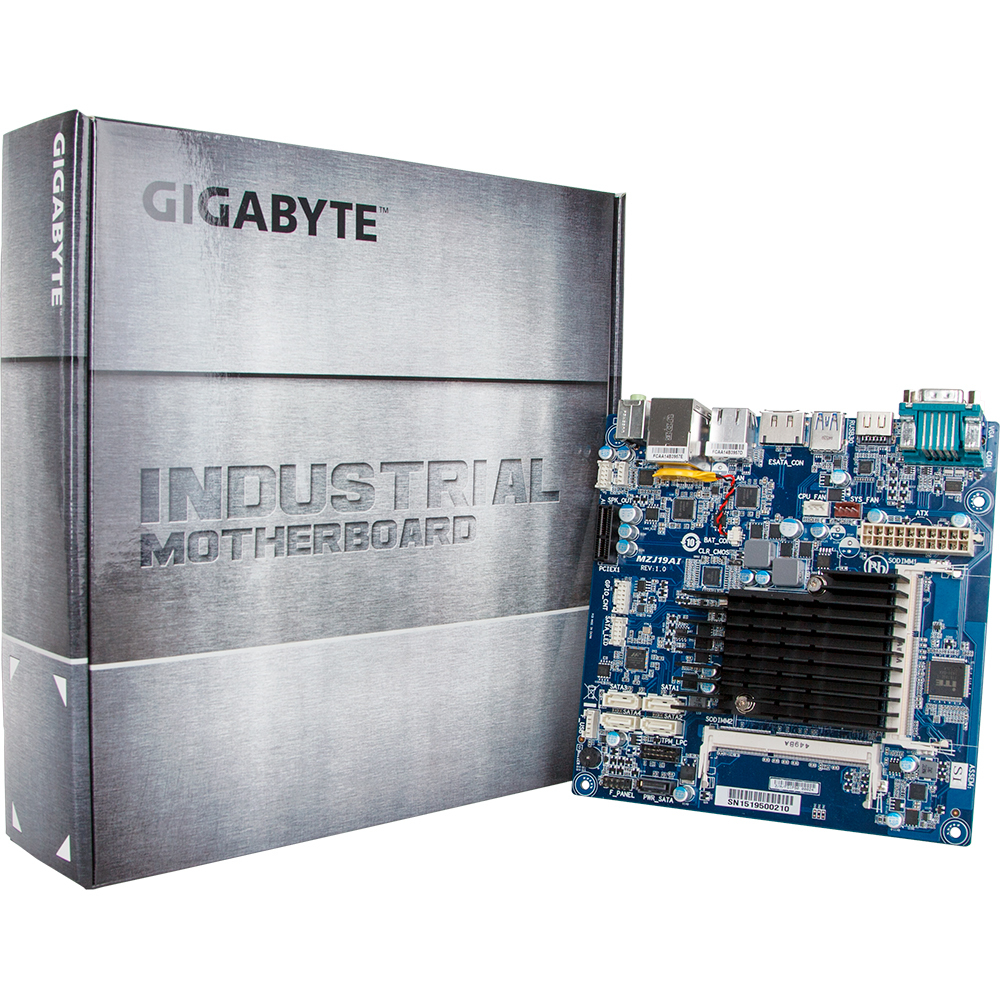

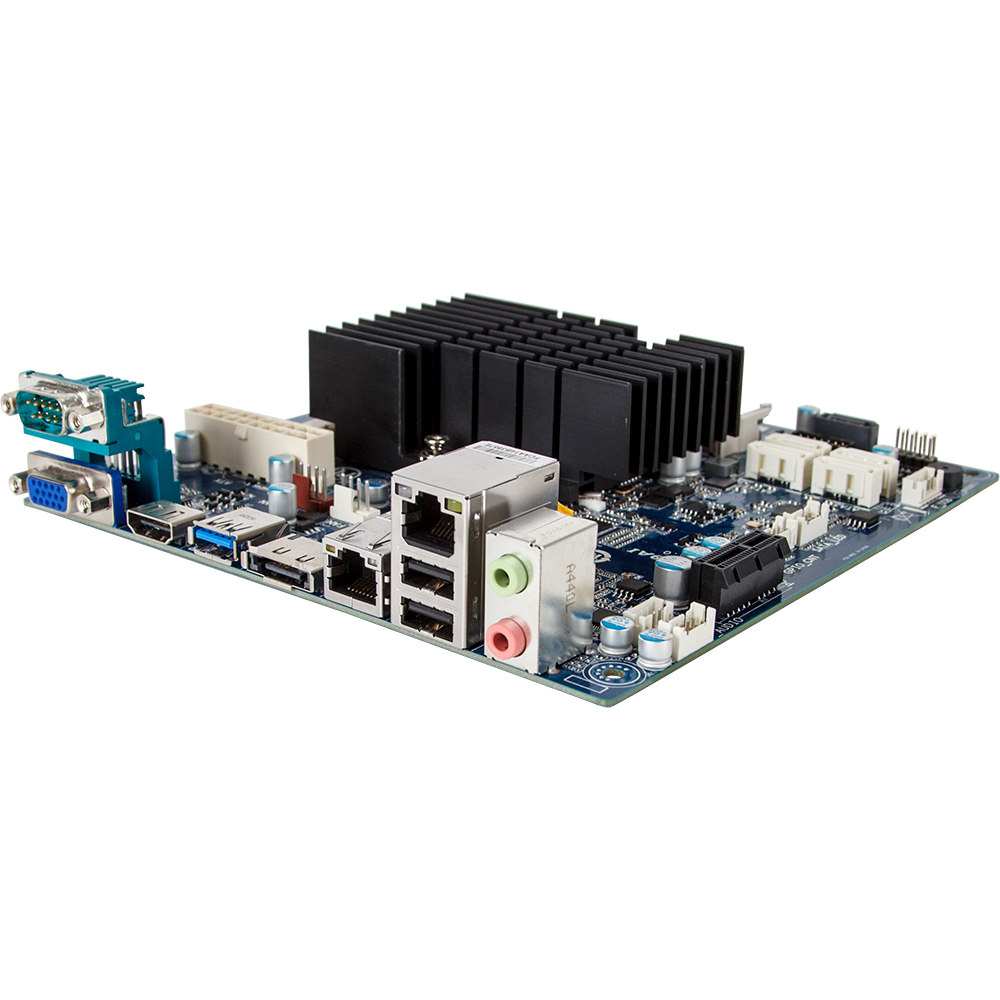

GIGABYTE MZJ19AI BGA 1170 mini ITX

GIGABYTE MZJ19AI BGA 1170 mini ITX

Model MZJ19AIPart no. 9MZJ19AINR-SI

73 specifications
  • ProcessorJ1900
  • Processor manufacturerIntel
  • Supported memory typesDDR3L-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors1
See all specifications

Overview

Processor
J1900
Processor manufacturer
Intel
Supported memory types
DDR3L-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Parallel processing technology support
Not supported
USB 2.0 connectors
1
Brand
GIGABYTE
Category
Motherboard
Model
MZJ19AI
Part number
9MZJ19AINR-SI
Also known as
GIGABYTE MZJ19AI BGA 1170 mini ITX

Specifications

73 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketBGA 1170
Compatible processor seriesIntel® Celeron®
Maximum number of SMP processors1
Processor modelJ1900
Processor cores4
Processor thermal power (max)10 W

Memory

Supported memory typesDDR3L-SDRAM
Number of memory slots2
Memory slots typeSO-DIMM
Memory channelsDual-channel
Memory voltage1.35 V
Supported memory clock speeds1333 MHz
Maximum internal memory8 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III

Graphics

Parallel processing technology supportNot supported
On-board graphics cardYes
Graphics card familyIntel
Graphics cardHD Graphics
Maximum resolution2560 x 1600 pixels

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors1
Number of SATA connectors5
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
TPM connectorYes

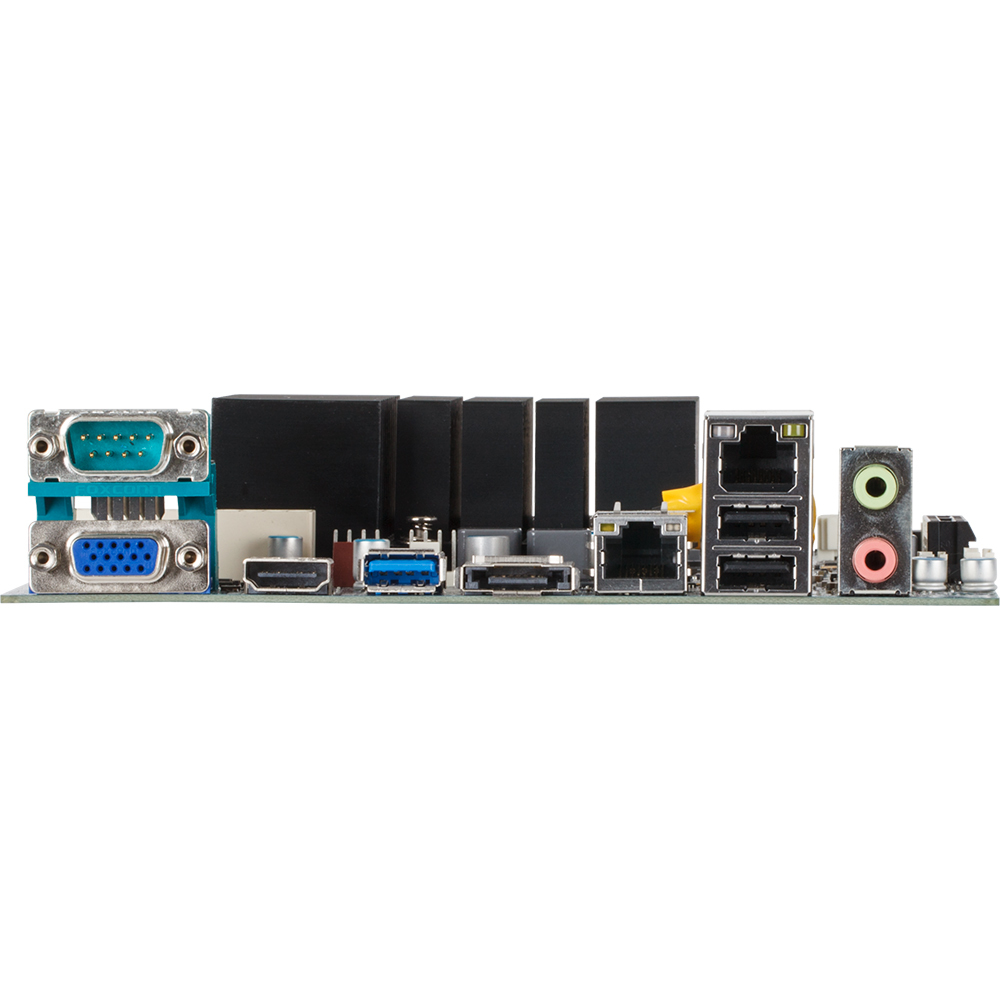

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports2
eSATA ports quantity1
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.4a
DVI-D ports quantity0
DVI-I ports quantity0
Headphone outputs1
Microphone inYes
Serial ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel I210

Features

Component forMini PC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Audio chipRealtek ALC269
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 7, Windows 8, Windows 8.1

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI slots0
PCI-X slots0

Processor special features

Trusted Platform Module (TPM)Yes

Operational conditions

Storage temperature (T-T)0 - 50 °C
Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width170 mm
Depth170 mm

Other features

AGP x4 slots0
AGP x8 slots0
Processor familyIntel® Celeron®
Processor frequency2 GHz
