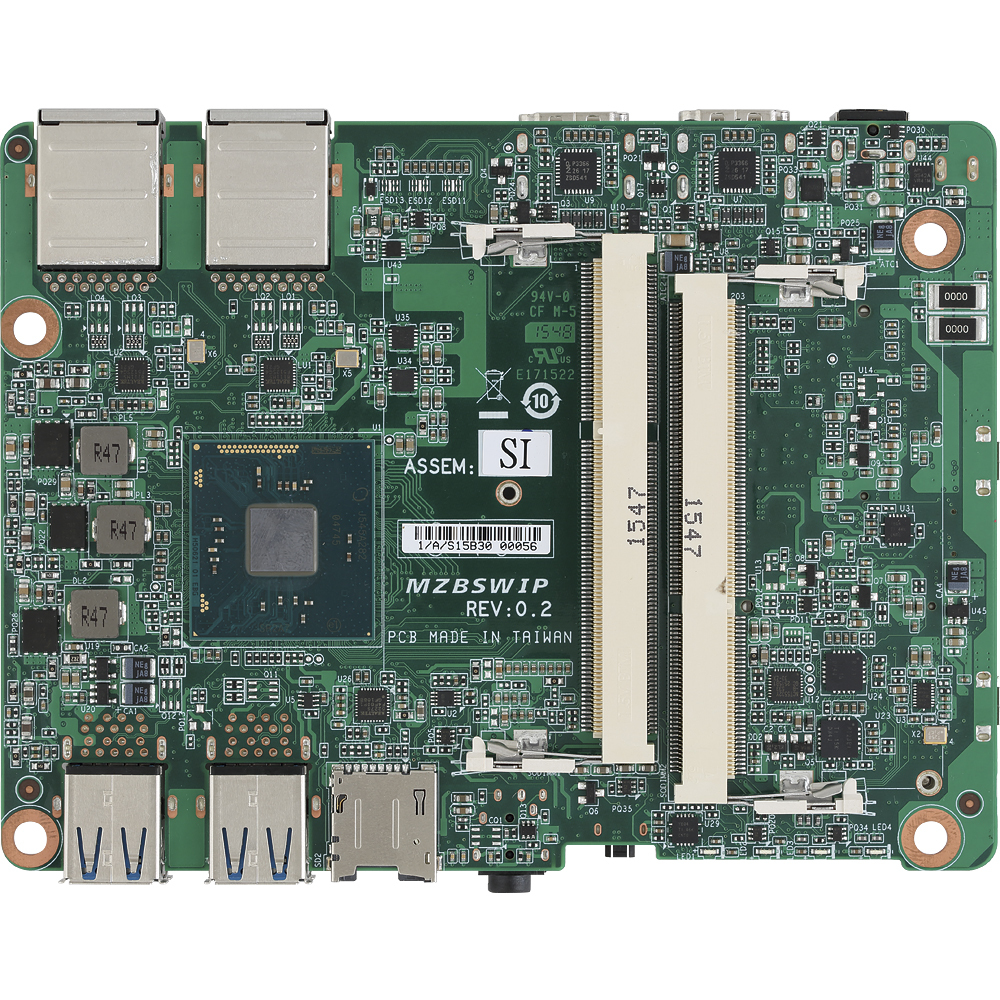

GIGABYTE MZBSWHP BGA 1170 -, Proprietary
Model MZBSWHPPart no. 9MZBSWHPNR-SI
78 specifications
- ProcessorIntel® Celeron®
- Processor manufacturerIntel
- Supported memory typesDDR3L-SDRAM
- Number of HDDs supported1
- Parallel processing technology supportNot supported
- Ethernet LANYes
Overview
- Processor
- Intel® Celeron®
- Processor manufacturer
- Intel
- Supported memory types
- DDR3L-SDRAM
- Number of HDDs supported
- 1
- Parallel processing technology support
- Not supported
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MZBSWHP
- Part number
- 9MZBSWHPNR-SI
- Also known as
- GIGABYTE MZBSWHP BGA 1170 -, Proprietary
Specifications
78 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | BGA 1170 |
| Compatible processor series | Intel® Celeron® |
| Maximum number of SMP processors | 1 |
| Processor cores | 2 |
| Processor thermal power (max) | 6 W |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3L-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory voltage | 1.35 V |
| Supported memory clock speeds | 1333,1600 MHz |
| Maximum internal memory | 8 GB |
| Flash memory | 8000 MB |
Storage controllers
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 3840 x 2160 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 1 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 1 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | No |
| 12V power connector | Yes |
| Serial port headers | 2 |
| TPM connector | Yes |
| Thunderbolt headers | 0 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 1 |
| USB connector type | Micro-USB B, USB Type-A |
| Compatible memory cards | SDXC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111HS |
Features
| Specification | Value |
|---|---|
| Component for | Mini PC |
| Motherboard form factor | -, Proprietary |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC255 |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Power source type | ATX, DC |
| DC input voltage | 12 - 19 V |
| Linux operating systems supported | Ubuntu 15.10, Ubuntu 16.04 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Expansion slots
| Specification | Value |
|---|---|
| Mini PCI Express slot (full length) | 1 |
| Mini PCI Express slot (half-length) | 1 |
| PCI slots | 0 |
| PCI-X slots | 0 |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | 0 - 50 °C |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101 mm |
| Depth | 135 mm |
Other features
| Specification | Value |
|---|---|
| mSATA ports quantity | 0 |
| Combo headphone/mic port | Yes |
| AGP x4 slots | 0 |
| AGP x8 slots | 0 |
| Embedded DisplayPorts (eDP) quantity | 1 |
| Processor family | Intel® Celeron® |
| Processor frequency | 1.6 GHz |
